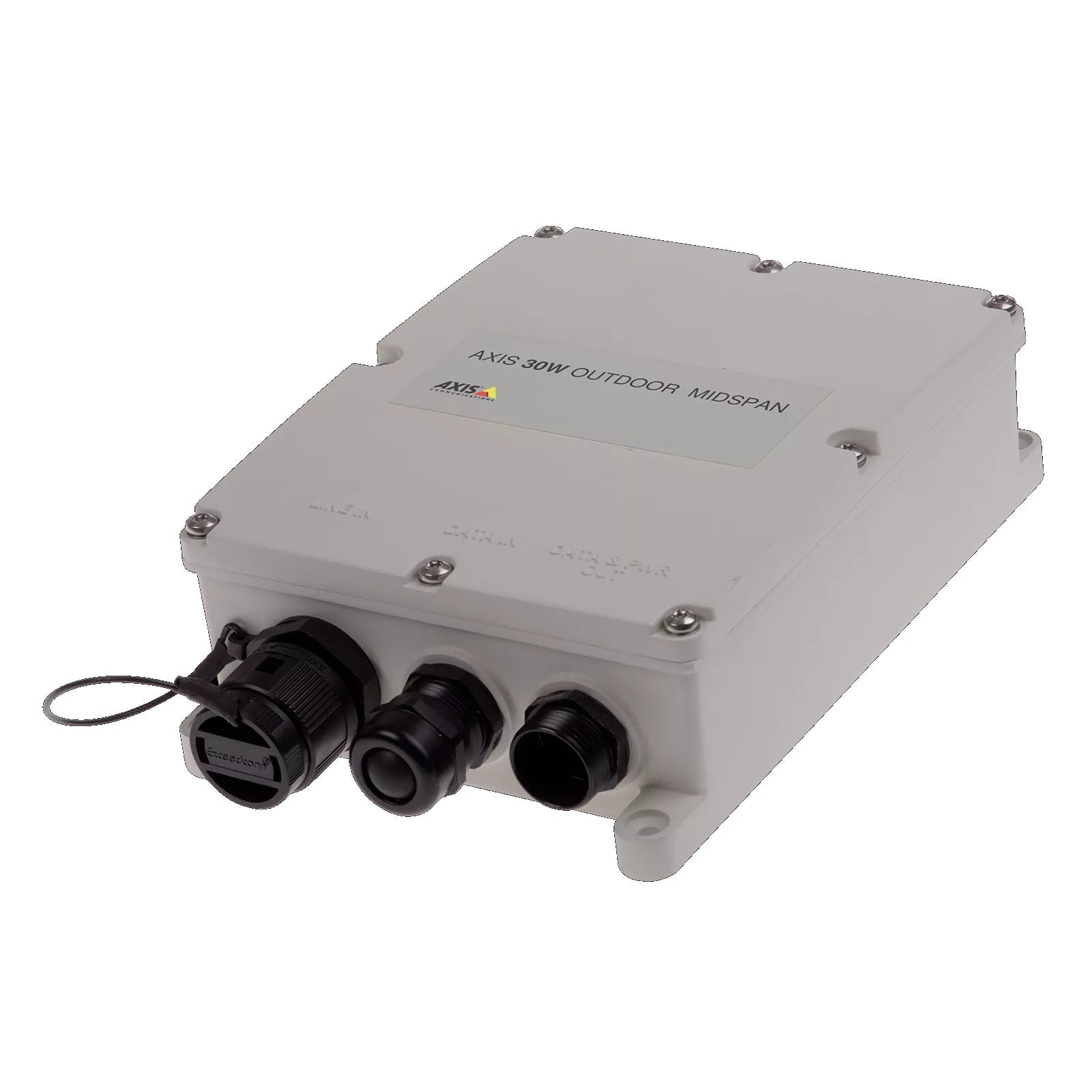

AXIS 30W Outdoor PoE Midspan | 01944-001
- Sku: 01944-001
- Vendor: SecurityAustralia
Built as a midspan power injector for outdoor PoE deployments, the AXIS 30W Outdoor PoE Midspan delivers 30W of IEEE-compliant power to a single connected device without requiring a PoE-capable switch. Designed to withstand outdoor conditions, it suits installers needing a reliable, weatherproof power solution for AXIS cameras or other PoE equipment mounted in exposed locations.
Why This Model
- Outdoor-rated build: Weatherproof construction means the midspan can be installed close to the camera at the mounting point, removing the need to run power separately from an indoor switch.
- 30W power output: Delivers enough power for high-demand PoE devices including PTZ cameras and multi-sensor units, avoiding underpowering issues common with lower-wattage injectors.
- No PoE switch required: Allows a standard non-PoE network switch to power connected devices, making it a cost-effective solution when upgrading or extending an existing network infrastructure.
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
Model: 01944-001
Who This Is For
For installers and integrators who need to power an outdoor Axis camera from a switch or network port that does not supply PoE, the AXIS 30W Outdoor PoE Midspan is the clean infrastructure solution. Rather than replacing an existing non-PoE switch or running a separate power cable to the mounting location, this midspan injector sits in line between the network port and the camera, delivering up to 30W of power through the same Cat cable carrying data. It is purpose-built for outdoor deployment, so it can be installed in external enclosures, wall-mount locations, or junction boxes without needing to route the powered device back indoors to a protected rack. Particularly useful on sites where a single camera location requires a power upgrade without disrupting the rest of the network infrastructure.
What This Midspan Actually Does
Adds PoE to a Non-PoE Port
Injects up to 30W of power into an existing Cat cable run without replacing the switch. Data passes straight through while power is added in line, making it a practical upgrade path when one or two camera locations need PoE that the existing switch cannot supply.
30W Output for Higher-Draw Cameras
At 30W, this midspan covers cameras that exceed the 15.4W ceiling of standard PoE (802.3af). Axis cameras with integrated IR illuminators, heaters, or audio components that fall under the PoE+ power budget are supported without a separate power supply.
Outdoor-Rated Housing
Designed for installation outside the controlled environment of a comms room. The outdoor-rated construction means it can be mounted close to the camera - in an external enclosure or protected wall position - reducing cable runs and keeping the installation tidy without compromising the unit.
Single-Port Precision
A single-port midspan suits targeted upgrades - powering one specific camera position without the overhead of a multi-port switch. Ideal when the rest of the site is already covered and only one location needs power added to an existing data run.
Who Buys This Model
- Security Integrators Retrofitting Cameras: Adding an Axis camera to a site where the existing network switch has no PoE capability, avoiding a full switch replacement for a single camera position.
- IT Teams Expanding Camera Coverage: Network administrators who want to extend coverage to an outdoor location using existing structured cabling infrastructure, without reconfiguring the core network stack.
- Axis Camera Installers Powering Higher-Draw Devices: Installers specifying Axis cameras that require more than standard 802.3af power and need a reliable 30W source positioned close to the camera mounting point.
- Site Managers on Mixed Infrastructure Sites: Facilities or operations staff managing sites with a combination of PoE and non-PoE network ports, using midspans to fill gaps without capital expenditure on new switching hardware.
Honest Assessment
The AXIS 30W Outdoor PoE Midspan does one job well: it delivers reliable PoE power to an outdoor camera location without requiring a new switch. The 30W output covers the majority of current Axis fixed and thermal cameras that sit within the PoE+ power budget. The outdoor-rated build means it can be installed at or near the camera mounting point, which is its primary advantage over an indoor-only midspan that would require the cable to return to a protected enclosure. Where this unit is not the right tool is on sites requiring power for multiple camera positions simultaneously - a managed PoE switch with sufficient per-port budget will be more cost-effective at scale. It is also not a UPS or surge protection device; sites in areas prone to lightning or power transients should pair it with appropriate surge protection on the cable runs. Available through Security Australia as part of the broader Axis accessories range.
Before You Buy
Installer Note: Confirm the actual power draw of the Axis camera being connected before specifying this midspan. The 30W output covers most PoE+ cameras, but high-power PTZ or multi-sensor units with internal heating elements may exceed this budget. Check the camera's maximum PoE power consumption in its datasheet - not just the typical draw - to avoid unexpected shutdowns in cold weather when heaters activate and peak draw increases.
Installation Note: As a midspan, this unit requires its own mains power connection at the installation point in addition to the incoming data cable. Verify that a 240V mains feed is accessible at or near the intended mounting location before finalising your cable routing plan - this is the most common oversight when specifying a midspan for an outdoor location.
Quick Fit Check
- Good match if: You need to power a single outdoor Axis camera from a non-PoE switch port and the camera's maximum draw falls within 30W, and a mains connection is available near the mounting point.
- Good match if: You are retrofitting a camera to an existing Cat cable run in an outdoor environment where routing the cable back to an indoor PoE switch is impractical or would exceed recommended cable lengths.
- You may need a different model if: You are powering 4 or more cameras from the same location - a managed PoE switch with multiple ports will be more practical and cost-effective at that scale, and Security Australia stocks a range of PoE switching options.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: You need to add PoE power at a single outdoor camera location without replacing switching infrastructure, and a local mains connection is available at or near the mounting point.
- You may need a different model if: You are powering 4 or more outdoor cameras from the same location - a multi-port managed PoE switch will be more practical and cost-effective, and Security Australia carries a range of PoE switching solutions suited to camera infrastructure.
- Pairs well with: Axis outdoor fixed cameras and turret cameras drawing within the PoE+ power budget, particularly at remote or gate-mounted locations where returning cable to a central switch is impractical.
Common Questions
-
Will this midspan work with any Axis camera or only specific models?
It works with any Axis camera that operates within a 30W PoE power budget. The midspan is not limited to a single camera model - it is compatible with the broad range of Axis PoE and PoE+ powered devices that draw at or below 30W. Always verify the specific camera's maximum power consumption in its datasheet before connecting. -
Does this midspan pass data through without affecting network performance?
Yes. A midspan injector is a pass-through device for data - it adds power to the cable without processing or inspecting network traffic. The Ethernet data signal passes from your switch port to the camera unaltered, so there is no impact on network speed, latency, or VLAN configuration. -
Can I install this midspan outside in a weatherproof enclosure?
Yes. This unit is specifically rated for outdoor deployment, which is its primary advantage over standard indoor midspans. It is designed to be mounted in external enclosures, wall boxes, or protected outdoor positions close to the camera - reducing cable run distance and avoiding the need to route back to an indoor comms room. -
Does this midspan require a mains power connection of its own?
Yes. A midspan injector draws mains AC power at the installation point and converts it to PoE DC power delivered over the Cat cable. It is not self-powered from the network - a 240V mains connection must be available at or near the mounting location. This is a critical planning consideration for outdoor installations without existing mains access. -
Will this work for a camera that draws more than 30W - such as a large PTZ?
No. If the camera's maximum power draw exceeds 30W, this midspan is not suitable. High-power PTZ cameras and multi-sensor units with built-in heating can exceed 30W under peak conditions. For those applications, a PoE++ (802.3bt) capable switch or injector with a higher per-port power budget is required. -
Does this unit provide any surge protection for the connected camera?
No. The AXIS 30W Outdoor PoE Midspan is a power injection device, not a surge protection device. On outdoor cable runs exposed to lightning risk or power transients, separate surge protection arrestors should be installed on the Cat cable at both the midspan and camera ends as part of the overall installation design.
