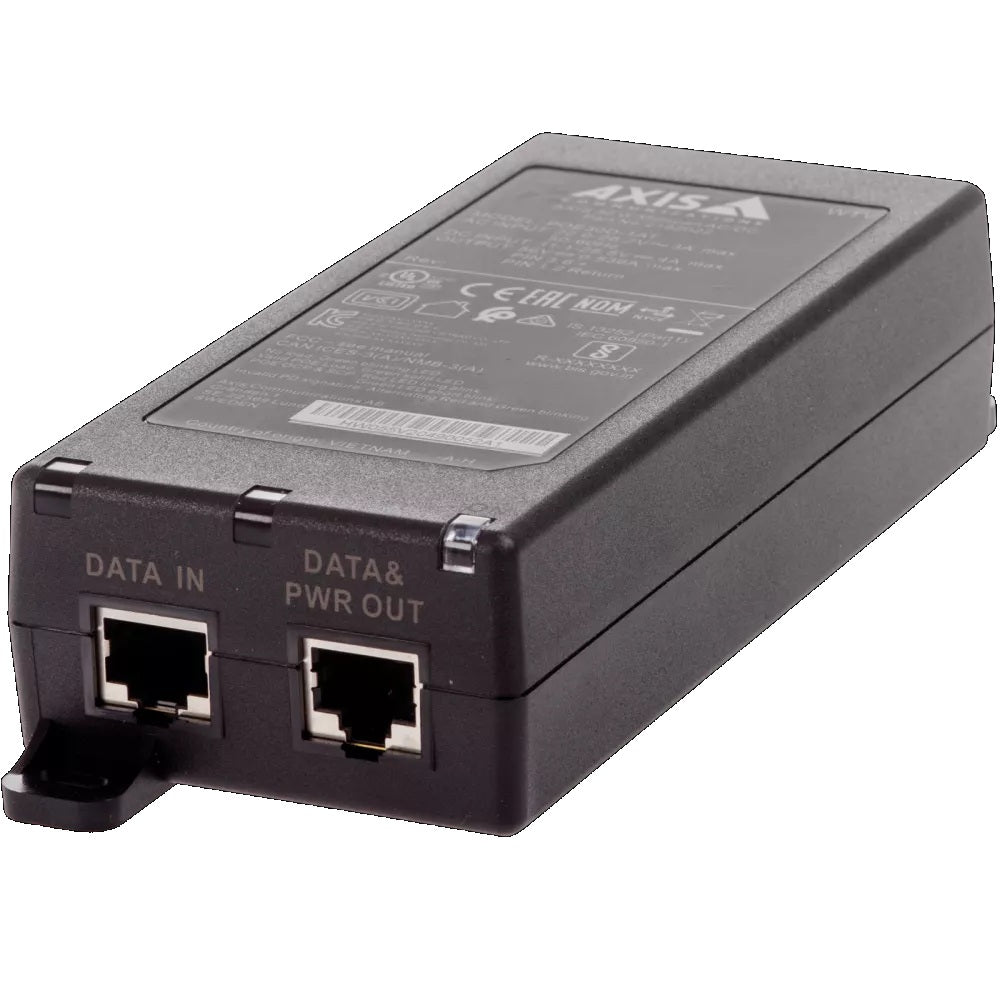

AXIS 30 W MIDSPAN AC/DC POWER OVER ETHERNET

Model: AXIS 30 W Midspan

Who This Is For

Property managers specifying AXIS IP cameras or other PoE-dependent devices into locations where the existing network switch does not deliver Power over Ethernet will find the AXIS 30W Midspan AC/DC a direct solution to that gap. Rather than replacing a working switch or pulling additional power cabling, this midspan unit sits between the switch and the powered device, injecting up to 30W of PoE power onto the same Cat5e or Cat6 cable that carries the network signal. The AC/DC input flexibility makes it practical in both standard mains-powered comms rooms and in installations where a DC supply is already available - such as cabinet-based field enclosures or solar-backed remote sites. It is a single-port device suited to targeted deployments where one or a small number of devices need power added without a full infrastructure upgrade.

What This Actually Does

Who Buys This Model

• Security integrators retrofitting AXIS cameras: Adding a camera to an existing non-PoE switch port without replacing switch hardware - the midspan enables a single cable to the camera location.
• IT administrators expanding surveillance to isolated areas: Remote comms cabinets or rooftop enclosures where a DC power rail is available but no mains outlet is practical - the AC/DC input handles both scenarios.
• Facilities teams managing staged upgrades: Organisations rolling out PoE cameras gradually across a large site, using per-port midspans to activate devices one at a time without committing to a full PoE switch replacement across every closet.
• AXIS access control installers: Door controllers and intercoms in the AXIS range often require PoE+ class power budgets. A 30W midspan meets that requirement at a single door location without a full panel change.

Honest Assessment

The AXIS 30W Midspan AC/DC does one thing well: it solves the immediate problem of needing PoE power at a single port without touching the wider network infrastructure. The 30W output covers the majority of AXIS cameras and many AXIS access control devices. The AC/DC input flexibility adds genuine practical value for field cabinet and remote-site work where power source type is not always controlled. Where this unit will not serve you well is in multi-port deployments - if you need to power 4 or more devices from a single location, a managed PoE switch will be significantly more cost-effective and easier to manage. It is also a single-port solution only, so scaling requires purchasing multiple units. If your existing switch already supports PoE or PoE+, this midspan adds no value and is not needed. Available through Security Australia, it suits targeted single-device deployments where infrastructure change is not practical.

Before You Buy

Quick Fit Check

• Good match if: You have a non-PoE switch and need to power a single AXIS camera or access control device without replacing switch hardware - the 30W midspan slots inline between switch and device on the existing Cat cable run.
• Good match if: Your installation site has a DC power supply available rather than a standard AC outlet - the AC/DC dual input means you can power the midspan directly from the DC bus without an additional converter.
• You may need a different model if: You are powering 4 or more devices from one location - a PoE or PoE+ managed switch will deliver better value and centralised power management than multiple single-port midspans. Browse the PoE switch range on securityaustralia.com.au for multi-port options.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need to power a single AXIS device from a non-PoE switch port and either a DC supply is available or you want to avoid network infrastructure changes - the 30W AC/DC midspan handles both scenarios in one unit.
• You may need a different model if: You are powering 4 or more PoE devices at a single location - a multi-port PoE managed switch delivers centralised power management, per-port control, and better cost efficiency than multiple single-port midspans. See the switch range on securityaustralia.com.au.
• Pairs well with: AXIS network cameras, AXIS access control door controllers, and AXIS network intercoms that operate within a 30W power budget on Cat5e or Cat6 cabling.

Common Questions

1. Will this midspan work with any PoE camera or only AXIS devices?

   It will power any standard PoE or PoE+ device, not only AXIS cameras. The midspan injects power according to the PoE negotiation standard, so any compliant device connected to the powered port will receive power. However, it is designed, tested, and warranted within the AXIS Communications product ecosystem, and AXIS support will be most straightforward when used with AXIS devices.

2. Does the 30W output support PoE+ devices or only standard PoE?

   Yes, 30W covers IEEE 802.3at PoE+ devices. Standard PoE (802.3af) devices draw up to 15.4W at the port, while PoE+ devices draw up to 30W. This midspan's 30W output meets the PoE+ ceiling, making it suitable for higher-power AXIS cameras, multi-sensor units, and access control hardware that requires more than standard PoE can deliver.

3. Will this work if my existing switch already has PoE ports?

   No - if your switch already delivers PoE to the port the camera is connected to, adding a midspan provides no benefit and is not required. The AXIS 30W Midspan is specifically for situations where the connected switch port does not supply PoE power. Using a midspan on an already-powered port creates a conflict and should be avoided.

4. Does the AC/DC input mean I can run this from a 12V or 24V DC supply?

   Possibly, but the specific DC input voltage range must be confirmed against the AXIS 02208-001 datasheet before connecting to any DC supply. The product accepts DC input as confirmed in its product name, but the permissible voltage range is not stated in available product data. Connecting an out-of-range DC supply can damage the unit. Download the datasheet from the AXIS Communications website or contact Security Australia to confirm DC input specifications before installation.

5. Does installing this midspan affect network speed or VLAN settings on the connected port?

   No. A midspan operates transparently at the physical layer - it adds power to the cable but passes all data through unmodified. Your switch still controls the port's VLAN assignment, speed negotiation, and QoS policies exactly as before. The camera or device appears on the network identically to how it would if connected directly to a PoE switch port.

6. What is the maximum cable length supported between the midspan and the powered device?

   Standard PoE cabling rules apply - the maximum recommended run for Cat5e or Cat6 between the midspan and the connected device is 100 metres. This is the same limit as standard Ethernet and PoE infrastructure. If your run exceeds this, a PoE extender will be required before reaching the camera or device.

Downloads & Resources

No downloads available for this product.
