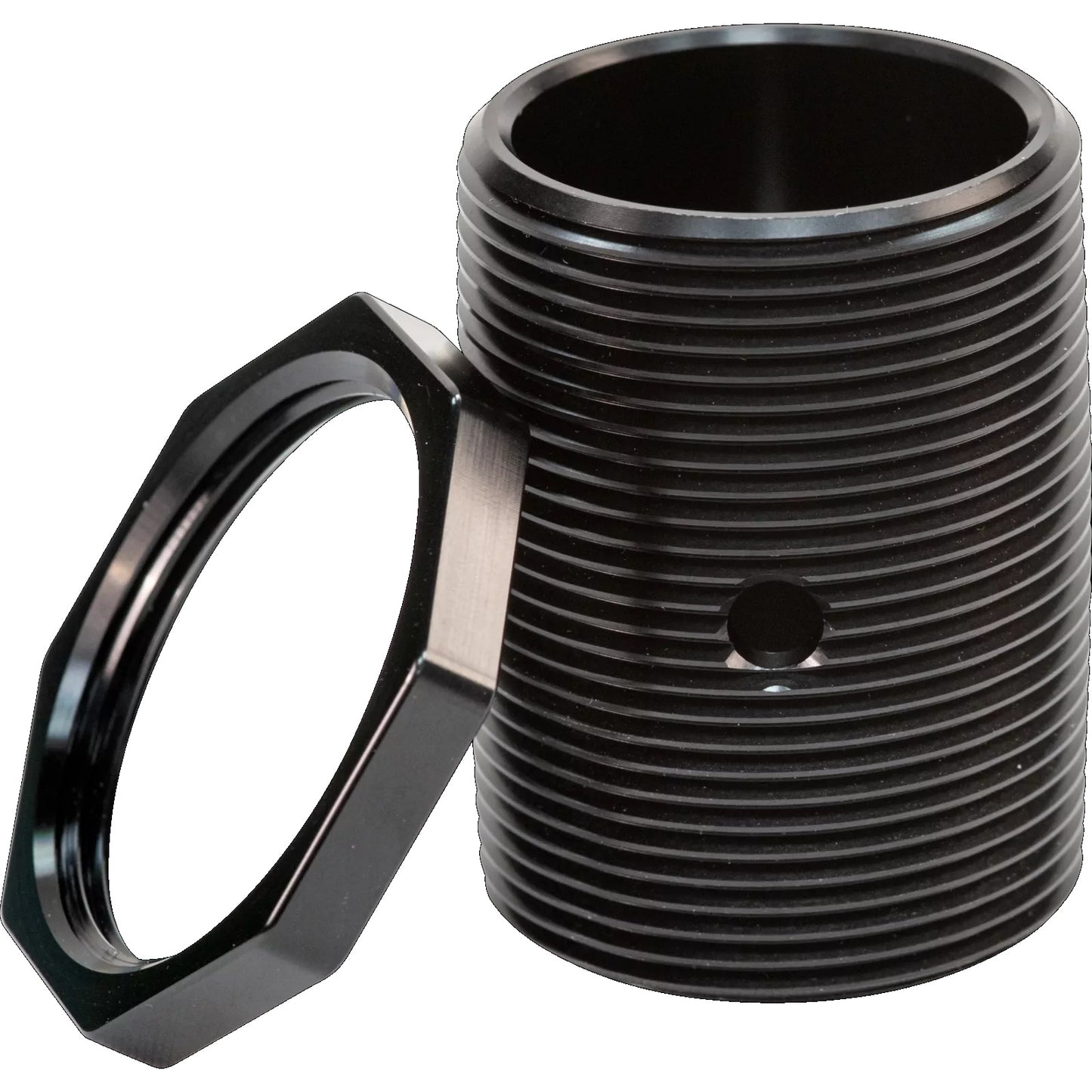

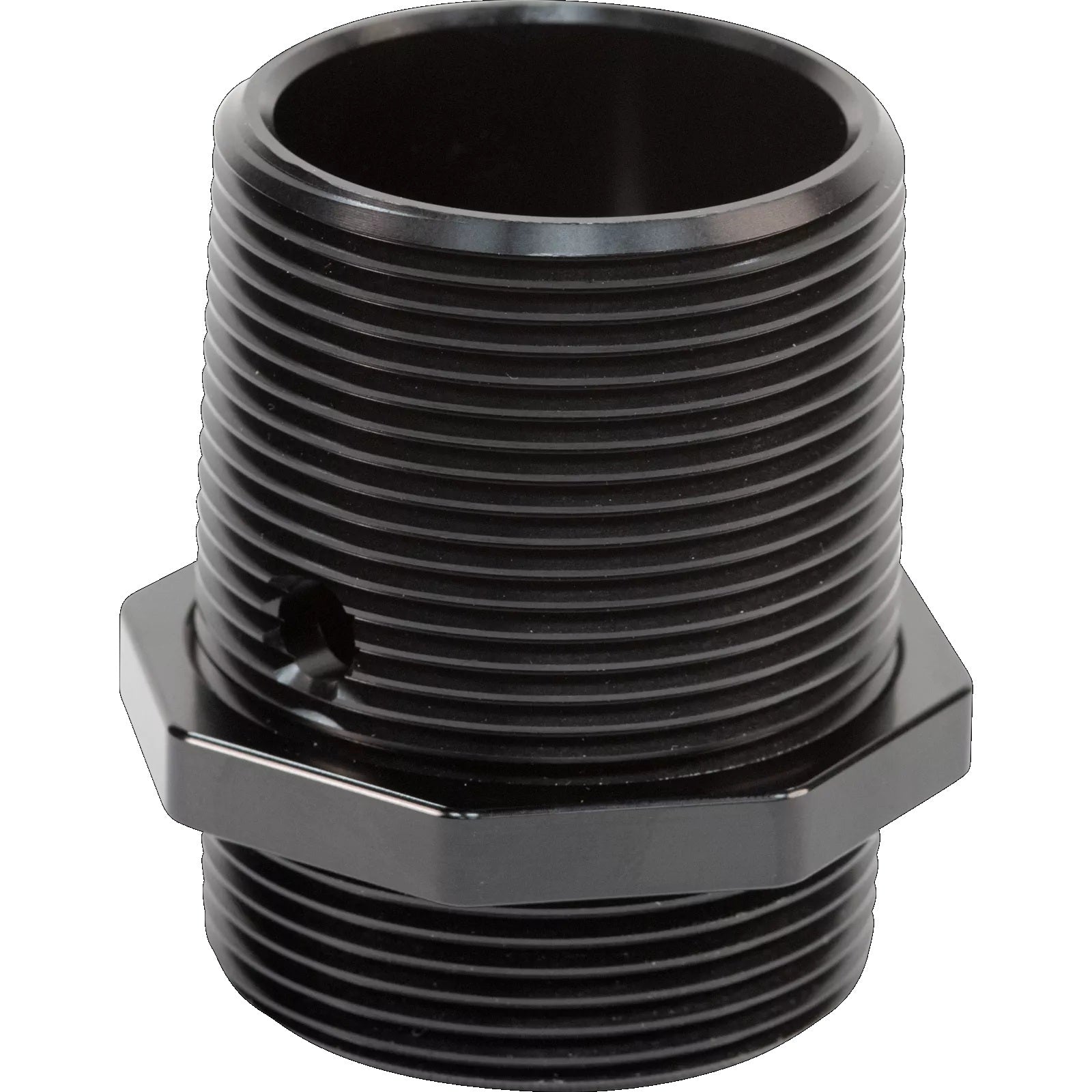

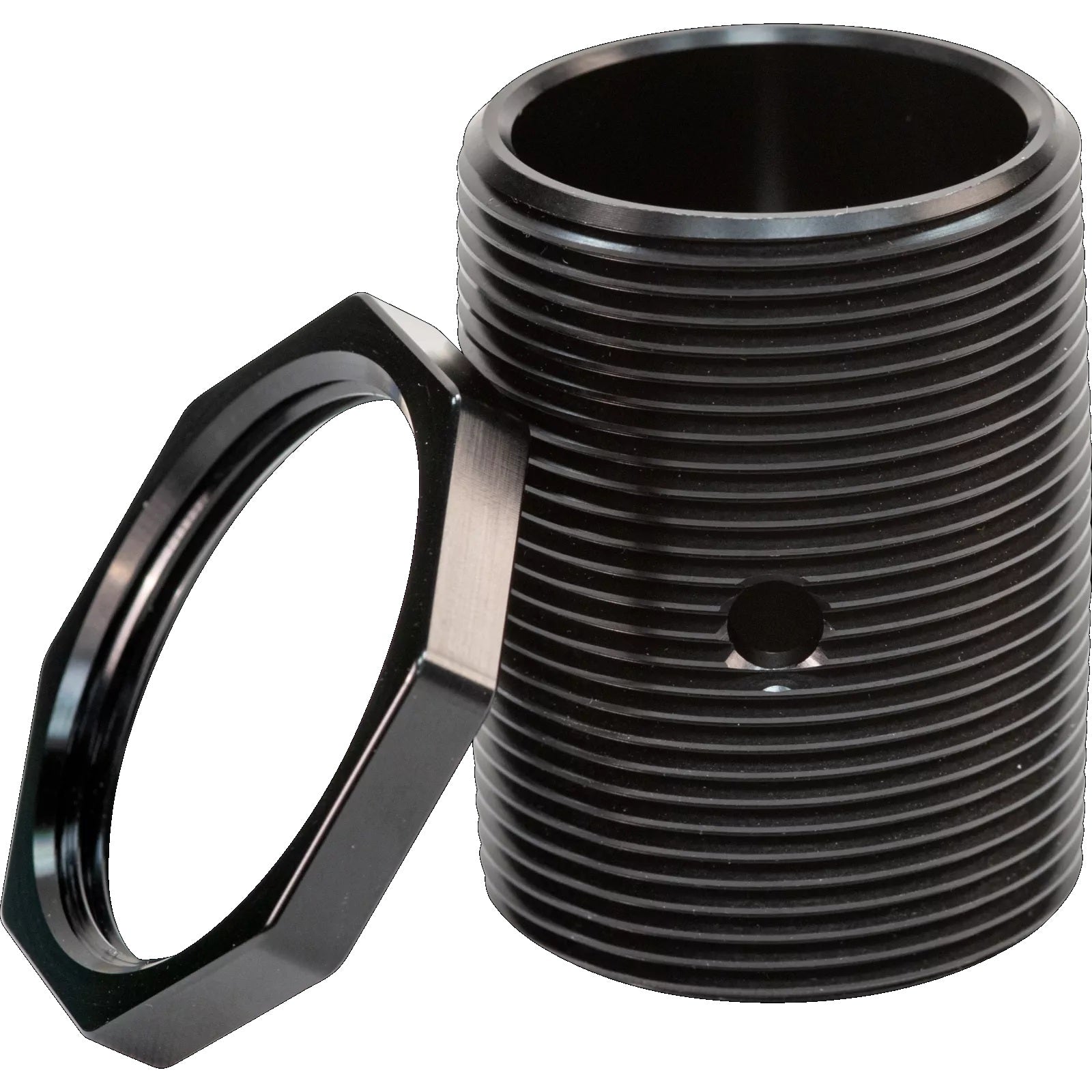

AXIS 1.5in NPS/NPT Male Coupler | 01706-001

Model: 01706-001

Who This Is For

For installers who need to mount Axis cameras onto standard pipe or pole infrastructure without fabricating custom adapters on site. The AXIS 1.5in NPS/NPT Male Coupler is a purpose-made fitting that bridges the thread standard used on Axis camera mounts with 1.5-inch NPS and NPT pipe systems - the type commonly found on conduit risers, pendant poles, and parapet mounts across commercial and industrial sites. It suits integrators working in environments where camera positions are dictated by existing pipe infrastructure, whether that is a warehouse ceiling grid, an outdoor pole array, or a multi-camera roof installation. Rather than sourcing a generic plumbing fitting that may not seat correctly against Axis mounting hardware, this coupler is manufactured to Axis tolerances and threads directly into compatible Axis mounts, keeping the install clean and eliminating play in the connection.

What This Accessory Actually Does

Who Buys This Model

• Security integrators: Completing Axis camera installations on pendant poles or pipe drops where the existing infrastructure uses 1.5-inch NPS or NPT threads and a manufacturer-matched fitting is required to satisfy the site's workmanship standards.
• Facilities managers and in-house maintenance teams: Relocating or adding Axis cameras on existing pipe-mount frameworks without involving a fabricator or sourcing non-standard hardware.
• Commercial electrical contractors: Coordinating camera rough-in on new builds where conduit is set before cameras arrive, and a confirmed Axis-compatible fitting needs to be specified ahead of final fit-off.
• Warehouse and logistics site managers: Expanding Axis camera coverage across ceiling pipe grids or structural frames where the 1.5-inch pipe standard is already established across the site.

Honest Assessment

The AXIS 1.5in NPS/NPT Male Coupler does one thing - it connects Axis camera mounts to 1.5-inch pipe infrastructure using the correct thread standard. For installers already specifying Axis equipment, that is exactly what is needed: a part that threads correctly, sits without play, and does not introduce a weak point into the mount assembly. It is a small component that prevents a common on-site problem, which is discovering that a generic fitting does not mate cleanly with a precision bracket. Where this coupler does not help is if your pipe infrastructure uses a different diameter or thread standard - 1-inch, 2-inch, or metric equivalents are separate products entirely, and no amount of thread tape will make this fitting work reliably at a different size. Supplied by Security Australia as part of the broader Axis accessories range, it is best ordered alongside the associated Axis mounting bracket to confirm compatibility before the install date.

Before You Buy

Quick Fit Check

• Good match if: You are mounting an Axis camera on an existing 1.5-inch NPS or NPT pipe or conduit stub and need a manufacturer-matched male coupler to mate cleanly with your Axis bracket.
• Good match if: Your installation requires internal cable routing through the pipe column and you need the bore alignment maintained through the mount junction without obstruction.
• You may need a different model if: Your pipe infrastructure uses a diameter other than 1.5 inches or a metric thread standard - a different Axis pipe coupler or adapter in the appropriate size will be the correct part for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your pipe infrastructure is confirmed at 1.5 inches NPS or NPT and you want a manufacturer-matched Axis coupler rather than a generic hardware store fitting that may not thread consistently with your Axis bracket.
• You may need a different model if: Your site uses a different pipe diameter or a metric thread standard - Axis produces couplers and adapters in other sizes, and the correct size for your infrastructure will be a separate product in the Axis accessories range.
• Pairs well with: Axis pendant arm mounts, Axis pole mount brackets, and Axis ceiling brackets with a 1.5-inch female pipe inlet - confirm the bracket's pipe entry specification before ordering.

Common Questions

1. Will this coupler work with both NPS and NPT threaded pipe?

   Yes. The 01706-001 is rated for both NPS and NPT thread standards at the 1.5-inch size. NPS threads are straight-cut and NPS threads do not self-seal under tightening, so apply thread sealant if the junction needs to be weatherproof. NPT threads are tapered and will self-seal progressively as the fitting tightens.

2. Does this coupler allow cable to be routed internally through the pipe?

   Yes, provided the Axis mounting bracket it connects to also has an open bore for cable passage. The coupler maintains the pipe's internal channel at the junction point, so network cable fed through the pole or conduit can continue through to the mount without a separate cable entry point being drilled in the bracket.

3. Is this a genuine Axis product or a third-party fitting?

   This is a genuine Axis Communications accessory with Axis part number 01706-001, available through Security Australia as part of the official Axis mounting hardware range. It is manufactured to Axis tolerances and is the recommended fitting for Axis installations requiring 1.5-inch pipe entry compatibility.

4. Which Axis camera mounts accept this coupler?

   Any Axis bracket with a 1.5-inch female pipe inlet will accept this coupler. Not all Axis mounts use a 1.5-inch pipe entry - some are designed for smaller diameter inputs. Check the mounting bracket's datasheet for its pipe entry specification before ordering this coupler to confirm the size matches.

5. Can I use this coupler outdoors?

   The coupler itself is a metal pipe fitting with no electronic components, so outdoor use is not restricted by the coupler. The weatherproofing rating of the overall installation is determined by the Axis camera and bracket assembly, not by this fitting. For exposed outdoor pole mounts, ensure all cable entry points at the bracket are sealed correctly per the camera's installation guide.

6. Does this fitting work with standard conduit from electrical suppliers?

   It depends on the conduit's thread standard. Standard electrical metallic conduit (EMT) in Australia uses metric or AS/NZS thread dimensions that may differ from NPS/NPT. Confirm the thread standard on your conduit stub against NPS/NPT specifications before ordering - if the conduit uses a non-NPS/NPT thread, this coupler will not engage correctly.

Downloads & Resources

No downloads available for this product.
