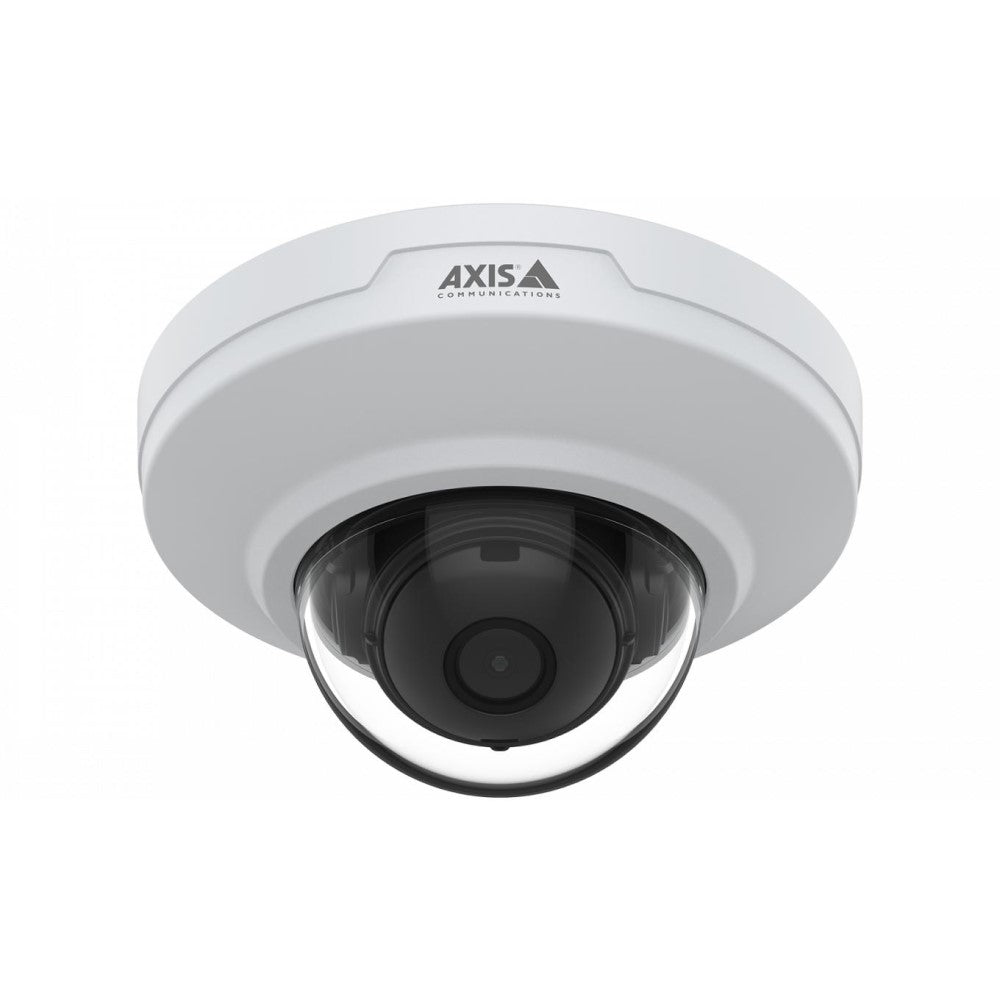

Axis M3086-V 4 MP Mini Dome Camera with Deep Learning & WDR 02374-001

Model: M3086-V

Who This Is For

Property managers specifying cameras for offices, retail tenancies, or shared building areas will find the Axis M3086-V a practical ceiling-mount choice where image quality and on-camera analytics both matter. At 4 MP with Forensic WDR, it handles the mixed lighting conditions common in lobbies, open-plan floors, and corridors near windows - situations where a standard camera would blow out highlights or lose shadow detail. The deep learning processing unit runs AXIS Object Analytics directly on the camera, classifying humans and vehicles without depending on the NVR to do the heavy lifting. This makes it well suited to retrofit installs where the recorder may not support server-side AI, or to distributed sites where reducing false alerts from trees and reflections has been a recurring problem. The compact mini dome profile keeps the install clean and unobtrusive in commercial interiors where aesthetics are a consideration.

What This Camera Actually Does

Who Buys This Model

• IT managers at multi-tenancy offices: Deploying cameras across floors where PoE switches already exist - the M3086-V draws standard IEEE 802.3af power, so no additional infrastructure is required beyond a Cat5e or Cat6 run to each mount point.
• Retail loss prevention teams: Ceiling-mounting over checkout lanes and entry points where the Forensic WDR handles strong overhead lighting mixed with darker floor-level areas, and on-camera analytics can trigger alerts without a separate AI server.
• Integrators retrofitting older NVR systems: Adding analytics capability to sites where the existing recorder has no AI processing - the deep learning runs on the camera itself, so the NVR only needs to handle recording and receive the event triggers.
• Facilities managers at childcare or healthcare sites: Specifying a discreet, fixed indoor dome with a compact profile where a large camera housing would be obtrusive or cause concern among occupants.

Honest Assessment

The M3086-V does two things genuinely well: it handles difficult interior lighting through Forensic WDR, and it moves AI classification off the recorder and onto the camera through its built-in deep learning processor. For commercial installations where the NVR is already committed or where reducing server load matters, that combination is practical and well executed. The 4 MP resolution with Zipstream also keeps storage demands manageable across multi-camera deployments. What this camera will not do is cover outdoor scenes requiring IR illumination - it carries no built-in IR and is rated IP42, which suits protected indoor environments only. It is also a fixed-lens model, so installations needing motorised zoom or wide-area panoramic coverage will need a different product type. The M3086-V is available through Security Australia and suits indoor commercial deployments where image quality, analytics, and clean ceiling aesthetics are the priorities.

Before You Buy

Quick Fit Check

• Good match if: You need reliable indoor coverage in a mixed-light environment - such as a lobby, retail floor, or corridor with windows - where Forensic WDR is needed to hold detail in both bright and dark areas of the same frame.
• Good match if: You are retrofitting analytics onto a site where the existing NVR has no AI capability - the on-camera deep learning processor runs AXIS Object Analytics independently of the recorder.
• You may need a different model if: Your install requires outdoor mounting, night-time IR coverage, or a varifocal lens for longer viewing distances - an outdoor turret or bullet camera with built-in IR would be a more suitable product type for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need on-camera deep learning analytics in an indoor commercial environment and do not want to depend on the NVR for AI processing - the DLPU runs AXIS Object Analytics independently, which is a meaningful advantage over cameras that rely on server-side classification.
• You may need a different model if: Your installation is outdoors or requires night-time coverage - a turret or bullet camera with built-in IR illumination and a higher IP ingress rating would be a more appropriate product type for those conditions.
• Pairs well with: A PoE NVR with ONVIF Profile T support for clean event-based recording triggered by the camera's on-board analytics, and a managed PoE switch where multiple M3086-V units are deployed across a single floor or building.

Common Questions

1. Does the M3086-V work with a standard PoE switch, or does it need PoE+?

   Standard PoE is sufficient. The M3086-V draws IEEE 802.3af Class 3 power, which any 802.3af-capable PoE switch or injector will supply. You do not need a PoE+ (802.3at) switch, which simplifies infrastructure planning when deploying across an existing PoE network.

2. Will this camera work outdoors or in a covered car park?

   No. The M3086-V is rated IP42, which means it is protected against solid objects larger than 1 mm and dripping water only. It is not suitable for outdoor mounting, covered car parks, areas exposed to rain splash, or environments with significant humidity or condensation. An outdoor-rated turret or bullet camera with IP66 or IP67 rating is required for those locations.

3. Does AXIS Object Analytics require a separate licence or subscription to activate?

   No additional licence is required to run AXIS Object Analytics on the M3086-V. The application is pre-installed and included with the camera. Human and vehicle classification, line crossing, and area entry/exit scenarios are available out of the box through the camera's web interface without purchasing a separate analytics licence.

4. How much does Zipstream actually reduce storage compared to standard H.265?

   Results vary by scene, but Axis publishes typical savings of 50% or more in bandwidth and storage compared to standard H.265 encoding. Zipstream achieves this by dynamically lowering the bitrate during periods with minimal activity while automatically preserving full detail when motion or analytics events are detected, so forensic quality is maintained where it counts.

5. Can the M3086-V record locally if the NVR goes offline?

   Yes. The microSD slot supports cards up to 512 GB, which allows continuous edge recording independent of the NVR. Recording to the SD card can be configured to trigger automatically when the network connection to the recorder is lost, providing a failover buffer that remains accessible once the recorder comes back online. The team at Security Australia can advise on suitable card specifications for continuous write workloads.

6. Is the 2.8 mm fixed lens suitable for a standard-size office or retail space?

   For most ceiling-mount indoor scenarios, yes. At a typical ceiling height of 2.5 m to 3 m, a 2.8 mm lens on the M3086-V provides a wide coverage angle that captures a broad area of an open-plan office, reception desk, or retail floor. If your install requires a narrower field of view for a longer corridor or a more distant subject, a camera with a varifocal or longer fixed focal length would be more appropriate.

7. Does the M3086-V support ONVIF, and will it integrate with third-party VMS platforms?

   Yes. The M3086-V is ONVIF Profile S, Profile G, and Profile T compliant. Profile S covers standard video streaming and PTZ control, Profile G covers edge recording and retrieval, and Profile T adds H.265 and metadata streaming for analytics events. This means the camera integrates with the majority of ONVIF-compliant VMS platforms and NVRs without requiring proprietary drivers.
