8MP 8CH Hikvision CCTV Kit: 6 x Outdoor Acusense Motorised VF Turret + 8CH NVR

Model: DS-2CD2H86G2-IZS / DS-7608NI-I2-8P

Who This Is For

Property managers specifying multi-zone surveillance across sites with varied coverage distances will find this kit well suited to the task. The 8MP 8CH Hikvision AcuSense Motorised VF Turret Kit pairs 6 x DS-2CD2H86G2-IZS outdoor turret cameras with a DS-7608NI-I2-8P 8-channel PoE NVR, delivering 4K image quality with the flexibility of motorised varifocal lenses - meaning lens angle can be adjusted remotely or during commissioning without physically repositioning each camera. AcuSense AI classification filters human and vehicle targets from background motion, reducing false alerts from trees, animals, and lighting changes. With 8 PoE ports on the NVR and 2 spare channels, the system is ready for incremental expansion. This kit suits commercial properties, mid-size warehouses, schools, and residential estates where image detail and accurate motion alerting matter as much as ease of installation.

What This System Actually Does

Who Buys This Model

• Commercial Property Managers: Multi-zone sites like office complexes, medical centres, and retail precincts benefit from AcuSense classification keeping after-hours alert fatigue manageable across 6 camera positions.
• School and Childcare Facility Administrators: 4K resolution confirms identity detail at pedestrian entry and car park zones, while motorised varifocal adjustment allows coverage tuning after school layout or fencing changes without remounting hardware.
• Warehouse and Light Industrial Operators: Loading dock approaches and yard perimeters with distances beyond 30 metres need 60m IR reach combined with the resolution to distinguish vehicle type and read signage - both confirmed with this kit.
• Residential Estate and Strata Installers: PoE simplifies cabling across distributed building entries and common areas, and the 2 spare NVR channels accommodate future camera additions as strata committees approve staged expansions.
• Security Integrators Running Mid-Tier Commercial Projects: The motorised varifocal lens reduces on-site commissioning time on projects with varying standoff distances - integrators can mount all cameras first and adjust fields of view from the NVR interface rather than returning to individual camera positions.

Honest Assessment

This kit does several things genuinely well. The combination of 8MP resolution and a motorised varifocal lens is not standard at this price point - you get both image detail and flexible coverage geometry without needing to commit to a fixed lens angle at the time of cable routing. AcuSense classification is a meaningful upgrade over basic motion detection for anyone managing properties where nuisance alerts are a recurring problem. The 8-port PoE NVR with 2 spare channels adds practical expansion value that all-in-one fixed kits rarely offer. Where this kit has limits: the cameras do not include built-in colour night vision (full-colour low-light requires a dedicated white-light or TiOC model), and the NVR's 2-bay storage configuration suits most installs but may need larger HDDs specified if you require 30-plus days of continuous 4K retention. Buyers needing wider-area single-point coverage would be better served by a PTZ or panoramic camera. This kit is available through Security Australia with standard Hikvision warranty support.

Complete Package Contents

• 6 x Hikvision DS-2CD2H86G2-IZS - 8MP AcuSense outdoor turret camera, motorised varifocal 2.8-12mm lens, 60m IR, IP67, IK10, H.265+
• 1 x Hikvision DS-7608NI-I2-8P - 8-channel NVR, 8-port PoE switch, 2 x SATA HDD bays, H.265+, supports up to 8MP per channel

Note: Hard drives are not included. HDD capacity should be selected based on required retention period and recording schedule - see the storage calculator in the Before You Buy section below.

Before You Buy

Quick Fit Check

• Good match if: You are covering multiple zones with different standoff distances - the motorised varifocal lens lets each camera be tuned individually to its specific position without physical lens changes after mounting.
• Good match if: Alert fatigue from motion detection is a known problem at your site - AcuSense human and vehicle classification filters out non-target motion events before notifications are pushed.
• You may need a different model if: Your priority is full-colour night vision rather than IR-based low-light performance - a TiOC or white-light turret kit will serve that requirement better. Browse the colour night vision kits on securityaustralia.com.au for direct comparisons.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 4K image quality with the flexibility of remotely adjustable lens angles across 6 camera positions - the motorised varifocal lens is a genuine differentiator over fixed-lens 8MP kits at similar price points.
• You may need a different model if: Full-colour night vision is a primary requirement - a TiOC or white-light turret kit provides colour footage in near-zero ambient light where this kit produces monochrome IR images. Browse the TiOC and colour night vision kits on securityaustralia.com.au for a direct comparison.
• Pairs well with: A compatible PoE midspan injector or unmanaged PoE switch if any camera positions are beyond 100m from the NVR, and a network-attached UPS for power continuity on the NVR.

Common Questions

1. Does this kit include hard drives?

   No. Hard drives are not included with this kit. The DS-7608NI-I2-8P NVR has 2 x SATA bays that accept standard 3.5-inch surveillance-grade HDDs. You will need to purchase drives separately and specify capacity based on your required retention period. For 6 x 8MP cameras recording continuously with H.265+ compression, budget for at least 4TB per bay for meaningful retention, or 2 x 6-8TB drives for 30-day continuous storage.

2. Will this camera work beyond 100 metres from the NVR?

   No, not directly via the NVR's built-in PoE ports. IEEE 802.3 PoE over Cat5e or Cat6 is limited to 100 metres per run. If any camera position is beyond that distance from the NVR, you will need a midspan PoE injector or a separate PoE network switch positioned closer to the camera - the NVR's internal PoE switch cannot extend beyond this limit.

3. How does AcuSense reduce false alerts compared to standard motion detection?

   AcuSense uses on-camera AI processing to classify motion events as human, vehicle, or other before an alert is triggered. Standard motion detection responds to any pixel change in the frame - wind, rain, animals, and shadows all activate it. AcuSense limits push notifications to the target categories you configure, which on a typical outdoor installation can reduce nuisance alerts by a large margin and make event search significantly faster in recorded footage.

4. Can I adjust the camera's zoom angle after it's been mounted?

   Yes. The DS-2CD2H86G2-IZS uses a motorised varifocal lens with a 2.8-12mm range. Zoom and focus can be adjusted remotely through the NVR's camera management interface or directly via the camera's web interface - without physically accessing the camera housing. This is the practical advantage over fixed-lens models when ceiling heights, cable entry points, or mounting constraints prevent repositioning after installation.

5. Does this kit support remote viewing on a phone or tablet?

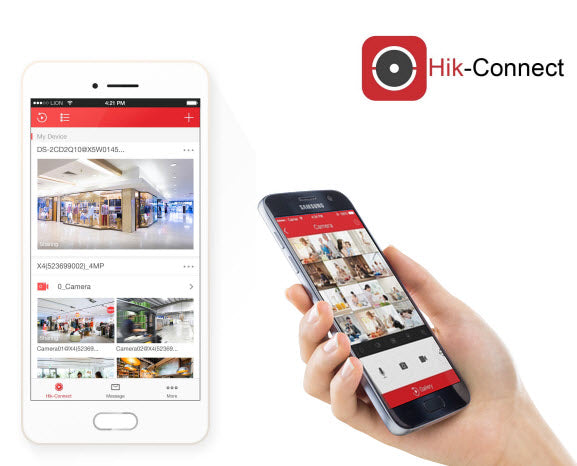

   Yes. The DS-7608NI-I2-8P NVR supports remote access via Hikvision's Hik-Connect platform and the iVMS-4500 mobile app, available for iOS and Android. Live view, playback, and push notifications from AcuSense events are accessible remotely once the NVR is connected to your network and registered to a Hik-Connect account. A stable internet connection at the NVR location is required for remote access to function reliably.

6. Is the camera housing rated for outdoor use in Australian weather conditions?

   Yes. The DS-2CD2H86G2-IZS carries an IP67 ingress protection rating, meaning it is fully sealed against dust and can withstand sustained water immersion up to 1 metre for 30 minutes. In practical terms this covers direct rain, high-pressure cleaning, and coastal humidity. The IK10 impact rating also confirms the housing resists mechanical impact, relevant for installations in accessible locations such as building facades and eave soffits. This kit is part of the Security Australia Hikvision range, supplied with standard Australian warranty.

7. Can I add more cameras to this system later?

   Yes, up to 2 additional cameras. The DS-7608NI-I2-8P is an 8-channel NVR with 8 built-in PoE ports. This kit uses 6 of those ports, leaving 2 spare channels and 2 spare PoE connections for future cameras. If you require more than 8 cameras total, the NVR itself would need to be replaced with a higher-channel unit - this recorder cannot be expanded beyond 8 channels.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for new installations. Each camera requires a single cable run back to the NVR - no separate power cable is required.
• Max Cable Run: 100 metres per camera from the NVR's PoE port. Runs longer than 100m require a midspan PoE injector or secondary PoE switch closer to the camera position.
• PoE Notes: All 6 cameras are powered directly by the NVR's 8-port built-in PoE switch. No separate power supplies or injectors are needed within standard 100m run distances. Confirm the NVR's total PoE power budget if you intend to add higher-draw cameras in the 2 spare channels.
• Wiring Tips: Run cables before mounting camera brackets wherever possible. The turret housing uses a rear-entry cable port - confirm your wall or soffit conduit entry aligns with the bracket footprint before drilling. Label each cable run at both ends during installation to simplify future troubleshooting or channel reassignment.
