8MP 16CH Hikvision CCTV Kit: 8 x Outdoor Acusense Turret Cameras + 16CH NVR with 4TB

Model: DS-2CD2386G2-IU / DS-7616NI-M2

Who This Is For

For property managers and owner-operators who need a full 8-camera system installed and recording without sourcing components separately, this Hikvision 8MP AcuSense kit covers the most common mid-size site: a warehouse, a school facility, a commercial carpark, or a residential estate with multiple entry points and blind spots. The bundle pairs 8 x DS-2CD2386G2-IU outdoor turret cameras with a DS-7616NI-M2 16-channel NVR loaded with 4TB of storage. Each camera delivers 8MP resolution with AcuSense deep learning classification - filtering human and vehicle events from general motion so the system generates actionable alerts rather than constant noise. With 8 channels free on the NVR from day one, the system is designed to grow as the site grows, making it a sensible starting point for anyone who anticipates adding coverage to additional zones over time.

What This System Actually Does

Who Buys This Model

• Commercial property managers: Covering carparks, entry points, and common areas across a strata or commercial tenancy with a single unified system and room to expand.
• School and childcare facility administrators: Using AcuSense classification to generate human-detection alerts across perimeters after hours, reducing false alarm fatigue for staff monitoring the system remotely.
• Warehouse and light industrial operators: Mounting cameras at loading dock approaches and yard entrances where 60m IR range and 8MP detail are both needed for after-hours incident review.
• Security integrators running staged installations: Starting a 16-channel Hikvision system with 8 cameras now and specifying additional cameras for a second phase without changing the recorder.
• Residential estate managers: Installing matched cameras across gates, communal parking, and building entries using a single NVR with consistent image quality and AI alerting across all points.

Honest Assessment

This kit does its best work on mid-size commercial sites where 8 cameras are enough to cover the priority zones and the 16-channel NVR gives room to grow. The AcuSense classification on the DS-2CD2386G2-IU cameras is a genuine operational advantage over standard motion detection - particularly for sites where after-hours alerts need to mean something. The 4TB pre-installed storage, 8MP resolution, and IK10-rated housings make this a capable starting configuration without needing additional components sourced separately. The kit is part of the Security Australia range and is sold as a matched, tested combination. What it will not do: the DS-7616NI-M2 does not include a built-in PoE switch, so camera power must be supplied via a separate PoE switch or individual power injectors - this is an installation cost to factor in. If wide-area perimeter coverage across long approaches is the priority, a bullet camera variant with longer IR range may be a better fit than these turrets.

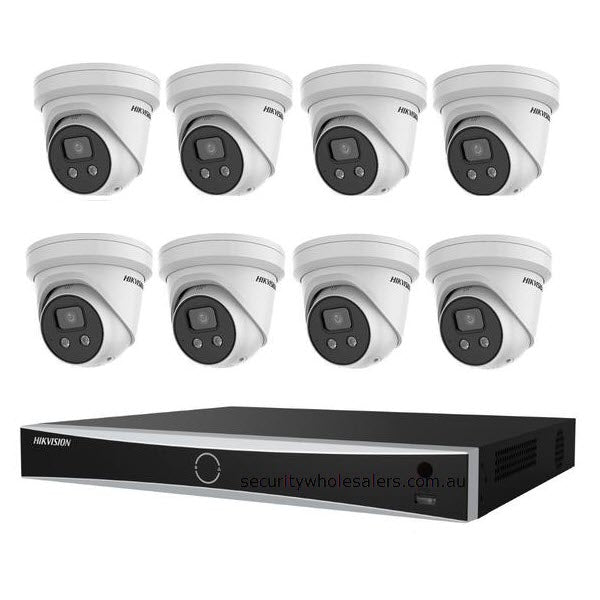

Complete Package Contents

• 8 x Hikvision DS-2CD2386G2-IU - 8MP AcuSense outdoor turret camera, 60m IR, IP67, IK10, built-in microphone, PoE
• 1 x Hikvision DS-7616NI-M2 - 16-channel NVR, 2 HDD bays, 4K output, H.265+, 4TB pre-installed

Before You Buy

Quick Fit Check

• Good match if: You are covering a commercial or light industrial site with 8 camera positions now and want a 16-channel Hikvision NVR with confirmed headroom for future expansion without changing the recorder.
• Good match if: After-hours alert fatigue is a problem and you need AI-based human and vehicle classification to make push notifications meaningful rather than constant.
• You may need a different model if: Your site has long exposed perimeter runs - fence lines, rural approaches, or open yards beyond 60m - where a bullet camera system with extended IR range would provide better coverage than these turret cameras.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 8 matched 8MP AcuSense outdoor cameras with a 16-channel NVR and want room to expand to 16 cameras without changing the recorder.
• You may need a different model if: Your site has extended outdoor approaches beyond 60m where a bullet camera kit with longer IR range is a better fit - Security Australia stocks 8MP AcuSense bullet camera kits suited to those conditions.
• Pairs well with: A managed 8-port or 16-port PoE switch to power the cameras cleanly from a single network cabinet location.

Common Questions

1. Does the NVR in this kit have built-in PoE ports to power the cameras?

   No. The DS-7616NI-M2 does not include a built-in PoE switch. The 8 x DS-2CD2386G2-IU cameras require power via a separate PoE switch or individual PoE injectors on each cable run. For a clean installation, a single 150W+ managed PoE switch handles all 8 cameras from one point in the network cabinet.

2. Will this system work for a site that needs more than 8 cameras?

   Yes. The DS-7616NI-M2 has 16 channels total, with 8 available after this kit is installed. You can add up to 8 more cameras - including cameras up to 12MP resolution - without replacing the NVR. The second HDD bay is also empty, allowing a second drive to be added when additional storage is needed for the expanded camera count.

3. What does AcuSense actually do differently to standard motion detection?

   AcuSense uses deep learning at the camera level to classify detected motion as human, vehicle, or neither. This means the system only sends push alerts and flags recordings when the classification matches a human or vehicle event - not for animals, insects on the lens, or wind-blown objects. On a busy outdoor site, this significantly reduces the volume of irrelevant alerts compared to pixel-based motion detection.

4. How long will 4TB last with 8 cameras recording at 8MP?

   Retention depends on recording mode and compression. With H.265+ and motion-triggered recording on AcuSense events only, 4TB can provide several weeks of footage across all 8 cameras. Continuous 24/7 recording at full 8MP resolution will reduce retention to a shorter period. For longer retention requirements, a second HDD can be added to the NVR's spare bay - confirm maximum supported drive size with the DS-7616NI-M2 specifications before purchasing a second drive.

5. Do the cameras in this kit record audio?

   The DS-2CD2386G2-IU has a built-in microphone, so each camera can capture audio and store it with the video footage on the NVR. The cameras do not have a built-in speaker, so outbound audio announcement is not available from the camera itself. If two-way audio at a specific point is required, a camera model with both a built-in microphone and speaker would be needed for that position.

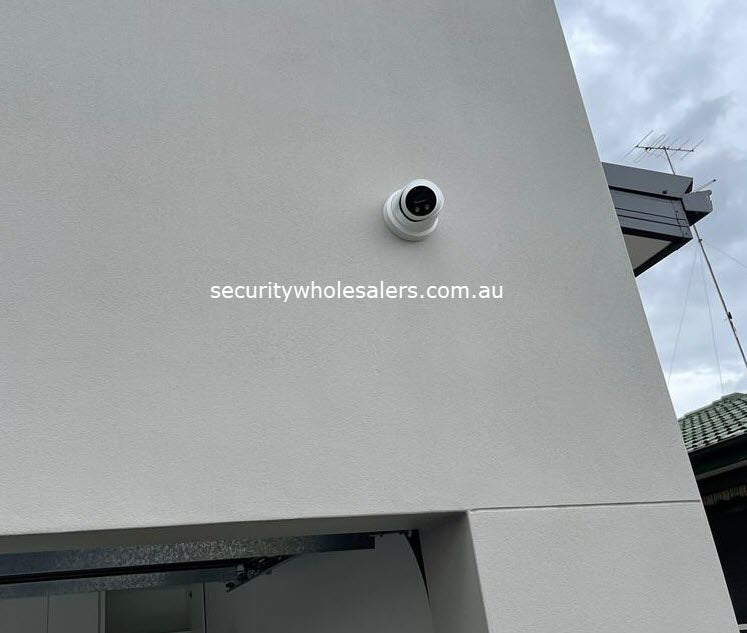

6. Will these cameras handle outdoor installation in Australian weather conditions?

   Yes. The DS-2CD2386G2-IU is rated IP67, meaning it is fully sealed against dust ingress and can withstand direct water jets - suitable for exposed eave, soffit, and exterior wall mounting in Australian conditions including coastal humidity and heavy rainfall. IK10 impact resistance provides additional protection in public-facing or high-traffic areas where cameras may be within reach.

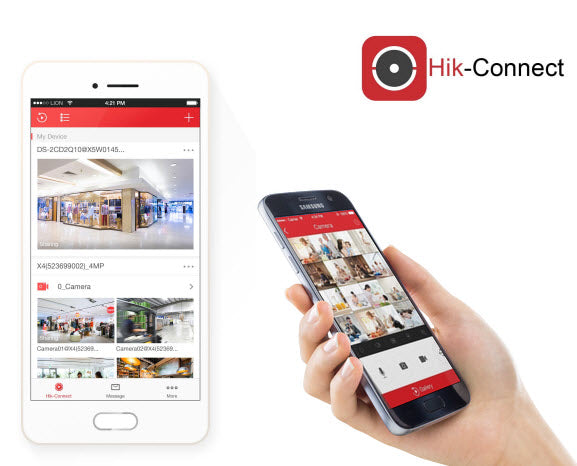

7. Can I view live and recorded footage remotely on a phone or tablet?

   Yes. The DS-7616NI-M2 NVR supports remote access via the Hik-Connect and iVMS-4500 mobile applications on iOS and Android. Remote viewing requires the NVR to be connected to the internet via your local network. AcuSense push notifications can also be configured through the Hik-Connect app so human and vehicle alerts are delivered to mobile devices in real time.
