Hikvision 6MP 4CH ColorVu 3.0 CCTV Kit: 4 LiveGuard Turret Cameras + 4CH M Series PoE NVR 4TB (DS-2CD2367G3-LIS2UY/SL, DS-7604NI-M1/4P)

Model: 4x DS-2CD2367G3-LIS2UY/SL + DS-7604NI-M1/4P

Who This Is For

For property owners and installers who need full-colour night vision combined with active deterrence across 4 camera positions, this kit pairs the Hikvision DS-2CD2367G3-LIS2UY/SL LiveGuard turret cameras with the DS-7604NI-M1/4P 4-channel PoE NVR pre-loaded with a 4TB hard drive. It suits residential perimeter installations, small retail shopfronts, warehouses, and light commercial sites where after-dark image quality and on-camera deterrence matter as much as recording capability. The ColorVu 3.0 imaging means every camera produces colour footage at night without relying on infrared, while the LiveGuard active deterrence - strobe light and audible alert - gives each camera position the ability to respond to a detected intrusion, not just record it. The 4-port built-in PoE switch on the NVR means a single cable run per camera handles both power and data, keeping installation straightforward from day one.

What This System Actually Does

Who Buys This Model

• Residential property owners: Covering 4 perimeter positions - front entry, driveway, side gate, and back yard - with colour night footage and active deterrence on each position rather than passive IR-only cameras.
• Small retail and hospitality operators: Shopfronts, bottle shops, and cafes needing colour after-hours footage of entries and car parks where identifying clothing or vehicle colour is critical for incident reporting to police.
• Light industrial and warehouse sites: Facilities with after-hours exposure where the LiveGuard strobe and alarm deters opportunistic intrusion before it escalates, particularly at loading dock access points and perimeter gates.
• Electricians and security installers: Looking for a complete, matched kit with pre-installed storage and integrated PoE - reducing configuration time and eliminating compatibility questions between camera and recorder on single-site jobs.
• Strata and property managers: Specifying camera systems for car parks, common area entries, and basement access points where colour identification at night adds direct value over standard black-and-white IR footage.

Honest Assessment

This kit does two things well that most standard CCTV packages do not: it maintains colour image quality in genuine low-light conditions rather than defaulting to monochrome IR footage, and it gives each camera position an active deterrence capability via the built-in strobe and audible alarm. The 6MP resolution across all 4 cameras provides meaningful detail for identification purposes, and the integrated PoE NVR with pre-installed storage makes this a genuinely complete system from the box. It is available through Security Australia as a matched kit, which removes compatibility uncertainty between camera firmware and NVR capabilities.

What this kit will not do: it is fixed-lens, so it is not suited to applications requiring optical zoom to monitor long approaches or large open areas where a PTZ camera would serve better. It also covers exactly 4 positions - if your site requires 6 or 8 camera positions, a higher-channel NVR kit is the more appropriate starting point. The turret form factor is well suited to eave and soffit mounting but is not the right choice for discrete in-ceiling installations where a dome camera profile is preferred.

Complete Package Contents

• 4 x Hikvision DS-2CD2367G3-LIS2UY/SL - 6MP ColorVu 3.0 LiveGuard turret camera, active deterrence, supplemental light, IP67

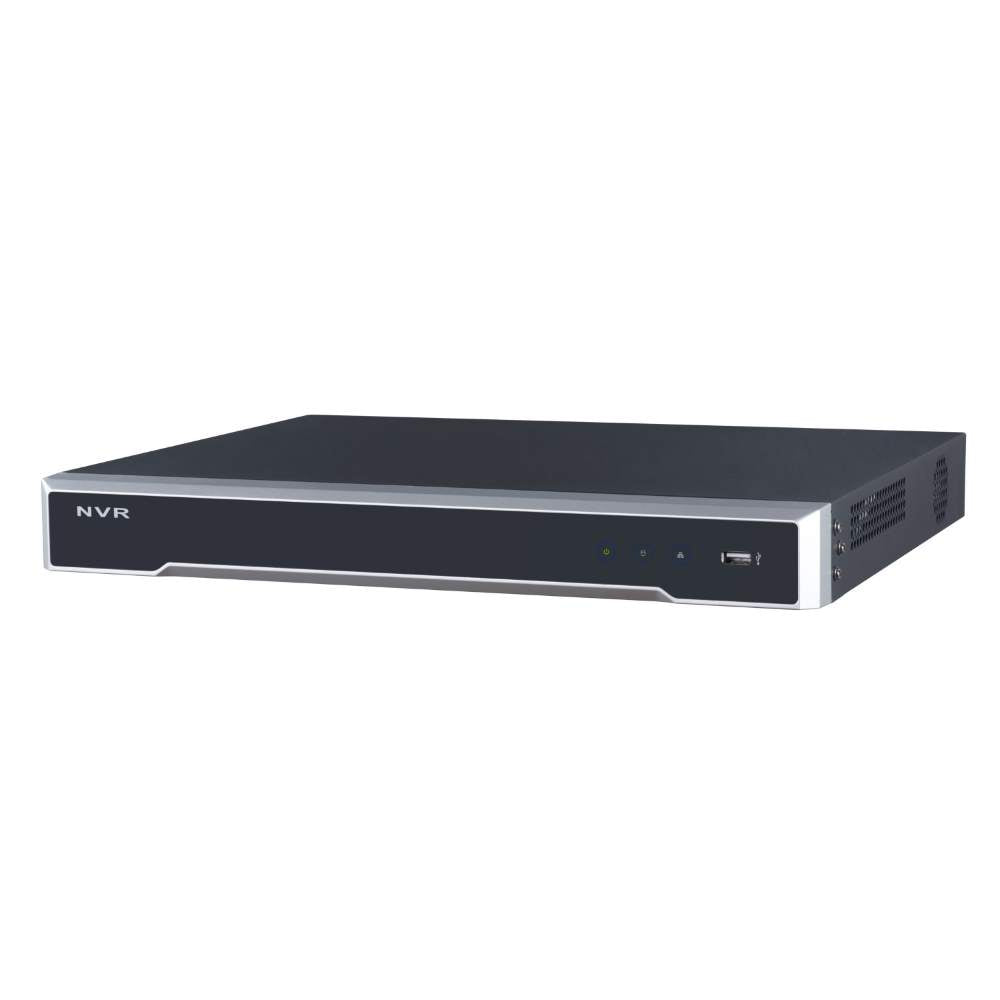

• 1 x Hikvision DS-7604NI-M1/4P - 4-channel M Series PoE NVR, 4-port built-in PoE switch, 4TB HDD pre-installed

Before You Buy

Quick Fit Check

• Good match if: You have 4 camera positions requiring full-colour night vision and want each camera to actively deter intrusion via strobe and alarm - the LiveGuard functionality on the DS-2CD2367G3-LIS2UY/SL delivers this at every position in the kit.
• Good match if: You are running a clean Cat5e or Cat6 cable installation and want to power all cameras directly from the NVR without sourcing a separate PoE switch - the DS-7604NI-M1/4P's 4 built-in PoE ports handle all cameras in this kit from a single unit.
• You may need a different model if: Your site requires more than 4 camera positions, long-range coverage of extended approaches, or optical zoom capability - an 8-channel or 16-channel kit, or a system including PTZ cameras, would be a better fit and is available on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Full-colour night vision and on-camera active deterrence are both priorities across all 4 camera positions, and your site suits fixed-lens turret cameras on eaves, soffits, or walls.
• You may need a different model if: Your site has more than 4 camera positions to cover, requires long-range optical zoom across large open areas, or includes indoor ceiling-mount positions where a dome kit would be more appropriate - higher-channel kits and dome variants are available on securityaustralia.com.au.
• Pairs well with: A PoE network switch if you intend to expand beyond 4 cameras in the future by adding a second NVR, or a UPS (uninterruptible power supply) to keep the NVR operational during short power outages.

Common Questions

1. Does this kit produce colour footage at night, or does it switch to black and white like a standard IR camera?

   Yes, it produces colour footage at night. The DS-2CD2367G3-LIS2UY/SL uses ColorVu 3.0 technology, which is built around a large-aperture sensor designed to capture colour in low-light conditions. Unlike standard IR cameras that switch to monochrome when light drops below a threshold, these cameras maintain colour imaging in low-light environments, with the built-in supplemental light activating in complete darkness to sustain that colour output.

2. Will this system work without an internet connection?

   Yes. Local recording to the 4TB hard drive operates entirely without an internet connection. The NVR records to the installed drive continuously or on motion, and footage can be reviewed directly on the NVR via a connected monitor. An internet connection is only required if you want to use remote viewing via the Hik-Connect app on a mobile device or remote desktop access.

3. How does the LiveGuard active deterrence actually work, and can I control when it triggers?

   Yes, the trigger conditions are configurable. The DS-2CD2367G3-LIS2UY/SL's LiveGuard strobe and audible alarm are triggered by detection events, and the sensitivity, detection zones, and active hours are all configurable through the NVR interface or Hik-Connect. This means you can set the deterrence to only activate during specific hours - such as after business close - and restrict it to defined zones within the camera's field of view to reduce false activations.

4. Does the NVR in this kit need a separate PoE switch to power the cameras?

   No. The DS-7604NI-M1/4P has 4 built-in PoE ports that power all 4 cameras in this kit directly. A single Cat5e or Cat6 cable from each camera to the NVR carries both power and video data. No separate PoE switch, injector, or additional power supply is required for a standard 4-camera installation using this kit.

5. Is the 4TB hard drive already installed, or do I need to purchase and install one separately?

   The 4TB hard drive is pre-installed in the DS-7604NI-M1/4P NVR as supplied in this kit. The system is ready to record as soon as cameras are connected and the NVR is configured - no separate hard drive purchase or installation step is required. Security Australia supplies this kit with the drive already fitted.

6. Are these cameras suitable for outdoor installation in Australian weather conditions?

   Yes. The DS-2CD2367G3-LIS2UY/SL carries an IP67 weather rating, meaning it is dust-tight and protected against immersion in water up to 1 metre. This rating is suitable for exposed outdoor positions including eaves, soffits, external walls, and car park structures across Australian conditions including rain and humidity. The turret form factor also reduces the likelihood of water pooling on the lens housing compared to some dome designs.

7. Can I expand this system beyond 4 cameras in the future?

   Not on this NVR. The DS-7604NI-M1/4P is a 4-channel recorder with 4 PoE ports - it cannot be expanded to accommodate additional cameras. If future expansion is a priority, the correct approach is to start with an 8-channel or 16-channel NVR kit that leaves spare ports available, rather than adding a second NVR later. If you anticipate growth, consider selecting a higher-channel system from the outset.

Cabling Considerations

• Cable Type: Cat5e or Cat6 recommended for all camera runs. Cat6 preferred for longer runs or future-proofing.
• Max Cable Run: 100m per camera run from NVR PoE port to camera. Runs exceeding 100m will require a mid-span PoE extender and are outside the standard PoE specification.
• PoE Notes: All 4 cameras are powered directly from the DS-7604NI-M1/4P's built-in PoE ports. No separate switch or injector is needed. Check the NVR's total PoE power budget against the combined power draw of all 4 cameras, particularly if using the LiveGuard supplemental light feature which increases per-camera power consumption.
• Wiring Tips: Run cables before finalising camera mounting positions. The turret form factor allows the camera head to be angled after mounting, so precise initial bracket placement is less critical than for fixed-lens dome cameras - but cable slack at the bracket is still recommended to allow for minor repositioning during commissioning.

Downloads & Resources

No downloads available for this product.
