Skip to product information
  • Sku: 4x DS-2CD2366g / DS-7604NI-I1-4P
  • Vendor: SecurityAustralia

6MP 4CH Hikvision CCTV Kit: 4 x Outdoor Turret Cameras with Acusense + 4CH NVR with 3TB Kit

$1,891.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

4 x 6 MP Hikvision Outdoor Turret AcuSense Camera

The Hikvision DS-2CD2366G-I cameras offer high-quality imaging with 6 MP resolution and are equipped with AcuSense technology for advanced human and vehicle target classification. These outdoor turret cameras feature Darkfighter technology for excellent low-light performance, making them ideal for comprehensive surveillance in various environments.

Code/SKU: HIK-2CD2366GI / DS-2CD2366G-I (featuring Darkfighter technology & AcuSense)

Quick Specs: H.265+, 30m IR, 120dB WDR, IP67

Lens Options:

  • 2.8mm: Horizontal FOV: 99°, Vertical FOV: 61°, Diagonal FOV: 128°
  • 4mm: Horizontal FOV: 79°, Vertical FOV: 44°, Diagonal FOV: 93°

Color Options: White or Black (available in 2.8mm only)

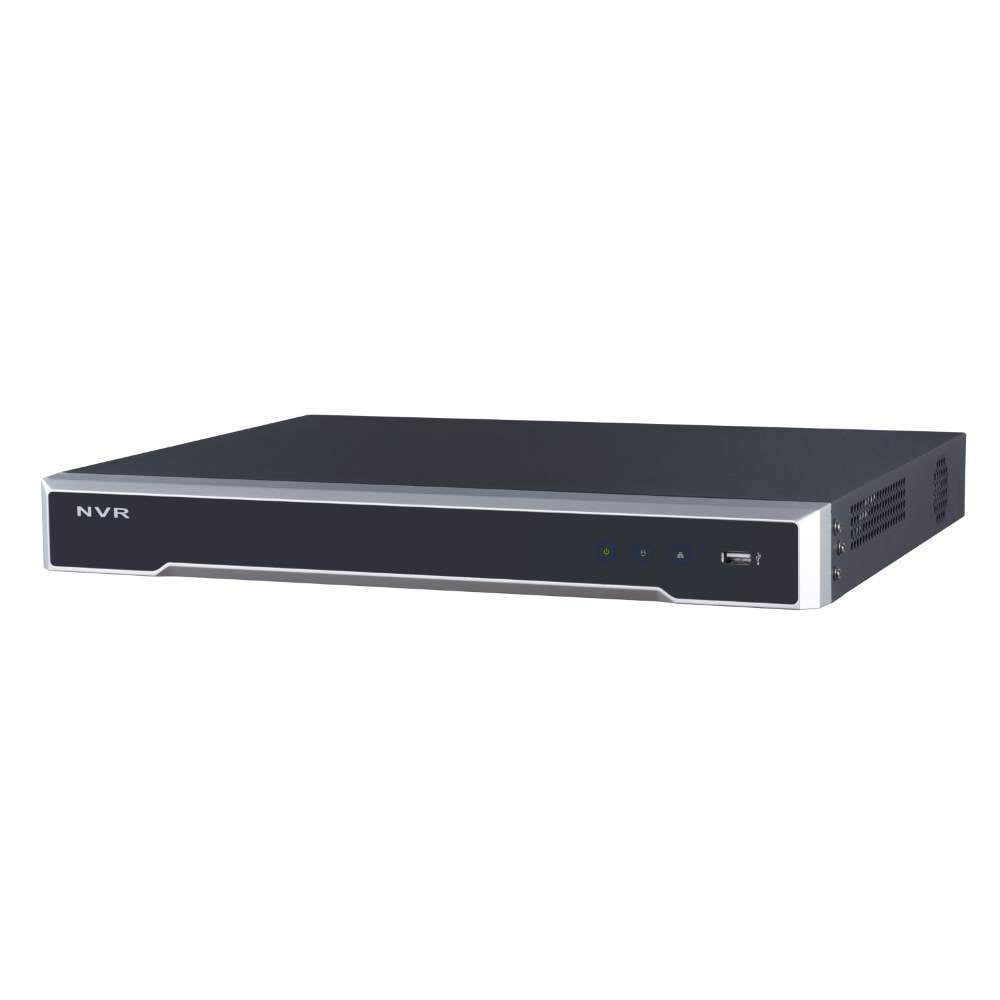

1 x 4 CH Hikvision PoE NVR

This Hikvision NVR supports up to 4 channels of high-resolution video recording. With the latest GUI 4.0 interface and support for AcuSense cameras, it provides a seamless and efficient surveillance solution for homes and businesses.

Code/SKU: DS-7604NI-I1-4P (Supports latest GUI 4.0 & AcuSense cameras)

Quick Specs: 4ch PoE NVR, 40Mbps, 4 PnP Ports, 4K, VGA/HDMI, 1 HDD Bay + 4TB HARD DRIVE

Suitable for residential and commercial environments, these cameras and NVR provide reliable and advanced surveillance capabilities with clear imaging and efficient storage solutions.

Specifications

Camera
Image Sensor 1/2.4" Progressive Scan CMOS
Max. Resolution 3200 × 1800
Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type Fixed lens, 2.8, 4, and 6 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°;
4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°;
6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI
DORI 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m;
4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m;
6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region Of Interest (ROI) 1 fixed region(s) for main stream and sub-stream
Audio
Audio Type -U: Mono sound
Audio Compression -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering -U: Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host Up to 32 users
3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone -U: Yes
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
Deep Learning Function Face Capture
General
Power 12 VDC ± 25%, 0.45 A, max. 5.4 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material Metal except for trim ring
Dimension Ø138.3 mm × 111.4 mm (Ø5.4" × 4.4")
Package Dimension 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Weight Approx. 740 g (1.6 lb.)
With Package Weight Approx. 1070 g (2.4 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-flicker
Approval
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RCM: AS/NZS CISPR 32: 2015
KC: KN32: 2015, KN35: 2015
Safety UL: UL 62368-1
CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

6MP 4CH Hikvision CCTV Kit: 4 x Outdoor Turret Cameras with Acusense + 4CH NVR with 3TB Kit

Hikvision DS-2CD2366G2-I2 6MP Outdoor AcuSense Gen 2 Turret Camera

Step up your security with the Hikvision DS-2CD2366G2-I2 6MP Outdoor AcuSense Gen 2 Turret Camera. Powered by deep learning algorithms, Hikvision's AcuSense technology distinguishes people and vehicles from other moving objects, minimizing false alarms and providing advanced analytics, active deterrence, and timely alerts.

This turret camera features a 2.8mm fixed lens that delivers sharp and clear images in low-light conditions, reaching down to 0.008 Lux with its larger image sensor and 30m IR range, ensuring reliable 24/7 video surveillance. It supports H.265/+ compression, 120dB wide dynamic range (WDR), and edge video analytics, making it versatile and cost-effective for various security applications.

AcuSense Technology: AcuSense technology uses advanced deep learning algorithms to differentiate between human and vehicle targets and other moving objects, significantly reducing false alarms and ensuring accurate security alerts.

Wide Dynamic Range (WDR): The 120 dB true WDR technology provides clear and detailed images even in environments with strong backlighting, balancing both bright and dark areas for optimal visibility.

High Efficiency Video Coding (H.265+): This advanced compression technology reduces bandwidth and storage requirements without compromising image quality, allowing for longer recording times and more efficient storage solutions.

Active Deterrence: The integrated strobe light and audio alarm deliver immediate visual and auditory warnings to deter potential intruders, enhancing overall security.

Two-Way Audio: The built-in microphone and speaker enable real-time communication, allowing you to interact with people at the camera's location or issue warnings to potential intruders.

Key Features:

  • High-Resolution Imaging: 6MP resolution for clear and detailed video.
  • Low Light Performance: Excellent imaging in low-light conditions with 0.008 Lux sensitivity.
  • Wide Dynamic Range: 120dB true WDR for clear images in challenging lighting conditions.
  • Efficient Compression: Supports H.265+ for reduced bandwidth and storage requirements.
  • Intelligent Detection: AI-based human and vehicle classification to reduce false alarms.
  • Durable Design: IP67 rated for water and dust resistance.

Specifications:

Specifications Details
Resolution Up to 6 megapixel high resolution (3072 × 2048 @20fps)
Lens 2.8 mm/4 mm/6 mm fixed lens (optional)
Compression H.265, H.265+, H.264+, H.264
Wide Dynamic Range 120dB
IR Range Up to 30m
Storage Supports on-board storage, up to 128GB
Power Supply DC12V & PoE (802.3af)
IP Rating IP67
Color 0.008 Lux @ (F1.2, AGC ON), 0.016 Lux @ (F1.6, AGC ON)

Enhanced with 3D Digital Noise Reduction and designed for easy integration with existing systems, the DS-2CD2366G2-I2 is your solution for reliable surveillance in challenging environments.
