Hikvision DS-2CD2T66G2-4I Acusense 6MP EXIR Outdoor Bullet CCTV Camera Up to 80m IR
The Hikvision DS-2CD2T66G2-I2 is a 6MP outdoor AcuSense gen 2 bullet camera. Empowered by deep learning algorithms, Hikvision's AcuSense technology can distinguish people and vehicles from other moving objects, such as falling leaves or small animals. While originally created with the purpose of preventing false alarms, AcuSense technology offers users several other key benefits such as advanced analytics, active deterrence, and timely alerts.
Key Features
Code/SKU: DS-2CD2T66G2-I2
Quick Specs:
This camera offers exceptional surveillance capabilities with advanced motion detection and a long-range infrared capability. Suitable for both residential and commercial environments, it provides reliable and accurate monitoring.
| Camera | |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | 2.8 mm: horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° 4 mm: horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° 6 mm: horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m 6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m |
| Supplement Light Type | IR |
| Supplement Light Range | -2I: up to 60 m; -4I: up to 80 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 (*Third stream is supported under certain settings) |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region(s) for main stream and sub-stream |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |

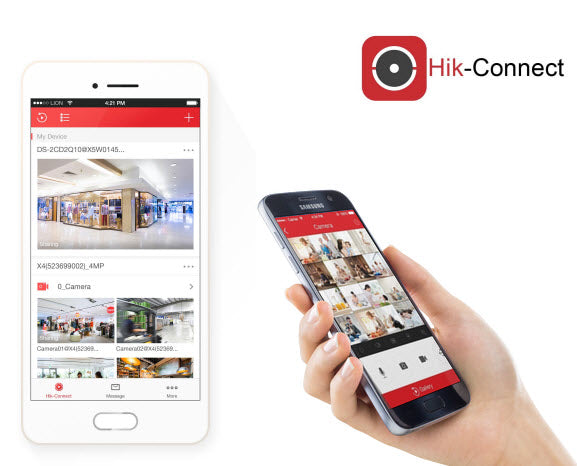

| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
| Deep Learning Function | Face Capture: Yes |
| General | |
| Power | -2I: 12 VDC, 0.63 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, max. 9 W -4I: 12 VDC, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, max. 12 W |
| Dimension | Ø105 mm × 290 mm (Ø4.1" × 11.4") |
| Package Dimension | 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1") |
| Weight | Approx. 1085 g (2.4 lb.) |
| With Package Weight | Approx. 1604 g (3.5 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages |
| General Function | Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-flicker |
| Approval | |
| EMC | FCC, CE-EMC, RCM, KC |
| Safety | UL, CB, CE-LVD |
| Environment | CE-RoHS, WEEE, Reach |
| Protection | IP67: IEC 60529-2013 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
6MP 4CH Hikvision CCTV Kit: 2 x EXIR Bullet Cameras with Acusense + 4CH NVR
6MP 4CH Hikvision CCTV Kit: 2 x EXIR Bullet Cameras with Acusense + 4CH NVR
6MP AcuSense Gen 2 Bullet Camera for Outdoor Use
Elevate your security with the Hikvision DS-2CD2T66G2, a 6MP outdoor AcuSense Gen 2 bullet camera designed for superior surveillance. This advanced camera leverages deep learning algorithms to accurately distinguish between people, vehicles, and other moving objects.
Originally developed to prevent false alarms, AcuSense technology offers significant benefits, including advanced analytics, active deterrence, and timely alerts. With a robust design and an IP67 rating, this camera ensures reliable performance in various weather conditions.
Equipped with DarkFighter technology, the DS-2CD2T66G2 captures high-quality images even in low-light conditions. This makes it ideal for applications requiring effective nighttime surveillance, enhancing security during all hours of the day.
Features:
Functions:
AcuSense Technology:
This advanced technology utilizes deep learning algorithms to differentiate between human and vehicle targets, minimizing false alarms and ensuring users receive alerts only for genuine security threats.
DarkFighter Technology:
Enhances low-light imaging capabilities, enabling the camera to produce clear video feeds even in near-total darkness, thus ensuring effective monitoring around the clock with reliable performance.
Wide Dynamic Range (WDR):
120 dB WDR capability ensures clear imaging across varied lighting environments, allowing significant detail capture in high contrast settings like entrances, allowing user examination of both bright and shadowed areas.
Smart Video Analytics:
Features advanced analytics to support intelligent monitoring and event detection, allowing users to filter video content for specific object classifications for enhanced surveillance and efficient incident management.
Seamless Integration:
Designed for compatibility with various security systems, this camera can be easily integrated into existing setups, improving capacity and performance without significant changes to the existing infrastructure.
Robust Design:
Built for outdoor resilience with IP67 ratings, ensuring dependable performance against challenging weather conditions while maintaining consistent video recording quality without concerns about damage or deterioration.
Real-Time Alerts:
Provides instant notifications for detected events, enhancing response times for security personnel and ensuring quick actions can be taken to mitigate potential security threats.
Easy Installation:
Engineered for user-friendly setup, including adjustable mounting options that simplify the installation process, allowing for efficient deployment in various outdoor settings with minimal technical expertise required.
Technical Specifications
| Model | DS-2CD2T66G2-4I |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Resolution | 3072 x 2048 (6MP) at 20fps |
| Lens | 2.8 mm, Motorised Varifocal Lens |
| Field of View | Horizontal: 99°, Vertical: 61°, Diagonal: 128° |
| IR Range | Up to 80m |
| Min. Illumination | Color: 0.01 Lux (AGC ON); B/W: 0.002 Lux (AGC ON); 0 Lux with IR |
| Wide Dynamic Range (WDR) | 120 dB True WDR |
| Video Compression | H.265, H.265+, H.264, H.264+ |
| Audio Input/Output | Audio IO supported |
| Smart Features | AcuSense technology for object detection and alerts |
| Storage Support | Supports microSD cards up to 128GB |
| Power Supply | 12V DC or PoE (802.3af) |
| Weather Resistance | IP67 rated |
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Weight | Approx. 1.5 kg (3.31 lb) |
