6MP 4CH Hikvision CCTV Kit: 4 x Outdoor Acusense Turret Cameras + 4CH NVR

Model: DS-2CD2366G2-I / DS-7604NI-I1-4P

Who This Is For

For property owners and small business operators who need a complete, ready-to-run outdoor surveillance system without sourcing compatible components separately. This 6MP 4-channel Hikvision AcuSense kit pairs 4 x DS-2CD2366G2-I turret cameras with a 4-channel PoE NVR, giving you a matched system that works out of the box. The cameras are IP67-rated for full outdoor exposure, use AcuSense deep learning to separate human and vehicle targets from background movement, and deliver 6MP resolution across entries, driveways, car parks, and perimeter lines. The 4-port PoE NVR powers each camera over a single Cat5e or Cat6 cable - no separate power runs required. Well suited to residential properties with multiple entry points, small retail premises, warehouses with a single monitored zone, and small office buildings where 4 cameras cover the critical areas.

What This System Actually Does

Who Buys This Model

• Residential property owners: Covering front door, driveway, side gate, and rear yard with 4 matched cameras on a single PoE NVR - no component compatibility guesswork.
• Small retail and hospitality operators: Monitoring entry, car park, loading area, and a secondary zone simultaneously using AcuSense alerts to filter motion events down to human and vehicle activity only.
• Warehouse and light industrial tenants: Using IP67-rated turrets at roller door access points and perimeter corners where weather exposure is a constant factor and 6MP detail is needed for vehicle and personnel identification.
• Strata and body corporate managers: Deploying a self-contained 4-camera system across a common-area car park or building entry without requiring a rack-mount NVR or separate PoE switch infrastructure.
• Owner-operated offices and medical practices: Where after-hours monitoring with AcuSense-filtered human detection alerts reduces reliance on monitored alarm services for intrusion notification.

Honest Assessment

This kit delivers genuine value in the 4-camera bracket. The DS-2CD2366G2-I cameras are confirmed IP67, confirmed AcuSense, and confirmed 6MP - that combination at this price point is a practical step up from 4MP or non-AI systems. AcuSense classification genuinely reduces nuisance alerts in outdoor environments where standard motion detection would otherwise trigger constantly. The 120 dB WDR and DarkFighter sensor handle mixed-light and low-light outdoor scenarios effectively. Available through Security Australia, it arrives as a matched Hikvision system, which simplifies firmware management and NVR compatibility. Where this kit has limits: the NVR has 1 HDD bay, so storage capacity is capped by a single drive. The cameras top out at 30m IR range, which is adequate for residential and small commercial perimeters but undersized for long-approach driveways or large open yards. There is no built-in microphone on the cameras, so two-way audio is not supported. If your site needs more than 4 cameras, a larger-channel NVR kit is the more practical path.

Complete Package Contents

• 4 x Hikvision DS-2CD2366G2-I AcuSense Turret Camera - 6MP, IP67, 30m IR, 2.8mm/4mm/6mm fixed lens, PoE (802.3af)

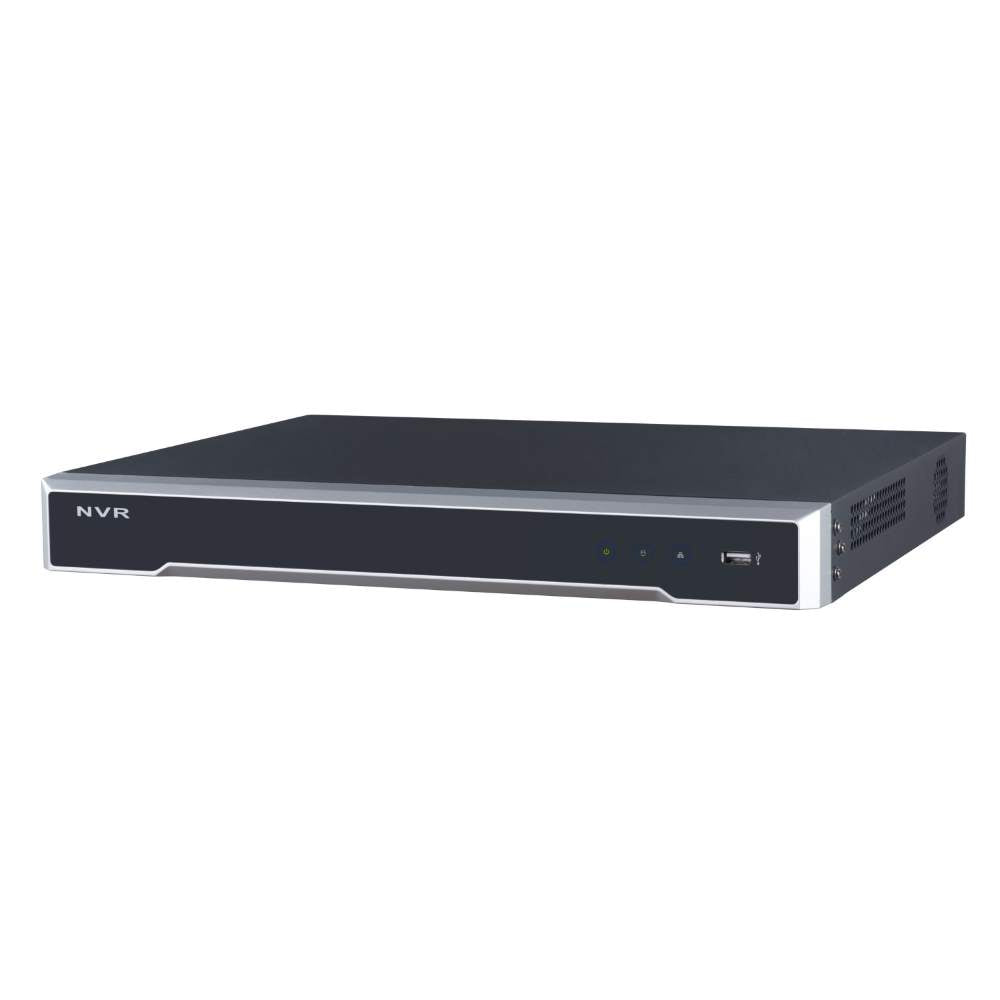

• 1 x Hikvision DS-7604NI-I1-4P 4-Channel PoE NVR - 4 built-in PoE ports, 1 HDD bay (HDD not included), H.265+ support

Before You Buy

Quick Fit Check

• Good match if: You need a complete 4-camera outdoor IP system where PoE simplicity is a priority - this kit's 4-port PoE NVR eliminates separate switches and power adaptors for a 4-camera run.
• Good match if: Your site generates constant false motion alerts from existing cameras - AcuSense human and vehicle classification on all 4 cameras filters non-target movement at the detection stage, not just at the notification stage.
• You may need a different model if: Your site requires more than 4 cameras, long-range IR beyond 30m for extended driveways or perimeter fences, or two-way audio at entry points - a larger-channel kit or bullet camera system from the Security Australia range would be more appropriate.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a fully matched 4-camera outdoor system with AcuSense AI filtering and PoE simplicity - confirmed 6MP, IP67, and H.265+ across all cameras with a compatible 4-port PoE NVR included.
• You may need a different model if: Your site has more than 4 camera positions, requires IR range beyond 30m for long driveways or perimeter fences, or needs two-way audio at access points - a larger-channel kit or bullet camera system would serve those requirements better.
• Pairs well with: A surveillance-grade 3.5" SATA HDD (sized to your required recording duration), a UPS to maintain NVR operation during power interruptions, and conduit or cable management appropriate for outdoor cable runs.

Common Questions

1. Does this kit include a hard drive for recording?

   No. The DS-7604NI-I1-4P NVR has 1 x 3.5" SATA HDD bay but ships without a drive. You will need to purchase a compatible surveillance-grade HDD separately. For 4 x 6MP cameras recording continuously in H.265+, a 4TB drive provides approximately 30 days of storage depending on scene activity and bitrate configuration.

2. Will this system work without an internet connection?

   Yes. The NVR records locally to the installed HDD and does not require internet to record or play back footage. An internet connection is only needed if you want remote access via the Hik-Connect mobile application or web browser. Local viewing via a monitor connected to the NVR works fully offline.

3. How does AcuSense actually reduce false alarms - and what does it not filter?

   AcuSense uses deep learning inference running on the camera's processor to classify detected motion events as human, vehicle, or neither. Events classified as human or vehicle trigger alerts; movement from animals, foliage, rain, or shadows does not. The classification happens at the camera level before the event reaches the NVR, which is why it reduces alert volume rather than just filtering notifications after the fact. It does not identify specific individuals and it does not classify objects that are too small or too close to the edge of the field of view to generate a confident classification result. Performance is best when the camera is positioned so that a human target occupies a reasonable portion of the frame.

4. Can I add more cameras to this NVR later?

   No. The DS-7604NI-I1-4P is a 4-channel NVR with 4 built-in PoE ports, and the channel count is fixed. If you anticipate needing more than 4 cameras, a higher-channel NVR kit is a better starting point. Expanding beyond 4 cameras would require replacing the NVR entirely, which affects the total system cost.

5. Does this camera support two-way audio?

   No. The DS-2CD2366G2-I does not have a built-in microphone. Two-way audio requires both a built-in speaker and a built-in microphone at the camera, and this model does not have either. If audio recording or two-way communication is a requirement, a different camera model with audio hardware is needed.

6. What cable do I need to run between the NVR and the cameras?

   Cat5e or Cat6 cable. Each camera connects to one of the 4 PoE ports on the NVR using a single cable run that carries both power and video data. Standard maximum PoE cable runs are 100m per segment. If any camera position is beyond 100m from the NVR, a PoE extender or mid-span switch will be required in that run. Cat6 is recommended for new installations.

7. How does AcuSense classification perform at night when the camera switches to IR monochrome?

   AcuSense classification continues to function in IR mode. The deep learning model used by the DS-2CD2366G2-I is trained on both colour and monochrome imagery, so switching from DarkFighter colour to IR monochrome at night does not disable human and vehicle detection. Classification accuracy can be marginally reduced at very long distances or when the target is partially occluded, but standard overnight detection at distances within the 30m IR range operates as expected. The classification result - human, vehicle, or neither - is the same trigger mechanism used for alert generation regardless of whether the camera is in colour or IR mode. This is confirmed by Hikvision's AcuSense specification for the G2-series cameras, part of the range stocked by Security Australia.

8. Will this kit work with my existing Hikvision cameras or NVR?

   Partially. The DS-7604NI-I1-4P NVR is compatible with other ONVIF-compliant IP cameras and most Hikvision IP camera models, so adding a 5th camera from another source via a separate PoE switch is technically possible - however the channel count is still limited to 4. The DS-2CD2366G2-I cameras can also be added to an existing larger Hikvision NVR if you already have one in place. AcuSense features such as human and vehicle filtering work most reliably when the NVR is also a Hikvision AcuSense-compatible model with matching firmware support.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for new installations. Shielded (STP) cable is advisable where cable runs pass near electrical conduit or in environments with high electrical interference.
• Max Cable Run: 100m per segment from NVR PoE port to camera. Beyond 100m, a PoE extender is required in the run. Do not exceed 100m without a powered mid-span device.
• PoE Notes: Each DS-2CD2366G2-I draws power via IEEE 802.3af PoE. The DS-7604NI-I1-4P has 4 built-in 802.3af PoE ports - no external switch required for the 4 included cameras. Total PoE budget of the NVR should be confirmed against camera draw if additional cameras are connected via a separate switch.
• Wiring Tips: Terminate outdoor cable runs with weatherproof RJ45 connectors or run cable through conduit where it is exposed to UV and moisture. Drip loops at camera entry points prevent water tracking down the cable into the connector. Use cable clips rated for outdoor UV exposure on external surfaces.
