  • UNV Uniview IPC3615SB-ADF28(40)KM-I0 5MP 5MP Fixed Eyeball Network Camera 2.8mm Lighthunter
  • e2-unv
  • UNI506AB

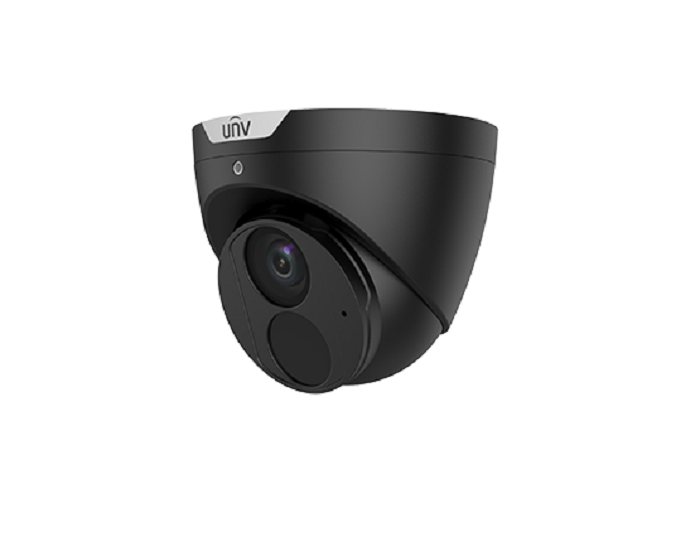

UNV Uniview IPC3615SB-ADF28(40)KM-I0 5MP 5MP Fixed Eyeball Network Camera 2.8mm Lighthunter

  • Sku: IPC3615SB-ADF28(40)KM-I0
  • Vendor: SecurityAustralia
$99.00 AUD
Tax included.
Shipping calculated at checkout.
In stock - Ready to ship
Free shipping on orders over $100. Usually ships within 1 business day when available.
Quick Buying Summary
  • High quality image with 5MP, 1/2.7"CMOS sensor
  • 5MP (2880*1620)@25fps; 4MP (2560*1440)@25fps; 3MP (2304*1296) @25fps; 2MP (1920*1080) @30/25fp
  • Ultra 265, H.265, H.264, MJPEG
  • Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
  • Support 9:16 Corridor Mode
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection
IPC3615SBADF28KM.tag.datasheet Black camera model number - IPC3615SSADF28KB

Need help choosing?

Click to ask a question - same day response (~2 hours during business hours)

Free shipping Enjoy free shipping when your order exceeds $100. Fast dispatch Orders are dispatched within the next business day. Best local support in Aus We back all products with manufacturer warranty support. Official Australian stock Genuine products with local warranty support.

Product Overview

This camera is no longer available. Replacement:

https://www.securitywholesalers.com.au/product/unv-uniarch-ipc-t1e6-af28k-6mp-starlight-fixed-turret-network-camera-w-human-detection/

OPTICS

  • 1/2.7’’, Powered by lighthunter
  • Smart IR, up to 30m (91 ft) IR distance
  • Up to 120 dB Optical WDR (Wide Dynamic Range)

SMART

  • Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection

COMPRESSION

  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams
  • 2592*1944@20fps in the main stream
  • ROI (Region of Interest)

NETWORK

  • ONVIF Conformance

STRUCTURE

  • Built-in Mic
  • DC12V or PoE power supply
  • Wide voltage range of ±25% in DC
  • Micro SD, up to 256 GB
  • IP67 ingress protection
  IPC3615SS-ADF28KB
Camera
Sensor 1/2.7", progressive scan, 5.0 megapixel, CMOS
Lens 2.8mm@F1.6
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 63 25.2 12.6 6.3
4mm 90 36 18 9
Angle of view(H) 112.7°
Angle of View (V) 60.1°
Angle of View (O) 146.5°
Adjustment angle Pan: 0°~360° Tilt: 0°~80° Rotate: 0°~360°
Shutter Auto/Manual, 1~1/100000 s
Minimum Illumination Colour: 0.003Lux (F1.6, AGC ON) 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >56 dB
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps; Sub Stream: D1 (720*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps
HLC Supported
BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Bit Rate 128 Kbps~16 Mbps
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8 KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR
Intelligent
Smart Intrusion Prevention Cross line, intrusion, enter area, leave area detection
Events
Basic Detection Motion detection, tampering alarm, audio detection
General Function Watermark, IP address filtering, tampering alarm, alarm input, alarm output, Access policy, ARP protection, RTSP authentication, user authentication
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Compatible Integration ONVIF (Profile S, Profile T), API
Client EZStation, EZLive ,Ezview
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Certification
Certifications CE: EN 60950-1 UL: UL 60950-1 FCC: FCC Part 15
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
General
Power 12 V DC±25%, PoE (IEEE802.3 af) Power consumption: Max 4.0W
Dimensions (Ø x H) Φ110.5 x 94.1mm(Φ4.35’’ x 3.7’’)
Weight 0.425kg(0.93lb)
Material Metal
Operating Conditions -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge protection 2KV
Ingress Protection IP67

Key Features

Trusted Brand Partner & Security Equipment Wholesaler

  • Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
  • Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

What This Product Does

  • High quality image with 5MP, 1/2.7"CMOS sensor
  • 5MP (2880*1620)@25fps; 4MP (2560*1440)@25fps; 3MP (2304*1296) @25fps; 2MP (1920*1080) @30/25fp
  • Ultra 265, H.265, H.264, MJPEG
  • Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
  • Support 9:16 Corridor Mode
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection
IPC3615SBADF28KM.tag.datasheet Black camera model number - IPC3615SSADF28KB
