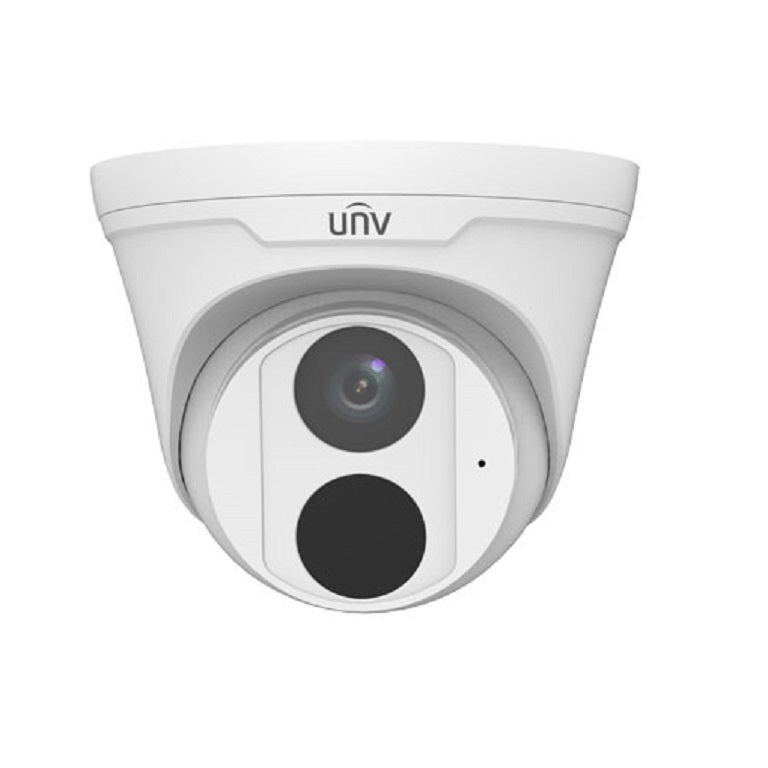

UNV Uniview IPC3614LE-ADF28(40)K 4MP IP67 IR 2.8MM EASY Starlight Turret Camera
- Sku: IPC3614LEADF28KM
- Vendor: SecurityAustralia
- 1/3", 4.0 megapixel, progressive scan, CMOS
- Ultra 265, H.265, H.264, MJPEG
- Smart IR, up to 30m (98ft) IR distance
- ONVIF Conformance
- IVS
- IP67
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
This camera is no longer available. Replacement:
https://www.securitywholesalers.com.au/product/unv-uniarch-ipc-t1e6-af28k-6mp-starlight-fixed-turret-network-camera-w-human-detection/OPTICS
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
COMPRESSION
- Ultra 265, H.265, H.264, MJPEG
- ROI (Region of Interest)
NETWORK
- ONVIF Conformance
STRUCTURE
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
| Camera | |||||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | ||||||||
| Lens | 2.8mm@F1.6 | ||||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||||
| 2.8mm | 63 | 25.2 | 12.6 | 6.3 | |||||
| Angle of View(H) | 105.3° | ||||||||
| Angle of View (V) | 57° | ||||||||
| Angle of View (O) | 136.9° | ||||||||
| Adjustmentangle | Pan: 0°~360° | Tilt:0°~80° | Rotate:0°~360° | ||||||
| Shutter | Auto/Manual, shutter time: 1~1/100000 s | ||||||||
| Minimum Illumination | Colour: 0.005 Lux (F1.6, AGC ON) 0 Lux with IR on | ||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||
| S/N | >52 dB | ||||||||
| IR Range | Up to 30m (98 ft) IR range | ||||||||
| Wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Defog | Digital Defog | ||||||||
| WDR | 120dB | ||||||||
| Video | |||||||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||||
| Frame Rate | Main Stream:4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 25fps | ||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
| HLC | Supported | ||||||||
| BLC | Supported | ||||||||
| OSD | Up to 4 OSDs | ||||||||
| Privacy Mask | Up to 4 areas | ||||||||
| ROI | Up to 4 areas | ||||||||
| Motion Detection | Up to 4 areas | ||||||||
| Image | |||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||||
| Smart IR | Supported | ||||||||
| Flip | Normal/Vertical/Horizontal/180° | ||||||||
| Dewarping | Support | ||||||||
| Audio | |||||||||
| Audio Compression | G.711 | ||||||||
| Suppression | Supported | ||||||||
| Sampling Rate | 8 KHZ | ||||||||
| Storage | |||||||||
| Edge Storage | Micro SD, up to 256 GB | ||||||||
| Network Storage | ANR | ||||||||
| Network | |||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | ||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||||
| Client | EZStation ,EZView ,EZLive | ||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||
| Interface | |||||||||
| Network | 10M/100M Base-TX Ethernet | ||||||||
| Built-in Mic | Supported | ||||||||
| Certifications | |||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||||||
| General | |||||||||
| Power | 12 V DC±25%,PoE (IEEE802.3 af) Power consumption: Max 3.0 W | ||||||||
| Dimensions (L × W × H) | Φ118 x 96mm (Φ4.6” x 3.8”) | ||||||||
| Weight | 0.35kg (0.77lb) | ||||||||
| Material | Front cover：metal Rear cover：plastic Bracket：plastic Bottom plate：metal | ||||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Surge Protection | 2KV | ||||||||
| Ingress Protection | IP67 | ||||||||
