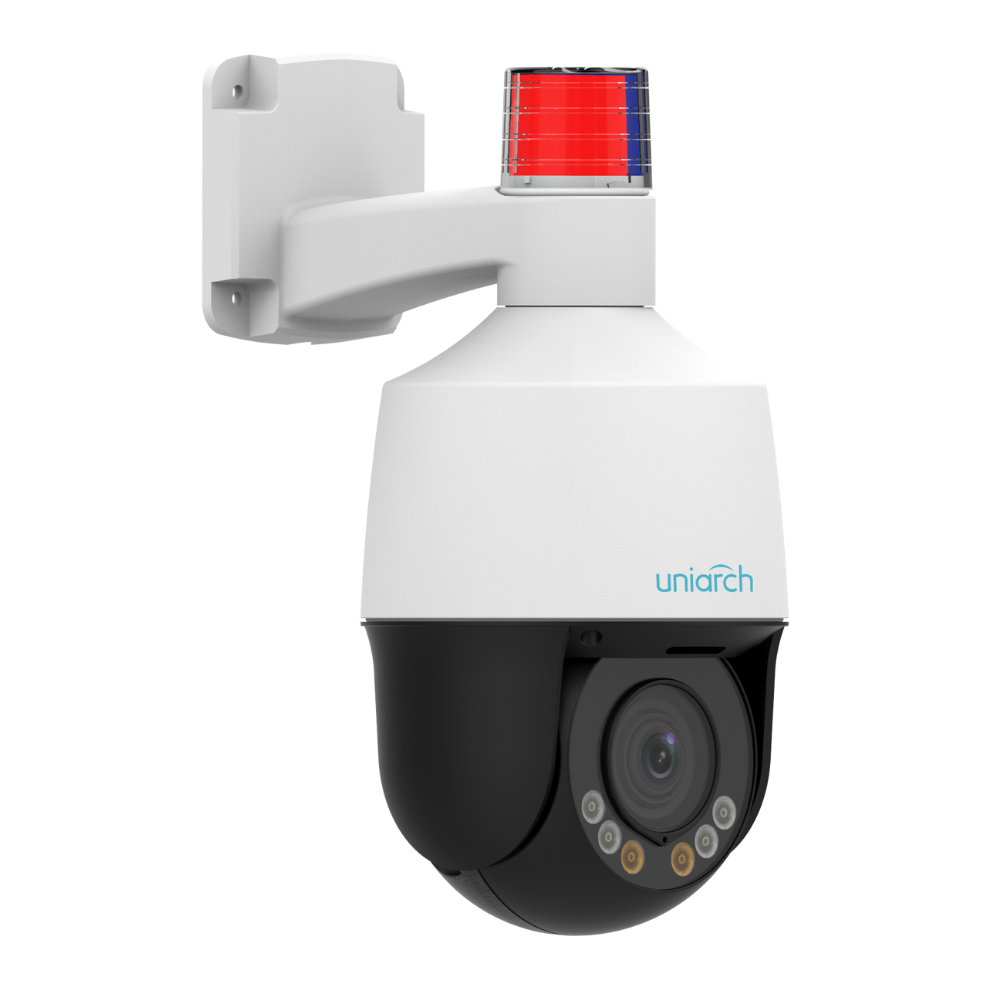

IPC-P1E5-AX4PKC |
| Camera |
| Sensor |
1/2.7" progressive scan, 5.0 megapixel, CMOS |
| Lens |
2.8~12mm，AF automatic focusing and motorized zoom lens |
| DORI Distance |
Lens |
Detect(m) |
Observe(m) |
Recognize(m) |
Identify(m) |
| 2.8mm |
63.0 |
25.2 |
12.6 |
6.3 |
| 12mm |
270.0 |
108.0 |
54.0 |
27.0 |
| Angle of View (H) |
30.6°~104.1° |
| Angle of View (V) |
17.4°~54.9° |
| Angle of View (O) |
34.4°~108.3° |
| Shutter |
Auto/Manual, shutter time: 1 s ~ 1/100000 s |
| Minimum Illumination |
Colour: 0.003 lux (F1.6,AGC ON)
0 lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Digital noise reduction |
2D/3D DNR |
| S/N |
>52 dB |
| IR Range |
UP to 50m (164ft) |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Warm Light Range |
UP to 10m (33ft) |
| WDR |
120dB |
| Video |
| Video Compression |
Ultra 265,H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main Profile |
| Frame Rate |
Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 25fps;3MP (2304*1296), Max 25fps; 2MP (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; |
| Video Bit Rate |
128 Kbps~16 Mbps |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
24 areas, up to 4 areas per scene |
| ROI |
Up to 8 areas |
| Motion Detection |
Up to 4 areas |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping |
N/A |
| HLC |
Support |
| BLC |
Support |
| Intelligent |
| Smart intrusion Prevention |
Cross Line, Intrusion, Enter Area, Leave Area detection, Motion detection |
| Events |
| Basic Detection |
Motion detection, Tampering alarm, Audio Detection |
| General Function |
Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio |
| Audio Compression |
G.711U, G.711A |
| Two-way Audio |
Support |
| Suppression |
Support |
| Sampling Rate |
8 KHZ |
| Storage |
| Edge Storage |
Micro SD, up to 256 GB |
| Network Storage |
ANR, NAS(NFS) |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL |
| Compatible Integration |
ONVIF(Profile S, Profile G, Profile T), API |
| Client |
Uniarch Client
Uniarch app |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Pan & Tilt |
| Pan Range |
0°~ 345° |
| Pan Speed |
0.1°/s ~ 50°/s |
| Preset speed: 50°/s |
| Tilt Range |
-10~110° |
| Tilt Speed |
0.1°/s ~ 40°/s |
| Preset speed: 40°/s |
| Number of Presets |
256 |
| Preset Patrol |
16 patrols, up to 64 presets for each patrol |
| Interface |
| Network |
1 RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic |
Support |
| Built-in Speaker |
Support |
| Alarm Light |
Support |
| General |
| Power |
DC 12V±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 18 W |
| Dimensions (Ø x H) |
Φ133mm*269mm (Φ5.2”x 10.6”) |
| Net Weight |
0.87 kg (1.92lb) |
| Gross Weight |
1.13 kg (2.49lb) |
| Material |
Metal + Plastic |
| Working Environment |
-20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing) |
| Storage Environment |
-20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing) |
| Surge Protection |
2KV |
| Reset Button |
Support |
| Protection |
Ingression protection: IP66
Vandal resistant: N/A |
