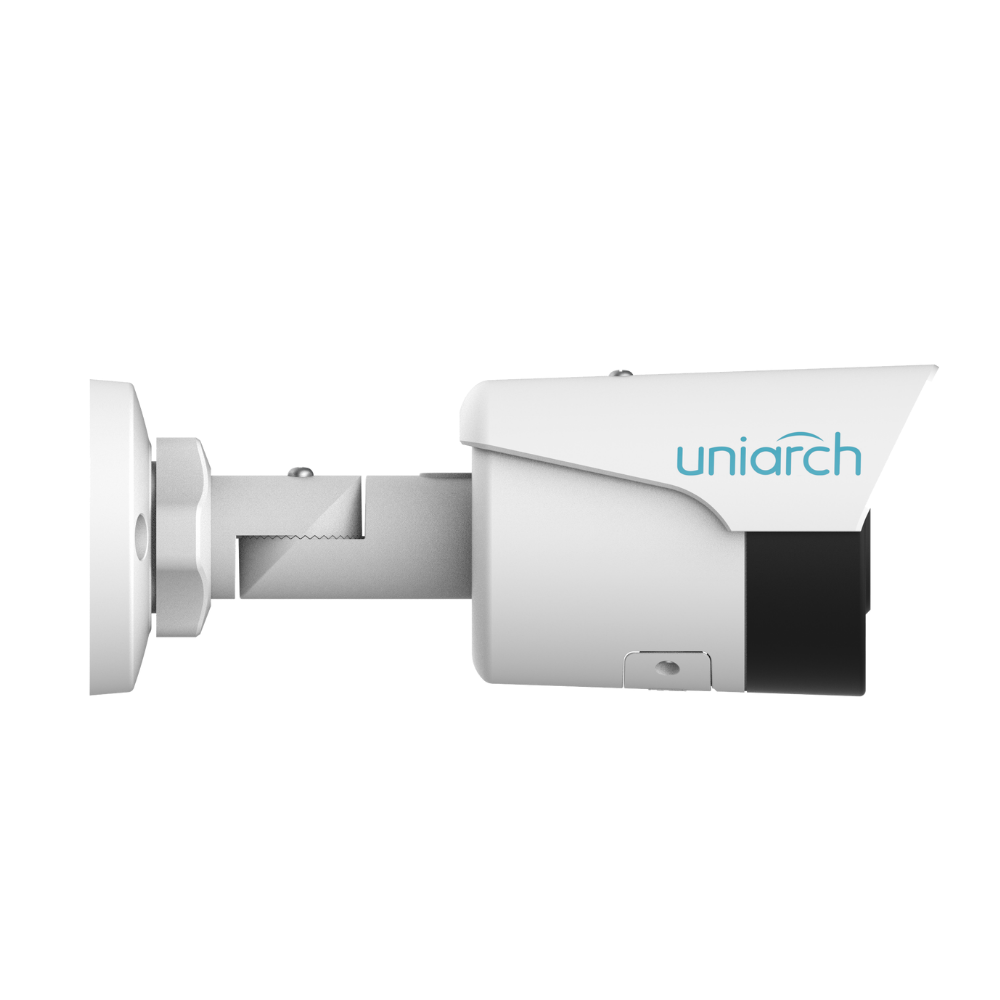

Uniarch powered by Uniview IPC-B1E8-AF28K 8MP 4K Starlight Fixed Bullet Network Camera w/ Ai Filtering
> High quality image with 8MP, 1/2.7''CMOS sensor > 8MP(3840*2160)@20fps; 5MP(3072*1728)@30/25fps; 4MP(2560*1440)@30/25fps; 2MP(1920*1080)@30/25fps > Ultra 265, H.265, H.264, MJPEG > Easystar technology ensures high image quality in low illumination environment > 120dB true WDR technology enables clear image in strong light scene > Support 9:16 Corridor Mode > Built-in Mic > Smart IR, up to 50m (98ft) IR distance > Supports 256 G Micro SD card > IK10 vandal resistant > IP67 protection > Support PoE power supply
| IPC-B1E8-AF28K | ||||||
| Camera | ||||||
| Sensor | 1/2.7", 8.0 megapixel, progressive scan, CMOS | |||||
| Minimum Illumination | Colour: 0.005Lux (F1.6, AGC ON) 0Lux with IR on | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| Adjustment angle | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360° | |||||
| S/N | >56dB | |||||
| WDR | 120dB | |||||
| Lens | ||||||
| Lens Type | 2.8mm @1.6, Fixed-focal | |||||
| Lens Mount | M12 | |||||
| Angle of View (H) | 112.9° | |||||
| Angle of View (V) | 59.1° | |||||
| Angle of View (O) | 121.2° | |||||
| DORI | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8 | 84.0 | 33.6 | 16.8 | 8.4 | ||
| Illuminator | ||||||
| IR Range | Up to 50m (164ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; | |||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| U-code | Supported | |||||
| 9:16 Corridor Mode | Supported | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 4 areas | |||||
| ROI | Up to 8 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | |||||
| Digital Noise Reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
| Dewarping | N/A | |||||
| HLC | Supported | |||||
| BLC | Supported | |||||
| Defog | Digital Defog | |||||
| Events | ||||||
| Basic Detection | Intrusion(based on human body detection) | |||||
| motion detection, tampering alarm, audio detection | ||||||
| General Function | Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication | |||||
| Audio | ||||||
| Audio Compression | G.711 | |||||
| Suppression | Supported | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256GB | |||||
| Network Storage | ANR, NAS(NFS) | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS , SSL/TLS, | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||
| Client | Uniarch Client Uniarch APP | |||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ | ||||||
| Interface | ||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||
| Built-in Mic | Supported | |||||
| General | ||||||
| Power | 12 V DC±25%, PoE (IEEE802.3 af) | |||||
| Power consumption: Max 6.5W | ||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||
| Dimensions (L × W × H) | 179×71×70mm (7.0”×2.8”×2.8”) | |||||
| Weight | 0.45kg (0.99lb) | |||||
| Material | Metal | |||||
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing) | |||||
| Storage Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing) | |||||
| Surge Protection | 4KV | |||||
| Reset Button | Supported | |||||
| Ingress Protection | Ingression protection: IP67 | |||||
