IPC-T1E8-AF28K |
Camera |
Sensor |
1/2.7″, 8.0 megapixel, progressive scan, CMOS |
Minimum Illumination |
Colour: 0.005Lux (F1.6, AGC ON)0Lux with IR on |
Day/Night |
IR-cut filter with auto switch (ICR) |
Shutter |
Auto/Manual, 1 ~ 1/100000s |
Adjustment angle |
Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° |
S/N |
>56dB |
WDR |
120dB |
Lens |
Lens Type |
2.8mm @1.6, Fixed-focal |
Lens Mount |
M12 |
Angle of View (H) |
112.9° |
Angle of View (V) |
59.1° |
Angle of View (O) |
121.2° |
DORI |
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
2.8 |
84.0 |
33.6 |
16.8 |
8.4 |
Illuminator |
IR Range |
Up to 30m (98 ft) IR range |
Wavelength |
850nm |
IR On/Off Control |
Auto/Manual |
Video |
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
H.264 code profile |
Baseline profile, Main profile, High profile |
Frame Rate |
Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; |
Video Bit Rate |
128 Kbps~16 Mbps |
U-code |
Supported |
9:16 Corridor Mode |
Supported |
OSD |
Up to 4 OSDs |
Privacy Mask |
Up to 4 areas |
ROI |
Up to 8 areas |
Motion Detection |
Up to 4 areas |
Image |
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
Image Setting |
Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
Digital Noise Reduction |
2D/3D DNR |
Smart IR |
Support |
Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
Dewarping |
N/A |
HLC |
Supported |
BLC |
Supported |
Defog |
Digital Defog |
Events |
Basic Detection |
Intrusion(based on human body detection) |
motion detection, tampering alarm, audio detection |
General Function |
Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication |
Audio |
Audio Compression |
G.711 |
Suppression |
Supported |
Sampling Rate |
8KHZ |
Storage |
Edge Storage |
Micro SD, up to 256GB |
Network Storage |
ANR, NAS(NFS) |
Network |
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS , SSL/TLS, |
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
User/Host |
Up to 32 users. 2 user levels: administrator and common user |
Security |
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
Client |

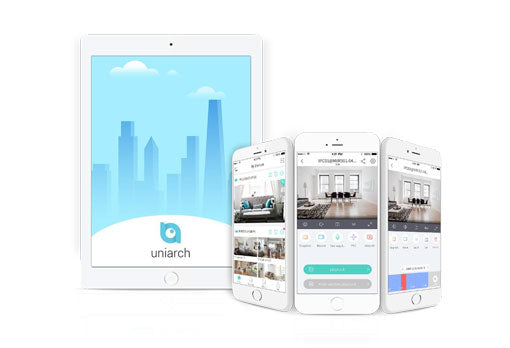

Uniarch ClientUniarch APP |
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
Interface |
Network |
1 * RJ45 10M/100M Base-TX Ethernet |
Built-in Mic |
Supported |
General |
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
Power consumption: Max 4.5W |
Power Interface |
Ø 5.5mm coaxial power plug |
Dimensions (L × W × H) |
Φ111 x 95mm (Φ4.4” x 3.7”) |
Weight |
0.36kg (0.79lb) |
Material |
Metal |
Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Storage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Surge Protection |
4KV |
Reset Button |
N/A |
Ingress Protection |
Ingression protection: IP67 |
