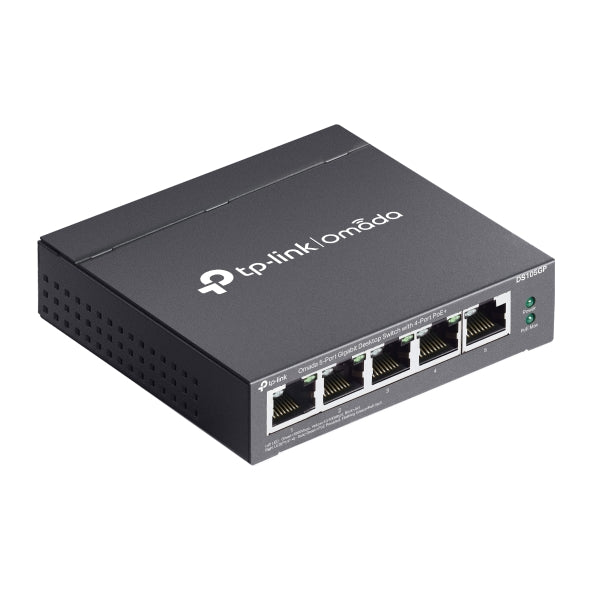

Tp-Link TL-DS105GP Omada 5-Port Gigabit Unmanaged Desktop Switch with 4-Port PoE+

  • Sku: TL-DS105GP
  • Vendor: SecurityAustralia
$89.00 AUD
Tax included.
Shipping calculated at checkout.
In stock - Ready to ship
Free shipping on orders over $100. Usually ships within 1 business day when available.
Quick Buying Summary
The Omada 5-Port Gigabit Unmanaged Desktop Switch with 4-Port PoE+ (DS105GP) is designed to enhance small business networks with its five Gigabit RJ45 ports, four of which support PoE+ (Power over Ethernet) functionality. This allows the device to deliver both power and data over a single cable, simplifying installation for PoE-compliant devices like IP cameras, access points, and VoIP phones. The switch supports the IEEE 802.3af/at PoE standard, offering up to 30 W of power per port, with a total power budget of 65 W across all PoE ports. Additionally, the device supports transmission distances up to 250 meters in "Extend Mode," making it ideal for long-range applications such as surveillance. Key Features
  • 5× 10/100/1000 Mbps RJ45 ports
  • With four PoE+ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 65 W for all PoE ports*
  • Up to 250m (820ft) data and power transmitting range under Extend Mode**
  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
  • Plug and Play. No configuration or central management required.†
The DS105GP's fanless design ensures quiet operation, making it suitable for noise-sensitive environments like offices or retail spaces. Its QoS (Quality of Service) feature prioritizes latency-sensitive traffic, ensuring smooth video or voice data transfer. The switch also includes a PoE Auto Recovery feature, automatically rebooting unresponsive devices to maintain network stability. With its plug-and-play setup, the switch requires no configuration, making it easy to install and use. Its robust metal casing provides durability, and its compact size makes it an excellent choice for desktop setups. TP-Link DS105GP Omada Datasheet

Need help choosing?

Click to ask a question - same day response (~2 hours during business hours)

Free shipping Enjoy free shipping when your order exceeds $100. Fast dispatch Orders are dispatched within the next business day. Best local support in Aus We back all products with manufacturer warranty support. Official Australian stock Genuine products with local warranty support.

Product Overview

The Omada 5-Port Gigabit Unmanaged Desktop Switch with 4-Port PoE+ (DS105GP) is a compact and versatile networking solution designed for both home and business environments. It features five Gigabit Ethernet ports, four of which support Power over Ethernet Plus (PoE+) technology. This allows the switch to deliver both power and data over a single cable to connected devices like IP cameras, wireless access points, and VoIP phones, making installation easier and reducing cable clutter. The switch complies with IEEE 802.3af/at standards and provides a total PoE budget of 65W, with up to 30W per PoE port, ensuring compatibility with high-powered devices. The DS105GP supports 802.1p/DSCP QoS, which prioritizes latency-sensitive traffic like voice and video, ensuring smooth performance in applications like video conferencing or IP camera surveillance. Another key feature is its PoE Auto Recovery, which automatically reboots unresponsive devices, enhancing network stability. The switch also includes an Extend Mode that increases the power and data transmission range up to 250 meters for long-distance deployments. With its fanless design, durable metal casing, and plug-and-play setup, this unmanaged switch is ideal for users seeking reliable, maintenance-free operation​. Power over Ethernet, Flexible Network Deployment Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 65 W with 30 W max per PoE+ port. When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority ports power to protect devices from damage. Up to 250m Transmissions With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas. Specifications
Model DS105GP
Standards IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface 5*10/100/1000 Mbps RJ45 Ports with 4 PoE+ Ports (Port 1 to Port 4)
AUTO Negotiation/AUTO MDI/MDIX Supported
Network Media (Cable) 10Base-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) 100Base-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m)
Max Power Consumption 3.44 W (220 V/50 Hz, no PD connected) 74.54 W (220 V/50 Hz, with 65 W PD connected)
Max Heat Dissipation 11.73 BTU/h (no PD connected) 254.18 BTU/h (with 65 W PD connected)
PoE Ports (RJ45) Standard: 802.3 af/at compliant PoE Ports: Port 1 - Port 4 Power Supply: 65 W
Transmission Method Store-And-Forward
Switch Capacity 10 Gbps
MAC Address Table 2K
Extend Mode For Ports 1-2
PoE Auto Recovery For Ports 1-4
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A)
LED Power, Link/Act, PoE Status, PoE Max
Dimensions (W x D x H) 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Certification FCC, CE, RoHS
Package Contents Switch, Power Adapter, Installation Guide
Video https://youtu.be/kgSGpEgmcEk

Key Features

Trusted Brand Partner & Security Equipment Wholesaler

  • Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
  • Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

What This Product Does

The Omada 5-Port Gigabit Unmanaged Desktop Switch with 4-Port PoE+ (DS105GP) is designed to enhance small business networks with its five Gigabit RJ45 ports, four of which support PoE+ (Power over Ethernet) functionality. This allows the device to deliver both power and data over a single cable, simplifying installation for PoE-compliant devices like IP cameras, access points, and VoIP phones. The switch supports the IEEE 802.3af/at PoE standard, offering up to 30 W of power per port, with a total power budget of 65 W across all PoE ports. Additionally, the device supports transmission distances up to 250 meters in "Extend Mode," making it ideal for long-range applications such as surveillance. Key Features
  • 5× 10/100/1000 Mbps RJ45 ports
  • With four PoE+ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 65 W for all PoE ports*
  • Up to 250m (820ft) data and power transmitting range under Extend Mode**
  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
  • Plug and Play. No configuration or central management required.†
The DS105GP's fanless design ensures quiet operation, making it suitable for noise-sensitive environments like offices or retail spaces. Its QoS (Quality of Service) feature prioritizes latency-sensitive traffic, ensuring smooth video or voice data transfer. The switch also includes a PoE Auto Recovery feature, automatically rebooting unresponsive devices to maintain network stability. With its plug-and-play setup, the switch requires no configuration, making it easy to install and use. Its robust metal casing provides durability, and its compact size makes it an excellent choice for desktop setups. TP-Link DS105GP Omada Datasheet
