Solar-CCTV Kit (Multi-module Battery/Panel/Bracket) with Hikvision 8MP Liveguard Acusense

Model: Solar Kit Version - Hikvision 8MP

Who This Is For

When running mains power to a camera location is the primary obstacle, this solar CCTV kit removes that problem entirely. The system pairs a multi-module solar panel, lithium battery, and mounting bracket with the Hikvision 8MP Liveguard AcuSense turret - a camera that actively deters intruders using a built-in strobe light and audible alarm rather than just recording. That combination is well suited to rural properties, remote paddock entries, unmanned construction compounds, water infrastructure, and rural road monitoring where trenching cable is either impractical or cost-prohibitive. AcuSense deep-learning classification reduces false alerts by distinguishing people and vehicles from other motion triggers, which matters when the site is unattended and every false notification wastes a response. If you need 8MP detail, active deterrence, and wire-free deployment in a single package, this kit addresses all three.

What This System Actually Does

Who Buys This Model

• Rural and Farming Properties: Owners needing gate entry or water trough monitoring at locations hundreds of metres from any power source, where solar deployment is the only practical solution.
• Construction Site Managers: Temporary compound and plant yard monitoring where power infrastructure is not yet in place and active deterrence is needed to discourage after-hours theft.
• Water Authority and Infrastructure Operators: Monitoring pump stations, weirs, or drainage infrastructure in remote locations where the Liveguard strobe and audible alarm can challenge unauthorised access without permanent staff on site.
• Security Integrators Solving Remote Briefs: Installers who regularly face the question of how to cover a location with no nearby mains supply - this kit packages the power system and camera together and removes the need to source and match components separately.

Honest Assessment

This kit does two things well. First, it genuinely removes the mains power constraint - the solar panel and lithium battery combination is designed for long-term remote deployment, not just temporary use. Second, the Hikvision Liveguard camera is one of the few 8MP turrets that can actively respond to a detection event rather than just log it: the strobe and audible alarm triggered by AcuSense classification adds a deterrence layer that passive cameras cannot. The 120 dB WDR also handles challenging sunrise and sunset backlight conditions that rural entry points frequently produce. What this kit will not do is provide continuous PTZ coverage or any optical zoom - the lens is fixed, and angle adjustment is manual at install time. If wide-area sweeping, auto-tracking, or long-range identification beyond 28 m is the requirement, a PTZ or multi-sensor system available through Security Australia would serve that brief better. Power autonomy in extended low-sun periods (heavy overcast for multiple days) should also be assessed against local conditions before relying solely on solar.

Complete Package Contents

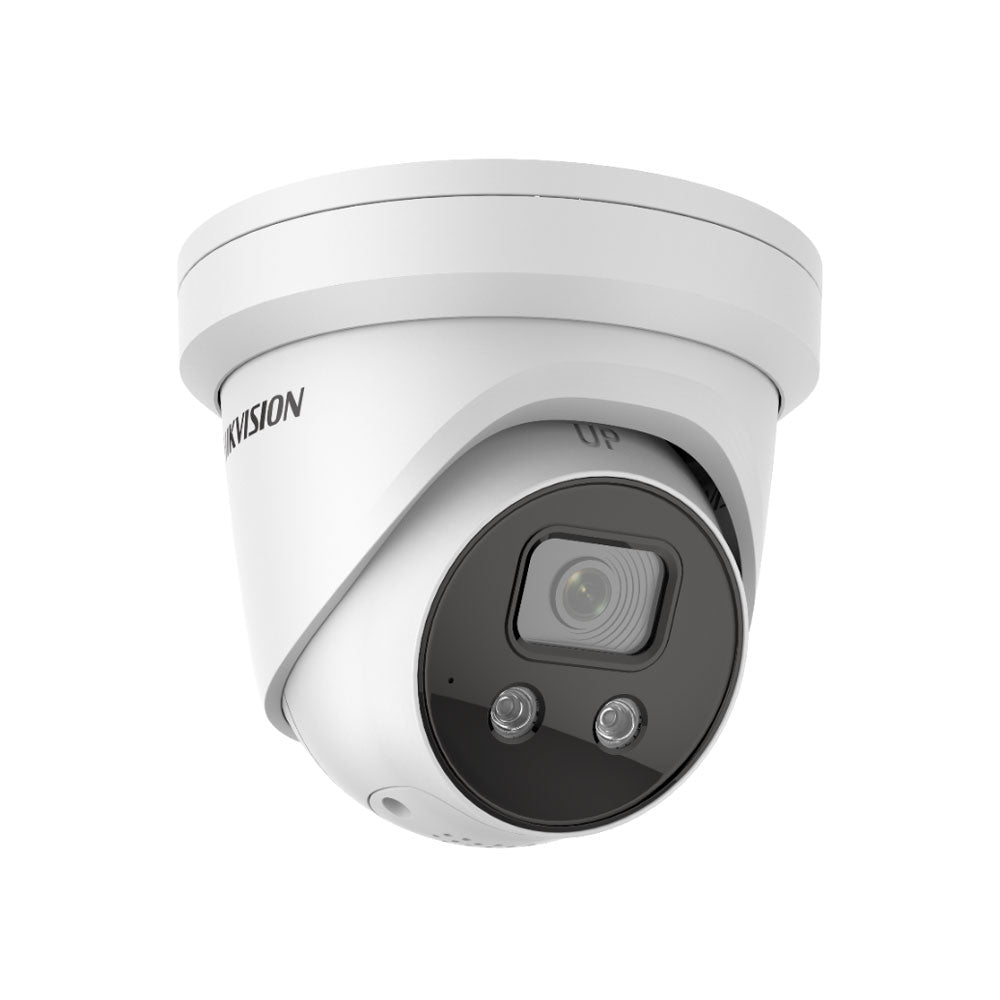

• 1 x Hikvision 8MP Liveguard AcuSense Turret Camera - 3840x2160, IP67, strobe + audible alarm, two-way audio, IR 30 m, lens options 2.8/4/6 mm
• 1 x Solar Panel Module - for off-grid camera power supply
• 1 x Lithium Battery Module - stores solar charge for overnight and low-sun operation
• 1 x Mounting Bracket - secures the solar panel and battery assembly at the installation point

Before You Buy

Quick Fit Check

• Good match if: Your installation site has no access to mains power and you need a camera that can actively deter intruders - the solar power system and Liveguard strobe plus audible alarm handle both requirements without additional infrastructure.
• Good match if: You need 8MP detail at a remote rural entry or compound gate where AcuSense human and vehicle classification reduces nuisance alerts from animals or vegetation movement during unattended monitoring periods.
• You may need a different model if: Your site requires motorised zoom, continuous pan and tilt, or auto-tracking of moving subjects across a large open area - a PTZ camera system would be more appropriate for that coverage requirement.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site has no mains power access and you need a camera that can both detect and actively deter intruders using AcuSense classification to trigger a strobe and alarm.
• You may need a different model if: You need the camera to follow moving subjects automatically, perform motorised zoom, or cover an open area from a single point - a solar-powered PTZ system would be more appropriate for that requirement.
• Pairs well with: A cellular or Wi-Fi router at the installation point to transmit footage to a cloud platform or remote NVR, removing the need for any wired data infrastructure alongside the wire-free power setup.

Common Questions

1. Does this kit work completely without mains power?

   Yes. The solar panel charges the lithium battery during daylight hours, and the battery sustains the camera through the night and during low-sun periods. The system is designed specifically to operate with no mains connection, making it suitable for remote gates, paddocks, and infrastructure sites where running a power cable is not feasible. Power autonomy in extended overcast conditions depends on the battery capacity relative to the camera's consumption, so assess local sun exposure before installing at heavily shaded positions.

2. Will the strobe and alarm trigger on animals or blowing trees?

   No - not when AcuSense is correctly configured. AcuSense uses deep-learning classification to distinguish people and vehicles from other motion sources such as animals, foliage, and lighting changes. The Liveguard strobe and audible alarm are linked to classified human or vehicle detections, not generic pixel motion. This significantly reduces the false alarm rate compared to standard motion-detection cameras, which is important at remote sites where every spurious alert wastes response time or desensitises operators.

3. How does AcuSense classification actually work on this camera, and what are its limits?

   AcuSense analyses the shape and movement pattern of detected objects using an onboard deep-learning model trained on people and vehicle profiles. When a target matches either class, the camera fires the alert - including the Liveguard deterrence output. The system does not detect specific individuals by face, does not read number plates, and does not distinguish vehicle types beyond classifying them as vehicles. Classification accuracy is highest when the subject is adequately lit and fills a reasonable portion of the frame - very small or partially obscured subjects at the edge of the IR range may be missed or misclassified. Correct lens selection and camera aim angle directly affect classification reliability.

4. What triggers the Liveguard strobe and alarm - and can I control the response?

   The strobe and audible alarm are triggered by an AcuSense-classified detection event - a confirmed human or vehicle target. Via the camera's configuration interface (Hik-Connect app or iVMS-4200 software), you can set active hours for the deterrence response, adjust sensitivity zones, and choose whether the deterrence fires automatically or requires manual operator activation via two-way audio interaction. This lets you configure the camera to alarm automatically overnight but switch to alert-only during business hours when staff are present, reducing unnecessary activations.

5. Does the 8MP resolution help with number plate identification at a gate entry?

   It depends on the lens selected and the vehicle's distance and speed. With the 6 mm lens, the DORI identification distance is 14 m and recognition distance is 28 m - at those ranges and with a slow-moving or stationary vehicle, 8MP provides enough pixel density to read most plates. At faster approach speeds or beyond those distances, plate legibility will reduce. This camera is not an ANPR (Automatic Number Plate Recognition) system and does not extract or log plate data automatically. For dedicated plate capture on a busy entry, a purpose-built ANPR camera would be more appropriate.

6. How does the camera connect to a recorder or monitoring platform without an Ethernet run to the site?

   The camera transmits data over a network connection - at a remote site without fixed cabling, this typically means pairing it with a local cellular router or Wi-Fi access point that connects to a cloud platform or remote NVR. The camera itself does not have built-in cellular or Wi-Fi - it uses a standard wired network interface. A 4G/5G router placed at the installation point, powered by the same solar battery system or a separate supply, bridges the camera to the monitoring network. Security Australia stocks compatible networking hardware for exactly this type of remote deployment scenario.

7. Is this camera suited to monitoring a large open paddock or wide property perimeter?

   Only partially. With a 2.8 mm lens the horizontal field of view reaches 111°, which covers a wide scene, but the DORI identification distance at that focal length is only 8.9 m. For a large open paddock where you need to identify subjects at 30 m or beyond, a single fixed turret - regardless of resolution - will not deliver reliable identification. A PTZ camera with optical zoom, or multiple fixed cameras covering overlapping zones, would address wide-area perimeter monitoring more effectively.
