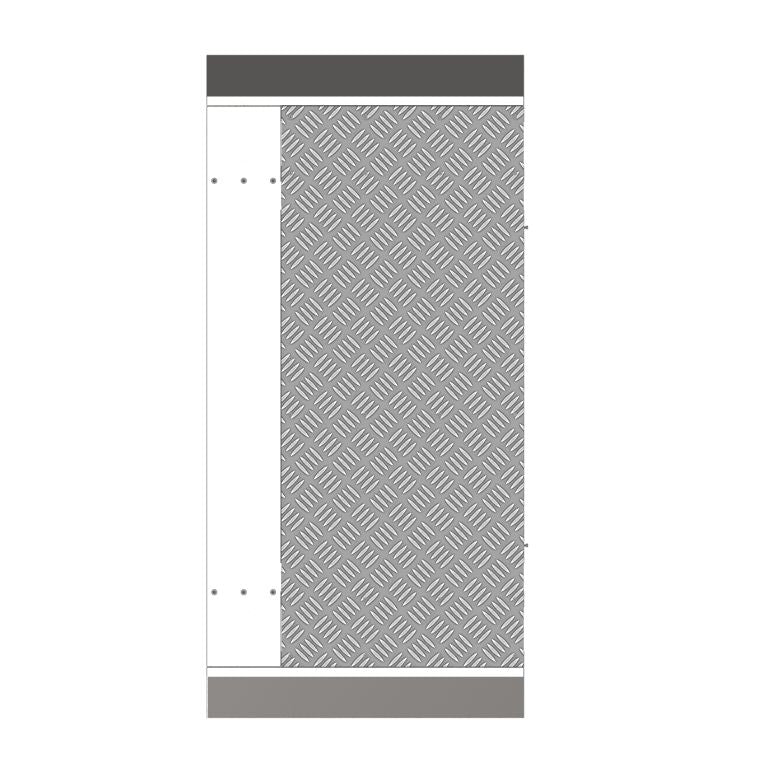

Hikvision Turnstiles Base Module, Single Lane, 650mm lanes

Model: DS-K3B801-BASE

Who This Is For

When the structural foundation of a pedestrian access lane is the priority, specifiers and integrators working on commercial entry points, transit hubs, corporate lobbies, or institutional facilities will find the DS-K3B801-BASE built to carry the load. This is the base module for Hikvision's single-lane turnstile system, providing the physical chassis that anchors the lane structure and routes cabling cleanly through to connected access control hardware. Constructed from SUS304 stainless steel and a coated aluminium alloy framework, it is designed for permanent installation in high-footfall environments where the base must stay rigid and presentable over years of continuous use. At 92 kg minimum, it is not a lightweight fit-out component - this is infrastructure-grade groundwork for integrators commissioning a properly specified Hikvision turnstile lane from the ground up.

What This Actually Does

Who Buys This Model

• Security Integrators: Commissioning a full Hikvision turnstile lane and need the correct base chassis to begin the build - this is the foundation component the rest of the assembly anchors to.
• Corporate Facility Managers: Specifying controlled entry into office foyers or data centres where a permanent, flush-fitting lane base suits the interior finish and keeps cabling hidden from sight.
• Institutional Project Managers: Working on universities, hospitals, or transit facilities where multiple pedestrian lanes are required and the 650 mm width fits the planned entrance layout.
• Construction and Fitout Contractors: Rough-in teams who need to confirm base dimensions (1775 mm x 1000 mm footprint) and weight (92 kg minimum) for slab loading and cable conduit planning before the access control hardware arrives on site.

Honest Assessment

The DS-K3B801-BASE does one thing - it provides a properly engineered, heavy-duty structural base for a Hikvision single-lane turnstile installation. The SUS304 stainless steel construction and minimum 92 kg weight class mean it is built for permanence, not temporary or portable deployments. The integrated cable holes are a practical advantage over retrofit cabling solutions, and the 650 mm lane width gives layout planners a known fixed dimension to work with. What this product will not do is function as a standalone turnstile - it is a base module only, and the full lane assembly requires additional Hikvision turnstile components to become an operational access point. It is also not suited to temporary or modular installations where the unit needs to be relocated. Buyers specifying a complete lane solution rather than a replacement or add-on base module should check the full Hikvision DS-K3B series range available through Security Australia to confirm which barrier, reader, and controller components complete the system.

Before You Buy

Quick Fit Check

• Good match if: You are building a new Hikvision DS-K3B801 single-lane turnstile installation and need the base module as the starting structural component, with a 650 mm lane width fitting your entrance layout.
• Good match if: Your project requires a multi-lane configuration - the DS-K3B801-BASE is confirmed compatible with the Hikvision Base-Module component for expanding to additional parallel lanes.
• You may need a different model if: You need a complete, ready-to-operate turnstile rather than a base module component - a full turnstile system bundle that includes barrier, reader mounting, and controller hardware will be a better fit for your requirement.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are building a Hikvision DS-K3B801 series turnstile lane and need the correct base module to anchor the structure - particularly where SUS304 stainless steel finish and internal cable management are specified requirements.
• You may need a different model if: You need a complete, operational turnstile system rather than a base component - a full turnstile kit that includes barrier panels, reader positions, and controller hardware in a single bundle will be more appropriate for your requirement.
• Pairs well with: Hikvision DS-K3B801 series turnstile barrier modules, compatible Hikvision card readers and face recognition terminals, and a Hikvision access control panel for centralised lane management.

Common Questions

1. Is the DS-K3B801-BASE a complete turnstile, or just a component?

   It is a base module component only - not a complete turnstile. The DS-K3B801-BASE provides the structural foundation and cable routing chassis for a single-lane Hikvision turnstile installation. To create an operational access lane, it must be paired with compatible Hikvision barrier, reader, and controller components from the DS-K3B801 series.

2. What is the lane width of this base module?

   The lane width is 650 mm. This is a fixed dimension suited to standard single-file pedestrian throughput in commercial and institutional entry points. It is not adjustable - if a wider lane (for example, DDA-compliant accessible lanes) is required, a different model specification should be sourced.

3. What materials is the DS-K3B801-BASE made from?

   The pedestal is SUS304 stainless steel, the lane panels are coated aluminium plate, and the framework is coated steel panel. SUS304 is a corrosion-resistant grade suitable for high-contact indoor environments. The coated aluminium lane panels keep the overall structure lightweight relative to an all-steel build while maintaining rigidity.

4. Does this base module support multiple lanes?

   Yes, when used in conjunction with the Hikvision Base-Module component. The DS-K3B801-BASE is designed to form part of a multi-lane configuration, allowing additional parallel lanes to be added to the same installation. Each lane position requires its own base module, with the Base-Module component connecting adjacent units.

5. What are the installation site requirements for this base module?

   At 92 kg minimum, the DS-K3B801-BASE requires a structurally sound, level concrete or tiled floor surface capable of bearing the static load. The base is 1775 mm long by 1000 mm wide, so floor space and cable conduit positions must be confirmed before installation begins. Security Australia stocks this unit - confirm delivery access and lifting equipment availability with your site team before scheduling installation.

6. Will this base module work with third-party turnstile hardware?

   No. The DS-K3B801-BASE is designed specifically for the Hikvision DS-K3B801 turnstile system. Mounting points, cable hole positions, and structural dimensions are matched to Hikvision's own barrier and controller hardware. Using it with third-party barrier arms or reader assemblies is not a supported or confirmed configuration.

Downloads & Resources

No downloads available for this product.
