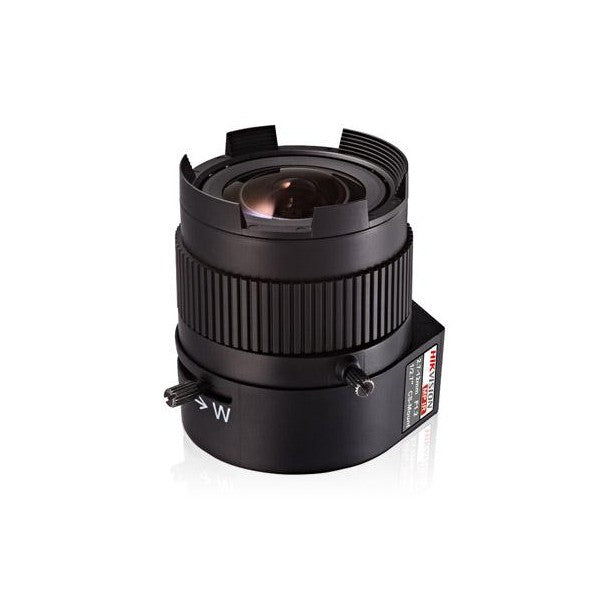

Hikvision HIK-TV2712D-MPIR 3MP lens 1-2.7 inch, CS mount 2.7-12mm

Model: HIK-TV2712D-MPIR

Who This Is For

For integrators and installers who need to specify the right replacement or upgrade lens for an existing Hikvision CS-mount camera body, the HIK-TV2712D-MPIR delivers a 2.7-12mm varifocal range with a 3MP-rated optical path and DC auto iris - a combination that suits installations where the field of view needs to be dialled in precisely on-site rather than fixed at the factory. Whether you are retrofitting an older body with a sharper lens, building a custom camera assembly, or specifying a spare for a critical position, this lens handles the optical side correctly: F1.2 maximum aperture for low-light environments, IR-corrected glass to keep focus consistent when infrared illuminators engage at night, and a 1/2.7-inch image circle sized to match the 3MP sensor formats common across current Hikvision dome and box camera platforms. Operating range of -20 to +60 degrees Celsius means it suits both climate-controlled indoor enclosures and outdoor housings.

What This Lens Actually Does

Who Buys This Model

• CCTV integrators: Specifying a replacement lens for a Hikvision box or dome body where the original lens was damaged or does not cover the required focal range for a site change.
• System builders: Assembling custom camera positions using a Hikvision CS-mount body and selecting the lens separately to match specific distance and field-of-view requirements at each point.
• Facilities maintenance teams: Holding a spare varifocal lens on the shelf for a site running multiple Hikvision CS-mount cameras, to minimise downtime if a lens is physically damaged.
• Upgrade installers: Swapping an older, lower-resolution lens on an existing CS-mount body that has been upgraded to a 3MP sensor, to take full advantage of the higher resolution without replacing the entire camera unit.

Honest Assessment

The HIK-TV2712D-MPIR does its primary job well: it delivers a 3MP-rated varifocal optical path with DC auto iris and IR-corrected glass in a CS-mount form factor rated for the -20 to +60 degree Celsius range you encounter in Australian outdoor enclosures. The F1.2 aperture is genuinely useful in lower-light applications. The 2.7-12mm range covers most standard surveillance positions without needing a second lens type on the shelf. Where this product will not help you: it is a lens only, not a complete camera. You need a compatible CS-mount Hikvision camera body to use it, and the body must support DC auto iris control for that function to operate correctly. If you are looking for a self-contained camera unit rather than a lens component, available through Security Australia are complete Hikvision dome and box camera units that may suit better. This lens is also matched to 3MP sensors - use on a sensor larger than 3MP and corner sharpness will degrade.

Before You Buy

Quick Fit Check

• Good match if: You have a Hikvision CS-mount camera body rated for 3MP and need a varifocal lens you can set anywhere from a wide 2.7mm angle to a 12mm narrow field of view to suit the specific distance of your target area.
• Good match if: The camera position involves mixed lighting or variable daylight (entrances, covered car parks) where DC auto iris will actively manage exposure rather than relying on digital gain alone.
• You may need a different model if: You are looking for a complete ready-to-install camera unit rather than a lens component - a self-contained varifocal dome or bullet camera will be a more straightforward solution for most standard installations.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a 3MP-rated CS-mount varifocal lens with DC auto iris and IR-corrected optics for a Hikvision camera body, particularly where lighting conditions vary and the field of view needs to be set precisely on-site.
• You may need a different model if: Your camera body uses a sensor larger than 3MP or a 4MP-plus resolution - a lens with a larger image circle rated for a bigger sensor format will be required to maintain corner sharpness across the full frame.
• Pairs well with: A Hikvision CS-mount box or dome camera body rated to 3MP, installed in a weatherproof outdoor enclosure or an indoor ceiling/wall housing with a compatible DC auto iris connection.

Common Questions

1. Will this lens fit any CS-mount camera, or only Hikvision bodies?

   It will physically fit any CS-mount camera body, not only Hikvision. CS mount is an industry-standard flange distance specification. However, the DC auto iris function requires the camera body to have a compatible DC iris connector and to be configured for DC auto iris mode in firmware. On a camera body set to video iris or manual iris mode, the auto iris will not function correctly even though the lens mounts physically.

2. Does this lens work with 4MP or 5MP camera sensors?

   No - not at full resolution. The HIK-TV2712D-MPIR has a 1/2.7-inch image circle rated to 3MP (2048 x 1536). Mounting it on a camera sensor larger than 3MP means the image circle does not cover the full sensor area, resulting in soft or dark corners in the recorded image. For sensors above 3MP, a lens rated for a larger sensor format is required.

3. What does IR-corrected mean and does it matter for my installation?

   IR-corrected means the lens is optically designed to focus both visible light and near-infrared light at the same plane. It matters if your camera uses IR illuminators at night. Standard lenses focus IR light at a slightly different distance than visible light, causing the image to soften when the camera switches to night mode. IR-corrected optics eliminate this shift, keeping the image sharp at all times.

4. What field of view does the 2.7mm setting give compared to the 12mm setting?

   The specific angle of view depends on the sensor size of the camera body it is mounted on, so exact degrees are not quoted without knowing the body. As a general guide on a 1/2.7-inch sensor: 2.7mm gives a wide angle suited to covering a full room or wide entrance area, while 12mm gives a narrower, more zoomed view suited to a longer corridor, driveway approach, or a specific target area at greater distance.

5. Is the F1.2 aperture relevant if my camera already has good low-light performance?

   Yes, it still contributes. A wider aperture like F1.2 allows more light to reach the sensor compared to F1.4 or F1.6 lenses before the camera needs to raise gain. Higher gain introduces image noise. Even on a camera body with strong low-light capability, a brighter lens reduces the point at which the body has to apply digital gain, which means a cleaner image in the darker parts of the scene. The Security Australia product listing includes the full specification sheet for this lens if you need to compare aperture performance against your existing lens.

6. Does the operating temperature range of -20 to +60 degrees Celsius suit Australian outdoor use?

   Yes, for most Australian outdoor enclosure applications. The -20 to +60 degree Celsius range covers the ambient temperatures encountered across most Australian climates, including cold overnight temperatures in alpine and southern regions and the high temperatures in enclosed outdoor housings during summer. If the lens is mounted inside a sealed enclosure in direct sun in far-north Queensland conditions, verify the enclosure's internal temperature does not routinely exceed 60 degrees Celsius.
