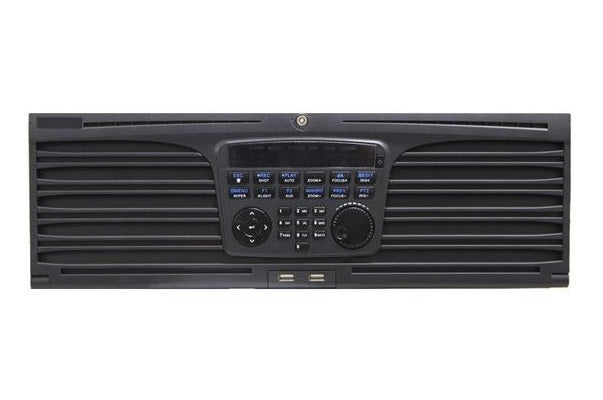

64-ch 3U 4K NVR
The DS-9664NI-I16 is equipped with a powerful processor and ample bandwidth to handle high-resolution video streams without lag or interruptions. It supports various network protocols, enhancing its compatibility with a wide range of IP cameras and other security devices. The device also features redundancy and backup capabilities, including RAID support, to ensure continuous operation and data integrity. Its built-in intelligent video analysis tools, such as motion detection and event-based recording, enhance the efficiency of monitoring and reduce storage needs. The NVR offers multiple output options for seamless integration with different display systems.
Key Features
Code/SKU: DS-9664NI-I16
Quick Specs:
| Video and Audio | |
|---|---|
| IP Video Input | 64-ch |
| Resolution | Up to 12 MP *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I16, when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| Incoming Bandwidth (RAID Mode) | 200 Mbps |
| Outgoing Bandwidth (RAID mode) | 200 Mbps |
| HDMI 1 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| HDMI 2 Output | 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA 1 Output | 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA 2 Output | 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Video Output Mode | HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Output | 2-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Decoding | |
| Decoding Format | H.265/H.265+/H.264/H.264+/MPEG4 |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I16, when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch. |
| Synchronous Playback | 16-ch |
| Decoding Capability | 1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps) |
| Dual-Stream Recording | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Network | |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| RAID | |
| RAID Type | RAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD) |
| Auxiliary Interface | |
| Serial Interface | 1 RS-485 (full-duplex), 1 RS-232, 1 keyboard |
| SATA | 16 SATA interfaces supporting hot-plug |
| eSATA | 1 eSATA interface |
| Capacity | Up to 10TB capacity for each disk |
| Alarm In/Out | 16/8 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 45 W |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10 to 90 % |
| Chassis | 3U chassis |
| Dimension (W × D × H) | 445 × 496 × 146 mm (17.5" × 19.5" × 5.7") |
| Weight | ≤ 12.5 kg (27.6 lb) |
| Certification | |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| CE | EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-9664NI-I16 64ch CCTV NVR 8/16 Bay + 3TB
The Hikvision DS-9664NI-I16 is a high-performance 64-channel 3U 4K Network Video Recorder (NVR) designed to deliver exceptional video surveillance capabilities. It features advanced encoding and decoding technology, ensuring crisp and clear 4K resolution footage across all connected cameras. With a robust design, it supports up to 64 IP cameras, making it ideal for large-scale installations and complex security environments. The NVR offers comprehensive video management features, including live viewing, recording, playback, and remote access, all from a user-friendly interface. Its large storage capacity accommodates extensive video data, with options for expansion through additional hard drives. The DS-9664NI-I16 is equipped with a powerful processor and ample bandwidth to handle high-resolution video streams without lag or interruptions. It supports various network protocols, enhancing its compatibility with a wide range of IP cameras and other security devices.
The device also features redundancy and backup capabilities, including RAID support, to ensure continuous operation and data integrity. Its built-in intelligent video analysis tools, such as motion detection and event-based recording, enhance the efficiency of monitoring and reduce storage needs. The NVR offers multiple output options for seamless integration with different display systems. Additionally, it supports mobile and remote access, allowing users to monitor their premises from anywhere via smartphones or tablets. The DS-9664NI-I16 is designed for reliability and durability, with a cooling system that prevents overheating during extended use. Its intuitive software provides a comprehensive suite of management tools for configuring and optimizing the NVR’s performance. Overall, this model represents a robust solution for demanding surveillance applications, combining high-resolution recording with advanced features for effective security management.
Features
Professional and Reliable
Video Input and Transmission
Compression and Recording
HD Video Output
Storage and Playback
Smart & POS Function
Network & Ethernet Access
| Video and Audio | |
|---|---|
| IP Video Input | 64-ch |
| Resolution | Up to 12 MP *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I16, when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| Incoming Bandwidth (RAID Mode) | 200 Mbps |
| Outgoing Bandwidth (RAID mode) | 200 Mbps |
| HDMI 1 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| HDMI 2 Output | 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA 1 Output | 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA 2 Output | 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Video Output Mode | HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Output | 2-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
