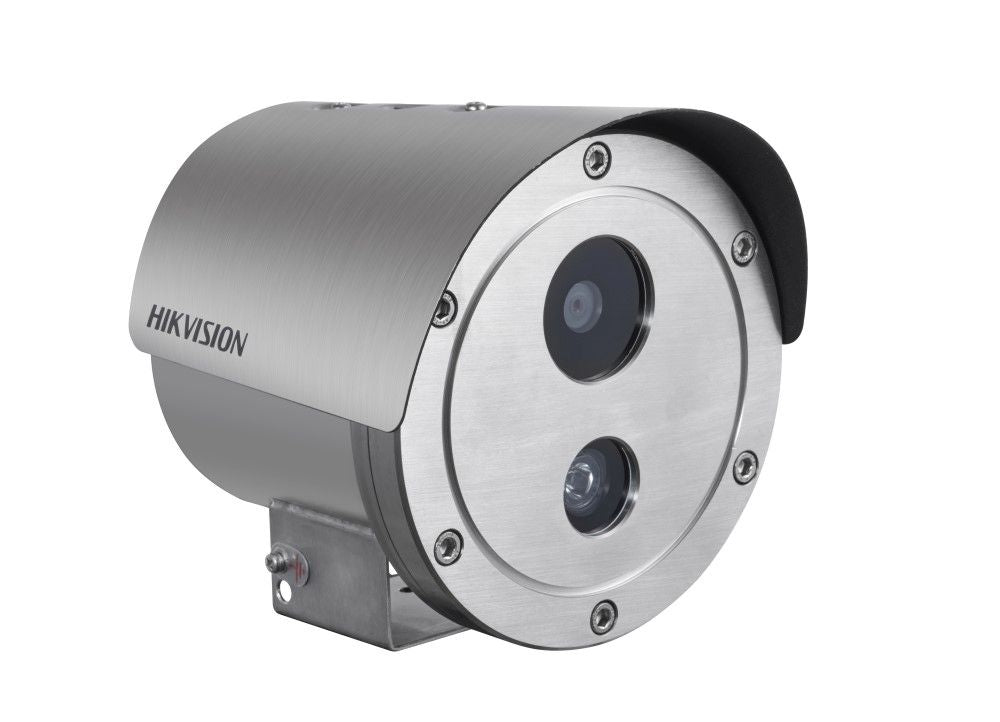

Hikvision HIK-2XE6242FIS8 4MP Explosion Proof Bullet Camera, 120dB WDR, 30m IR, IP68, 8mm

Model: HIK-2XE6242FIS8

Who This Is For

When the installation site is classified as a hazardous area under ATEX or IECEx schemes, standard cameras are simply not an option. The Hikvision HIK-2XE6242FIS8 is built specifically for environments where combustible gases, vapours, or dusts are present - oil and gas processing facilities, chemical plants, offshore marine platforms, and deep mining operations. The 304 and 316L stainless steel housing delivers the corrosion resistance and explosion containment required for these environments, while the IP68 rating keeps water and dust ingress from compromising the unit. At 8mm, this lens suits focused coverage of a specific approach, gate, or process area at medium range - not wide-angle perimeter sweeps. Installers specifying cameras for Ex Zone certified locations will find the ATEX and IECEx dual certification covers the broadest range of international hazardous area classifications in a single unit.

What This Camera Actually Does

Who Buys This Model

• Oil and gas facility security managers: Specifying cameras for classified Ex Zones at processing plants, pump stations, or fuel storage areas where any non-certified device creates a compliance and safety liability.
• Mining operations teams: Deploying surveillance inside or around underground workings and surface processing facilities where combustible dust or gases are present and ATEX/IECEx certification is a site entry requirement for all electrical equipment.
• Chemical plant engineers and HSE teams: Integrating cameras into existing hazardous area electrical infrastructure where IECEx documentation is required for equipment registers and site safety cases.
• Marine and offshore project integrators: Installing on vessel decks, offshore platforms, or port loading arms where salt spray corrosion and occasional submersion demand 316L stainless steel construction alongside IP68 sealing.
• Industrial CCTV contractors: Working on compliance-driven projects where the client's insurer or certifying authority mandates certified explosion-proof equipment throughout a defined hazardous area perimeter.

Honest Assessment

The HIK-2XE6242FIS8 does something very few cameras can: it satisfies both ATEX and IECEx hazardous area certification requirements in a single housing, built from corrosion-resistant stainless steel and sealed to IP68. The DarkFighter sensor and 120dB WDR add genuine imaging capability in the harsh lighting and low-light conditions typical of industrial night operations. H.265 encoding keeps storage demands manageable on remote sites. This is available through Security Australia as part of a targeted range for hazardous location projects. Where this camera will not serve: it is not a general-purpose outdoor camera. The specialist housing, certification overhead, and fixed 8mm lens make it the wrong specification for standard commercial or residential installations. If your site does not require ATEX or IECEx certification, a conventional industrial bullet camera will deliver equivalent or better imaging at considerably lower cost. The 8mm focal length also limits wide-angle scene coverage - sites needing a broad entrance overview should consider a shorter focal length or a panoramic unit instead.

Before You Buy

Quick Fit Check

• Good match if: Your site holds an ATEX or IECEx hazardous area classification and your equipment register requires certified explosion-proof cameras - this unit's dual certification covers both schemes in one housing.
• Good match if: The installation point is exposed to salt spray, chemical washdown, or submersion risk - the 316L stainless steel housing and IP68 rating handle corrosive and wet industrial environments where standard camera housings fail prematurely.
• You may need a different model if: Your site does not require ATEX or IECEx certification - a standard industrial or weatherproof bullet camera will provide comparable or superior imaging flexibility at a significantly lower price point; the full Security Australia bullet camera range covers non-hazardous industrial applications.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site requires ATEX and IECEx certified cameras within a classified hazardous area, and the environment involves corrosive atmospheres or submersion risk that demands 316L stainless steel construction and IP68 sealing.
• You may need a different model if: Your installation site does not carry a formal Ex Zone classification - a standard industrial bullet or weatherproof camera will provide superior imaging flexibility, broader lens choices, and lower cost without the specialised certification overhead; see the full industrial camera range on securityaustralia.com.au.
• Pairs well with: IECEx or ATEX certified network switches and PoE injectors rated for hazardous area use, and an NVR or VMS with H.265 support to take full advantage of the storage efficiency on bandwidth-limited industrial networks.

Common Questions

1. Is this camera certified for use in Zone 1 and Zone 2 gas hazardous areas?

   Yes, subject to confirming the specific gas group and temperature class against your site's hazardous substance documentation. The HIK-2XE6242FIS8 holds both ATEX and IECEx certification, which are the two primary internationally recognised schemes for hazardous area electrical equipment. You should verify the camera's certified gas group and T-class against the substances present at your site before finalising the specification - your site's hazardous area documentation or safety case will list these requirements.

2. Will this camera work in a deep mine environment with combustible dust present?

   Yes. IECEx certification covers both gas and combustible dust hazardous area classifications, making this unit suitable for mining environments where combustible dust zones apply. The IP68 rating also provides complete protection against fine dust ingress, which is a practical concern in underground and surface mining operations regardless of the hazardous area classification.

3. What does IP68 actually mean for this housing in an industrial washdown environment?

   IP68 means the camera is fully sealed against dust ingress and protected against continuous water submersion beyond the standard 1-metre depth of IP67. In practical industrial terms, it withstands high-pressure washdown procedures without water penetrating the housing. The 316L stainless steel construction adds a further layer of protection against the chemical corrosion that washdown chemicals can cause on standard camera housings over time.

4. Why does the 8mm lens matter for this type of installation?

   The 8mm fixed lens produces a narrower field of view compared to a 2.8mm or 4mm lens, which means it is suited to monitoring a defined corridor, lane, access gate, or equipment approach rather than covering a wide-angle open area. At 8mm and 4MP resolution, the camera delivers useful subject detail at medium distances - appropriate for identifying personnel or vehicles at a fixed point of interest rather than providing broad area overview coverage.

5. Does DarkFighter technology mean the camera can see in complete darkness?

   No. DarkFighter refers to a high-sensitivity sensor design that produces usable colour images at very low ambient light levels - significantly lower than a standard sensor - before the camera relies on its built-in IR illuminator. In complete darkness, the 30m IR illuminator takes over and the image renders in monochrome. DarkFighter extends the range at which colour imaging is possible in low-light conditions, which is useful on dimly lit industrial sites where colour detail aids identification.

6. Can I connect this camera to any standard NVR?

   Yes, provided the NVR supports H.265 encoding and the camera's resolution. The HIK-2XE6242FIS8 operates as a standard IP network camera and is compatible with Hikvision NVRs natively. It can also work with third-party ONVIF-compliant recorders, though full feature support - including DarkFighter optimisation settings - is typically best maintained within a Hikvision NVR or VMS environment. Confirm your NVR's channel licence and storage capacity covers 4MP H.265 streams before installation. The camera is stocked by Security Australia and Hikvision technical documentation is available to assist with NVR compatibility planning.

7. Can I modify the housing conduit entry or mounting bracket to suit my installation?

   No. Modifying the explosion-proof housing, conduit entries, or any sealed component of this camera will void the ATEX and IECEx certification and potentially create a serious safety risk in a classified hazardous area. All conduit entries, cable glands, and mounting methods must be carried out using certified Ex-rated components and methods that comply with the applicable installation standards (such as AS/NZS 60079 series in Australia). Installation must be performed by a person competent in Ex electrical work.
