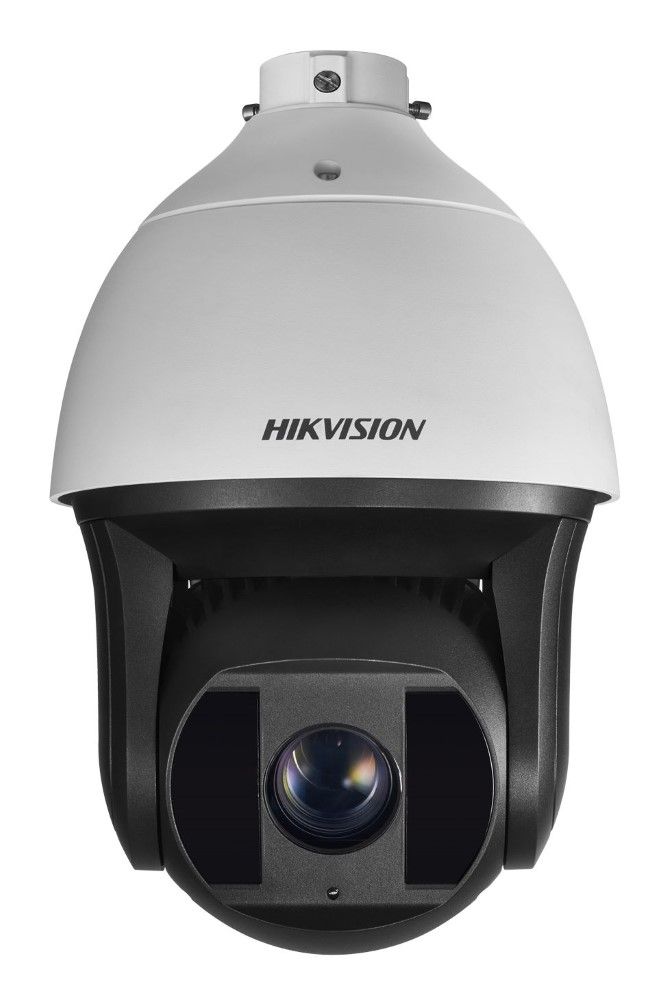

Hikvision DS-2DF8236IX-AELW 2MP Outdoor Darkfighter PTZ Camera, WDR, 36x Zoom, 200m IR, HiPoE,Wiper

$4,105.00 AUD
 per
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING
Hikvision is expanding their DarkFighter range of ultra-low-light surveillance cameras with the HIK-2DF8236IAELW PTZ network camera. This cutting-edge camera utilises Hikvision's industry-leading, ultra-low-light megapixel lens and is designed specifically to capture sharp colour and monochrome images in extreme, low-light conditions. The result is crystal-clear colour images in conditions that would defeat most conventional monochrome IP cameras and competing low-light cameras. It features a 36x zoom lens for long range monitoring and a built-in wiper to keep the lens clean. Additionally, a built-in, high performance infrared LED provides unparalleled visibility in 0 lux conditions for up to 200m.

Specifications

Camera
Image Sensor:1/1.8" progressive scan CMOS
Effective Pixels:1920(H)x1080(V)
Signal System:PAL/NTSC
Minimum Illumination:Color: 0.002 Lux @(F1.5, AGC ON)B/W: 0.0002 Lux @(F1.5, AGC ON)0 Lux with IR
White Balance:Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC:Auto/Manual
BLC:ON/OFF
HLC:Support
WDR:120dB
Shutter Time:50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Day& Night:ICR
Digital Zoom:16X
Privacy Mask:24 programmable privacy masks; optional multiple colors and mosaics
Auto Focus:Auto / Semi-automatic / Manual
Rapid Focus:Yes
Lens
Focal Length:5.7 mm to 205.2 mm, 36× Optical
Zoom Speed:Approx. 4.4 s (optical lens, wide-tele)
Field of View:Horizontal field of view: 59.8° to 2.0° (wide-tele)Vertical field of view: 33.6° to 1.1° (wide-tele)Diagonal field of view: 68.6° to 2.3° (wide-tele)
Minimum Working Distance:10-1500mm(Wide-Tele)
Aperture Range:F1.5~F4.5
Pan & Tilt
Pan Range:360°endless
Pan Speed:Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s
Tilt Range:-20°~90°(Auto Flip)
Tilt Speed:Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s
Proportional Zoom:Yes
Number of Preset:300
Patrol:8 patrols, up to 32 presets per patrol
Pattern:4 patterns, with the recording time not less than 10 minutes per pattern
Power-off Memory:Support
Park Action:Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display:ON/OFF
Smart-tracking:Manual Tracking, Auto Tracking (support tracking specified target types such as human and vehicle), Event Tracking
Wiper:Optional
Infrared
Smart IR:Yes
IR Distance:200m
Alarm
Alarm Input:7 Inputs
Alarm Output:2
Alarm Linkage:Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Network
Ethernet:10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:1920×1080
Main Stream:50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),50fps (1920 × 1080, 1280 × 960, 1280 × 720);60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream:50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream:50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
Video Compression:Main Stream: H.265+/H.265/H.264+/H.264Sub-Stream: H.265/H.264/MJPEGThird Stream: H.265/H.264/MJPEG
ROI encoding:Eight fixed region for each stream
Audio Compression:G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Mode:OFF/Audio input/Audio output
Simultaneous Live View:Up to 20 channels
Three-Stream:Support
Storage:Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
User/Host:Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures:User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
Client GUI
Client:iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser:IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+, Safari 11+
General
RS-485 Protocols:HIKVISION, Pelco-P, Pelco-D, self-adaptive
Language:English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Consumption:24 V, 3.0 A, 50/60Hz, AC (Max. 60 W, including max. 18 W for IR and max. 6 W forheater)Hi-PoE, 42.5 to 57 V, 1.41 A (Max. 50 W, including max. 18 W for IR and max. 6 W forheater)
Working Temperature/Humidity:-40°C to 70°C (-40°F to 158°F)
Protection Level:IP67 Standard, IK10 (only supported by camera without wiper), TVS 6,000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions:Φ 266.6 mm × 410 mm (Φ 10.50" × 16.14")
Weight (approx.):8kg (approx.17.64lb)
