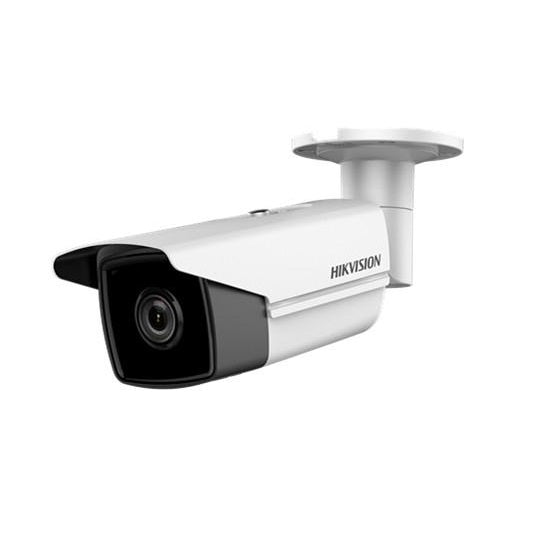

Hikvision DS-2CD2T85FWD 8MP Outdoor Bullet CCTV Camera, H.265+, 50m IR
Hikvision DS-2CD2T85FWD 8MP Outdoor Bullet CCTV Camera, H.265+, 50m IR
The DS-2CD2T85FWD-I5/I8 offers flexible installation options with its adjustable mount and can be integrated seamlessly into existing security systems through its network connectivity. The camera supports PoE (Power over Ethernet) for simplified wiring and installation. With its advanced cybersecurity features, including secure boot and encrypted video transmission, the camera ensures that your surveillance data is protected from unauthorized access.
Key Features
- High-Quality Imaging: Captures 8MP resolution for clear and detailed surveillance footage.
- Excellent Low-Light Performance: Powered by DarkFighter technology for superior night-time visibility.
- Efficient Compression: H.265+ technology optimizes storage and bandwidth usage.
- Wide Dynamic Range: 120 dB true WDR technology ensures clear imaging in challenging lighting conditions.
- Weatherproof Rating: IP67 rated for water and dust resistance, suitable for outdoor environments.
- Robust Structure: Designed with full metal materials for durability and reliability.
Code/SKU: DS-2CD2T85FWD-I5/I8
Quick Specs:
- Startup and Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Power Supply: 12 VDC ± 25%, PoE (802.3af 36 to 57 V, class 3)
- Power Consumption and Current:
- I5: 12 VDC ± 25%, 7.5 W; PoE, 9.5 W
- I8: 12 VDC ± 25%, 10 W; PoE, 12.5 W
Accessories
Select options before adding this product to cart.
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
Hikvision DS-2CD2T85FWD 8MP Outdoor Bullet CCTV Camera, H.265+, 50m IR
The DS-2CD2T85FWD-I5/I8 is a high-resolution 4K fixed bullet network camera by Hikvision, designed to deliver superior video quality and detailed surveillance. It features a robust design suitable for both indoor and outdoor use, providing reliable performance in various environmental conditions.
With its 8MP resolution, the camera captures sharp and clear images, allowing for precise identification of individuals and objects. The advanced IR technology ensures excellent night vision capabilities, with a range that can cover extensive areas even in complete darkness. Its built-in smart analytics, such as intrusion detection and line crossing, enhances security by automatically alerting users to potential threats.
The camera supports H.265+ video compression, which reduces bandwidth and storage requirements while maintaining high image quality. It is equipped with a wide dynamic range (WDR) feature to handle challenging lighting conditions, ensuring that both bright and dark areas are well-represented. The DS-2CD2T85FWD-I5/I8 is also designed with a durable weather-resistant housing, making it suitable for outdoor installations in harsh environments.
Features:
- Resolution: 8 MP (4K) ensures high-definition recording, capturing details crucial for identification and monitoring in various lighting conditions. Supports both day and night surveillance effectively, enhancing security.
- Lens Options: Available with 5mm or 8mm fixed lens, allowing flexibility in installation and enabling tailored coverage of specific areas based on unique security requirements.
- Infrared Night Vision: Provides up to 60 meters of infrared illumination, guaranteeing clear images in low-light conditions, thereby ensuring continuous surveillance regardless of ambient lighting.
- Wide Dynamic Range (WDR): With 120 dB WDR, the camera balances bright and dark areas to produce clear images, improving performance in challenging lighting environments.
- H.265+ Compression: Reduces bandwidth and storage needs significantly while maintaining high video quality, thereby optimizing system performance and enhancing user experience in surveillance applications.
- Motion Detection: Features advanced detection capabilities, allowing the camera to trigger alerts and recordings automatically, enhancing the overall security response effectiveness.
- Weatherproof Rating: An IP67 rating ensures protection against dust and water ingress, making the camera suitable for outdoor use in harsh environmental conditions.
- Vandal Proof: IK10 rating offers resistance against physical tampering and vandalism, ensuring durability and reliability in high-risk areas.
- Smart Analytics: Incorporates features like line crossing detection and intrusion detection, providing intelligent monitoring that enhances security measures through automated alerts.
Functions:
Comprehensive Surveillance System:
This camera integrates seamlessly into diverse security setups, enabling extensive monitoring across larger areas while ensuring high-quality standards for data capture and storage management.
Efficient Recording Management:
Supports multiple recording modes that can be customized based on user preferences, optimizing storage efficiency and simplifying the organization of recorded surveillance footage.
Remote Accessibility:
Users can conveniently access the camera from various remote locations via mobile applications or web browsers, allowing for real-time monitoring and management of surveillance activities.
Enhanced Security Measures:
Incorporates advanced analytics and motion detection features that significantly improve response times, thereby increasing the effectiveness of overall security measures and incident management.
Flexible Installation Options:
The camera's robust design allows for easy installation and adjustments, catering to different surveillance needs and environments while maintaining optimal performance.
User-Friendly Interface:
The setup and management interface simplifies configuration, ensuring accessibility for users of all technical skill levels, enhancing overall user experience and operational efficiency.
Technical Specifications
| Model | DS-2CD2T85FWD |
| Resolution | 8MP (3840 x 2160) at 20fps |
| Lens Options | Available with 5mm or 8mm fixed lens |
| Infrared Night Vision | Up to 50m with EXIR technology |
| Wide Dynamic Range | 120dB for high-contrast environments |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Max. Video Bit Rate | 32 Kbps to 16 Mbps |
| Main Stream Frame Rate | 50Hz: 20fps (3840 x 2160), 25fps (3072 x 1728, 2560 x 1440, 1920 x 1080, 1280 x 720) 60Hz: 20fps (3840 x 2160), 30fps (3072 x 1728, 2560 x 1440, 1920 x 1080, 1280 x 720) |
| Sub Stream Frame Rate | 50Hz: 25fps (640 x 480, 640 x 360, 320 x 240) 60Hz: 30fps (640 x 480, 640 x 360, 320 x 240) |
| Third Stream Frame Rate | 50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288) 60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240) |
| Weatherproof Rating | IP67 rated for water and dust resistance |
| Impact Resistance | IK10 rated for vandal-proof protection |
| Power Supply | 12V DC or PoE (802.3af) |
| Operating Temperature | -40°C to +60°C |
| Smart Features | Intrusion detection, line crossing detection, and motion detection |
| Dimensions | Approx. 250 mm x 90 mm |
| Weight | Approx. 1.4 kg |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
Hikvision DS-2CD2T85FWD 8MP Outdoor Bullet CCTV Camera, H.265+, 50m IR
The DS-2CD2T85FWD-I5/I8 offers flexible installation options with its adjustable mount and can be integrated seamlessly into existing security systems through its network connectivity. The camera supports PoE (Power over Ethernet) for simplified wiring and installation. With its advanced cybersecurity features, including secure boot and encrypted video transmission, the camera ensures that your surveillance data is protected from unauthorized access.
Key Features
- High-Quality Imaging: Captures 8MP resolution for clear and detailed surveillance footage.
- Excellent Low-Light Performance: Powered by DarkFighter technology for superior night-time visibility.
- Efficient Compression: H.265+ technology optimizes storage and bandwidth usage.
- Wide Dynamic Range: 120 dB true WDR technology ensures clear imaging in challenging lighting conditions.
- Weatherproof Rating: IP67 rated for water and dust resistance, suitable for outdoor environments.
- Robust Structure: Designed with full metal materials for durability and reliability.
Code/SKU: DS-2CD2T85FWD-I5/I8
Quick Specs:
- Startup and Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Power Supply: 12 VDC ± 25%, PoE (802.3af 36 to 57 V, class 3)
- Power Consumption and Current:
- I5: 12 VDC ± 25%, 7.5 W; PoE, 9.5 W
- I8: 12 VDC ± 25%, 10 W; PoE, 12.5 W
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Camera | |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360° |
| Lens | |
| Focus | Fixed |
| Lens Type | 2.8/4/6/8/12 mm |
| FOV | 2.8 mm, horizontal field of view: 102° 4 mm, horizontal field of view: 79° 6 mm, horizontal field of view: 50° 8 mm, horizontal field of view: 40° 12 mm, horizontal field of view: 23° |
| Lens Mount | M12 |
| Aperture Type | F2.0 |
| Illuminator | |
| IR Range | -I5: up to 50 m, -I8: up to 80 m |
| Video | |
| Max. Resolution | 3840 × 2160 |
| Main Stream | 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240) |
| Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Region of Interest (ROI) | Support 1 fixed region for main stream and sub-stream separately |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| User/Host | Up to 32 users, 3 levels: Administrator, Operator and User |
| Network Storage | Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ |
| Alarm Trigger | Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error |
| Image | |
| Day/Night Switch | Day/Night/Auto/Schedule |
| DNR | 3D DNR |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Interface | |
| On-board Storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection |
| Face Detection | Yes |
| Exception Detection | Scene change detection |
| General | |
| Linkage Method | Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email |
| Firmware Version | V5.5.80 |
| Web Client Language | 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| General Function | Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening |
| Startup and Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, PoE(802.3af 36 to 57 V, class 3) |
| Power Consumption and Current | -I5: 12 VDC ± 25%, 7.5 W; PoE, 9.5 W -I8: 12 VDC ± 25%, 10 W; PoE, 12.5 W |
| Camera Dimension | Camera: Φ104.8 × 299.7 mm (Φ4.13″ × 11.8″) Package: 386 × 156 × 155 mm (15.2″ × 6.14″ × 6.1″) |
| Camera Weight | 1200 g (2.65 lb.) |
| Approval | |
| Protection | IP67 |
