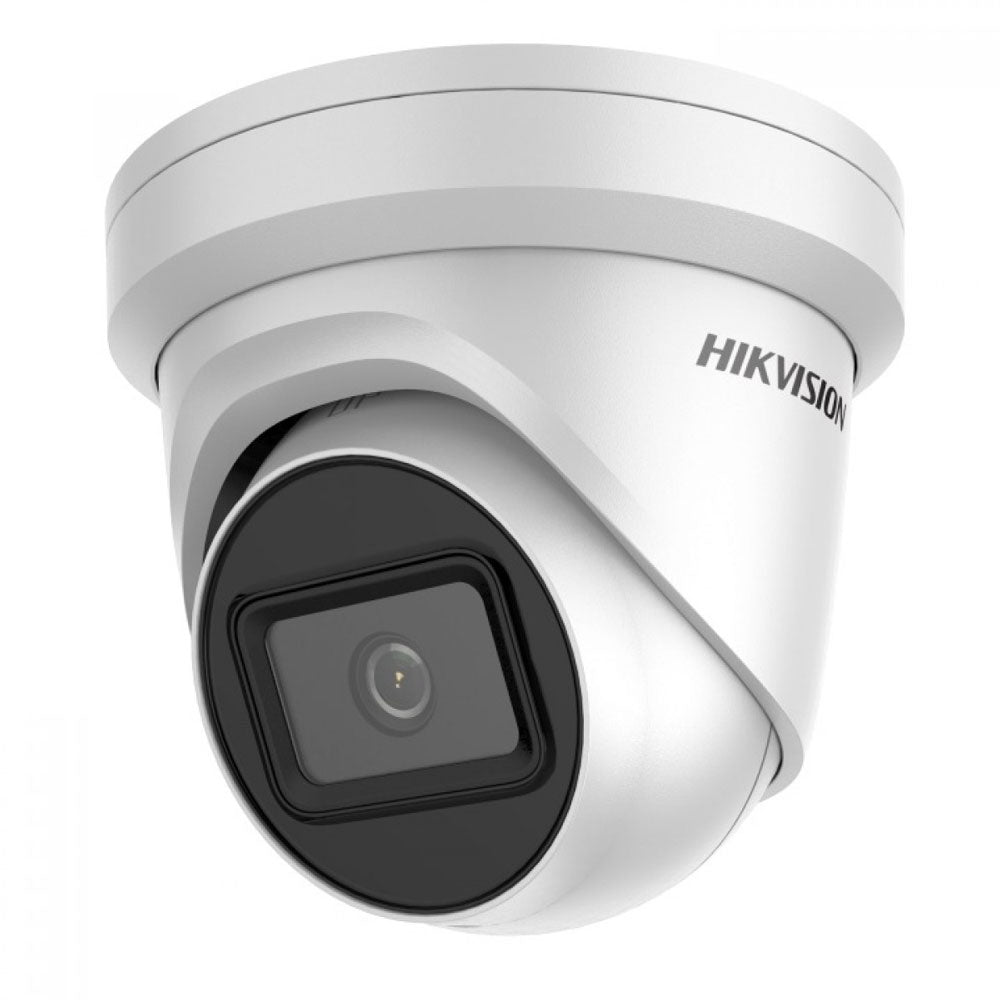

Hikvision DS-2CD2H65G1-IZS 6MP Outdoor Motorised VF Turret CCTV Camera 2.8-12mm
- Sku: DS-2CD2H55FWD-IZS/DS-2CD2H65FWD-IZS
- Vendor: SecurityAustralia
$413.00 AUD
$400.00 AUD
Tax included.
Shipping calculated at checkout.
Quick Buying Summary
Hikvision DS-2CD2H65G1-IZS 6MP Outdoor Motorised VF Turret CCTV Camera 2.8-12mm
The Hikvision DS-2CD2H65G1-IZS is a 6MP varifocal turret network camera designed for outdoor surveillance. It features audio and alarm interfaces to enhance its functionality within security systems. With built-in infrared (IR) illumination, it ensures clear visibility up to 30 meters in total darkness. This camera is powered by Power over Ethernet (PoE), simplifying installation by combining data and power into a single cable. Additionally, it supports smart analytics, including intrusion detection and line crossing, enabling efficient monitoring in various environments.
Key Features
- High-Quality Imaging: Captures stunning 6MP resolution video for clear and detailed surveillance.
- Efficient Compression: Utilizes H.265+ compression technology to optimize storage and bandwidth usage.
- True WDR Technology: 120 dB true Wide Dynamic Range ensures clear imaging against strong backlighting.
- Durable Design: Rated IP66 for water and dust resistance, and IK10 vandal-proof for enhanced robustness.
- Motorized Varifocal Lens: 2.8-12mm lens provides flexibility in focal length for easy installation and monitoring.
- Audio and Alarm Interface: Available for enhanced security integration and functionality.
- Robust Structure: Constructed with full metal materials for durability and reliability.
Code/SKU: DS-2CD2H65G1-IZS
Quick Specs:
- Image Sensor: 1/2.9" Progressive Scan CMOS for high-quality imaging.
- Min. Illumination: Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR for effective low-light performance.
- Shutter Speed: 1/3 s to 1/100,000 s for versatile exposure adjustments.
Accessories
Select options before adding this product to cart.
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
Hikvision DS-2CD2H65G1-IZS 6MP Outdoor Motorised VF Turret CCTV Camera
The Hikvision DS-2CD2H65G1-IZS is a 6MP varifocal turret camera designed for professional surveillance applications. It offers high-quality imaging with a maximum resolution of 3072 × 2048 pixels, utilizing H.265+ compression technology to reduce bandwidth and storage requirements while maintaining excellent image quality. Equipped with 120 dB true Wide Dynamic Range (WDR), it delivers clear images even in challenging lighting conditions. This camera is IP66-rated for water and dust resistance, making it suitable for outdoor use, and IK10-rated for vandal resistance, ensuring durability.
The motorized varifocal lens provides flexibility for different surveillance needs, allowing users to adjust the focal length from 2.8 to 12 mm. With infrared illumination for night vision, it ensures clear visibility up to 30 meters in total darkness. The camera supports smart analytics features such as intrusion detection and line crossing, enhancing security monitoring. It is powered by Power over Ethernet (PoE), simplifying installation by combining power and data into a single cable.
Features:
- 6 MP Resolution: Maximum resolution of 3072 × 2048 pixels for detailed surveillance across various environments.
- Varifocal Lens: 2.8 to 12 mm lens offers a wide horizontal field of view, enhancing coverage flexibility.
- H.265+ Video Compression: Efficiently reduces bandwidth and storage requirements while maintaining high image quality for extended use.
- 120 dB Wide Dynamic Range (WDR): Ensures clear images in both bright and dark areas, improving visibility in challenging lighting conditions.
- Infrared (IR) Range: Night vision with an IR range of up to 30 meters, ensuring visibility even in total darkness.
- 3D Digital Noise Reduction (DNR): Minimizes image noise, providing improved clarity in low-light situations for better surveillance.
- IP66 and IK10 Rated: Dustproof, waterproof, and vandal-resistant, ensuring durability and reliability in outdoor installations.
- MicroSD Slot: Supports local storage up to 128 GB, allowing for easy access to recorded footage directly from the camera.
Functions:
Smart Detection:
Equipped with advanced analytics like face detection and line crossing, optimizing monitoring efficiency and alerting users to significant events.
Motorized Varifocal Lens:
Enables users to remotely adjust the focal length, providing flexibility to cover different areas and specific surveillance needs without physical repositioning.
Power over Ethernet (PoE):
Simplifies installation by allowing power and data transmission over a single cable, reducing clutter and installation time for networked cameras.
Real-Time Alerts:
Provides immediate notifications for detected intrusions or suspicious activities, allowing for prompt responses to potential security threats and enhancing overall safety.
Three Simultaneous Streams:
Supports multiple streaming formats for different purposes, enabling flexibility in viewing and recording options tailored to user needs.
Integrated Audio Interface:
Allows connection to external audio devices for enhanced surveillance capabilities, enabling audio monitoring alongside video for comprehensive security coverage.
Compact Turret Design:
Offers a sleek and unobtrusive appearance, making it suitable for various environments while providing effective surveillance without drawing attention.
Flexible Installation Options:
Designed for easy installation in various settings, ensuring that security measures can be implemented quickly and efficiently in both indoor and outdoor locations.
Technical Specifications
| Model | DS-2CD2H65G1-IZS |
| Resolution | 6MP (3072 × 2048) |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Lens Type | Motorised varifocal lens (2.8 mm to 12 mm) |
| Field of View | Horizontal: 88° to 27° |
| IR Distance | Up to 30m with EXIR technology |
| Dynamic Range | 120dB true Wide Dynamic Range (WDR) |
| Video Compression | H.265+, H.265, H.264, H.264+ |
| Audio Support | Audio and alarm I/O interface available |
| Environmental Rating | IP66 rated for water and dust resistance |
| Vandal Resistance | IK10 rated for vandal-proof protection |
| Storage Support | MicroSD card slot (up to 128 GB) |
| Smart Features | Intrusion detection, line crossing, and other smart analytics |
| Power Supply | 12V DC / PoE (Power over Ethernet) |
| Operating Temperature | -40°C to +60°C |
| Dimensions | Approx. 120 mm x 120 mm x 100 mm |
| Weight | Approx. 1.0 kg |
| Camera | |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Min. Illumination | Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Lens | |
| Lens Type | 2.8 to 12 mm |
| FOV | Horizontal FOV: 88° to 27°, vertical FOV: 48° to 16°, diagonal FOV: 104° to 32° |
| Aperture | F1.4 |
| Lens Mount | Φ14 |
| Illuminator | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Video | |
| Max. Resolution | 3072 × 2048 |
| Main Stream | 50Hz: 20fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
| Video Compression | Main stream/third stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding support |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3 |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| User/Host | Up to 32 users, 3 levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
| Network Storage | microSD/SDHC/SDXC card (128 G), local storage and NAS (NFS, SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ |
| Image | |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In (-S) |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Interface | |
| Audio | 1 input (line in), 1 output (line out), four-core terminal block, mono sound |
| Alarm | 1 input, 1 output |
| On-board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Hardware Reset | Reset via reset button on camera body, web browser and client software |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection, face detection, scene change detection |
| General | |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture |
| Web Client Language | 32 languages including English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, etc. |
| General Function | Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, Φ 5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.92 A, max. 11 W PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5W |
| Camera Dimension | Camera: Φ 138.3 × 126 mm (Φ 5.4" × 5.0") With Package: 170 × 170 × 150 mm (6.7 × 6.7" × 5.9") |
| Camera Weight | Camera: Approx. 1.20 kg (2.65 lb.) With Package: Approx. 1.42 kg (3.13 lb.) |
| Approval | |
| EMC | 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015 |
| Safety | UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015 |
| Environment | 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006 |
| Protection | Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013) |
