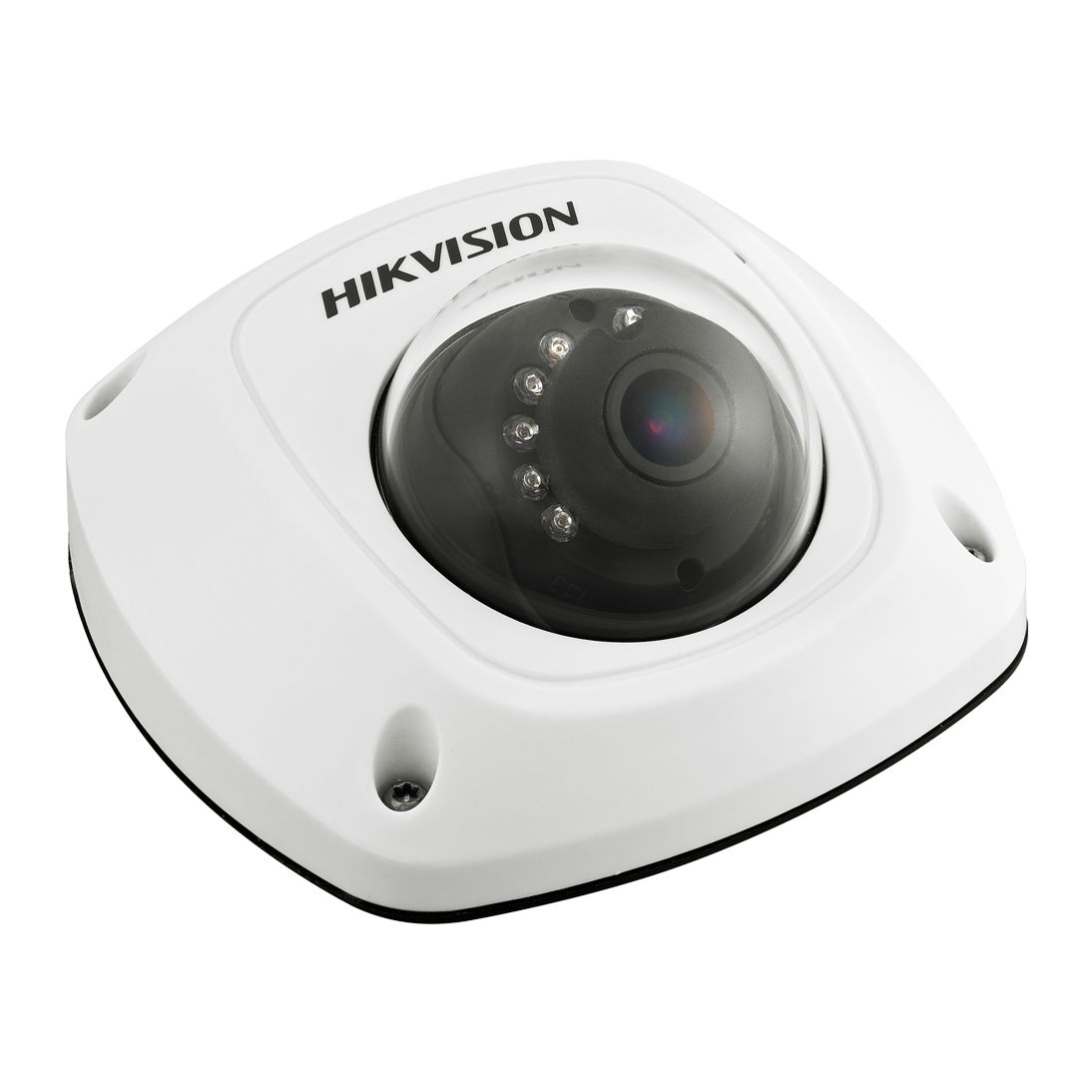

Hikvision DS-2CD2542FWD-I 4MP Outdoor Mini Dome, H.264+, 10m IR, 3DDNR, 120dB WDR, IP67, PoE, 2.8mm

Model: DS-2CD2542FWD-I

Who This Is For

When a compact, low-profile dome profile matters as much as image quality, the DS-2CD2542FWD-I is the camera most installers reach for. Designed for outdoor locations where a discreet footprint is non-negotiable - think building entrances, carpark pillars, retail facades, and stairwells with external exposure - this 4MP mini dome delivers wide coverage through its 2.8mm fixed lens without the visual bulk of a full-size dome or bullet. The IK08 impact rating and IP67 weatherproof housing mean it handles both deliberate interference and the elements. The 120dB true wide dynamic range makes it genuinely usable in mixed-light scenes like doorways and roller door entries where bright sky and shadowed interiors appear in the same frame. With PoE or 12VDC input and 3-axis adjustment, it suits both new cable runs and retrofit jobs equally well.

What This Camera Actually Does

Who Buys This Model

• Commercial Property Installers: Specifying outdoor coverage at building entrances and car park access points where the IK08-rated dome profile is preferred over a more exposed bullet camera.
• Retail Store Managers: Deploying external cameras above roller doors or at shopfront entrances where 120dB WDR is needed to deal with direct sunlight and internal lighting in the same frame.
• Strata and Body Corporate Managers: Covering common area entry points and external corridors where a low-profile dome suits the aesthetic of the building and IK08 protection handles incidental contact.
• IT and Security Integrators: Replacing ageing analogue domes on multi-camera PoE NVR systems where H.264+ compression helps maximise recording retention without upgrading storage hardware.
• Small Business Owners on Managed Networks: Installing on shared business internet infrastructure where H.264+ reduced bandwidth consumption means the cameras do not saturate the connection during peak hours.

Honest Assessment

The DS-2CD2542FWD-I does the fundamentals well: 4MP resolution, 120dB true WDR, H.264+ compression, IK08 impact resistance, and IP67 weatherproofing in a compact dome that suits locations where aesthetics or low profile are a priority. The 3-axis adjustment makes alignment straightforward during install. The 2.8mm fixed lens is a genuine wide-angle option - right for wide-area coverage at close range but not for identifying detail at distance. Where this camera has a clear ceiling is the 10-metre IR range. It is a short-range illuminator designed for confined and close-range scenes. If your brief includes monitoring open carparks, long driveways, or wide approaches in darkness, a bullet or turret camera with 30m-plus IR will serve that application significantly better. The DS-2CD2542FWD-I, supplied by Security Australia, fits best where you need an outdoor-rated vandal-resistant dome at short to medium range with WDR capability - not where night coverage distance is the primary requirement.

Before You Buy

Quick Fit Check

• Good match if: You are covering an outdoor entrance, covered walkway, or carpark access pillar where the IK08-rated dome profile, IP67 weatherproofing, and 120dB WDR handle mixed natural and artificial lighting conditions within a 10-metre scene depth.
• Good match if: You are running a multi-camera PoE system and need to manage storage costs, as H.264+ compression reduces bandwidth and storage requirements compared to standard H.264 across a full camera array.
• You may need a different model if: Your primary requirement is night-time coverage of open outdoor areas beyond 10 metres - a bullet or turret camera with 30m-plus IR output is the more appropriate product type for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a compact outdoor dome with confirmed IK08 vandal resistance, 120dB true WDR for mixed-light entry points, and H.264+ compression efficiency across a multi-camera NVR installation.
• You may need a different model if: Night-time coverage beyond 10 metres is a primary requirement - a bullet or turret camera with 30m-plus IR is the appropriate product type for open outdoor approaches, long driveways, and wide perimeter runs.
• Pairs well with: A Hikvision PoE NVR with H.264+ decoding support to take full advantage of the compression savings across multiple channels, and a PoE switch for flexible camera positioning without additional power cabling.

Common Questions

1. Does this camera work with a standard PoE switch or does it need PoE+?

   Standard IEEE 802.3af PoE is sufficient. The DS-2CD2542FWD-I operates on standard 802.3af PoE, so any compliant PoE switch or PoE NVR will power it without requiring the higher-wattage 802.3at PoE+ standard. A single Cat5e or Cat6 cable carries both power and data to the camera, eliminating the need for a separate power run.

2. Will this camera handle direct weather exposure on an external wall?

   Yes. The IP67 rating confirms the housing is dust-tight and protected against temporary immersion in water, which covers rain, condensation, and weather-driven moisture in typical Australian outdoor conditions. It is rated for permanent external wall and eave mounting without an additional weatherproof enclosure.

3. What does IK08 actually mean in practice for an outdoor dome?

   IK08 means the dome housing has been tested to withstand 5 joules of impact force - equivalent to a 1.7kg mass dropped from 300mm. In practical terms, it protects against opportunistic tampering, deliberate knocks, and incidental contact in high-traffic locations. It is not rated for sustained forceful attack but provides meaningful resistance beyond standard unrated housings.

4. How much storage does 4MP H.264+ footage actually consume?

   Storage consumption depends on scene complexity, motion frequency, and bitrate settings, but H.264+ can reduce storage requirements by up to 50% compared to standard H.264 at equivalent quality. As a rough planning guide, a single 4MP H.264+ channel at moderate bitrate typically consumes between 20-40GB per 24 hours of continuous recording - your NVR's storage calculator will give a site-specific figure based on your configured bitrate. The team at Security Australia can assist with storage planning if you are sizing a multi-camera system.

5. Does the 2.8mm lens give enough detail for facial identification?

   At short range, yes. The 2.8mm fixed lens provides a wide field of view - suited to scenes where subjects pass within 3-5 metres of the camera. At that range, 4MP resolution provides enough pixel density for identification. Beyond 6-8 metres, the wide angle spreads resolution across a broader scene and facial detail becomes progressively harder to extract. If identification at distance is the priority, the 4mm variant of this series narrows the field and increases effective recognition range.

6. Is the 10m IR range sufficient for most outdoor installs?

   For confined and covered outdoor scenes, yes. The 10m IR covers corridor exits, covered entries, carpark access pillars, and stairwell landings where the subject is consistently within 8-10 metres of the camera. For open outdoor scenes - driveways, wide perimeter areas, and unsheltered loading zones where subjects may be 15-30 metres from the camera at night - this IR range is insufficient and a bullet or turret camera with extended IR output is the more suitable choice.

7. Will this camera record continuously or only on motion?

   Both modes are supported. Recording behaviour is controlled by the connected NVR, not the camera itself. Most Hikvision NVRs allow per-channel configuration of continuous recording, motion-triggered recording, schedule-based recording, or a combination. The camera streams continuously to the NVR and the NVR determines what gets written to disk based on your configured schedule and trigger settings.
