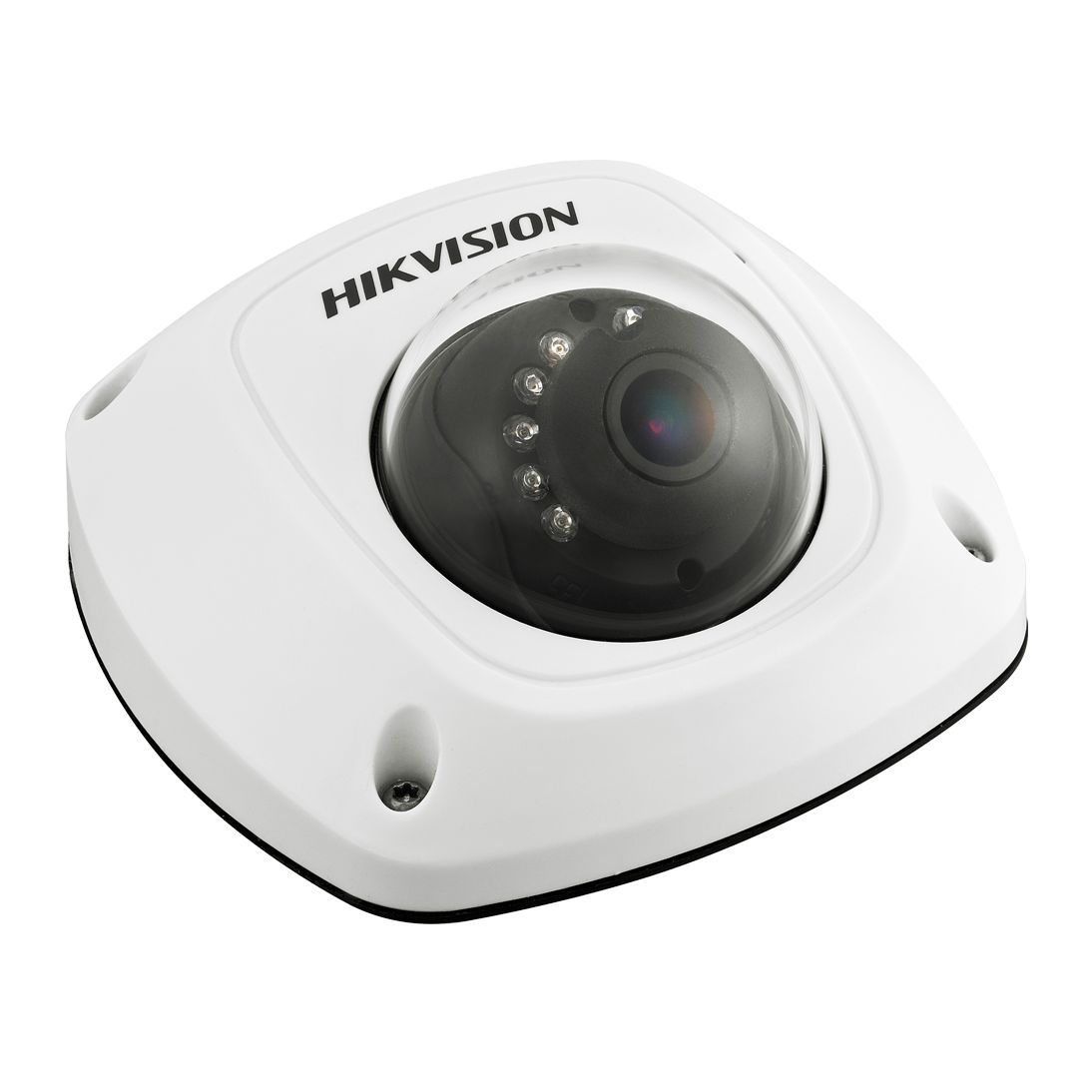

Hikvision DS-2CD2542FWD-IWS 4MP Mini Dome, WIFI, H.264+, 10m IR, Mic, 120dB WDR, IP67, IK08, 4mm

Model: HIK-2CD2542FIWS4

Who This Is For

For installers and property owners who need a compact, discreet dome camera in locations where running a data cable is impractical or cost-prohibitive, the Hikvision DS-2CD2542FWD-IWS delivers 4MP resolution over WiFi with a genuinely low profile ceiling footprint. The IK08 vandal resistance rating makes it appropriate for semi-public areas - think stairwells, reception areas, small retail counters, and childcare rooms - where the camera may be within reach but needs to handle accidental or deliberate contact. The built-in microphone adds audio capture without external hardware, and the 120dB wide dynamic range handles the mixed lighting common in spaces near windows or glass frontages. With PoE or 12VDC power options and a 4mm fixed lens suited to short-to-mid range interior coverage, this camera suits small business owners, apartment managers, and residential installs where WiFi connectivity removes the need for dedicated cable routes.

What This Camera Actually Does

Who Buys This Model

• Small retail owners: Installing a camera above a service counter or fitting room corridor where ceiling cables are not already present, using the WiFi connection to tie into an existing store network.
• Childcare and education facilities: Monitoring internal rooms and corridors where the IK08-rated dome needs to survive contact from curious hands while the 4mm lens covers the full width of a standard-sized room.
• Apartment and strata managers: Covering common area entry points, stairwells, and letterbox areas in buildings where pulling new data cable through concrete or fire-rated walls would require significant building works.
• Homeowners doing a staged install: Starting with 1 or 2 cameras in key indoor locations using the existing home WiFi network before deciding on a full wired NVR system.

Honest Assessment

The DS-2CD2542FWD-IWS does a specific job well: 4MP indoor coverage in locations where running a network cable is not practical, backed by a confirmed IK08 impact rating and 120dB WDR that genuinely handles mixed-light environments. The H.264+ compression is a real advantage for a WiFi-connected device, keeping data load on the wireless network lower than standard H.264 streams. The built-in microphone adds audio capture to the recording. What this camera will not do: it has no built-in speaker, so two-way audio communication is not supported. The 10m IR range is appropriate for indoor rooms and corridors but is not suited to open outdoor distances. For perimeter coverage beyond 10 metres, a wired outdoor bullet or turret camera from the Security Australia range would be the right comparison. WiFi camera performance is also dependent on your network infrastructure - signal strength and router placement at the install point should be assessed before committing to this model over a wired PoE alternative.

Before You Buy

Quick Fit Check

• Good match if: You need a vandal-resistant 4MP indoor dome in a location with good WiFi coverage where running a Cat5e or Cat6 cable to the ceiling mount point is not feasible or cost-effective.
• Good match if: You are covering a room or corridor where back-light from windows or doors creates challenging contrast, and the 120dB WDR is a specific requirement for capturing usable footage in those conditions.
• You may need a different model if: Your install requires outdoor perimeter coverage beyond 10m IR range, long-distance identification, or a fully wired PoE system - in those cases, a wired outdoor dome or bullet camera would be more suitable for the application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your install location has existing WiFi coverage but no practical cable route to the ceiling mount point, and you need a vandal-resistant IK08-rated dome with confirmed 120dB WDR for a mixed-light interior environment.
• You may need a different model if: You are covering outdoor distances beyond 10m, need long-range IR, or want active deterrence with a built-in siren or strobe - wired outdoor turret or bullet cameras would be more appropriate for those applications.
• Pairs well with: A compatible Hikvision NVR with WiFi or network input, or a cloud-based recording solution that accepts RTSP streams from IP cameras.

Common Questions

1. Does this camera work without a network cable if I already have WiFi?

   Yes. The DS-2CD2542FWD-IWS has built-in WiFi, so it can connect to your existing wireless network without a data cable run to the mount point. You will still need a power source at the camera location - either a 12VDC adapter or a PoE connection. If you use PoE for power and run a single cable anyway, the WiFi feature becomes optional rather than necessary.

2. Does the IK08 rating mean this camera is suitable for areas accessible to the public?

   Yes, within the limits of the rating. IK08 indicates the housing is tested to withstand 5 joules of impact force, which covers accidental knocks and most casual contact. It is appropriate for semi-public indoor areas like stairwells, reception counters, and corridors. It is not rated to the higher IK10 standard used in high-risk vandalism environments.

3. Will the 120dB WDR actually make a difference in my shopfront or lobby?

   Yes, in genuinely high-contrast lighting situations. True 120dB WDR processes bright and dark areas of the frame simultaneously in real time, which makes a measurable difference when the camera faces a glass door or window with strong ambient light behind the subject. In evenly lit interior spaces without significant contrast, the WDR has less impact on the output.

4. Does this camera support two-way audio?

   No. The DS-2CD2542FWD-IWS has a built-in microphone for audio recording, but there is no built-in speaker. Two-way audio communication - where you can speak back through the camera - requires a built-in speaker, which this model does not include. If two-way communication is a requirement for your install, a different camera model with both mic and speaker would be needed.

5. How much storage does 4MP H.264+ footage actually use compared to standard H.264?

   Significantly less. H.264+ intelligent compression targets static areas of the frame and reduces bitrate in sections without movement, which Hikvision rates at up to 50% storage reduction compared to standard H.264 at equivalent quality settings. For a WiFi camera this also means less data transmitted per second across your wireless network, which directly reduces the risk of stream buffering or dropped frames on a shared connection. Available through Security Australia, this camera suits situations where storage efficiency is a practical concern.

6. Is the 4mm lens the right choice for my room size?

   It depends on the room width and your mounting height. A 4mm fixed lens on a 1/3-inch sensor provides a horizontal field of view of approximately 88 degrees, which covers a standard-sized room (up to around 6-8m wide) from a ceiling height of 2.5-3m. For narrow corridors you may get more usable length from a wider lens angle, and for larger open-plan areas you would need either multiple cameras or a model with a wider lens option. The 4mm is a practical general-purpose choice for most standard interior spaces.

Downloads & Resources

No downloads available for this product.
