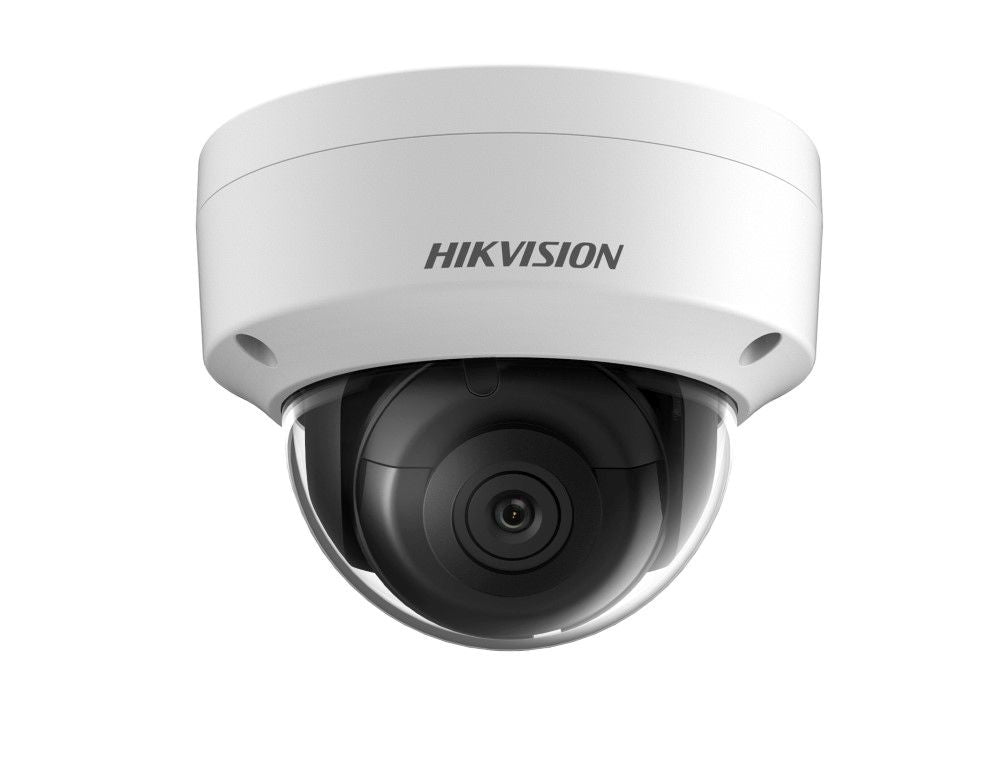

Hikvision DS-2CD2165G0-I 6MP Outdoor Dome CCTV Camera, H.265+, 30m IR with Darkfighter

Model: DS-2CD2165G0-I

Who This Is For

For installers and property managers who need a high-resolution outdoor dome that holds up in demanding conditions, the Hikvision DS-2CD2165G0-I delivers 6MP imaging in a fully sealed, IK10-rated vandal-resistant housing rated to IP67. This is a camera specified for environments where image detail matters - carpark entries, building perimeters, external corridors, and retail forecourts where the wide-angle or telephoto lens choice (2.8mm through to 12mm fixed options) needs to be matched precisely to the scene. The DarkFighter sensor handles low-light situations where standard cameras fall short, and the combination of 120dB true WDR and EXIR 2.0 infrared at up to 30m means the camera continues to produce usable footage after dark and in high-contrast lighting. The 3-axis adjustment bracket makes final aim-in straightforward on any mounting surface.

What This Camera Actually Does

Who Buys This Model

• Commercial property managers: Specifying external coverage on building perimeters, carparks, and entry points where the IK10 housing deters tampering and IP67 handles full weather exposure year-round.
• Security integrators on mixed-light sites: Installing on retail forecourts, service station canopies, or loading docks where the 120dB WDR handles the contrast between lit and unlit zones in the same frame.
• Installers specifying lens-matched coverage: Projects where the 2.8mm through 12mm fixed lens range allows one camera model to be used across multiple positions - wide entry coverage and tighter corridor or approach views - without stocking multiple SKUs.
• Operators upgrading from 2MP or 4MP systems: Moving to 6MP to increase digital zoom usability in recorded footage for incident review, or to cover larger scenes with fewer camera positions.

Honest Assessment

The DS-2CD2165G0-I does the fundamentals well for an outdoor vandal dome at this resolution tier: the DarkFighter sensor produces usable low-light footage ahead of switching to IR, the 120dB WDR is genuine rather than digital, and the IK10 rating is verified rather than claimed. H.265+ compression makes the 6MP stream manageable on existing NVR infrastructure without requiring a full storage upgrade. The 30m IR range is appropriate for most residential and light-commercial applications but is not the right specification for long open-approach monitoring - for driveways beyond 30m or wide open carparks, a bullet camera with extended IR range from the Security Australia range would be a more effective choice. This camera also does not include built-in AI event detection such as line crossing analytics or human/vehicle classification, so buyers requiring smart detection events should consider a higher-tier model before committing.

Before You Buy

Quick Fit Check

• Good match if: You need a 6MP outdoor dome for a carpark entry, building perimeter, or external corridor where the IK10-rated housing and IP67 weatherproofing are required and the 30m IR covers the monitored zone.
• Good match if: Your NVR infrastructure is already in place and you need to add or replace a camera using standard 802.3af PoE, with H.265+ compression keeping the bitrate impact on existing storage to a minimum.
• You may need a different model if: Your application requires built-in AI event detection such as perimeter intrusion, human/vehicle classification, or line-crossing alerts - a camera from the AcuSense range would be better suited to that use case at securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a confirmed IK10-rated 6MP outdoor dome with DarkFighter and 120dB WDR, and your site runs standard 802.3af PoE infrastructure without requiring AI event classification.
• You may need a different model if: Your brief includes AI-driven detection - human and vehicle classification, perimeter intrusion alerts, or false-alarm filtering from motion detection. An AcuSense-rated dome would be a better product type for that application.
• Pairs well with: A Hikvision PoE NVR with H.265+ decoding support and sufficient channel count for the site - this ensures the H.265+ bitrate reduction is applied end-to-end and storage estimates are accurate.

Common Questions

1. Does this camera work with a standard PoE switch or NVR?

   Yes. The DS-2CD2165G0-I supports IEEE 802.3af PoE, which is the standard output level found on most PoE switches and Hikvision PoE NVRs. A single Cat5e or Cat6 cable carries both power and data to the camera. PoE+ (802.3at) hardware is not required, which keeps compatibility broad across existing infrastructure.

2. Will this camera record in complete darkness without any external lighting?

   Yes. The EXIR 2.0 infrared illuminators provide up to 30m of IR coverage in total darkness. The DarkFighter sensor extends usable low-light colour imaging before the IR activates, but when ambient light drops to zero the camera switches to monochrome IR mode and continues recording. No external lighting is required within that 30m range.

3. What does H.265+ actually mean for my storage and how much does it save?

   H.265+ can reduce bitrate by up to 80% compared to standard H.264. In practice, a 6MP stream that might require 80-100GB per day per camera under H.264 can drop substantially under H.265+ depending on scene complexity and motion volume. This directly affects how many days of footage a given hard drive capacity will hold, and how many cameras a given network bandwidth will support simultaneously.

4. Is the IK10 rating independently verified or a manufacturer claim?

   IK10 is a defined standard under IEC 62262, specifying resistance to 20 joules of impact energy. Hikvision's IK10-rated domes are tested to this standard. It is the highest impact-resistance classification in the IK rating scale and is the relevant rating for outdoor dome cameras in vandal-prone or accessible positions. The IP67 rating independently confirms full dust ingress protection and resistance to water immersion up to 1m.

5. Does this camera support on-board recording if the NVR goes offline?

   Yes. The camera includes a MicroSD/SDHC/SDXC card slot supporting up to 128GB of local storage. If the NVR connection is lost, the camera continues recording to the card. Once the NVR reconnects, footage stored on the card can be retrieved. This makes the SD slot a genuine redundancy layer rather than a primary recording method.

6. Which lens variant should I order for a standard external wall or eave position?

   It depends on the distance to the subject and the width of the scene you need to cover. For a doorway or building corner covering a zone up to 6-8m away, a 2.8mm lens gives a wide field of view. For a carpark row or fence line where subjects are 8-15m away, a 4mm or 6mm lens will produce better detail at distance. The 8mm and 12mm variants suit longer approaches or situations where tighter framing is needed. Confirm your scene dimensions before ordering - the lens is fixed and cannot be swapped on site. Security Australia stocks multiple lens variants of this model.

7. Does the 120dB WDR make a practical difference compared to cameras rated at 80dB or 100dB?

   Yes, in high-contrast scenes it makes a measurable difference. True 120dB WDR handles scenes where the brightest and darkest areas differ by a ratio of approximately 1,000,000:1 in luminance. Cameras with lower WDR ratings will clip highlights or crush shadows in the same frame. For a camera covering a doorway with strong backlight, a bright shopfront, or a boom gate in direct afternoon sun, the 120dB rating means detail is retained in both the bright sky and the shadowed foreground simultaneously.
