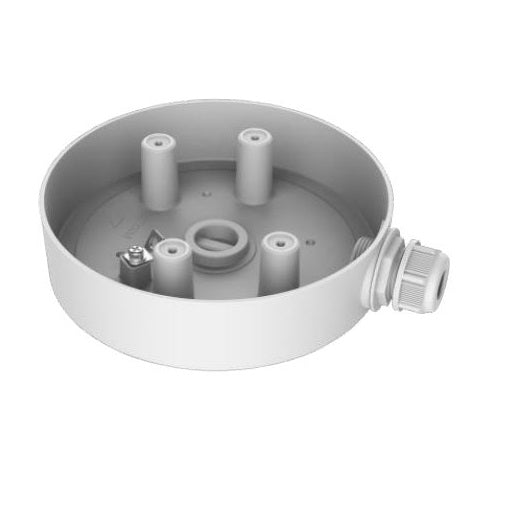

Hikvision DS-1280ZJ-SD11 Junction Box to suit 4 Inch PTZ Cameras

Model: DS-1280ZJ-SD11

Who This Is For

For installers and integrators who need a clean, purpose-built wall or ceiling penetration solution when mounting Hikvision 4-inch PTZ cameras. The DS-1280ZJ-SD11 junction box sits between the camera base and the mounting surface, concealing cabling behind a finished aluminium alloy housing rather than leaving conduit or wiring exposed at the camera head. It suits commercial and industrial PTZ installations where cable management, site presentation, and a tidy finish matter - think building facades, car park structures, warehouse exteriors, and retail centres where a professional result is expected. At 157.7 mm in diameter and 39.7 mm deep, it provides enough cavity depth to accommodate cabling connections at the camera base without creating a bulky profile. The Hikvision white finish matches the standard colour of compatible 4-inch PTZ camera housings for a consistent look across the installation.

What This Junction Box Actually Does

Who Buys This Model

• Security Integrators: Specifying Hikvision 4-inch PTZ cameras on commercial sites where the client expects a finished, cable-managed result rather than bare wiring at the camera base.
• Electrical Contractors: Installing PTZ cameras on concrete or masonry surfaces where cabling enters through the wall and needs a compliant, enclosed transition point behind the camera head.
• Facilities Managers: Replacing worn or missing junction boxes on existing Hikvision 4-inch PTZ installations during refurbishments or equipment upgrades.
• System Builders Ordering Complete Hardware: Including the DS-1280ZJ-SD11 as part of a full PTZ camera kit order to ensure every component - camera, mount, and junction box - is specified from the same manufacturer and matched in dimension and finish.

Honest Assessment

The DS-1280ZJ-SD11 does one thing and does it well: it gives Hikvision 4-inch PTZ camera installations a clean cable entry point with matched dimensions and finish. The aluminium alloy construction is appropriate for outdoor use, the 157.7 mm diameter footprint is sized to the camera base it serves, and the Hikvision white colour avoids the mismatch that comes with third-party alternatives. For straightforward wall or ceiling surface mounts on compatible 4-inch PTZ models, it is the correct part to specify - available through Security Australia as a standalone accessory. It will not provide a wall mount arm, a pole bracket, or any form of tilt or swivel adjustment - those functions require separate mounting accessories. If the installation involves a pendant arm, parapet mount, or corner bracket, a different mounting adapter suited to that configuration will also be required alongside this junction box.

Before You Buy

Quick Fit Check

• Good match if: You are mounting a Hikvision 4-inch PTZ camera directly to a wall or ceiling surface and need a purpose-matched aluminium junction box to conceal cabling at the base.
• Good match if: The installation is on a commercial or industrial site where a finished, consistent appearance is required and the Hikvision white housing colour needs to match the camera.
• You may need a different model if: Your PTZ camera is a 7-inch or 9-inch Hikvision model - those housings have larger base diameters and require a different junction box designed for their specific footprint.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your camera is a confirmed Hikvision 4-inch PTZ and you need a matched, manufacturer-specified junction box with correct base dimensions and Hikvision white finish.
• You may need a different model if: Your PTZ is a larger Hikvision housing (7-inch or 9-inch) - those models require a junction box sized to their specific base diameter, available in the Hikvision mounting accessories range.
• Pairs well with: Hikvision 4-inch PTZ cameras and compatible wall or ceiling mounting brackets designed for the same camera family.

Common Questions

1. Will this junction box fit all Hikvision PTZ cameras?

   No. The DS-1280ZJ-SD11 is sized for Hikvision 4-inch PTZ camera bases only, with a diameter of 157.7 mm. Hikvision also produces PTZ cameras in 7-inch and 9-inch housing sizes, which have larger base diameters and require different junction box models. Always confirm your PTZ camera's housing size before ordering this accessory.

2. Does this junction box provide any weatherproofing for the cable entry point?

   The DS-1280ZJ-SD11 provides a structured enclosure for cabling at the camera base, but a specific IP ingress rating for the junction box itself is not confirmed in the published datasheet. For installations where water ingress at the cable entry is a concern - such as directly exposed exterior walls - cable glands or appropriate sealant at the wall penetration point should be used as part of the installation practice, separate to this accessory.

3. Does this junction box work with PoE-powered PTZ cameras?

   Yes, provided the PTZ camera itself supports PoE or PoE+. The DS-1280ZJ-SD11 is a passive cable management enclosure - it does not affect the power delivery method. A single Cat5e or Cat6 cable carrying both data and PoE power passes through the junction box to the camera base in the same way as any other cabling type. Cable routing and gland sizing should be checked against the cable diameter used.

4. What is the depth of the junction box cavity?

   The DS-1280ZJ-SD11 is 39.7 mm deep. This provides sufficient cavity space for standard cabling connections at the camera base on a direct wall or ceiling surface mount. For installations where a larger cable bundle or additional connectors need to sit behind the camera, this depth should be measured against the actual cable assembly before ordering.

5. Is this junction box suitable for outdoor PTZ camera installations?

   Yes, based on the aluminium alloy construction. Aluminium alloy is appropriate for exterior use, resisting corrosion in exposed environments better than plastic alternatives. At 450 g, the housing is robust enough for permanent outdoor mounting without adding excessive load to the camera bracket. Installer sealant practice at the wall penetration point remains the installer's responsibility.

6. Can this be used as a standalone wall mount bracket for a 4-inch PTZ?

   No. The DS-1280ZJ-SD11 is a junction box, not a mounting bracket. It sits between the camera base and a flat surface to manage cable entry - it does not provide the structural wall mount, arm, or bracket function. A separate wall mount bracket compatible with your 4-inch PTZ model is required alongside this junction box for a complete surface mount installation. Security Australia stocks compatible Hikvision PTZ mounting accessories to complete the install.

Downloads & Resources

No downloads available for this product.
