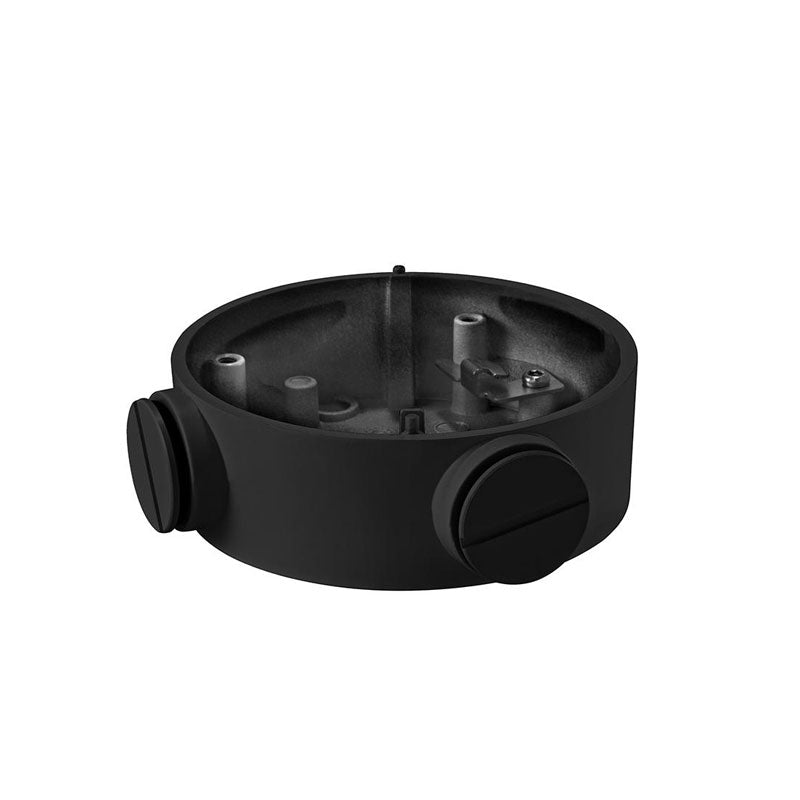

Hikvision DS-1260ZJ Junction Box White or Black

Model: DS-1260ZJ

Who This Is For

Property managers specifying clean bullet camera installations on rendered walls, brick, or concrete surfaces will recognise the DS-1260ZJ immediately. This aluminium alloy junction box is designed to sit behind compatible Hikvision bullet cameras from the 2632, 2CD2T85G, and 2CD2T65G series, giving the installation a flush, professional finish while also concealing the rear cable entry point. Available in white or black, it suits both internal and external environments, making it a straightforward choice whether the camera is mounted on a building facade, under an eave, or inside a warehouse. At 88.5mm, the footprint is compact enough to suit most standard wall and surface mounts. Installers specifying tidy conduit-free runs will use the DS-1260ZJ to route cabling cleanly through the wall or surface rather than leaving exposed cable tails behind the camera body.

What This Accessory Actually Does

Who Buys This Model

• CCTV Installers: Specifying the DS-1260ZJ alongside compatible Hikvision 2CD2T85G or 2CD2T65G bullet cameras to deliver a tidy wall-entry finish on commercial and residential sites.
• Property Developers and Builders: Incorporating junction boxes at rough-in stage so cabling is pre-run through the wall before camera heads are fitted, saving rework on rendered or clad facades.
• Facility Managers: Replacing damaged or missing junction boxes on existing bullet camera installations to restore a clean, professional appearance at loading docks, car parks, or building perimeters.
• Security System Integrators: Purchasing in quantity to standardise the cable entry finish across multi-site commercial projects using the compatible Hikvision 2632 series bullet cameras.

Honest Assessment

The DS-1260ZJ does one job well: it gives compatible Hikvision bullet camera installations a finished, professional wall-entry point with no exposed cabling at the rear of the camera. The aluminium alloy construction is a genuine advantage over plastic alternatives - it handles outdoor exposure, UV, and heat cycling without warping. The 88.5mm footprint fits standard back-box and conduit entry points without modification in most cases. White and black colour options cover the majority of common surface finishes without needing to paint or wrap the accessory. What this product will not do is adapt to camera models outside the confirmed compatible range - using it with a dome, turret, or non-compatible bullet series will result in a fitment mismatch. It also does not provide any additional weatherproofing beyond what the camera's own IP rating delivers. If you are unsure whether this junction box suits your specific camera model, the team at Security Australia can confirm compatibility before you order.

Before You Buy

Quick Fit Check

• Good match if: You are installing a compatible Hikvision 2CD2T85G, 2CD2T65G, or 2632 series bullet camera and want to route cabling through the wall for a clean, conduit-free finish at the rear of the camera.
• Good match if: The installation site is exposed to outdoor conditions and you need an aluminium alloy accessory that will not degrade under UV or temperature cycling the way plastic junction boxes can.
• You may need a different model if: You are mounting a dome or turret camera - those camera types use a different mounting base profile and will require a junction box designed specifically for dome or surface-mount turret installations.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are installing a confirmed compatible Hikvision 2632, 2CD2T85G, or 2CD2T65G series bullet camera and need an aluminium alloy junction box that works in both indoor and outdoor environments with a matching colour option.
• You may need a different model if: Your camera is a dome or turret type - dome-series cameras use a different rear-mount base profile and require a junction box or surface mount adapter designed specifically for that camera form factor.
• Pairs well with: Compatible Hikvision 2CD2T85G or 2CD2T65G series bullet cameras, and a PoE NVR or PoE switch that allows a single Cat6 cable run through the junction box for both power and data.

Common Questions

1. Which Hikvision camera models is the DS-1260ZJ compatible with?

   The DS-1260ZJ is confirmed compatible with Hikvision's 2632 series, 2CD2T85G series, and 2CD2T65G series bullet cameras. These are all bullet-body cameras with a rear-mount interface that mates with the 88.5mm junction box footprint. It is not confirmed for dome, turret, or PTZ camera types, and should not be assumed compatible with bullet models outside these confirmed series without checking the individual datasheet.

2. Can the DS-1260ZJ be used outdoors?

   Yes. The DS-1260ZJ is confirmed for both indoor and outdoor installation. The aluminium alloy construction handles outdoor exposure conditions including UV and temperature variation. Note that the junction box itself does not add any weatherproofing rating beyond what the connected camera body already carries - the camera's own IP rating remains the determining factor for water and dust ingress protection.

3. Does the DS-1260ZJ come in both white and black?

   Yes. The DS-1260ZJ is available in white and black. The colour option allows the junction box to be matched to the mounting surface or the camera body finish, which is particularly relevant on dark cladding or timber where a white box would stand out against the surface.

4. Will this junction box work with bullet cameras from other brands?

   No - not reliably. The DS-1260ZJ is engineered to the rear-mount interface dimensions of the specific Hikvision bullet camera series listed. Cameras from other manufacturers, even visually similar bullet models, will have different mounting footprints and fixing hole patterns. Using this box with an unconfirmed camera model risks a misfit that cannot be corrected on site. If you are unsure, the team at Security Australia can confirm the right junction box for your specific camera before you order.

5. What is the material and why does it matter compared to plastic junction boxes?

   The DS-1260ZJ is made from aluminium alloy. In practical terms this means the box will not warp under sustained UV exposure, will not become brittle in cold outdoor conditions, and provides a more rigid base for the camera mount than injection-moulded plastic alternatives. For long-term outdoor installations, particularly on west or north-facing walls with direct sun exposure, the material difference becomes noticeable over a 3-5 year period.

6. Does the junction box need to be installed before the wall is rendered or can it be retrofitted?

   It can be used both ways. For new builds, the DS-1260ZJ is often fitted at rough-in stage once the cable has been run through the wall, before rendering or cladding is complete. For retrofit installs, the cable is run through a core-drilled or chased penetration and the junction box is surface-fixed over the entry point. The retrofit approach is straightforward on brick, block, or timber-framed walls with a pre-drilled cable entry.

Downloads & Resources

No downloads available for this product.
