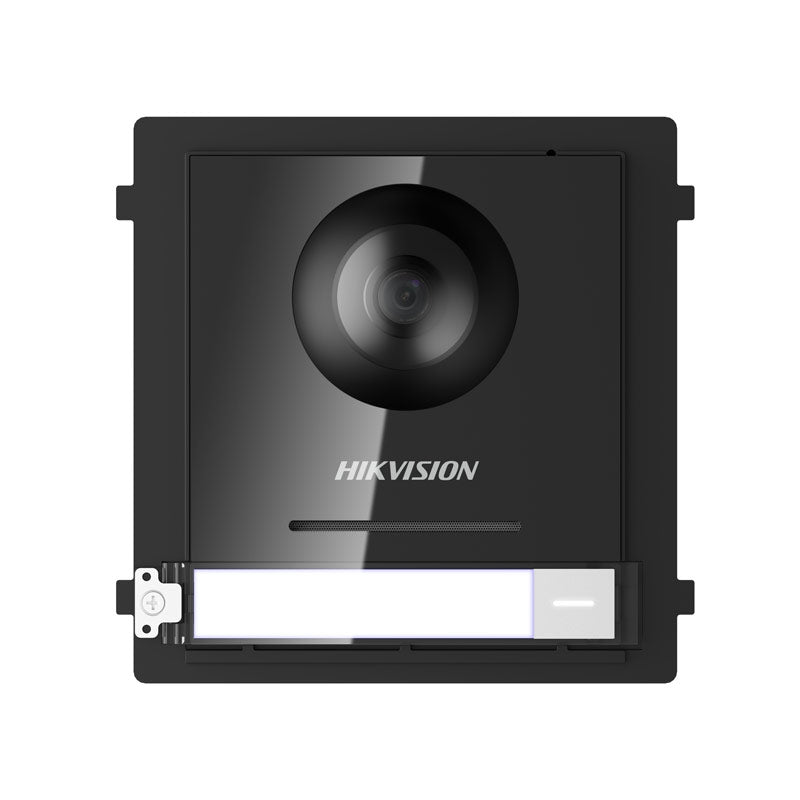

Hikvision Gen2 DS-KD8003-IME1 Video Intercom Module Door Station

Model: DS-KD8003-IME1

Who This Is For

For integrators and building managers specifying a modular video intercom system for apartment complexes, gated communities, or commercial office buildings who need a scalable door station that handles both visitor video calls and access control from a single unit. The Hikvision DS-KD8003-IME1 is the core camera and call module in the Gen 2 modular intercom lineup - it does not come pre-housed, which means installers can combine it with the appropriate 1-module surface mount or flush mount housing to suit the entrance type. It connects to Gen 2 room stations over a standard 48V PoE switch, supports up to 8 sub-modules for expanded button panels or card readers, and operates across a -40°C to +60°C temperature range. If you are planning a multi-apartment or multi-tenancy entry system and want a camera module that integrates directly with Hikvision's Gen 2 indoor station range, this is the module to start with.

What This Intercom Actually Does

Who Buys This Model

• Residential apartment complex managers: Specifying a scalable entry station for multi-level buildings where multiple sub-modules for individual apartment call buttons are needed alongside a single camera module.
• Low-voltage integrators building Gen 2 Hikvision intercom systems: The DS-KD8003-IME1 is the camera and audio core that pairs with Gen 2 room stations over a PoE switch - integrators sourcing the module separately to combine with a specific flush or surface housing for a custom entry surround.
• Commercial office and strata building contractors: Sites where door control relay outputs need to connect directly to existing electric strikes, with door sensor I/O monitoring feeding into building management or security panels via the 4 onboard inputs.
• Installers in harsh-environment applications: Cold-storage facilities, outdoor parking structures, or rooftop plant-room entries where the -40°C to +60°C rated module and IP65 housing are genuine functional requirements, not just spec-sheet padding.

Honest Assessment

The DS-KD8003-IME1 does its primary job well: the 180° fisheye lens captures the full door approach, the IR supplement light covers low-light entries, and the two-relay door control setup means most electric lock types connect directly without additional hardware. The noise cancellation in the audio path is practically useful for exposed outdoor entries where wind noise commonly degrades intercom call quality. The sub-module expansion to 8 units makes this a workable core for large multi-tenant buildings where a single call button is not enough. Available through Security Australia as part of the Hikvision Gen 2 intercom range.

What it will not do: this module requires a compatible housing purchased separately - it does not ship as a standalone wall-ready unit. It also does not include a built-in card reader or keypad, so credential-based access requires an additional sub-module. If your site needs RFID or PIN access as part of the door station itself rather than a separate reader, look at Hikvision's all-in-one Gen 2 door station models that combine these functions in a single housing.

Before You Buy

Quick Fit Check

• Good match if: You are specifying a Hikvision Gen 2 intercom system for a multi-tenant building and need a camera/audio module that expands to 8 sub-modules for individual apartment call buttons or additional access credentials.
• Good match if: Your entry point is outdoors and exposed to weather or temperature extremes - the IP65 rating and -40°C to +60°C operating range give this module a broader environmental tolerance than most consumer-grade intercom units.
• You may need a different model if: You want a complete, self-contained door station with built-in card reader, keypad, and housing in a single ready-to-mount unit - an all-in-one Gen 2 door station model will be more appropriate for straightforward single-entry installations.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a modular door station core with 180° fisheye coverage, sub-module expansion for multi-tenant call buttons, and direct relay output for door lock control - all in a single IP65-rated module that works over standard PoE infrastructure.
• You may need a different model if: Your installation requires a fully self-contained unit with built-in card reader and keypad already integrated - an all-in-one Gen 2 door station format will save installation time for single-entry or low-complexity sites.
• Pairs well with: A Gen 2 compatible 7-inch touch screen indoor room station, a 48V PoE switch for network distribution, and a surface mount or flush mount 1-module housing - all available in the Hikvision Gen 2 intercom range.

Common Questions

1. Does this door station come ready to mount on a wall?

   No. The DS-KD8003-IME1 is the camera and intercom module only - a compatible housing must be purchased separately before installation. Hikvision's Gen 2 range includes a 1-module surface mount housing (DS-KD-ACW1) and a 1-module flush mount housing. The module dimensions are 98mm x 99.8mm x 43.9mm, and the flush mount option requires a rough-in box deep enough to accommodate the 43.9mm module depth plus cabling clearance behind the unit.

2. Will this module work with my existing Hikvision Gen 1 room stations?

   No. The DS-KD8003-IME1 is a Gen 2 product and is only compatible with Hikvision Gen 2 indoor room stations. It will not interoperate with Gen 1 indoor stations. If your building already has Gen 1 room stations installed, you would need to upgrade those stations to Gen 2 models or select a Gen 1 compatible door station module instead.

3. How does the 180° fisheye lens affect image quality - will faces be distorted?

   Yes, a fisheye lens produces barrel distortion across the frame, particularly toward the edges. At the door station's primary use distance - a person standing 0.5 to 1.5 metres in front of the unit - facial features at the centre of frame are typically clear enough for visual identification on a 1920x1080 stream. The 180° coverage trades some geometric accuracy for the ability to capture the full door approach width without panning. Dewarping of the RTSP stream is possible in compatible VMS software, though this is not a confirmed built-in function of the module itself.

4. Does this module support PoE, and what PoE standard does it require?

   Yes. The DS-KD8003-IME1 supports IEEE 802.3af standard PoE, which is the common 15.4W PoE standard available on most mainstream managed and unmanaged PoE switches. Maximum power draw is confirmed at 10W, comfortably within the 802.3af budget. A single Cat5e or Cat6 cable carries both power and network data to the module. Alternatively, the unit accepts 12VDC at 1A via a local power supply if PoE infrastructure is not available at the installation point.

5. Can the relay outputs control a magnetic lock directly?

   It depends on your lock's specifications. The onboard relay outputs are rated at 30V, 1A each. Most fail-secure electric strikes operate within this rating, but many 12VDC or 24VDC magnetic locks draw more than 1A at engagement. For magnetic locks exceeding 1A draw, a separate relay or lock power supply with its own relay interface is the standard approach - the door station relay triggers the external relay, which in turn drives the lock. Confirm your lock's current draw before wiring it directly to the module relay.

6. How many sub-modules can be added, and what types are supported?

   The DS-KD8003-IME1 supports up to 8 sub-modules via its single module-connecting interface. Sub-modules in the Hikvision Gen 2 range include keypad modules, card reader modules, and additional call button modules for multi-tenant configurations. The specific sub-module types compatible with this unit are detailed in the user manual - Security Australia can assist with confirming which Gen 2 sub-modules are currently stocked and compatible with this base unit for your specific application.

7. Does the module support RTSP streaming to a third-party NVR or VMS?

   Yes. The DS-KD8003-IME1 supports RTSP over TCP/IP, which means the main stream (1920x1080) or sub stream (720x480) can be pulled into compatible third-party VMS software or NVRs that accept RTSP streams. This allows the door station camera to be recorded or monitored alongside CCTV cameras in a unified platform. Note that intercom call functionality - two-way audio and door release - still requires Hikvision Gen 2 compatible room stations or an Hikvision intercom management platform; RTSP access is for video monitoring only.

Cabling Considerations

• Cable Type: Cat5e or Cat6 UTP for PoE data runs. Use shielded Cat6 (STP) in environments with high electrical interference such as industrial sites with heavy plant equipment near cabling routes.
• Max Cable Run: 100 metres from PoE switch to door station module over standard Cat5e or Cat6. Runs approaching this limit should use Cat6 to maintain reliable PoE delivery and network performance.
• PoE Notes: IEEE 802.3af PoE required (standard 15.4W budget). The module draws a maximum of 10W, so a standard 802.3af port is sufficient - PoE+ is not required. If using 12VDC local power instead, a regulated 12V/1A supply is needed; do not use unregulated adapters.
• Wiring Tips: The module has 4 x I/O inputs and 2 x relay outputs requiring separate low-voltage wiring to door hardware (electric strike, door sensor, exit button). Plan conduit runs to accommodate both the network cable and the door hardware wiring before finishing the wall. For flush mount installations, ensure the rough-in box accommodates the 43.9mm module depth plus wiring termination space behind the module.
