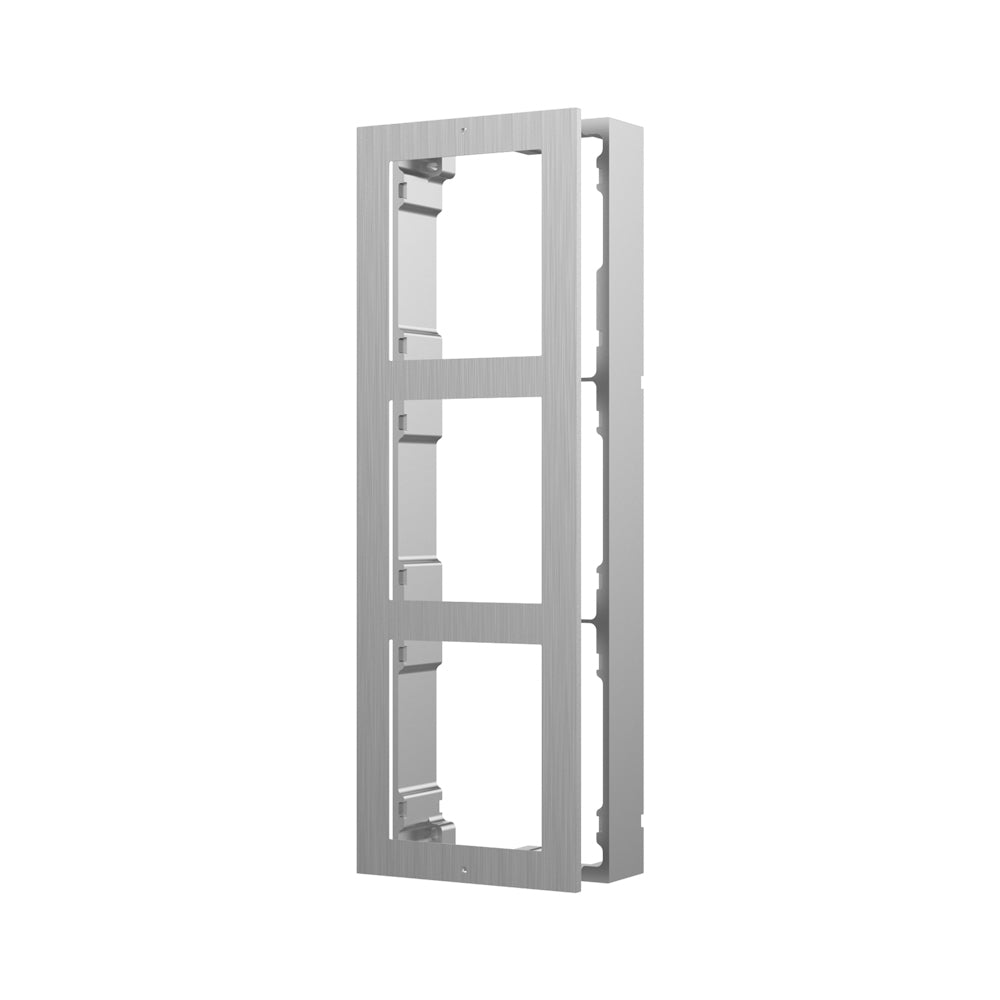

Hikvision Gen2 DS-KD-ACW3 Video Intercom Surface Mount Housing - 3 Module

Model: DS-KD-ACW3

Who This Is For

When surface mounting is the only practical option at an entry point, the DS-KD-ACW3 gives installers a clean, purpose-built solution for the Hikvision Gen2 modular door station platform. Designed specifically for 3-module configurations, this housing suits residential complexes, commercial building entries, and gated facilities where a recessed or flush-mount install into the wall structure is not feasible. The aviation aluminium cover and gang box construction provide the rigidity and weather tolerance expected in an exposed entry application, rated across a wide temperature range from -40°C to +60°C. If you are configuring a DS-KD8003-IME1 door station with a camera module, keypad module, or card reader module and need to mount across three module positions on a flat surface, the DS-KD-ACW3 is the correct housing to specify. It is a direct accessory for the Gen2 modular intercom system, not a standalone product.

What This Housing Actually Does

Who Buys This Model

• Intercom Installers on Brick or Rendered Walls: When the entry wall cannot be cored or chased for a flush mount, this housing provides the correct surface-mount enclosure without improvising with generic electrical boxes.
• Multi-Residential Building Contractors: Apartment and townhouse developments using the Hikvision Gen2 platform often specify a 3-module door station layout - video, keypad, and card reader - and need a housing that presents as a finished product at the building entry.
• Commercial Property Installers: Office buildings, warehouses, and gated commercial sites running DS-KD8003-IME1 door stations where the entry pillar or post is solid and surface mounting is the standard approach.
• System Integrators Completing Gen2 Intercom Projects: Installers already deploying Hikvision Gen2 video intercom systems who need the correct OEM accessory housing rather than a third-party alternative that may not align precisely with Gen2 module dimensions.

Honest Assessment

The DS-KD-ACW3 does one job well - it gives a 3-module Gen2 door station a proper surface-mount enclosure using the same aviation aluminium as the modules themselves. The temperature rating is genuinely broad, and the slim cover depth keeps the installed result looking intentional rather than bolted-on. For Australian outdoor applications where the wall surface cannot be recessed, it is the appropriate specified accessory. What this product will not do is work with any other module count - if you need a 1, 2, or 4-module surface mount, a different ACW variant is required. It also has no electrical or communication function of its own; it is purely a housing. If your installation requires a flush or in-wall finish, a different mounting kit is the right path. The DS-KD-ACW3 is stocked by Security Australia as part of the Hikvision Gen2 intercom accessory range.

Before You Buy

Quick Fit Check

• Good match if: You are installing a 3-module Hikvision Gen2 door station on a solid wall surface - brick, concrete, or rendered masonry - where cutting in a flush gang box is not practical.
• Good match if: Your project requires an outdoor-rated enclosure that handles temperature extremes, with the DS-KD-ACW3's -40°C to +60°C rating covering exposed entry points in virtually any Australian climate.
• You may need a different model if: Your door station configuration uses a module count other than 3, or if you require a flush in-wall mounting solution - a different ACW variant or flush-mount kit from the Hikvision Gen2 accessory range will be more appropriate.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your Gen2 door station installation requires a 3-module surface-mount outcome on a wall surface that cannot be recessed, and you want the correct OEM housing with matched aluminium construction.
• You may need a different model if: Your module count is not 3 - Hikvision produces other ACW variants for different module counts, and using the wrong variant will result in an ill-fitting installation. Check the full Gen2 intercom accessory range for the correct option.
• Pairs well with: Hikvision Gen2 modular door station video camera modules, keypad modules, card reader modules, and a compatible Gen2 indoor monitor or IP intercom management platform.

Common Questions

1. Will this housing work with my existing Hikvision intercom if it is not Gen2?

   No. The DS-KD-ACW3 is designed specifically for the Hikvision Gen2 modular video intercom platform, including the DS-KD8003-IME1 door station. Gen1 Hikvision intercom products and non-modular door stations use different module dimensions and fixing patterns, so the DS-KD-ACW3 will not align correctly with those systems.

2. Does this housing add any electrical or communication functionality?

   No. The DS-KD-ACW3 is purely a mechanical enclosure. It has no PCB, wiring terminals, or electronic components. All intercom functionality is delivered by the modules installed within the housing. This product provides the structure, protection, and mounting interface only.

3. Can I use this housing outdoors in direct sun or wet weather?

   Yes, subject to the confirmed working temperature range of -40°C to +60°C and working humidity of 10% to 95%. The aviation aluminium construction is suitable for exposed outdoor entry applications. Note that an IP ingress rating is not confirmed in the available specification data - confirm weatherproofing requirements for your specific application with Security Australia before ordering if this is a critical factor.

4. How far does this housing protrude from the wall surface?

   The installation frame extends 32.7 mm from the wall surface. The cover panel itself is 4 mm deep. The total installed depth from the wall face is therefore approximately 32.7 mm at the frame. This is a relatively slim profile for a surface-mount enclosure and is proportionate on standard entry pillar and wall surfaces.

5. Does this support up to 8 modules if I add more later?

   No. The DS-KD-ACW3 is fixed at 3 module positions. The Gen2 door station platform as a whole supports up to an additional 8 modules when combined with the correct door station unit, but the DS-KD-ACW3 surface mount housing only accommodates 3. If your configuration grows beyond 3 modules, a different housing variant is required.

6. What are the overall dimensions to check against my mounting location?

   The cover panel measures 320.8 mm long by 107 mm wide - approximately 32 cm tall by 11 cm wide. The installation frame shares the same footprint at 320.8 x 107 mm but adds 32.7 mm of depth off the wall. Verify these dimensions against your entry pillar or wall panel width before ordering, particularly on narrow masonry columns.

Cabling Considerations

• Cable Entry: Surface mount installations require cabling to be routed to the back of the installation frame. Plan conduit or cable management on the wall surface before fixing the frame to avoid exposed cabling runs.
• Network Cable: The Gen2 door station modules connect via the network infrastructure of the intercom system. Standard Cat5e or Cat6 is appropriate for the data connection to the door station unit inside the housing.
• Frame Depth: The 32.7 mm installation frame depth provides internal clearance for cable terminations behind the modules. Ensure cable tails are managed within this depth before securing the cover panel.
• Wiring Tips: Route all cables to their termination points before mounting the installation frame to the wall. Once the frame is fixed and modules are seated, access to the wiring space behind the modules is limited. Label all cable tails clearly before the cover panel is fitted.
