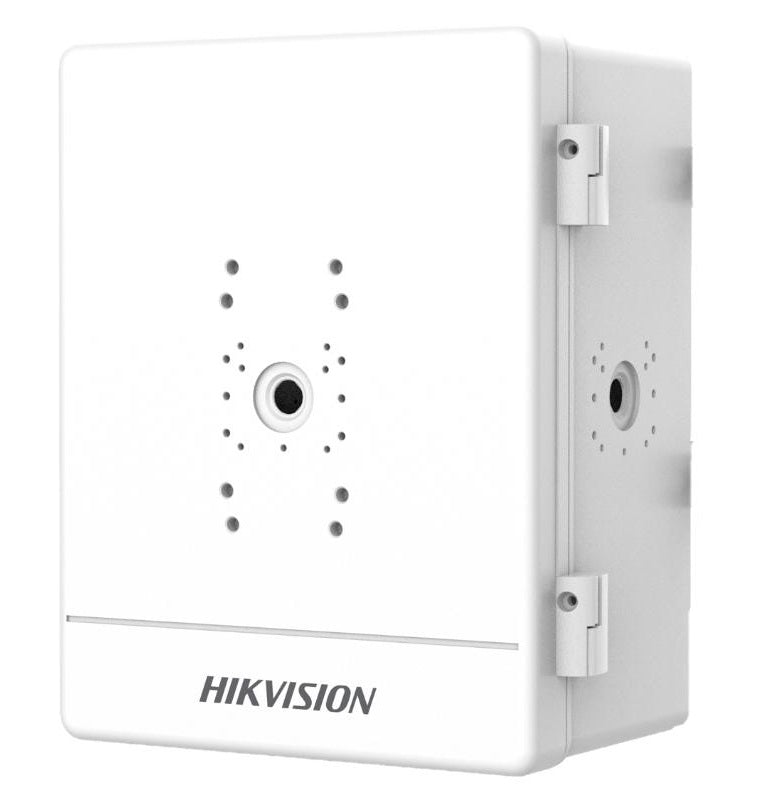

Hikvision DS-SBOX-03 Outdoor Surveillance Box with Flame-Retardant Polymer, IP66 Weather Protection & IK10 Impact Rating

Model: DS-SBOX-03

Who This Is For

Specified by installers who need a hardened outdoor enclosure that holds up in exposed, high-risk environments, the Hikvision DS-SBOX-03 is a dedicated outdoor surveillance box built from flame-retardant polymer and rated to both IP66 and IK10 standards. It suits installations where the enclosure itself is as important as the camera inside - think perimeter walls, car parks, industrial yards, and transport facilities where vandal attempts and weather exposure are everyday realities. The IP66 rating means driving rain, dust, and hosing will not compromise the interior, while the IK10 impact classification confirms it can absorb the highest standard mechanical impact without cracking or deforming. The flame-retardant polymer construction adds an additional layer of safety compliance for commercial and industrial sites where fire-risk materials are a specification requirement. If you are mounting cameras in locations where the enclosure cannot be a weak point, this is the housing to specify.

What This Product Actually Does

Who Buys This Model

• Industrial Site Installers: Specifying IK10-rated enclosures for cameras mounted in workshops, loading docks, or yards where equipment and forklifts operate in close proximity to wall-mounted hardware.
• Commercial Security Contractors: Needing an IP66-rated back box for outdoor camera runs on retail car parks, shopping centres, or logistics facilities where ongoing weather exposure requires a properly sealed housing.
• Government and Infrastructure Project Managers: Specifying flame-retardant materials for CCTV installations in transport hubs, utilities, or public buildings where fire-safety material compliance is a documented project requirement.
• Facilities Maintenance Teams: Replacing damaged or non-rated enclosures on existing outdoor camera installations without having to replace the camera itself, where the DS-SBOX-03 is a compatible housing upgrade.

Honest Assessment

The DS-SBOX-03 does three things well and does them to a certified standard: it keeps water and dust out at IP66, it takes a 20-joule mechanical impact at IK10, and its flame-retardant polymer construction satisfies fire-material compliance requirements that standard plastic enclosures cannot meet. For exposed outdoor locations - particularly at accessible heights in industrial, commercial, or public environments - those three combined ratings make this a straightforwardly strong specification choice. What it will not do is improve camera image quality, add connectivity, or work as a universal fit for every camera model on the market. Buyers should confirm compatibility with the specific Hikvision camera they are pairing it with before purchasing. If your application is strictly indoor, a standard back box without the IK10 or IP66 ratings will be sufficient and more cost-effective. The DS-SBOX-03 is available through Security Australia for projects where the outdoor environment demands a properly rated enclosure.

Before You Buy

Quick Fit Check

• Good match if: You are mounting a compatible Hikvision camera in an outdoor location at accessible height - a car park column, perimeter wall, or building exterior - where IK10 vandal resistance is a specification requirement.
• Good match if: Your project brief includes flame-retardant material compliance for CCTV housings, such as transport infrastructure, industrial facilities, or government buildings with documented fire-safety material requirements.
• You may need a different model if: Your installation is indoors in a controlled environment - a standard indoor back box without the IP66 or IK10 ratings will be a more appropriate and cost-effective fit for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your outdoor installation requires a combination of IP66 weather sealing, IK10 impact resistance, and flame-retardant material compliance - particularly for industrial, transport, or government-regulated sites where each of those is a documented specification requirement.
• You may need a different model if: Your installation is indoors or in a low-risk environment where a standard back box without the IP66 or IK10 ratings would be a more appropriate fit for the application and budget.
• Pairs well with: Compatible Hikvision outdoor bullet or dome cameras specified for exposed mounting locations where both the camera and its enclosure need to meet commercial-grade weather and impact ratings.

Common Questions

1. What does IK10 actually mean in practical terms for this enclosure?

   IK10 is the maximum rating on the IEC 62262 impact protection scale, equivalent to a 20-joule impact. In practice, the DS-SBOX-03's housing can take a forceful strike from a blunt object without cracking or deforming. This is the rating to specify for any camera positioned at accessible heights in car parks, corridors, yards, or public spaces where deliberate interference is a risk.

2. Does IP66 mean this enclosure is completely waterproof?

   IP66 means the enclosure is protected against powerful water jets from any direction, but it is not rated for submersion. For surface-mounted outdoor applications - including heavy rain, hose-down environments, and coastal conditions - IP66 provides a high level of weather protection. For applications involving flooding or water immersion, a higher IP rating such as IP67 or IP68 would be required.

3. Will this enclosure work with any Hikvision camera?

   Not necessarily. The DS-SBOX-03 is a Hikvision accessory designed for compatible camera body types within the DS-SBOX series range. Before purchasing, confirm the physical dimensions and mounting interface of the specific Hikvision camera you are pairing it with. Assuming universal compatibility across all Hikvision models without checking is a common installation planning error.

4. Does the flame-retardant rating affect the strength or durability of the polymer?

   No. Flame-retardant polymer compounds are engineered to maintain structural integrity while resisting ignition and limiting fire spread. The DS-SBOX-03 carries both the flame-retardant material property and the IK10 impact rating, confirming that the flame-retardant treatment does not compromise the housing's mechanical durability. The two ratings coexist in the one enclosure. The DS-SBOX-03 is stocked by Security Australia for projects where both properties need to be met simultaneously.

5. Does this enclosure require any special tools or hardware to install?

   Standard installation tools apply. The key installation consideration specific to this enclosure is maintaining the IP66 rating at every cable entry point. Any cable gland, conduit fitting, or penetration must be properly sealed using an appropriately rated cable gland or waterproof entry method - an unsealed cable entry will compromise the effective weather protection of the enclosure regardless of the housing's own IP66 rating.

6. Is this enclosure suitable for a Queensland or Northern Territory outdoor installation where heat and humidity are extreme?

   Yes. The IP66 rating addresses humidity and moisture ingress directly. The flame-retardant polymer construction also performs in high-temperature outdoor environments without the degradation issues that affect standard plastics over time in tropical or sub-tropical climates. For installations in those regions, the sealed polymer housing is a more durable specification choice than non-rated alternatives.
