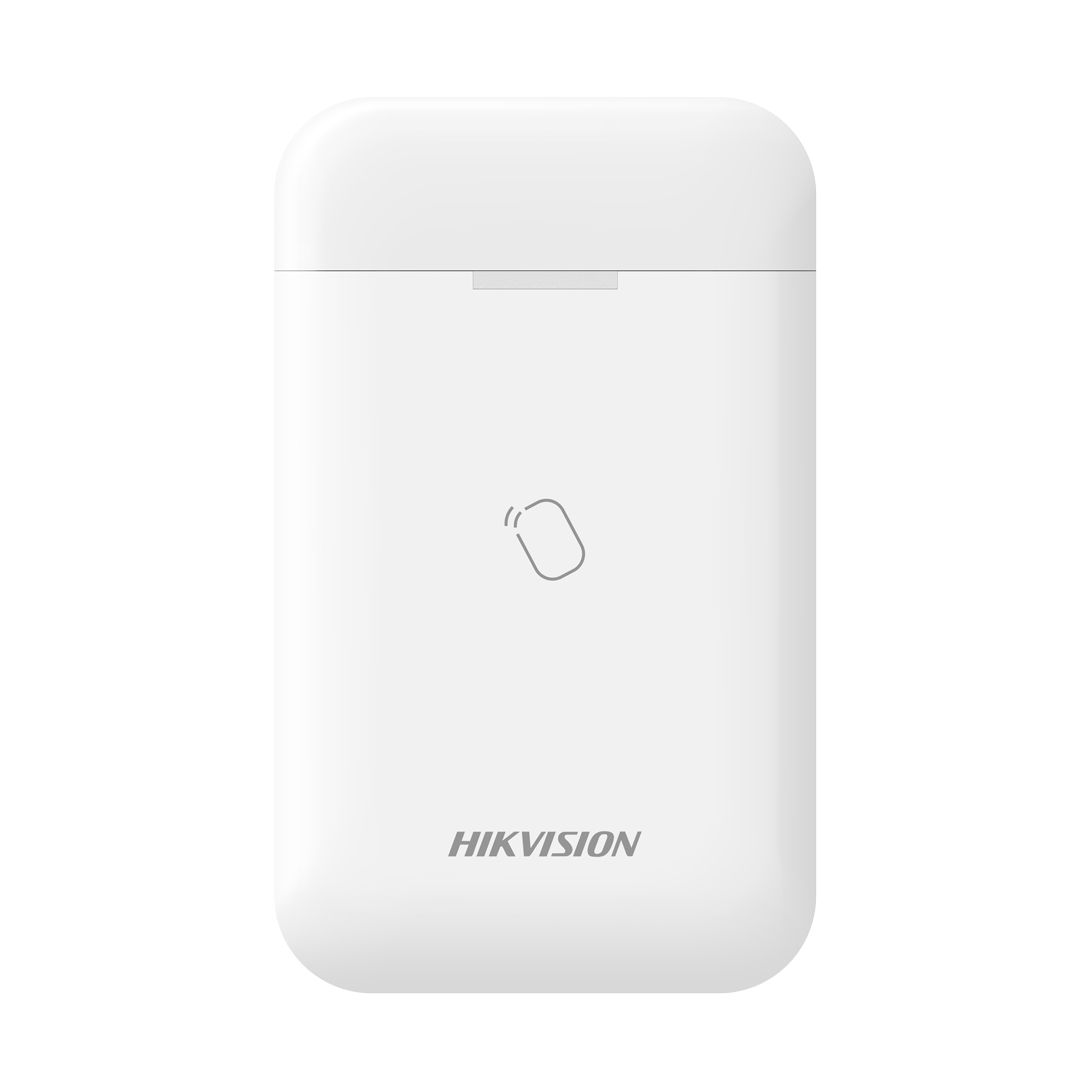

Hikvision DS-PT1 Ax Pro Wireless Mifare Tag Reader

Model: HIK-PT1

Who This Is For

Property managers specifying wireless access control for sites where running data or power cable to every entry point is impractical will find the Hikvision DS-PT1 Ax Pro Wireless Mifare Tag Reader a practical addition to any Ax Pro alarm system. The DS-PT1 communicates at 433MHz with a wireless RF range of up to 900 metres in open areas, which means it can be positioned at gates, secondary doors, or outbuildings without requiring a dedicated cable run back to the panel. It runs on 3 x AA batteries with a rated life of up to 2 years at 10 tag swipes per day, so once it is on the wall it requires very little attention. AES-128 encryption protects every tag-to-reader exchange, and a rear tamper contact alerts the system if anyone attempts to remove the device from its mounting surface.

What This Device Actually Does

Who Buys This Model

• Ax Pro system installers: Adding a tag-based arming point at a secondary entrance or outbuilding without running cable from the existing panel location.
• Strata and property managers: Issuing Mifare tags to residents or staff for a shared gate or common-area door tied into an existing Ax Pro hub.
• Small business owners: Replacing a PIN keypad at a staff entry with tag-only access, reducing the risk of shared or forgotten codes.
• Rural and light-industrial sites: Mounting a reader at a remote entry point - such as a machinery shed or perimeter gate - where cabling from a central panel is cost-prohibitive.

Honest Assessment

The DS-PT1 does what a wireless tag reader needs to do well: it removes the cable constraint from credential-based arming points and backs that convenience with AES-128 encryption and a rear tamper contact. The 900-metre open-area RF figure and 2-year battery rating are meaningful advantages for sites where cable runs are impractical. The compact 75 x 124 x 21mm housing is unobtrusive and straightforward to mount. Where this device has clear limitations: it is Ax Pro ecosystem-specific and will not integrate with third-party access control panels or standalone door controllers. It is also Mifare-only, so it will not read HID, EM4100, or other card formats. If the requirement is a wired reader, a multi-format reader, or integration into a non-Hikvision system, a different product type is needed. The DS-PT1 is available through Security Australia as part of the broader Ax Pro wireless peripheral range.

Before You Buy

Quick Fit Check

• Good match if: You are expanding an existing Ax Pro wireless alarm system and need a tag-based arming point at a location where running cable to a wired keypad is not practical.
• Good match if: The site already uses Mifare-format tags or fobs and you want a consistent credential format across the installation without purchasing additional card types.
• You may need a different model if: The installation requires a multi-format reader (HID, EM, DESFire), a wired reader with door-strike control, or integration with a non-Ax Pro access control system - a dedicated access control reader or panel would be more appropriate.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: The site runs an Ax Pro wireless hub and you need a cable-free Mifare tag reader with AES-128 encryption and a multi-year battery life at a remote or awkward entry point.
• You may need a different model if: The application requires a wired reader, multi-format credential support (HID, EM4100, DESFire), or integration with a standalone access control panel rather than an alarm system - a dedicated wired access control reader would be more appropriate for those scenarios.
• Pairs well with: Ax Pro wireless keypads and detectors to build out a complete wireless peripheral zone on the same hub, avoiding mixed wired and wireless infrastructure wherever cabling is impractical.

Common Questions

1. Will the DS-PT1 work with any alarm panel or only Hikvision Ax Pro?

   Only Ax Pro. The DS-PT1 communicates over a proprietary 433MHz Hikvision wireless protocol and is designed specifically to pair with the Ax Pro hub. It cannot be enrolled into third-party alarm panels, standalone access control systems, or earlier Hikvision alarm platforms. Confirm you have an active Ax Pro hub on site before purchasing.

2. Does this reader work with HID, EM4100, or other card types?

   No. The DS-PT1 reads Mifare-format tags only. If the site uses HID Prox, EM4100 (125kHz), DESFire, or any other credential format, this reader will not recognise them. If multi-format support is required, a different access control reader is needed.

3. What does the 900m RF range mean in a real building installation?

   900 metres is the open-area (no obstruction) specification. In practice, masonry walls, concrete floors, steel-framed partitions, and other RF-absorbing materials will reduce this figure substantially. For installations inside buildings or through multiple walls, treat the effective range as significantly shorter and assess line-of-sight conditions between the reader mounting position and the Ax Pro hub during site survey.

4. How long do the batteries actually last, and what triggers faster drain?

   Up to 2 years at 10 swipes per day under the rated conditions. Higher daily swipe volumes will reduce battery life proportionally - a high-traffic entry point seeing 50 or more swipes daily should be expected to require more frequent battery changes. The 3 x AA format makes replacement straightforward when the hub signals a low-battery alert.

5. What happens if someone tries to remove the reader from the wall?

   A tamper alert is triggered. The DS-PT1 has a rear tamper contact that activates if the device is lifted from its mounting surface, sending an alert to the Ax Pro hub. This is particularly relevant for externally mounted positions - such as gate posts or external walls - where opportunistic interference is possible.

6. Is AES-128 encryption sufficient for a commercial installation?

   Yes, for typical commercial alarm system arming applications. AES-128 is a well-established symmetric encryption standard used across a wide range of security and communications applications. It protects the wireless credential exchange between the Mifare tag and the reader, preventing replay attacks and basic cloning attempts. For high-security environments requiring certified or graded access control, consult a security consultant about appropriate certification requirements before specifying any wireless peripheral - this advice applies regardless of brand and is not specific to the DS-PT1 available through Security Australia.
