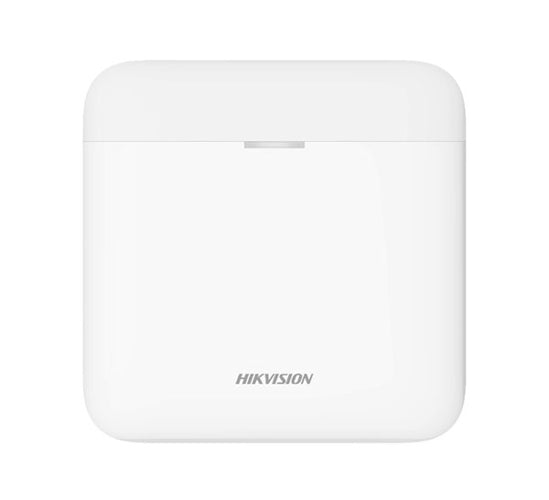

Hikvision DS-PR1-WB AX Pro Wireless Repeater

Model: DS-PR1-WB

Who This Is For

For installers and security integrators who need to extend the wireless coverage of a Hikvision AX Pro alarm system beyond what the hub alone can reach, the DS-PR1-WB Wireless Repeater is the purpose-built solution. Large homes, commercial tenancies, warehouses, and multi-level sites regularly produce dead zones that leave detectors and keypads out of reliable RF contact with the hub. The DS-PR1-WB sits between the hub and those outlying devices, relaying two-way 433 MHz RF communication at up to 800 metres in open areas. It runs on standard 240 V mains power with a built-in lithium battery providing up to 35 hours of backup, tamper protection on both front and back panels, and AES-128 encrypted transmission throughout. Auto pairing and PIRCAM pairing keep the setup process straightforward for integrators commissioning larger AX Pro deployments.

What This Device Actually Does

Who Buys This Model

• Security integrators commissioning large AX Pro sites: Warehouses, commercial buildings, and multi-level premises where a single hub cannot reach every enrolled wireless device without signal drop-out between zones.
• Installers dealing with structural RF interference: Thick concrete walls, brick construction, and steel-framed buildings attenuate 433 MHz signals significantly - the DS-PR1-WB is placed strategically to bridge those barriers.
• Rural and acreage property owners: Where outbuildings, sheds, or gate detectors sit beyond practical hub range and a cable run is either impractical or cost-prohibitive.
• AX Pro system owners expanding an existing installation: Adding zones to a perimeter or secondary building without relocating the hub or pulling new cable infrastructure throughout the property.

Honest Assessment

The DS-PR1-WB does its core job well: it extends AX Pro wireless coverage with encrypted two-way communication, holds 35 hours of battery backup, and flags physical tampering from both panels. For AX Pro deployments on large or structurally complex sites, it is a practical and straightforward addition to the system. The 800-metre open-area RF figure is useful for planning, but real-world range through walls and floors will be considerably lower - placement matters and a site survey before finalising repeater positions is worthwhile. This device is exclusive to the Hikvision AX Pro ecosystem and will not work with other wireless alarm platforms or third-party sensors. It is also not a standalone alarm component - it adds no detection or output capability on its own. If your site requires multiple repeaters or complex RF path planning, the range available through Security Australia includes the full AX Pro accessory line to support that planning.

Before You Buy

Quick Fit Check

• Good match if: You have an existing AX Pro installation where one or more wireless devices are showing weak signal or failing to register reliably due to distance or structural barriers between them and the hub.
• Good match if: You are expanding an AX Pro system to an outbuilding or secondary structure where running cable is impractical and a mains power outlet can be made available at an intermediate point.
• You may need a different model if: Your wireless alarm system is not Hikvision AX Pro series - this repeater will not work with other platforms. For non-AX Pro wireless systems, look at repeaters or range extenders designed specifically for your alarm panel's RF protocol.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your AX Pro wireless system has enrolled devices that show weak signal or registration failures due to distance or structural attenuation, and you need a mains-powered relay point with backup battery and tamper detection.
• You may need a different model if: Your site uses a wired or hybrid alarm panel rather than the AX Pro wireless platform - a different repeater or signal extender designed for your specific panel type will be required.
• Pairs well with: AX Pro wireless detectors, wireless keypads, wireless sirens, and PIRCAMs enrolled through the same AX Pro hub.

Common Questions

1. Will the DS-PR1-WB work with any Hikvision wireless alarm system or only AX Pro?

   It works exclusively with the Hikvision AX Pro wireless platform. The DS-PR1-WB is designed to pair with AX Pro hubs and is not compatible with Hikvision's other wireless alarm series or third-party alarm panels, even those operating on 433 MHz. Confirm your hub is AX Pro series before purchasing.

2. Does this repeater work if the mains power is cut?

   Yes. The DS-PR1-WB has a built-in lithium battery that provides up to 35 hours of operation during a mains power outage. Devices enrolled through the repeater remain connected to the AX Pro hub for the duration of the backup period, which covers the vast majority of real-world power interruption scenarios.

3. What does the 800-metre RF range figure actually mean in a real building?

   The 800-metre specification applies in open-area conditions with no obstructions. In real buildings, range is reduced by walls, floors, and materials. Concrete, brick, and steel all attenuate 433 MHz signals significantly. Treat the open-area figure as a planning maximum and conduct a site walk-test to confirm reliable communication at your intended mounting position before finalising installation.

4. How do I know if the repeater is working correctly after installation?

   3 on-board LED indicators provide real-time status. A green Register/Signal LED confirms successful enrolment and active communication with the hub. A green Power LED shows mains supply is present. An amber Fault LED signals a problem condition. These can be read at the device without accessing the hub software, which is useful during initial commissioning and on-site fault checking.

5. Does the repeater alert the system if someone tries to remove it from the wall?

   Yes. The DS-PR1-WB has a tamper switch that monitors both the front cover and the rear mounting panel. Removing the front cover or lifting the device off the wall generates a tamper alert to the AX Pro hub, which logs and reports the event in the same way as a detector tamper. This is a confirmation from the datasheet, not a general feature - both tamper points are specifically noted in the specification.

6. Is the DS-PR1-WB suitable for outdoor installation?

   Not directly exposed outdoors. The device is rated to -10 degrees C at the lower end and 10% to 90% humidity, and its plastic housing is not rated for direct weather exposure. It can be installed in sheltered external locations such as a covered veranda or enclosed outbuilding, but should not be mounted where it is exposed to rain, direct sun, or condensation. For true outdoor placements, a weatherproof enclosure would be required. The DS-PR1-WB is stocked by Security Australia alongside the broader AX Pro accessory range if additional components are needed.

7. How many repeaters can be added to a single AX Pro system?

   The DS-PR1-WB datasheet does not specify a maximum repeater count per hub - that limit is determined by the AX Pro hub model's capacity and firmware. Check the specifications for your specific AX Pro hub to confirm how many repeaters it supports and whether chaining repeaters (repeater-to-repeater) is permitted in your firmware version.
