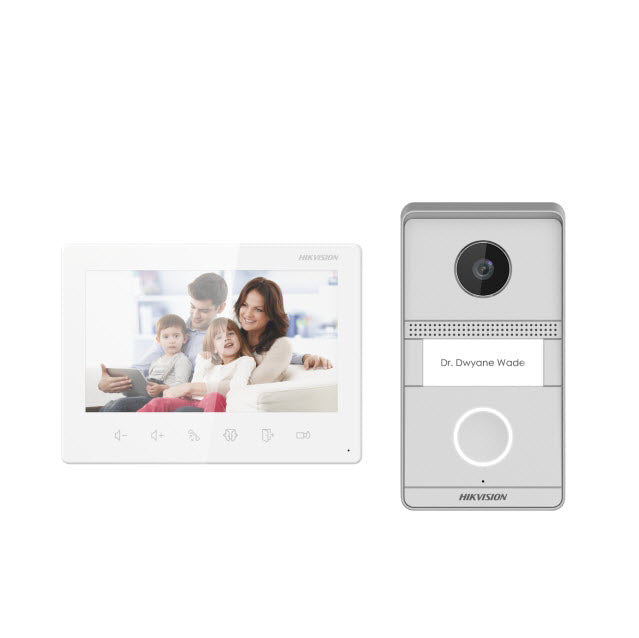

Hikvision DS-KIS101-P/Surface Video Intercom Two-Wire Kit
2-Wire Analog Intercom Kit
The Hikvision DS-KIS101-P/Surface is a 2-wire analog video intercom kit designed for simple installation and operation. It features a surface-mounted outdoor station that supports one-touch nametag calling and provides video calls that can be answered and managed through the indoor station. The system allows users to receive calls, unlock doors, and communicate through the two-wire setup, which reduces the complexity of wiring. It has a high protection rating (IP65 and IK07) to withstand harsh environmental conditions, and it supports two lock relays for controlling doors. The kit also includes a European-standard power adapter, making it a versatile and efficient solution for residential or small office security needs.
Key Features
- Surface mounting 2-wire plug & play analog video intercom bundle
- Receive video call and unlock via indoor station
- One-touch nametag calling for easier calls
- Higher protection level: IP65 & IK07
- 2 lock relays, power supply for one electric lock (Up to 12 V 1 A)
- Power adapter included in the package (European Standard)
Code/SKU: DS-KIS101-P/Surface
Quick Specs:
- Installation: Surface mounting with protective shield
- Protective Level: IP65, IK7
- Working Temperature: -30 °C to +60 °C (-22 °F to 140 °F)
- Working Humidity: 10% to 90%
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Hikvision 2-Wire Analog Intercom Kit (DS-KIS101-P/Surface) is a user-friendly, cost-effective system designed for secure communication and access control. It includes a surface-mounted door station equipped with a 2MP HD camera, providing clear video even in low-light conditions. The indoor station features a 7-inch TFT screen with a resolution of 1024x600, enabling easy video calls and door unlocking. This intercom system is highly durable, with an IP65 water resistance rating and IK07 vandal protection, making it suitable for various environments. Additionally, it supports one-touch calling and includes relays for controlling up to two locks.
Features
-
2-Wire Plug & Play System: Simplifies installation with easy and cost-efficient setup using only two wires for both power and data transmission.
-
Surface Mount Design: Ideal for surface mounting, making it suitable for a variety of environments, such as residential or small office use.
-
Video Call and Door Unlock: The system allows receiving video calls and unlocking the door through the indoor station.
-
Enhanced Durability: Offers a high protection level with IP65 and IK07 ratings, ensuring water and impact resistance.
-
One-Touch Nametag Calling: Provides a convenient way to make calls using a nametag, simplifying communication.
Technical Specifications
| Indoor station/Display parameters | |
|---|---|
| Size | 7-inch TFT non-touch screen |
| Operation method | 6 touch buttons |
| Type | Colorful TFT screen |
| Resolution | 1024 × 600 |
| Indoor station/Audio parameters | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker (More than 80 dB within 20 cm) |
| Audio quality | / |
| Volume | Adjustable via touch-button |
| Audio compression Rate | / |
| Indoor station/Device interfaces | |
| Two-wire | 3 |
| Indoor station/General | |
| Power supply | 48 VDC |
| Power consumption | ≤ 5 W |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% |
| Dimensions (W × H × D) | 187 mm × 137 mm × 25.4 mm (7.36" × 5.39" × 1.00") |
| Installation | Surface mounting |
| Button | 6 |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
2-Wire Analog Intercom Kit
The Hikvision DS-KIS101-P/Surface is a 2-wire analog video intercom kit designed for simple installation and operation. It features a surface-mounted outdoor station that supports one-touch nametag calling and provides video calls that can be answered and managed through the indoor station. The system allows users to receive calls, unlock doors, and communicate through the two-wire setup, which reduces the complexity of wiring. It has a high protection rating (IP65 and IK07) to withstand harsh environmental conditions, and it supports two lock relays for controlling doors. The kit also includes a European-standard power adapter, making it a versatile and efficient solution for residential or small office security needs.
Key Features
- Surface mounting 2-wire plug & play analog video intercom bundle
- Receive video call and unlock via indoor station
- One-touch nametag calling for easier calls
- Higher protection level: IP65 & IK07
- 2 lock relays, power supply for one electric lock (Up to 12 V 1 A)
- Power adapter included in the package (European Standard)
Code/SKU: DS-KIS101-P/Surface
Quick Specs:
- Installation: Surface mounting with protective shield
- Protective Level: IP65, IK7
- Working Temperature: -30 °C to +60 °C (-22 °F to 140 °F)
- Working Humidity: 10% to 90%
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Door station/System parameters | |
|---|---|
| Operation system | Embedded analog operation system |
| Door station/Video parameters | |
| Supplement light | White light supplement |
| Lens | Low Illumination 2 MP HD IR Camera |
| FOV | Horizontal: 100°, Vertical: 69° |
| WDR | Support |
| Resolution | 2MP |
| Door station/Audio parameters | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker (More than 80 dB within 20 cm) |
| Volume adjustment | Adjustable with screwdriver |
| Door station/Device interfaces | |
| Alarm input | 4 |
| Two-Wire | 1 |
| TAMPER | 1 |
| Exit button | 2 |
| Lock control | 2, lock duration can be adjusted via DIP switch (Max. 7 s) |
| Door contact input | 2 |
| Power supply for lock | 1, Max. 12 V 1 A |
| Debugging port | 1 |
| Door station/General | |
| Button | 1 |
| Installation | Surface mounting with protective shield |
| Protective level | IP65, IK7 |
| Working temperature | -30 °C to +60 °C (-22 °F to 140 °F) |
| Working humidity | 10% to 90% |
| Dimensions | 150 mm × 82 mm × 23.5 mm (5.91" × 3.23" × 0.93") |
| Power supply | 48 VDC, 0.5 A |
| Application environment | Outdoor |
| Power consumption | ≤ 12 W |
| Indoor station/System parameters | |
| Operation system | Embedded analog operation system |
| Indoor station/Display parameters | |
| Size | 7-inch TFT non-touch screen |
| Operation method | 6 touch buttons |
| Type | Colorful TFT screen |
| Resolution | 1024 × 600 |
| Indoor station/Audio parameters | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker (More than 80 dB within 20 cm) |
| Audio quality | / |
| Volume | Adjustable via touch-button |
| Audio compression Rate | / |
| Indoor station/Device interfaces | |
| Two-wire | 3 |
| Indoor station/General | |
| Power supply | 48 VDC |
| Power consumption | ≤ 5 W |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% |
| Dimensions (W × H × D) | 187 mm × 137 mm × 25.4 mm (7.36" × 5.39" × 1.00") |
| Installation | Surface mounting |
| Button | 6 |
