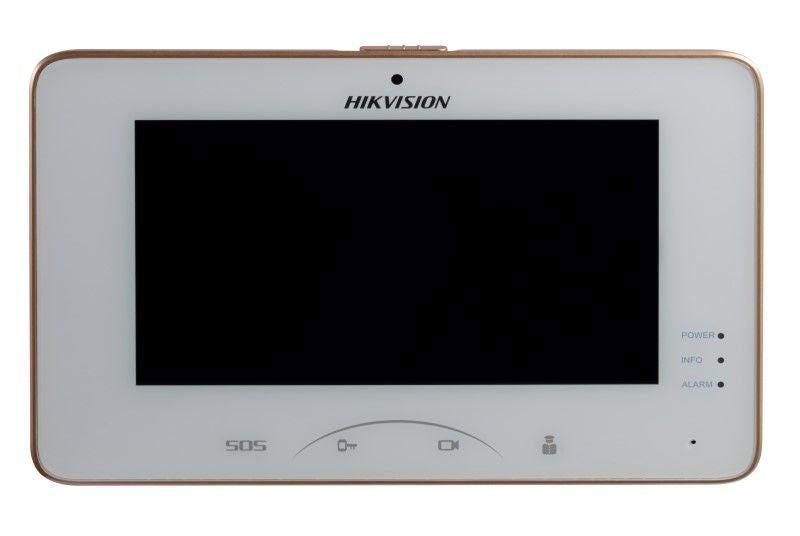

Hikvision DS-KH8301-WT Wifi Video Intercom Indoor Station with 7-inch Touch Screen

Model: DS-KH8301-WT

Who This Is For

Property managers specifying video intercom systems for apartments, townhouse complexes, or commercial offices will find the Hikvision DS-KH8301-WT fits neatly into Hikvision's modular intercom ecosystem as the wall-mounted indoor station. The 7-inch touchscreen gives residents and staff a clear, hands-free way to see and speak with visitors at the door station before deciding to unlock - all without picking up a handset. Beyond answering calls, it doubles as a local alarm hub, accepting up to 8 alarm input zones from sensors already installed on the premises. Wi-Fi connectivity means the unit can be positioned where a data cable would be difficult to route. The station also connects to the Hik-Connect platform, so remote unlocking and alarm notification can be managed from a smartphone. It suits new builds and staged upgrades where a clean, capacitive-touch indoor panel is needed to complement an existing or planned Hikvision door station setup.

What This Station Actually Does

Who Buys This Model

• Apartment and strata installers: Fitting per-unit indoor stations that need to work with a Hikvision door station and central management software, where the Wi-Fi network option simplifies cable routing inside individual units.
• Small commercial office fitouts: Reception or staff areas where a single indoor station needs to handle visitor calls, monitor an external camera feed, and allow remote unlock without a dedicated security console.
• Aged care and assisted living facilities: The panic call function and 8-zone alarm input make this a practical choice where residents need a quick emergency escalation path built into the same panel they use for visitor calls.
• Staged system upgrades: Sites that already have Hikvision door stations or IP cameras and want to add or replace an indoor station without rewiring, using the Wi-Fi connection to avoid disruption to finished walls.

Honest Assessment

The DS-KH8301-WT does its core job well: a large, responsive capacitive touchscreen, hands-free audio with active noise suppression, and the ability to consolidate alarm inputs and camera monitoring into a single wall panel. The Wi-Fi option is genuinely useful for retrofit installs where chasing cable through completed walls is not practical. The 8-zone alarm input is a real differentiator over basic indoor stations that only handle intercom calls. Where it has limits: this is a sub-station designed to work within a Hikvision intercom ecosystem - it requires a compatible door station and, depending on configuration, a distributor or master station to function correctly. It will not operate as a standalone intercom without the broader system components. If the installation needs a fully self-contained single-door intercom kit, a different product type from the Security Australia range would be more appropriate. TF card local storage for video snapshots is supported, but high-volume continuous recording would need the NVR component of the wider system.

Before You Buy

Quick Fit Check

• Good match if: You are installing or expanding a Hikvision intercom system and need a per-unit indoor station with a large touchscreen, hands-free audio, and the option to connect to the network over Wi-Fi rather than a dedicated data cable.
• Good match if: The installation requires basic alarm zone monitoring at the indoor station - up to 8 sensor inputs reporting through to a master station or client software - without adding a separate alarm panel to the room.
• You may need a different model if: The project requires a fully self-contained single-door intercom kit that operates without a separate door station, distributor, or master station - a complete intercom kit would be a better starting point for that scenario.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a large 7-inch touchscreen indoor station with integrated 8-zone alarm input and Wi-Fi connectivity within an existing or planned Hikvision video intercom system.
• You may need a different model if: The project is a single-entry standalone installation with no existing Hikvision intercom infrastructure - a complete video intercom kit with door station, indoor station, and all accessories bundled together would be a more straightforward starting point.
• Pairs well with: A compatible Hikvision video intercom door station, a PoE-capable video/audio distributor for multi-unit power distribution, and a Hikvision master station for sites requiring centralised alarm management.

Common Questions

1. Does the DS-KH8301-WT work as a standalone intercom without a separate door station?

   No. The DS-KH8301-WT is an indoor sub-station designed to operate within a Hikvision video intercom system. It requires a compatible Hikvision door station to initiate calls and a distributor or master station to manage system communication. It cannot function as a complete intercom on its own.

2. Does this indoor station need a power adapter included in the box?

   No, a power adapter is not included. The unit accepts power over the network cable (supplied from a compatible Hikvision distributor such as the DS-KAD606-P) or via a separate 12 VDC supply. If your install does not include a powered distributor, you will need to source a 12 VDC adapter separately before installation.

3. Will this camera work over Wi-Fi only, without running a network cable?

   Yes. The DS-KH8301-WT supports Wi-Fi, which allows the unit to connect to the network without a dedicated data cable. However, a power source is still required at the mounting location - either via the network cable from a distributor, or from a local 12 VDC supply. Wi-Fi handles data only; it does not carry power.

4. How many alarm sensors can I connect to this indoor station?

   Up to 8 alarm input zones can be wired directly to the DS-KH8301-WT. When any sensor triggers, the station automatically uploads the alarm notification to the master station or connected client software. This makes it suitable for integrating PIR detectors, door contacts, or other standard alarm sensors into the intercom system.

5. Does this indoor station support local video storage?

   Yes, locally via a TF card inserted directly into the unit. This allows snapshot or short-clip storage without relying on an NVR or cloud service. For extended continuous recording across multiple cameras, the wider Hikvision intercom and NVR ecosystem would handle that centrally rather than through the indoor station's TF card slot.

6. Can the DS-KH8301-WT display live feeds from security cameras, not just the door station?

   Yes. The station supports monitoring of compatible external cameras connected to the same Hikvision intercom system, not just the door station feed. This means occupants can check a car park or secondary entry camera on the 7-inch screen without navigating to a separate NVR interface. Available through Security Australia as part of the wider Hikvision intercom range.

7. What does the panic call function do on this unit?

   The panic call function sends an immediate alert from the indoor station to the master station or management centre within the intercom system. It uses the same hands-free audio channel as a standard visitor call, so management can communicate back to the occupant while responding. It is designed for emergency escalation in residential, aged care, and commercial settings.

Cabling Considerations

• Data Connection: Wi-Fi (no data cable required at the station) or wired via network cable from a compatible Hikvision video/audio distributor.
• Power Cable: If using wired power over network cable, standard Cat5e or Cat6 from a Hikvision distributor (e.g. DS-KAD606-P) carries both signal and power in a single run.
• 12 VDC Option: Where a distributor is not in use, a local 12 VDC power adapter is required at the station mounting point. This cable run should be planned before finalising the wall mounting position.
• Alarm Sensor Wiring: Up to 8 alarm input zones connect via low-voltage wire runs to the sensor terminals on the station. Standard 2-core alarm cable is appropriate for most sensor types. Keep runs away from mains power cabling to avoid interference.
• Wi-Fi Signal Check: Before committing to a Wi-Fi-only install, test signal strength at the exact mounting location - particularly in concrete construction where internal walls can cause significant attenuation at 2.4 GHz and 5 GHz.
