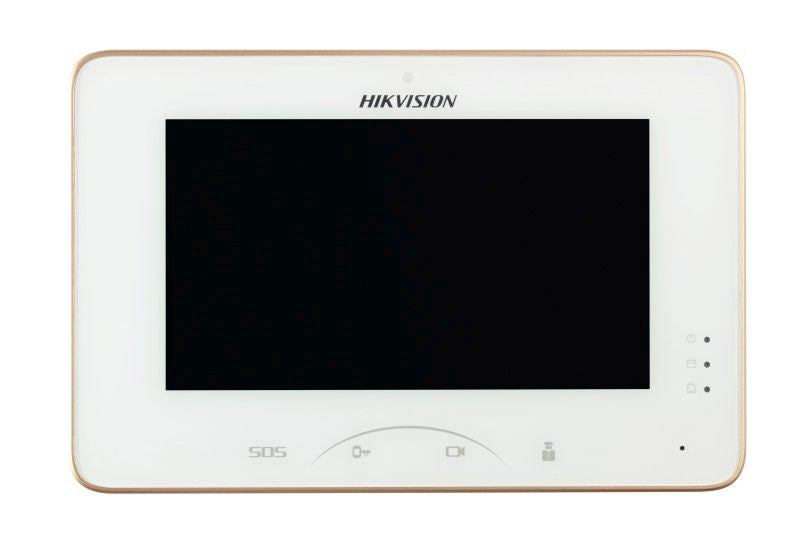

Hikvision DS-KH8300-T Video Intercom Indoor Station with 7-inch Touch Screen

Model: DS-KH8300-T

Who This Is For

When a polished front-end display is the priority for a residential intercom installation, the Hikvision DS-KH8300-T delivers a 7-inch capacitive touchscreen that residents and building managers will actually want to interact with. This indoor station suits apartment buildings, gated residential estates, and commercial premises where the indoor unit needs to handle more than just door calls - including 8-channel alarm zone monitoring and the ability to view door stations and external cameras directly from the screen. Installers working on Hikvision video intercom systems will find the DS-KH8300-T integrates cleanly into a structured PoE or 12 VDC wiring plan, and the TF card slot adds local snapshot or recording capability without extra hardware. It is a straightforward choice for projects where the indoor station is expected to serve as a secondary monitoring point alongside a centralised NVR or client software setup.

What This Intercom Actually Does

Who Buys This Model

• Apartment Building Installers: Specifying indoor stations for individual units in a multi-tenant building where a large, easy-to-read touchscreen improves resident experience at the door call point.
• Residential Estate Integrators: Installing the DS-KH8300-T as part of a full Hikvision video intercom system where the indoor station needs to double as a secondary alarm reporting point across 8 wired zones.
• Commercial Property Managers: Requiring a managed indoor station where reception or security staff can remotely unlock doors via client software without dedicated hardware at every entry point.
• Security System Contractors: Building out Hikvision intercom systems where the indoor unit needs to display live feeds from multiple external cameras alongside door station calls on a single screen.

Honest Assessment

The DS-KH8300-T does well as a feature-rich indoor station for Hikvision intercom systems. The 7-inch 1024 x 600 capacitive touchscreen is genuinely large and responsive for this product category, and the combination of 8-channel alarm input, hands-free audio with noise suppression, and live camera monitoring makes it more capable than a basic door-answering unit. It suits installs where the indoor station needs to carry some alarm integration workload without a separate panel. Where it has limits: this unit is not a standalone intercom system - it requires compatible Hikvision door stations, a master station or distributor, and correct network or power infrastructure. The PoE functionality requires the optional DS-KAD606-P distributor rather than a standard PoE switch, which adds to the system cost and planning. It is also worth noting that panic call and remote unlock features depend on the broader system configuration being correctly set up. Available through Security Australia, this unit suits experienced installers rather than basic plug-and-play deployments.

Before You Buy

Quick Fit Check

• Good match if: You are installing within an existing or new Hikvision video intercom system and need an indoor station with a large touchscreen, hands-free audio, and the ability to display live feeds from door stations and external cameras on demand.
• Good match if: Your project requires the indoor station to handle alarm zone inputs - up to 8 channels - and auto-forward alerts to a master station or client software without a separate alarm panel.
• You may need a different model if: You are looking for a standalone video intercom kit with a door station and indoor unit included - a bundled intercom system from the Hikvision range would be a more complete starting point for a new installation.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need an indoor station with a large 7-inch touchscreen, 8-channel alarm input, and the ability to monitor both door stations and external cameras from a single unit within a Hikvision intercom system.
• You may need a different model if: You need a simpler or smaller indoor station with fewer features - a more basic Hikvision indoor station unit from the same intercom range would be a better fit for cost-sensitive or space-limited installs.
• Pairs well with: A compatible Hikvision video intercom door station, a Hikvision DS-KAD606-P distributor for power and video distribution, and a Hikvision master station or NVR for centralised management.

Common Questions

1. Will this indoor station work with a standard PoE switch?

   No. The DS-KH8300-T does not support standard IEEE 802.3af or 802.3at PoE. Power over network cable on this unit requires the Hikvision DS-KAD606-P video/audio distributor, which uses a proprietary power delivery method via the network cable. If you are not using the DS-KAD606-P, the unit needs to be powered by 12 VDC or 24 VDC from a separate power supply.

2. Does this indoor station work as a standalone intercom without additional equipment?

   No. The DS-KH8300-T is an indoor sub-station and requires compatible Hikvision door stations and a master station or distributor to function as part of a complete intercom system. The alarm input, remote unlock, and camera monitoring features also depend on the correct system configuration and, in some cases, connected client software. It cannot operate as a self-contained unit.

3. How many alarm zones does the DS-KH8300-T support?

   8 channels. The unit accepts up to 8 wired alarm input zones - suitable for connecting door contacts, PIR sensors, or other volt-free alarm triggers. When any zone is activated, the unit automatically uploads the alarm notification to the master station or client software without requiring manual intervention.

4. Does this unit support two-way audio with the door station?

   Yes. The DS-KH8300-T supports hands-free two-way audiovisual communication with compatible door stations. The built-in noise suppression and echo cancellation processing keeps both sides of the conversation clear, and the hands-free design means no handset is required to answer a call.

5. Can I use an SD card to record visitor snapshots or call events locally?

   Yes. The DS-KH8300-T includes a TF card slot for local storage. This allows the unit to retain snapshots or event recordings at the indoor station itself, which can be useful in installations where a centralised NVR is not part of the system or as a secondary storage point alongside the main recording device.

6. Will this work for an apartment building where each unit needs its own indoor station?

   Yes, this is one of its primary applications. The DS-KH8300-T is designed to be deployed as a sub-station across multiple apartments or rooms within a Hikvision video intercom system. Each unit operates independently to receive door calls, display live camera feeds, and handle its own alarm zones, all managed through the central system. The team at Security Australia can advise on channel counts and distributor requirements for larger multi-tenant deployments.

7. What network speed does the DS-KH8300-T require?

   The unit uses a 10/100Mbps Ethernet connection. Standard Cat5e or Cat6 cabling is sufficient for both data and, where the DS-KAD606-P distributor is used, power delivery. The 100Mbps connection handles live video streaming from door stations and external cameras without requiring a higher-speed network infrastructure.

Cabling Considerations

• Cable Type: Cat5e or Cat6 unshielded twisted pair for network and power-over-network-cable connections. Standard 2-core or 4-core cable for 12 VDC or 24 VDC power supply runs.
• Max Cable Run: Follow Hikvision intercom system specifications for maximum run length between the indoor station and the DS-KAD606-P distributor or power supply - typically up to 100m for Cat5e/Cat6 network runs under standard conditions.
• PoE Notes: This unit does not support standard IEEE 802.3af/at PoE. Power over network cable requires the Hikvision DS-KAD606-P distributor. Do not connect to a standard PoE switch expecting the unit to power up.
• Wiring Tips: Run Cat5e or Cat6 cabling back to a central distribution point where the DS-KAD606-P is located. For alarm zone inputs, use standard 2-core alarm cable from each sensor to the terminal block on the rear of the indoor station. Label all zone wiring at installation for easier fault-finding later.
