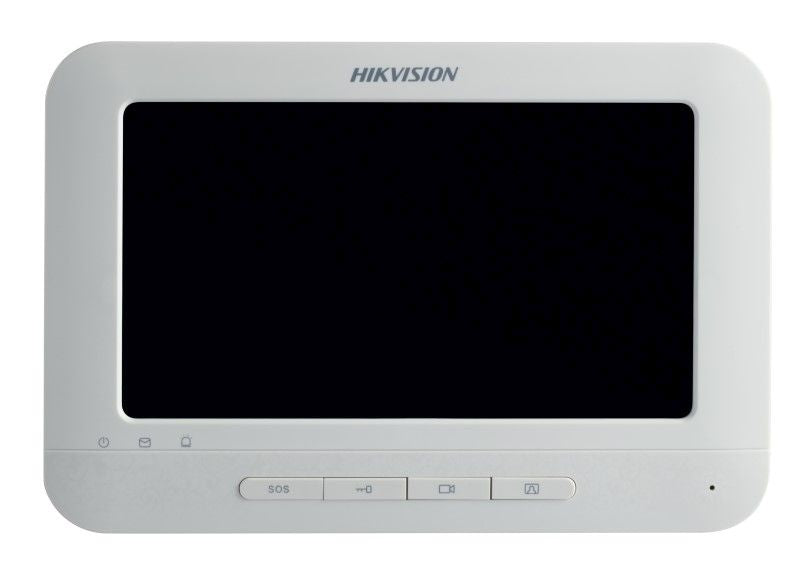

Hikvision DS-KH6210-L Room Station 7" Monitor

Model: DS-KH6210-L

Who This Is For

Property managers specifying video intercom systems for apartments, residential complexes, or small commercial buildings will find the Hikvision DS-KH6210-L a practical indoor room station built around everyday usability. The 7-inch TFT LCD display gives residents a clear view of whoever is at the door, while hands-free two-way audio handles the conversation without picking up a handset. It supports monitoring of both door stations and external cameras, so a resident can check multiple entry points from the one screen. The 2-channel zone alarm input adds a basic security layer, and the panic call function means help can be summoned from inside the room. Power is supplied either over the network cable or via 12VDC, giving installers flexibility depending on how the riser cabling is structured. This station suits multi-dwelling builds, gated residential properties, and small office fit-outs where a reliable, wall-mounted indoor unit is needed.

What This Station Actually Does

Who Buys This Model

• Residential Building Managers: Specifying room stations for apartment blocks where each dwelling needs a wall-mounted indoor unit connected to a common door station and management centre.
• Aged Care and Assisted Living Facilities: The panic call function and hands-free operation make this suited to individual rooms where residents need a simple, accessible way to communicate with staff or trigger an alert.
• Small Commercial Offices: Businesses with a reception-controlled entry who want a wall-mounted indoor station that staff can use to view, speak with, and admit visitors without leaving their desk.
• Security Integrators on Hikvision Intercom Projects: Installers building out a Hikvision video intercom system who need a cost-effective indoor room station compatible with existing door stations, master stations, and the DS-KAD606-P distributor.

Honest Assessment

The DS-KH6210-L does its core job well - hands-free visitor communication, remote unlocking, and multi-point camera monitoring from a single wall-mounted unit. The 7-inch TFT display is a practical size for a room station, and the 2-channel zone alarm and panic call function give it utility beyond basic door-answer in care or managed-access environments. H.264 compression and noise suppression with echo cancellation keep call quality usable on longer cable runs through a distributor. Available through Security Australia, it fits within the Hikvision intercom ecosystem without requiring proprietary wiring beyond the standard Cat cable and power distributor setup. Where it falls short: this is not a standalone smart home device. It has no Wi-Fi, no local touchscreen app interface, and no onboard recording. Buyers wanting a tablet-style indoor unit with app integration or a touchscreen menu system should look at higher-tier Hikvision indoor stations before committing to this model at scale.

Before You Buy

Quick Fit Check

• Good match if: You are deploying multiple room stations across a residential or commercial building using a Hikvision intercom system with a DS-KAD606-P distributor, and need a straightforward wall-mounted station with hands-free call, remote unlock, and zone alarm inputs.
• Good match if: You need a panic call function built into the room station - such as in an aged care or managed-access facility - without adding a separate duress button device to the installation.
• You may need a different model if: Your project requires a touchscreen indoor station with Wi-Fi connectivity, smart home integration, or onboard SD card recording. A higher-tier Hikvision indoor station from the KH8 or KH9 series would be more appropriate for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a straightforward, wall-mounted Hikvision indoor station with hands-free audio, a 7-inch colour display, remote unlock, zone alarm inputs, and panic call - particularly for multi-dwelling deployments where cost per unit and system compatibility matter.
• You may need a different model if: Your project requires a touchscreen interface, Wi-Fi connectivity, onboard recording to an SD card, or integration with smart home platforms. A higher-tier Hikvision indoor station from the KH8 or KH9 series addresses those requirements.
• Pairs well with: A Hikvision video door station at each entry point, a Hikvision DS-KAD606-P video/audio distributor for multi-room power and signal distribution, and a Hikvision master station or management centre software for centralised monitoring.

Common Questions

1. Does the DS-KH6210-L work as a standalone intercom without a master station?

   Yes, with limitations. The DS-KH6210-L can communicate directly with a door station and perform remote unlocking without a master station in the system. However, features such as centralised management, call forwarding to a management centre, and full system configuration typically require a master station or Hikvision intercom management software in the network.

2. Will this camera station work with any door station, or only Hikvision?

   Hikvision intercom equipment only. The DS-KH6210-L is designed for use within the Hikvision video intercom ecosystem and is not confirmed to be compatible with third-party door stations or intercom brands. Pairing it with a non-Hikvision door station is not a supported configuration and may result in no video, no audio, or no unlock functionality.

3. Does the DS-KH6210-L need a separate power adapter at each room?

   Not necessarily. The station supports power over the network cable, which means a single Cat cable carrying both data and power from a DS-KAD606-P distributor is sufficient for most multi-dwelling installations. A 12VDC adapter is an alternative where a distributor is not used - for example, in a single-station retrofit install. The DS-KAD606-P is the recommended power source for multi-room deployments and is available separately.

4. What are the 2-channel zone alarm inputs used for?

   They accept wired alarm signals from external sensors. Each of the 2 zone inputs can be connected to a standard normally-open or normally-closed alarm device such as a door/window contact or a passive infrared sensor. When triggered, the station reports the alarm through the intercom network. This is not a full alarm panel replacement but extends the station's function for basic zone monitoring within the room or entry area.

5. Can the DS-KH6210-L display feeds from external CCTV cameras, not just the door station?

   Yes. The station supports monitoring of external cameras connected within the Hikvision intercom system, not only the door station feed. This allows an occupant to view additional camera positions - such as a driveway or car park camera - from the 7-inch display. The cameras must be integrated into the Hikvision intercom system configuration; standalone CCTV cameras on a separate NVR are not directly accessible from this station.

6. Does the panic call function alert security staff or just other stations?

   It sends an alert through the intercom network. The panic call on the DS-KH6210-L triggers an alarm signal to the master station or management software connected to the same intercom system. Whether that reaches on-site security staff, a concierge, or a monitoring centre depends on how the system is configured. It does not independently connect to an external monitoring service without the appropriate management software being set up. The team at Security Australia can advise on compatible management centre configurations for your project.

7. Does the DS-KH6210-L support H.264 video and what does that mean for call quality?

   Yes, H.264 compression is confirmed. H.264 is an efficient video codec that reduces bandwidth demand on the network cable run between the door station and the room station. In practical terms this means the video feed remains usable on standard Cat5e cabling across typical in-building distances without requiring high-bandwidth infrastructure. It also ensures compatibility with Hikvision's intercom management software for any recording or review functions at the system level.

Cabling Considerations

• Cable Type: Cat5e or Cat6 network cable for data and power-over-cable from a DS-KAD606-P distributor. Standard structured cabling runs are appropriate for multi-dwelling vertical risers and horizontal drops to each room.
• Max Cable Run: Follow Hikvision's baseline intercom cabling guidelines - typically up to 100m per network segment. Refer to the installation manual and distributor specifications for exact distance limits within your system layout.
• PoE Notes: Power is supplied over the network cable via a Hikvision DS-KAD606-P video/audio distributor - this is not standard IEEE 802.3af PoE. Do not connect the DS-KH6210-L to a standard PoE switch expecting it to power the station; the distributor uses Hikvision's own power-over-cable method. If running standalone without a distributor, a 12VDC power adapter is required at the station location.
• Wiring Tips: Plan distributor placement per floor or per zone to keep cable runs within specification. Label each cable run by apartment or room number at the distributor end before terminating to simplify future fault finding. Avoid running intercom cabling in the same conduit as mains power to prevent interference with the audio channel.
