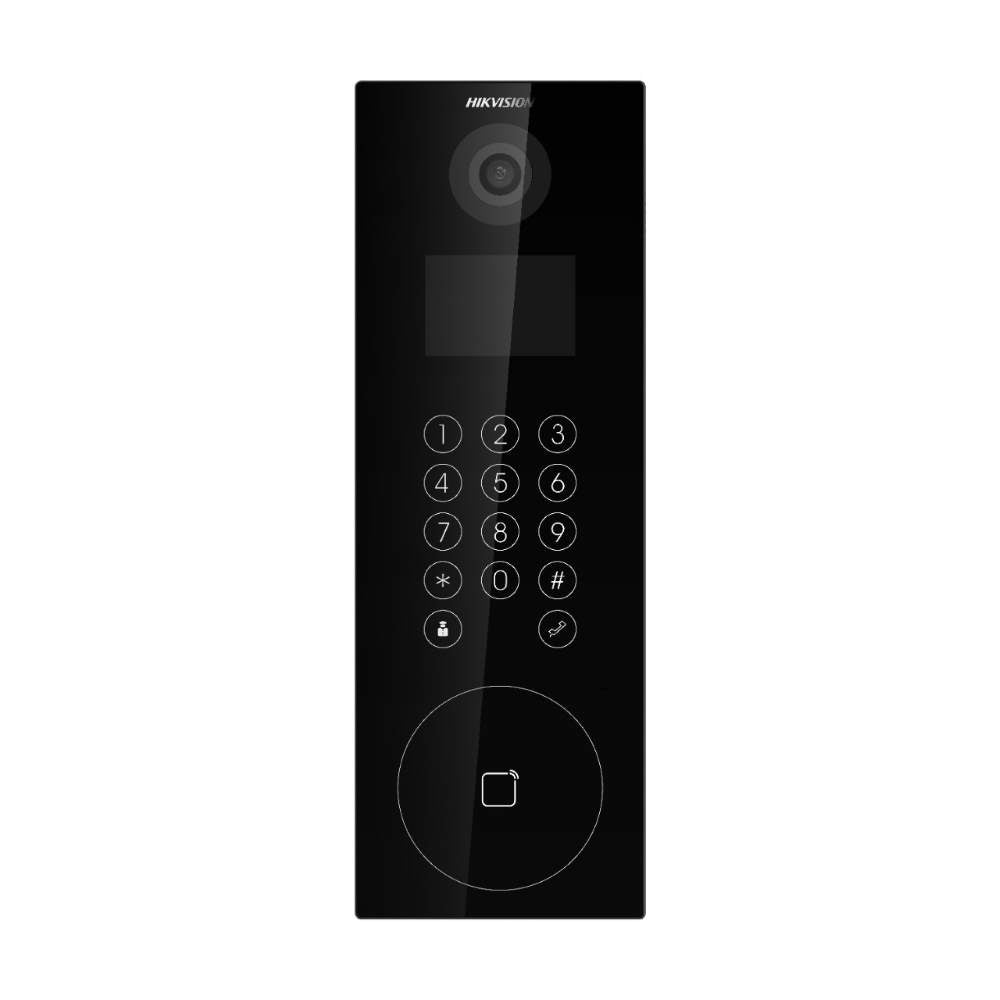

Hikvision DS-KD8103-E6 2nd Gen Intercom Apartment Door Station, IP65, Plastic, Black

Model: DS-KD8103-E6

Who This Is For

Property managers specifying video intercom and access control for apartment buildings will find the Hikvision DS-KD8103-E6 a well-matched door station for multi-tenant entry points. Designed for flush-mounted outdoor installation, this 2nd generation unit combines a 2MP camera, 3.5-inch LCD display, and 14 touch buttons into a single black plastic panel that handles both visitor identification and access credential management. The M1 card reader and PIN code support mean residents can be issued individual credentials without a key handover, while RS-485, Wiegand, and RJ45 interfaces give integrators the flexibility to connect third-party access control hardware or fold the station into an existing Hikvision IP intercom system. IP65 weatherproofing and a -40 to 55 degree Celsius operating range make it suitable for exposed entry points in most Australian climate zones.

What This Intercom Actually Does

Who Buys This Model

• Apartment Building Managers: Multi-tenant residential buildings needing a flush-mounted door station with individual card and PIN credentials for each unit - without key duplication overhead.
• Security Integrators: Installers building out Hikvision IP intercom systems who need an outdoor-rated door station with Wiegand and RS-485 outputs to interface with an existing access control head-end.
• Commercial Strata Managers: Mixed-use or commercial strata properties specifying a single door station that handles visitor video, resident card access, and relay-controlled door hardware from one flush-panel unit.
• Facility Managers in Harsh Climates: Sites where the entry point is fully exposed to weather or subject to extreme temperature ranges, where the IP65 rating and -40 to 55 degree Celsius tolerance are non-negotiable requirements.

Honest Assessment

The DS-KD8103-E6 does its core job well: it puts a weatherproof, camera-equipped, card-and-PIN-capable door station at an apartment entry point and gives integrators the interface options - RJ45, RS-485, Wiegand, alarm input, relay output - needed to wire it into a broader access control and intercom system. The -40 to 55 degree Celsius operating range and IP65 rating are genuine practical advantages for exposed Australian installations. The noise-suppressed omnidirectional microphone is a meaningful feature for street-facing entries where audio quality is often compromised. Where this unit has limits: it is powered by 12 VDC at 1A and does not run on PoE, so a separate power supply run is required at each installation point - this affects cable planning. It is also a plastic-housing door station, so for installations where IK-rated vandal resistance is a priority, a metal-housing variant may be the more appropriate specification. Available through Security Australia as part of the Hikvision intercom range.

Before You Buy

Quick Fit Check

• Good match if: You are installing a video intercom door station at an apartment building entry where residents will use M1 cards or PIN codes for access and the installation requires outdoor weatherproofing to IP65.
• Good match if: Your access control system uses Wiegand or RS-485 connectivity and you need a door station that can interface with an existing controller while also handling intercom calls via a connected IP network.
• You may need a different model if: The installation is in a high-vandalism environment where IK-rated impact resistance is specified - a metal-housing door station variant will provide the mechanical protection this plastic-housing unit does not offer. Check the full Hikvision intercom door station range on securityaustralia.com.au for IK-rated alternatives.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a flush-mounted outdoor door station with a built-in M1 card reader, PIN access, video intercom, and multi-protocol integration (Wiegand, RS-485, RJ45) in a single IP65-rated unit for an apartment entry.
• You may need a different model if: The installation site is a high-vandalism environment where IK10 impact resistance is specified - a metal-housing door station with an IK rating provides the mechanical protection that a plastic-housing unit does not. Browse the full Hikvision intercom range on securityaustralia.com.au for metal-housing variants.
• Pairs well with: A compatible Hikvision IP video intercom indoor station or master station, and a Hikvision access control head-end for centralised credential management across multiple door points.

Common Questions

1. Does this door station run on PoE?

   No. The DS-KD8103-E6 requires a 12 VDC, 1A power supply - it does not accept Power over Ethernet. A separate power run must be planned to the installation point in addition to the network cable. This is an important distinction from many IP cameras and some other intercom door stations that do support PoE, so confirm your cabling plan before installation.

2. Will this door station work with an existing Wiegand access control system?

   Yes. The DS-KD8103-E6 includes a Wiegand interface, allowing it to pass card credential data from its built-in M1 reader to a third-party access controller. The relay output can then be used to trigger your existing door hardware. This makes it viable as a drop-in addition to existing Wiegand-based infrastructure without replacing the access controller.

3. How many buttons does this unit have and what are they used for?

   14 touch buttons. In an apartment intercom context, these are typically used to dial individual apartment numbers or floors, allowing visitors to call a specific resident. The exact button mapping depends on how the unit is configured within the Hikvision intercom system and the number of units served.

4. Is this door station suitable for outdoor installation in Australian conditions?

   Yes. IP65 protection covers dust ingress and direct water jets, and the operating temperature range of -40 to 55 degrees Celsius covers the full range of Australian climate conditions from alpine Tasmania to Far North Queensland. The unit is specifically rated for outdoor application environments.

5. Can this be configured remotely without on-site access?

   Yes. The DS-KD8103-E6 supports remote configuration via a web interface. System administrators can adjust settings and manage the unit over the network without physically accessing the door station. This is particularly useful for facilities managers overseeing multiple apartment buildings or remote properties.

6. Does this unit support two-way audio communication?

   The unit includes a built-in omnidirectional microphone with noise suppression and echo cancellation confirmed in the specifications. Audio output to the visitor at the door station itself is part of the intercom function; for full two-way audio confirm speaker configuration with your intercom system setup. The unit is designed as a video intercom door station and audio communication is core to its function.

7. What flush-mount depth does the installation cavity need to be?

   The DS-KD8103-E6 is 61mm deep. The wall cavity or back-box behind the mounting position must accommodate at least this depth, plus any conduit or cable bend radius behind the unit. This is worth confirming before cutting into masonry or precast concrete apartment entry walls where cavity depth can be limited - particularly for the 418mm x 145mm face panel dimensions.

Cabling Considerations

• Network Cable: Cat5e or Cat6 to the RJ45 port for IP intercom communication and network connectivity.
• Power Cable: A separate 12 VDC, 1A power run is required - the unit does not support PoE. Plan for dual conduit or a twin-run cable path to the door station location.
• RS-485 / Wiegand: RS-485 and Wiegand connections use standard low-voltage cable runs to connected controllers. Maintain adequate separation from mains wiring to avoid interference.
• Relay / Alarm Wiring: The relay output to door hardware (electric strike, magnetic lock) and alarm input connections should be run in separate conduit where possible, particularly over longer distances in metal conduit environments.
• Flush Mount Preparation: Confirm back-box or cavity depth of at least 61mm before installation. The 418mm x 145mm face panel requires a precise cut-out - use the supplied template if provided, or measure carefully to avoid overcut on finished wall surfaces.

Downloads & Resources

No downloads available for this product.
