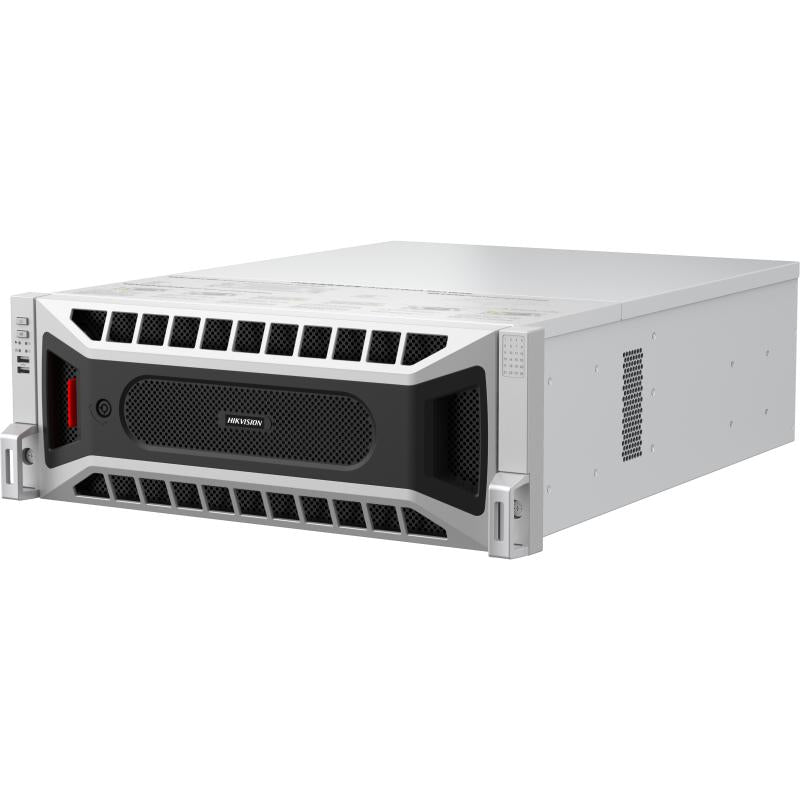

Hikvision DS-96128NXI-S24R 128-Channel 8K NVR with AcuSense 24 Hard Drive Bays

Model: DS-96128NXI-S24R

Who This Is For

For integrators and enterprise security managers specifying high-channel-count recording infrastructure for large-scale deployments, the Hikvision DS-96128NXI-S24R is built around 128 IP camera channels, 8K resolution support, and 24 internal hard drive bays. This is the tier of recorder specified for university campuses, hospital networks, multi-building industrial facilities, and large retail or logistics operations where a single recorder must consolidate every camera position without compromise on image quality or AI filtering. The 24-bay design means substantial on-site storage can be built out from installation day, reducing the need for separate NAS infrastructure. AcuSense-compatible, the unit processes AI classification data from supported cameras directly at the recorder level, allowing operators to filter events by person or vehicle without relying on a separate analytics server. This is a system-core device, not a periphery add-on.

What This NVR Actually Does

Who Buys This Model

• Security Integrators on Large Commercial Projects: Specifying a single high-channel recorder for a hospital, university, or government facility where camera counts exceed what mid-range NVRs can consolidate.
• Industrial and Logistics Operators: Warehouses, distribution centres, and manufacturing plants running 60 or more cameras across a single site who need long retention periods without external NAS systems.
• Monitoring Centre Operators: Centralised operations managing a large fleet of cameras across a single location who require AI-filtered event review to reduce operator workload during high-activity periods.
• Multi-Building Campus Security Teams: Schools, aged care campuses, and commercial precincts specifying a head-end recorder capable of accepting every IP camera across the estate into one management point.

Honest Assessment

The DS-96128NXI-S24R handles what mid-range recorders cannot: 128 channels, 8K decoding, and 24 drive bays in a single chassis. For integrators building out large-site systems where channel count, storage density, and AI filtering all need to land in one unit, this recorder removes the need to stack or cluster multiple devices. AcuSense support at the recorder level is a practical advantage for operations teams who review footage daily and need person-and-vehicle classification without a separate analytics platform. What this unit will not do is serve small or medium sites cost-effectively - the hardware investment and rack space it demands is only justified at genuine scale. It also requires adequate rack infrastructure, redundant power planning, and a structured IP network to perform as intended. Buyers at the 8 to 32 channel range will find better value in purpose-matched units available through Security Australia. This is a system-core specification, not a general-purpose recorder.

Before You Buy

Quick Fit Check

• Good match if: You are specifying a single head-end recorder for a site with 65 or more IP cameras and need 8K resolution support to accommodate high-megapixel camera selections without the recorder becoming a bottleneck.
• Good match if: Your project requires extended on-site video retention at scale and the 24-bay internal drive capacity allows you to achieve the required retention period without adding external NAS infrastructure to the system design.
• You may need a different model if: Your camera count is below 64 channels - a mid-range NVR from the Hikvision range will deliver equivalent recording capability at a lower hardware cost and in a smaller rack footprint, which is a better fit for most commercial and small-enterprise installations.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your project requires 65 or more IP camera channels, 8K resolution decoding, and mass on-site storage in a single enterprise rack unit with AcuSense AI filtering built in.
• You may need a different model if: Your camera count is below 64 - a mid-channel NVR in the 32 to 64 channel range will deliver equivalent recording performance for the actual system size at significantly lower hardware cost and in a smaller rack footprint.
• Pairs well with: AcuSense-capable Hikvision IP cameras (turret, dome, or bullet form factors), managed Gigabit PoE switches with sufficient aggregate bandwidth, and surveillance-rated large-capacity SATA hard drives.

Common Questions

1. Does the DS-96128NXI-S24R support cameras from brands other than Hikvision?

   Yes, with limitations. The NVR supports ONVIF-compliant third-party IP cameras for basic recording. However, AcuSense AI features - person and vehicle classification, smart event filtering, and AI-based search - are only available when using compatible Hikvision cameras. Third-party cameras will record video but will not pass AI metadata to the NVR for filtered event review.

2. Will this NVR actually use all 128 channels at 8K resolution simultaneously?

   Not necessarily at full 8K across every channel simultaneously. Total recording throughput is shared across all channels, meaning the mix of resolutions, frame rates, and compression settings across 128 cameras determines real-world performance. Using H.265+ compression significantly reduces bandwidth and storage consumption per channel, which is important at this scale. Consult Hikvision's throughput specifications before finalising your camera resolution and frame rate selections.

3. How much storage do 24 hard drive bays actually give you at 128 channels?

   It depends entirely on drive capacity and the recording parameters of connected cameras. With high-capacity surveillance HDDs populated across all 24 bays, total raw storage can reach very high figures, but actual retention length varies based on resolution, frame rate, H.265+ compression, and how many cameras trigger continuous versus motion-based recording. Use a storage calculator with your specific camera resolutions and frame rates before specifying drive sizes - the 24-bay capacity is generous, but 128 channels at high resolution consumes storage faster than smaller systems.

4. Does AcuSense work at the NVR level or does it require cameras to process AI locally?

   Both contribute. When AcuSense-capable Hikvision cameras are used, AI classification is processed at the camera, and the metadata is passed to the DS-96128NXI-S24R for NVR-level filtering, smart search, and event management. The NVR itself also processes AcuSense functions, meaning the combined architecture delivers accurate person-and-vehicle filtering across all connected AcuSense camera channels without a separate analytics server.

5. What network infrastructure does a 128-channel NVR at this scale require?

   Significant. At 128 channels recording at meaningful resolution, aggregate inbound network throughput demands a properly designed IP network with managed Gigabit switching, adequate port density, and correctly configured VLANs to segment camera traffic. A flat unmanaged network will not perform reliably at this channel count. Plan for multiple uplink connections between the NVR and your core switching infrastructure, and confirm your switch aggregate bandwidth against the total expected bitrate of all connected cameras. This is a critical pre-installation planning step for deployments at this scale.

6. Can this NVR be accessed and managed remotely?

   Yes. The DS-96128NXI-S24R supports remote access via Hik-Connect, Hikvision's iVMS-4200 client software, and web browser. For enterprise and monitoring centre deployments, iVMS-4200 is the appropriate platform, supporting multi-NVR management, user permission levels, and centralised event monitoring. Remote access configuration should account for network security requirements including VPN access for sensitive installations, which Security Australia recommends discussing with your integrator before commissioning.

7. Does this NVR support RAID for drive redundancy?

   The S24R designation indicates this model is configured with 24 SATA drive bays and RAID support. RAID configurations provide drive redundancy, meaning the system can continue recording if an individual drive fails. At an enterprise scale with 128 channels and 24 bays, configuring RAID is a strongly recommended practice to avoid total storage loss from a single drive failure. Confirm your preferred RAID level and its impact on usable storage capacity during system design.

Downloads & Resources

No downloads available for this product.
