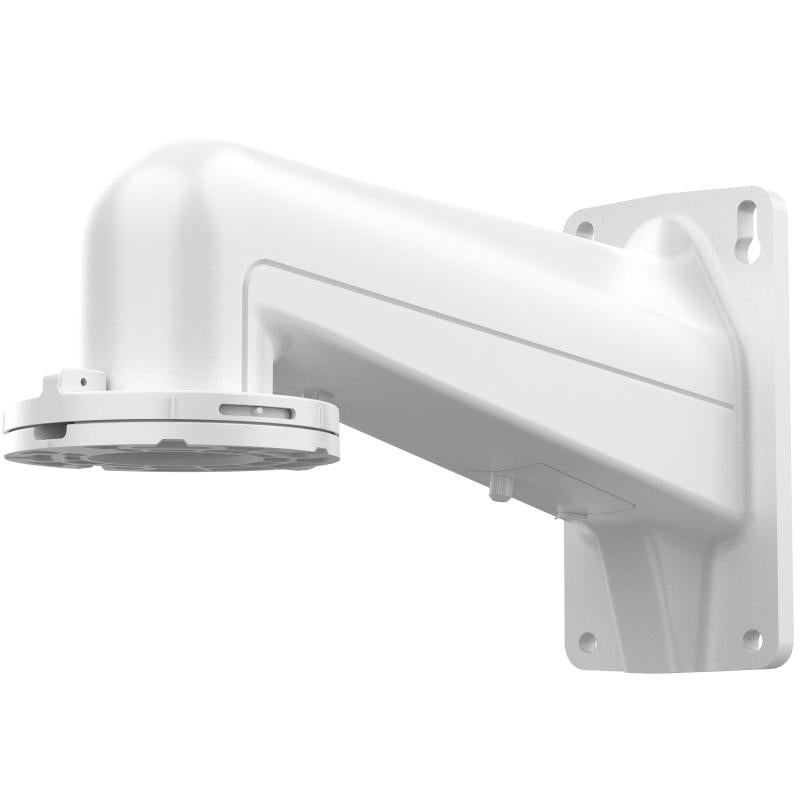

Hikvision DS-4603ZJ-WAAC Wall Mount Bracket – Outdoor Aluminium Alloy Arm for PTZ Cameras

Model: DS-4603ZJ-WAAC

Who This Is For

When mounting a PTZ camera on a flat exterior wall is the priority, the DS-4603ZJ-WAAC delivers a dedicated arm bracket purpose-built for outdoor Hikvision PTZ installations. Installers working on commercial buildings, warehouses, perimeter fencing walls, or multi-storey car parks where a pole or corner mount is not available will find this bracket resolves the positioning problem cleanly. The aluminium alloy arm construction keeps weight low while providing the structural rigidity that a full-movement PTZ camera demands during pan, tilt, and zoom cycles. Because PTZ cameras generate constant vibration through repeated motor operation, a bracket that flexes or shifts even marginally will degrade image stability and affect auto-tracking accuracy - this unit is engineered to hold position under that load. If you are specifying a Hikvision PTZ system and need a wall-surface solution that manages cable routing internally and presents a professional finish on site, the DS-4603ZJ-WAAC is the correct mounting component to include in your bill of materials.

What This Bracket Actually Does

Who Buys This Model

• Security Installers Completing PTZ Packages: Trades who specify Hikvision PTZ cameras and need a matched, manufacturer-approved wall arm rather than adapting a generic bracket that may not suit the camera's footprint or weight distribution.
• Commercial Property Managers: Sites such as shopping centres, industrial estates, and logistics facilities where flat exterior walls are the only viable mounting surface and the camera needs a professional arm with internal cable routing for a clean, maintainable installation.
• System Integrators Specifying Perimeter Coverage: Integrators building perimeter surveillance designs around PTZ cameras who need a wall mount that holds camera position reliably during continuous automated patrol and tracking cycles.
• Facility and Operations Teams: Warehouses, ports, and manufacturing sites where an existing masonry or concrete wall is the natural mounting point and the bracket must withstand industrial-environment exposure including dust, humidity, and temperature variation.

Honest Assessment

The DS-4603ZJ-WAAC does one thing well: it provides a correctly engineered wall-arm solution for Hikvision PTZ cameras in outdoor environments. The aluminium alloy construction keeps the assembly light relative to its load capacity, and internal cable routing is a genuine practical advantage over exposed-cable alternatives on long-term outdoor installations. It is a manufacturer-matched component, which removes the uncertainty of using a third-party arm with a PTZ unit where mounting interface tolerances affect camera stability and therefore tracking performance. What it will not do is serve as a corner mount, pole adapter, or ceiling pendant solution - if your installation geometry requires any of those configurations, a different bracket type from the Hikvision peripheral range stocked by Security Australia is the appropriate choice. This bracket is also specific to wall-surface applications; if the mounting substrate is a parapet, gutter line, or non-structural facade, a structural engineering assessment of the fixing point should precede installation.

Before You Buy

Quick Fit Check

• Good match if: You are mounting a compatible Hikvision PTZ camera on a flat exterior masonry or concrete wall and need an arm that provides correct camera clearance for full pan and tilt movement with internal cable protection.
• Good match if: Your installation requires a manufacturer-matched aluminium alloy bracket that will withstand continuous outdoor exposure without corrosion or fatigue from the dynamic load of a PTZ camera operating automated patrol cycles.
• You may need a different model if: Your mounting point is a pole, corner column, parapet, or ceiling surface - those configurations require a different bracket type from the Hikvision peripheral range, and fitting a wall arm to an incompatible surface will compromise both camera geometry and structural safety.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your PTZ camera needs to mount on a flat external wall with correct arm projection to allow full pan and tilt movement, and you require internal cable routing for a clean, weather-protected installation.
• You may need a different model if: Your mounting geometry requires a pole mount, corner bracket, or ceiling pendant configuration - those are different bracket types in the Hikvision accessory range, and adapting a wall arm to a non-wall surface creates both alignment and structural problems.
• Pairs well with: Hikvision mid-range and high-end outdoor PTZ cameras with motorised zoom, where the camera's automated patrol and tracking features depend on a stable, vibration-resistant mounting platform.

Common Questions

1. Will this bracket fit any Hikvision PTZ camera?

   No - not universally. Hikvision produces multiple PTZ bracket variants matched to different PTZ camera families by weight, housing diameter, and bolt pattern. The DS-4603ZJ-WAAC is designed for specific compatible models. Before purchasing, check your PTZ camera's datasheet accessory section or the bracket's compatible model list to confirm fitment. Using a mismatched bracket can result in incorrect camera alignment and insufficient structural support.

2. Does this bracket include wall fixings?

   Confirm with your supplier at point of order. Wall anchor hardware is often sold separately or subject to local variation because the correct fixing type depends entirely on the substrate - masonry, concrete, and steel-frame walls each require a different anchor specification. Do not assume standard fixings are included; specifying the wrong anchor for the substrate is one of the most common causes of bracket failure on outdoor PTZ installations.

3. Can cables be routed internally through the arm?

   Yes. The DS-4603ZJ-WAAC is designed with internal cable routing through the arm body. This protects the power and data cables from UV exposure, weather ingress, and tampering. When planning your cable run, confirm the internal diameter of the cable passage accommodates the cable gauge you are using, particularly if you are running a combined power and data cable or multiple cables to a PTZ with additional I/O connections.

4. Is this bracket suitable for coastal or high-humidity environments?

   Yes, with qualification. The aluminium alloy construction and outdoor-rated finish are intended for continuous weather exposure. In high-salinity coastal environments, inspect the bracket surface annually for any signs of galvanic corrosion at the fixing points, particularly where dissimilar metals contact each other. Using stainless steel fixings at the wall interface reduces this risk in coastal installations.

5. Will the bracket stay stable when a PTZ camera is running automated patrol or auto-tracking?

   Yes, provided the wall fixings are correctly specified and installed. PTZ cameras generate continuous low-level vibration through repeated motor actuation during patrol cycles and rapid directional changes during auto-tracking. A bracket that flexes under this dynamic load will introduce image instability and can cause the camera to lose preset position accuracy over time. The aluminium alloy arm construction of the DS-4603ZJ-WAAC is designed to resist this flex, but the structural integrity of the installation is only as good as the wall fixing anchors behind it.

6. Does the bracket affect a PTZ camera's pan and tilt range?

   It should not, provided it is the correct bracket for the camera model. The arm projection distance on the DS-4603ZJ-WAAC is designed to clear the wall surface so the camera housing does not contact the mounting structure during its full pan and tilt sweep. Using a bracket with insufficient arm length on a flat wall is a common installation error that mechanically limits tilt range and can strain the camera's drive motors. Verify the arm length suits your camera's housing dimensions before installation. The DS-4603ZJ-WAAC is available through Security Australia as part of the Hikvision PTZ accessories range.

7. What is the maximum load this bracket is rated to carry?

   Confirm the published load rating against the combined weight of your PTZ camera, any housing additions, and the dynamic load factor from motor movement before finalising your specification. Load ratings for Hikvision PTZ brackets vary between arm models. If the total camera weight is near the bracket's rated capacity, specify the next bracket class up rather than operating at the limit - dynamic motor loads and wind loading on a large PTZ housing can exceed the camera's static weight during operation.
