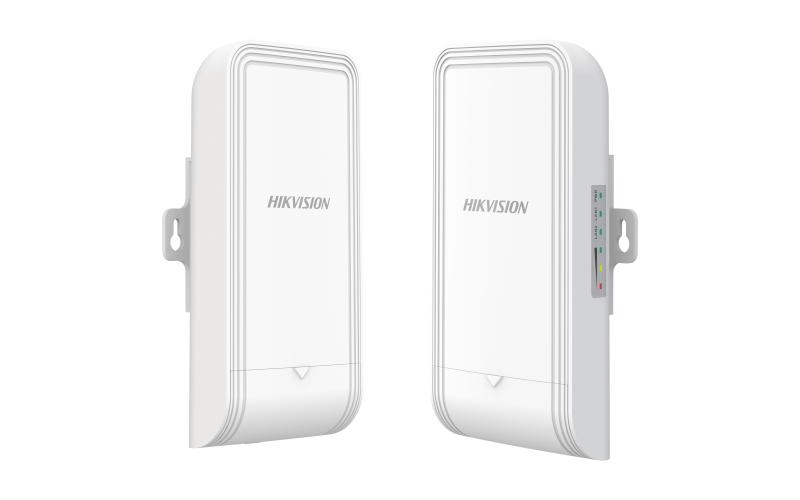

Hikvision DS-3WF02-5AC/D 5GHz 867Mbps 5km Outdoor Wireless Bridge Kit

Model: DS-3WF02-5AC-D

Who This Is For

For installers and property managers who need to extend a camera network across a distance where trenching cable is impractical, cost-prohibitive, or simply not possible. The Hikvision DS-3WF02-5AC/D is a 5GHz outdoor wireless bridge kit designed to link two points up to 5km apart at up to 867Mbps - more than sufficient to carry multiple HD or 4K camera streams simultaneously. Typical applications include connecting a remote gatehouse or car park to a main building NVR, bridging camera infrastructure between two buildings on a campus, or delivering network coverage to a rural outbuilding where cable runs would span hundreds of metres. Supplied as a matched pair of outdoor units, this kit is aimed at professional installers who need a reliable, high-throughput point-to-point wireless link without the ongoing cost of cellular data or the disruption of civil works.

What This Bridge Kit Actually Does

Who Buys This Model

• Security Installers on Multi-Building Sites: Bridging a gatehouse, guard post, or remote building back to a central NVR without trenching cable across car parks or open ground.
• Rural and Agricultural Property Owners: Extending camera coverage to sheds, silos, or paddock entry points hundreds of metres or several kilometres from the homestead network.
• Industrial and Logistics Site Managers: Connecting camera infrastructure at loading docks, weighbridges, or yard perimeters that sit beyond practical cable distance from the main facility.
• School and Campus Facilities Teams: Linking surveillance networks between buildings across a campus where underground conduit is not budgeted or available.
• Integrators Avoiding Civil Works Costs: Specifying a wireless bridge where the cost of trenching and conduit would exceed the project budget or require council approval for road crossing.

Honest Assessment

The DS-3WF02-5AC/D does one job well: it moves large amounts of network data over a long outdoor wireless link without requiring physical cable between two fixed points. At 867Mbps on 5GHz, there is enough headroom to carry 8 or more HD camera streams simultaneously, and the 5km range makes it genuinely useful for rural, campus, and industrial applications where other connection methods are impractical. Supplied as a matched kit, it is straightforward for a professional installer to deploy and align. What it will not do is replace a meshed Wi-Fi network, serve multiple remote endpoints from a single unit, or maintain rated throughput through dense tree cover or structures that obstruct the line of sight. It is strictly a point-to-point solution - one link per kit. Installers needing to connect 3 or more locations will need multiple kits or a different network architecture. The DS-3WF02-5AC/D is available through Security Australia as part of the Hikvision networking range.

Before You Buy

Quick Fit Check

• Good match if: You need to connect a remote camera location up to 5km from the main network and have a clear line of sight between the two fixed mounting points - the 867Mbps 5GHz link handles multiple HD streams without congestion.
• Good match if: Trenching cable between two buildings is not feasible due to cost, distance, or site constraints - the matched kit pair gives you a ready-to-deploy point-to-point wireless link with no compatibility guesswork.
• You may need a different model if: You need to connect 3 or more locations from a single hub point, or if the path between endpoints has significant tree cover, buildings, or elevation changes blocking line of sight - a mesh wireless system or additional bridge kits would be more appropriate for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single high-throughput wireless link between 2 fixed outdoor points up to 5km apart, and have confirmed line of sight between them - the 867Mbps 5GHz link handles multiple simultaneous HD camera streams reliably.
• You may need a different model if: You need to connect more than 2 locations from a single point, require non-line-of-sight coverage through obstacles, or need mobile or vehicle-mounted connectivity - a mesh wireless system or cellular-based solution would be more appropriate for those applications.
• Pairs well with: A PoE network switch at the remote end to power and connect multiple IP cameras, and a PoE injector or switch at the local end to power the bridge unit itself.

Common Questions

1. Does this kit actually reach 5km in real installations?

   Only under clear line-of-sight conditions. The 5km rating is the maximum specified transmission distance, but real-world range depends heavily on the path between the 2 units. Trees, structures, terrain elevation changes, and atmospheric conditions all reduce effective range. A clear, unobstructed sightline between mounting points is the single biggest factor in achieving the rated distance. For most security installations covering distances under 1km with a clear path, this kit operates well within its limits.

2. How many cameras can this bridge support simultaneously?

   At 867Mbps, the link carries significant camera traffic. A standard 4MP IP camera streams at roughly 4-8Mbps, meaning the bridge has headroom for 8 to 16 or more cameras depending on resolution, frame rate, and compression settings. The limiting factor at the remote end is typically the PoE switch capacity and NVR channel count rather than the wireless link itself.

3. Will this work with non-Hikvision cameras and NVRs?

   Yes. The bridge operates as a standard Ethernet wireless link, transparent to the devices connected at each end. It does not inspect or process camera protocols - it simply moves network data between 2 points. Cameras and NVRs from any manufacturer that connect via standard Ethernet will work through the bridge without compatibility issues.

4. Does each unit need its own separate power supply?

   Yes. Each of the 2 outdoor units requires power at its mounting location. This is typically delivered via a PoE injector or PoE-capable switch connected by a short Cat5e or Cat6 cable at each end. Confirm that a power source is accessible at both the local and remote mounting points before installation - this is the most common planning oversight on bridge deployments. If you have questions about specifying compatible PoE equipment, the team at Security Australia can assist.

5. Why use 5GHz instead of 2.4GHz for an outdoor bridge?

   5GHz offers significantly less interference than 2.4GHz in areas where other Wi-Fi networks, cordless phones, or industrial equipment operate on the same spectrum. For a dedicated point-to-point security link, the 5GHz band provides more consistent, interference-free throughput - which is critical when carrying live camera streams that cannot tolerate packet loss or latency spikes.

6. Can this kit be used to connect 3 or more locations?

   No. Each DS-3WF02-5AC/D kit creates a single point-to-point link between 2 units. To connect a third location, a second bridge kit would be required, creating a separate link. If you need to connect multiple remote endpoints to a single central location, discuss your network layout requirements before specifying this kit - a different architecture may serve the project better.
