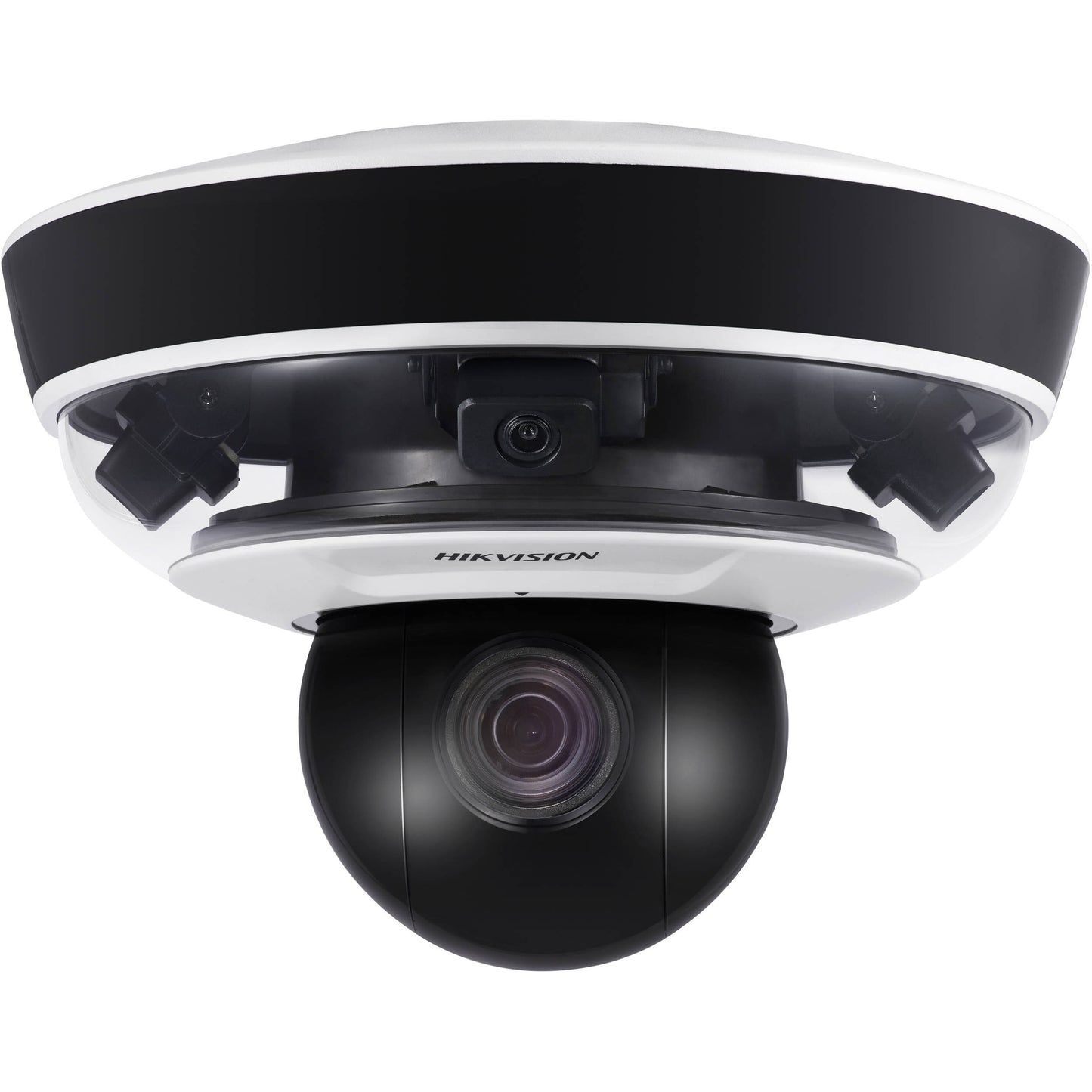

Hikvision DS-2PT5326IZ-DE 2MP PanoVu Mini PTZ CCTV Camera
$2,248.00 AUD
$2,090.00 AUD
Tax included.
Shipping calculated at checkout.
In stock - Ready to ship
Free shipping on orders over $100. Usually ships within 1 business day when available.
Quick Buying Summary
Hikvision DS-2PT5326IZ-DE 2MP PanoVu Mini PTZ CCTV Camera
PanoVu Mini Series IR Network PTZ Camera
The PanoVu Mini Series IR Network PTZ Camera provides comprehensive surveillance with its panoramic and close-up capabilities. It features adjustable cameras for versatile coverage and is suitable for outdoor environments with its IP66 rating.
Key Features
- Multiple Imaging Options: 3-channel panoramic images in different directions and 1-channel close-up image for detailed surveillance.
- Flexible Camera Movement: Three cameras are adjustable along a circular track with a slide range of 0° to 270° for optimal coverage.
- Independent Tilting: Each camera can tilt and rotate from 15° to 55° independently, allowing for customized monitoring angles.
- Weatherproof Design: IP66 weatherproof rating, ensuring reliable performance in various outdoor conditions.
- High-Quality Imaging: 2MP resolution for clear and detailed video capture.
- Night Vision Capability: Equipped with infrared technology for effective monitoring in low-light conditions.
- Versatile Installation: Ideal for various outdoor settings, including retail, parking lots, and public spaces.
Code/SKU: DS-2PT5326IZ-DE
Quick Specs:
- Camera Type: Mini PTZ camera with panoramic and close-up capabilities.
- Resolution: 2MP for high-definition surveillance.
- Weather Rating: IP66 for reliable outdoor performance.
Accessories
Select options before adding this product to cart.
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Free shipping
Enjoy free shipping when your order exceeds $100.
Fast dispatch
Orders are dispatched within the next business day.
Best local support in Aus
We back all products with manufacturer warranty support.
Official Australian stock
Genuine products with local warranty support.
Product Overview
Hikvision PanoVu Mini PTZ Camera, DS-2PT5326IZ-DE
Introducing the Hikvision PanoVu Mini PTZ Camera, DS-2PT5326IZ-DE, designed to provide comprehensive surveillance with its unique combination of panoramic and PTZ capabilities. Ideal for environments requiring wide-area coverage and detailed close-up monitoring, this camera offers exceptional flexibility and performance.
This camera features a robust design that ensures reliable operation in various outdoor conditions, making it perfect for monitoring large areas such as parking lots, public spaces, and critical infrastructure. With its advanced imaging technology, the PanoVu Mini PTZ Camera captures high-quality video in both day and night conditions.
Equipped with impressive zoom capabilities and IR functionality, this camera not only provides extensive coverage but also allows for detailed observation of distant subjects, enhancing overall situational awareness and security.
Features:
- Panoramic Coverage: Utilizes three 1/2.8" progressive scan CMOS sensors to provide a wide viewing area, ensuring comprehensive coverage of large spaces.
- High Resolution: Offers up to 3-ch 1920 × 1080 resolution at 30fps, delivering clear and detailed images for effective surveillance.
- Wide Field of View: Horizontal FOV of 80.7°× 3 and vertical FOV of 43.5° allow for extensive monitoring capabilities in various settings.
- IR Night Vision: Up to 30 m IR radius ensures clear visibility in low-light environments, enhancing nighttime surveillance effectiveness.
- Adjustable Cameras: Cameras can slide along a circular track with a range of 0° to 270°, providing flexible positioning for comprehensive monitoring.
- Independent Tilt Rotation: Allows for tilt adjustments from 15° to 55°, enabling precise control over the viewing angle and coverage area.
- PTZ Capabilities: The 1/2.8" CMOS sensor supports up to 1920 × 1080 resolution at 30fps, ensuring high-quality video output for detailed monitoring.
- Zoom Functions: Features 10× optical zoom and 8× digital zoom for detailed close-up views, allowing users to focus on specific areas or subjects.
Functions:
Comprehensive Surveillance:
This camera combines panoramic and PTZ capabilities, making it ideal for wide-area monitoring while allowing detailed observation of specific targets.
Reliable Night Vision:
Equipped with advanced IR technology, this camera ensures reliable surveillance in complete darkness, enhancing security during nighttime operations.
Flexible Installation:
Designed for easy installation in various environments, this camera is suitable for both indoor and outdoor applications, ensuring versatility in security setups.
Enhanced Situational Awareness:
With its wide FOV and zoom capabilities, the camera provides operators with comprehensive awareness of their surroundings, improving response times to incidents.
Rugged Design:
Built with an IP66-rated housing, this camera withstands harsh weather conditions, ensuring durability and reliability in diverse outdoor settings.
Intelligent Tracking:
Supports advanced tracking features, allowing for automatic following of moving subjects, enhancing the effectiveness of surveillance operations.
Cost-Effective Solution:
Offers high-quality performance at a competitive price, making it an economical choice for organizations looking to enhance their security infrastructure.
Seamless Integration:
Compatible with various security systems, facilitating easy integration into existing setups for a comprehensive surveillance solution.
User-Friendly Interface:
Designed for intuitive use, allowing operators to manage settings and controls easily, enhancing the overall user experience.
Technical Specifications
| Model | DS-2PT5326IZ-DE |
| Image Sensors | Three 1/2.8" Progressive Scan CMOS sensors |
| Panoramic Resolution | Up to 1920 × 1080 @ 30fps (each sensor) |
| Horizontal FOV | 80.7° × 3 |
| Vertical FOV | 43.5° |
| IR Distance (Panoramic) | Up to 30m |
| Adjustable Slide Range | 0° to 270° along a circular track |
| Tilt Rotation | Independent tilt from 15° to 55° |
| PTZ Sensor | 1/2.8" Progressive Scan CMOS |
| PTZ Resolution | Up to 1920 × 1080 @ 30fps |
| Optical Zoom (PTZ) | 10× optical zoom |
| Digital Zoom (PTZ) | 8× digital zoom |
| IR Distance (PTZ) | Up to 50m |
| Protection Rating | IP66 weatherproof |
| Power Supply | 12V DC ±25% or PoE (802.3af) |
| Operating Temperature | -30°C to +60°C |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
Hikvision DS-2PT5326IZ-DE 2MP PanoVu Mini PTZ CCTV Camera
PanoVu Mini Series IR Network PTZ Camera
The PanoVu Mini Series IR Network PTZ Camera provides comprehensive surveillance with its panoramic and close-up capabilities. It features adjustable cameras for versatile coverage and is suitable for outdoor environments with its IP66 rating.
Key Features
- Multiple Imaging Options: 3-channel panoramic images in different directions and 1-channel close-up image for detailed surveillance.
- Flexible Camera Movement: Three cameras are adjustable along a circular track with a slide range of 0° to 270° for optimal coverage.
- Independent Tilting: Each camera can tilt and rotate from 15° to 55° independently, allowing for customized monitoring angles.
- Weatherproof Design: IP66 weatherproof rating, ensuring reliable performance in various outdoor conditions.
- High-Quality Imaging: 2MP resolution for clear and detailed video capture.
- Night Vision Capability: Equipped with infrared technology for effective monitoring in low-light conditions.
- Versatile Installation: Ideal for various outdoor settings, including retail, parking lots, and public spaces.
Code/SKU: DS-2PT5326IZ-DE
Quick Specs:
- Camera Type: Mini PTZ camera with panoramic and close-up capabilities.
- Resolution: 2MP for high-definition surveillance.
- Weather Rating: IP66 for reliable outdoor performance.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Panoramic Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8" progressive scan CMOS | |
| Max. Image Resolution: | 1920 × 1080 | |
| Min. Illumination: | Color: 0.005 Lux @(F1.6, AGC ON)B/W: 0.001 Lux @(F1.6, AGC ON)0 Lux with IR | |
| Lens: | 4 mm | |
| Angle of View: | Horizontal field of view: 80.7° × 3Vertical field of view: 43.5° | |
| Main Stream: | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) | |
| Sub Stream: | 50 Hz: 20 fps (704 × 576, 640 × 480, 352 × 288)60 Hz: 20 fps (704 × 480, 640 × 480, 352 × 240) | |
| Image Compression: | H.265/H.264 | |
| White Balance: | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp | |
| Shutter Time: | 50 Hz: 1/1 s to 1/30,000 s60 Hz: 1/1 s to 1/30,000 s | |
| Day& Night: | ICR | |
| PTZ Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8" progressive scan CMOS | |
| Max. Image Resolution: | 1920 × 1080 | |
| Minimum Illumination: | Color: 0.005 Lux @(F1.6, AGC ON)B/W: 0.001 Lux @(F1.6, AGC ON)0 Lux with IR | |
| Angle of View: | Horizontal field of view: 58.6° to 6.4° (wide - tele)Vertical field of view: 35.1° to 3.6° (wide - tele)Diagonal field of view: 7.4° to 65.6° (wide - tele) | |
| Zoom Speed: | Approx.2.5 s (optical, wide - tele) | |
| Focal Length: | 4.7 mm to 47 mm, 10× optical zoom | |
| White Balance: | Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | |
| AGC: | Support | |
| Shutter Time: | 50 Hz: 1/1 s to 1/30,000 s60 Hz: 1/1 s to 1/30,000 s | |
| Day & Night: | IR Cut Filter | |
| Optical Defog: | Support | |
| ROI encoding: | Main stream and sub-stream respectively supports eight fixed areas. | |
| Main Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Sub Stream: | 50Hz:25fps (704×576, 352×288, 176×144)60Hz:30fps (704×480, 352×240, 176×120) | |
| Image Compression: | H.265/H.264 | |
| WDR: | Digital WDR | |
| Privacy Masking: | 8 programmable privacy masks | |
| Pan and Tilt | ||
|---|---|---|
| Pan Range: | 0° to 340° | |
| Pan Speed: | Pan speed: 0.1°/s to 60°/s (configurable), preset speed: 60°/s | |
| Tilt Range: | 0° to 90° | |
| Tilt Speed: | 0.1°/s to 60°/s (configurable), preset speed: 60°/s | |
| Number of Preset: | 300 | |
| Park Action: | Preset | |
| Scheduled Task: | Preset/Dome Reboot/Dome Adjust | |
| Power-off memory: | Support | |
| System Function | ||
|---|---|---|
| IR: | Up to 50 m IR distance | |
| PTZ Linkage: | Support | |
| Smart Detection: | Motion Detection, Video Tampering Detection, Exception | |
| Input & Output | ||
|---|---|---|
| Audio Input: | 1-ch audio input | |
| Audio Output: | 1-ch audio output | |
| Network | ||
|---|---|---|
| Audio compression: | G.711ulaw/G.711alaw/G.722/G.726/MP2L2/PCM | |
| Protocol: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour | |
| Application programming: | Open-ended API, support Onvif, ISAPI, CGI | |
| System Integration | ||
|---|---|---|
| Menu: | English | |
| User/Host Level: | Up to 32 users,3 Levels: Administrator, Operator and User | |
| Security Measures: | User authentication (ID and PW); Host authentication (MAC address); IP address filtering | |
| Web Browser: | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 | |
| Ethernet: | 1 RJ45 10 M/100 M Ethernet | |
| Onboard Storage: | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB | |
| General | ||
|---|---|---|
| Power supply: | 12 VDC & PoE+ (802.3 at, class 4) | |
| Consumption (without hard disk): | Max.27 W (Max. 9 W for IR) | |
| Working temperature: | -30°C to 65°C (-22°F to 149°F), with heater on | |
| Working humidity: | Humidity 90% or less | |
| Material: | PC & Aluminum alloy | |
| Protection Level: | IP66, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection | |
| Dimensions (W×D×H): | Φ 271.3 mm ×243.1 mm (Φ 10.68" × 9.57") | |
| Weight: | Approx. 3.2 kg (7.05 lb) | |
