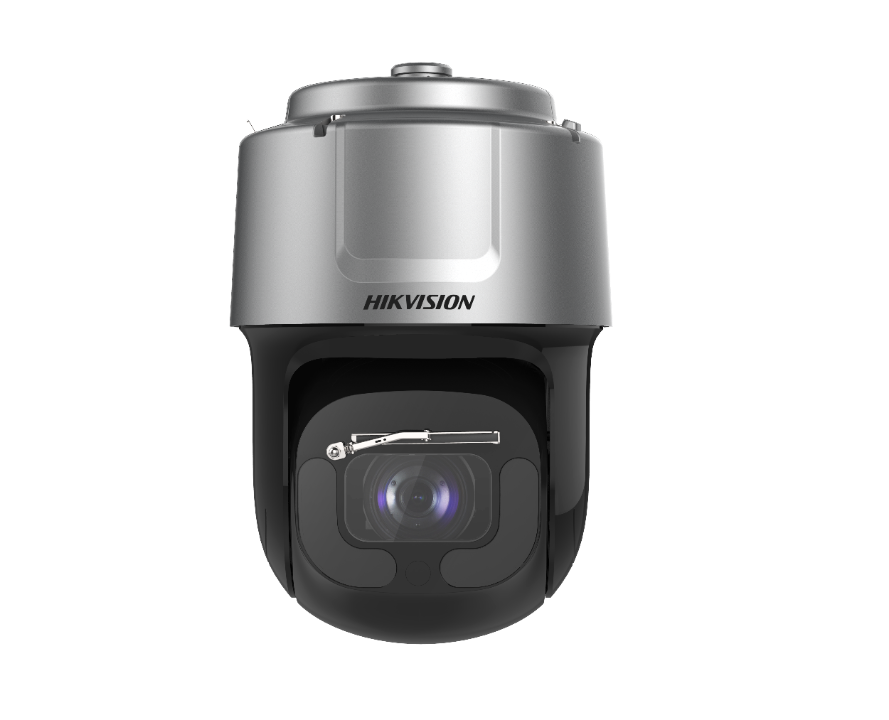

Hikvision DS-2DF9C435IH-DLW 4MP Outdoor Darkfighter X PTZ Camera, 35x Zoom, 500m IR, IP67, IK10

Model: DS-2DF9C435IHS-DLW(T2)

Who This Is For

When covering a large open area from a single camera position is the priority, the DS-2DF9C435IH-DLW is the type of unit that justifies the investment. This is a camera specified by security integrators and infrastructure teams managing perimeter surveillance across airports, highway corridors, waterways, ports, and large public spaces where a fixed camera simply cannot do the job. The 35x optical zoom combined with a 500m IR range means a single mounted unit can track activity across distances that would otherwise require a chain of fixed cameras. The Darkfighter X dual-sensor design adds meaningful low-light capability, maintaining colour detail in conditions where a standard PTZ would drop to greyscale. At 5.5 kg with IK10 impact resistance and IP67 weather sealing, this is a camera designed for permanent outdoor installation in exposed, high-risk locations - not a light-duty upgrade option.

What This Camera Actually Does

Who Buys This Model

• Airport and Transport Security Teams: Monitoring taxiways, service roads, and terminal perimeters where a single unit needs to cover large open ground and zoom to identify tail numbers or vehicles at distance.
• Port and Waterway Operators: Tracking vessel movements along berths or river corridors at night, where the 500m IR range and full-colour Darkfighter X low-light performance provide usable footage without external lighting.
• Highway and Traffic Management Authorities: Deploying on mast poles to cover long road sections, using the 35x optical zoom to identify vehicles or incidents at distances impractical for fixed cameras.
• Critical Infrastructure Integrators: Specifying perimeter PTZ cameras for power stations, water treatment plants, or industrial facilities where IK10 impact resistance and -40°C cold-weather operation are non-negotiable requirements.
• Large Venue and Stadium Security Managers: Covering entry plazas, car parks, and approach roads from elevated positions, using preset positions to cycle coverage zones during events.

Honest Assessment

The DS-2DF9C435IH-DLW is a strong performer in the specific role it is built for: long-range outdoor PTZ surveillance with genuine low-light colour capability. The 35x optical zoom, 500m IR, and Darkfighter X dual-sensor design work together coherently - this is not a camera where those specifications are padded to look impressive on paper. The IP67 and IK10 ratings add real-world durability for exposed installations, and the -40°C to 70°C operating range means it handles Australian climate extremes without compromising performance. Available through Security Australia, it suits integrators who need a camera that earns its position as a site's primary PTZ unit. That said, at 5.5 kg this is not a quick-deploy or lightweight option - mounting infrastructure needs to be engineered accordingly. It is also not the right choice where automated number plate recognition or thermal imaging are required, as neither capability is confirmed for this model. For those applications, a dedicated ANPR or thermal unit from the wider range will serve better.

Before You Buy

Quick Fit Check

• Good match if: You need a single camera to monitor a large open area - a port berth, highway approach, or airport service road - where 35x optical zoom and 500m IR let one unit do the work of multiple fixed cameras.
• Good match if: Your site has low ambient light and colour identification matters at night - the Darkfighter X dual-sensor design maintains full-colour imaging in conditions where standard PTZ cameras would produce greyscale only.
• You may need a different model if: Your primary requirement is automated number plate recognition on moving vehicles or thermal detection through smoke and fog - dedicated ANPR or thermal PTZ cameras are purpose-built for those functions and will give more accurate results than a general-purpose long-range PTZ.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a long-range outdoor PTZ with genuine full-colour low-light performance - the Darkfighter X dual-sensor design sets it apart from standard PTZ cameras that produce greyscale at night.
• You may need a different model if: Your requirement is thermal detection through smoke, fog, or complete darkness with no IR illumination - a dedicated thermal PTZ camera operates on heat signature rather than visible or infrared light and performs in conditions where this camera cannot.
• Pairs well with: A high-channel NVR with PTZ control protocol support, a PoE+ managed switch with VLAN capability for traffic management, and a video management software platform that supports PTZ preset scheduling and auto-tracking integration.

Common Questions

1. Will this camera work on standard PoE without a separate power supply?

   Yes. The DS-2DF9C435IH-DLW supports IEEE 802.3af PoE, so a single Cat5e or Cat6 cable carries both power and data. However, because PTZ motors draw current during movement, confirm your PoE switch port delivers the full 802.3af budget of 15.4W consistently - switches that share power budgets across multiple ports can drop below spec under load and cause the camera to reset mid-operation.

2. Does this camera support auto-tracking of moving subjects?

   The product specifications confirm intelligent video analytics including motion detection. For confirmed auto-tracking behaviour specific to this model - including tracking speed limits and subject lock-on logic - refer to the Hikvision datasheet or contact the team at Security Australia before finalising your system design around automated tracking workflows.

3. What is the pan and tilt speed range, and how many preset positions does the camera support?

   The confirmed pan range is a full 360 degrees continuous with tilt from -15 to 90 degrees. Specific pan and tilt speed ratings and the maximum number of preset positions are not detailed in the available spec data for this listing. For deployment planning where precise slew speed or large numbers of patrol presets are required, request the full Hikvision datasheet to confirm these values against your operational needs before purchasing.

4. How does the Darkfighter X dual-sensor design differ from a standard single-sensor PTZ in low light?

   A standard single sensor captures colour and brightness together, and in low light it must choose between colour accuracy and noise reduction. The Darkfighter X uses 2 sensors to process colour and brightness independently, then combines the outputs into a single image. The result is full-colour footage in near-darkness rather than the greyscale or washed-out colour a conventional single-sensor PTZ produces under the same conditions. This matters in investigations where vehicle colour, clothing colour, or signage is relevant to identifying a subject.

5. Will this camera handle Australian coastal or tropical conditions long-term?

   Yes. IP67 weather sealing covers dust ingress and sustained water immersion, and the -40°C to 70°C operating temperature range covers the full span of Australian climate conditions including tropical North Queensland heat and high-altitude cold. The IK10 impact rating also adds protection in exposed locations where wind-driven debris or opportunistic vandalism is a risk. For corrosive salt-air environments, confirm bracket and mounting hardware ratings separately - the camera housing is rated but ancillary hardware varies by supplier.

6. Does the 500m IR range apply at all zoom levels?

   No. The 500m IR range is the maximum reach of the infrared illuminators, which is most effective when the lens is at or near full telephoto where the field of view is narrowest and the IR beam is concentrated on the same narrow zone. At wide-angle settings the IR illumination is spread across a much broader area, reducing effective illumination distance significantly. When planning night coverage zones, calculate IR reach based on the actual zoom level you intend to use at each preset position rather than assuming 500m applies uniformly across all focal lengths.

7. Is this camera suitable for ANPR or number plate capture on moving vehicles?

   Not as a dedicated ANPR solution. While the 35x optical zoom and 4MP resolution allow zoomed-in views of vehicles at long range, ANPR requires specific lens calibration, capture triggering timed to vehicle speed, and dedicated recognition software. The DS-2DF9C435IH-DLW is a general-purpose long-range PTZ - for reliable automated plate reading on moving vehicles, a purpose-built ANPR camera with the appropriate software integration will deliver substantially better capture accuracy and read rates.

Downloads & Resources

No downloads available for this product.
