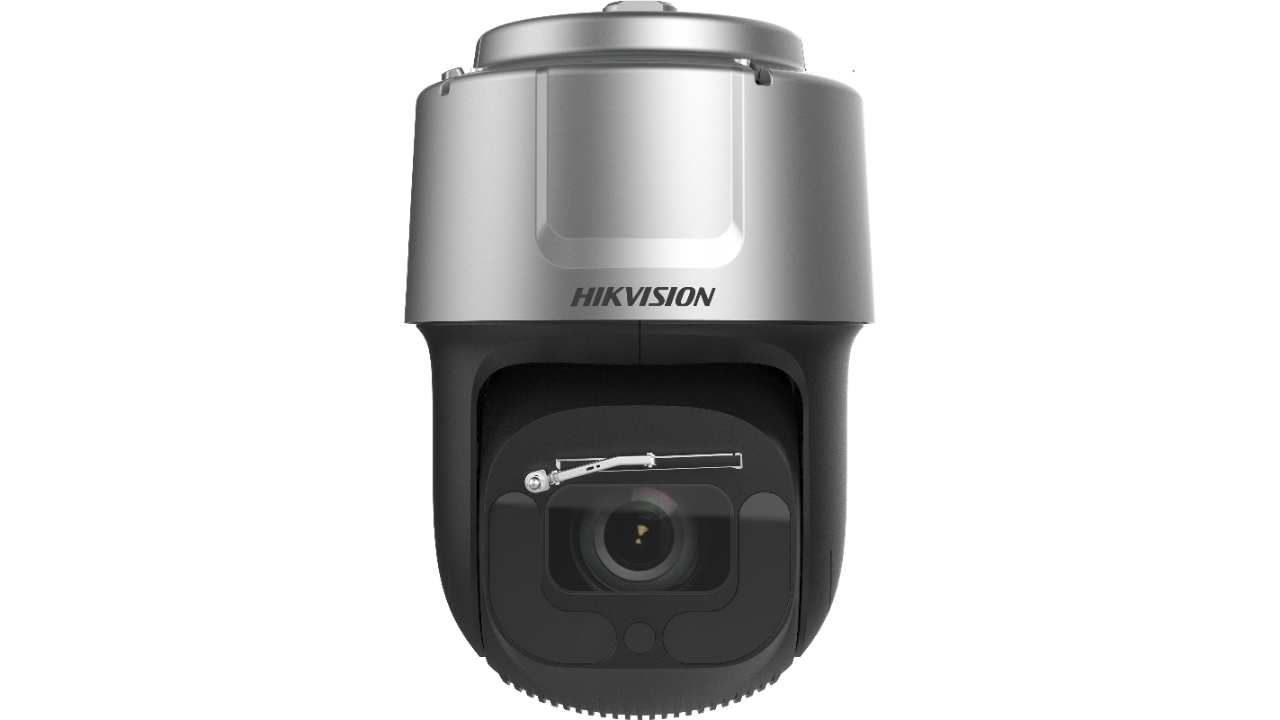

Hikvision DS-2DF8C835MHS-DELW 8MP (4K) PTZ Camera, 35x Zoom, up to 300m IR, IP66, IK10, Hi-PoE/24VAC

Model: DS-2DF8C835MHS-DELW

Who This Is For

For security integrators and site managers who need a single camera to cover large, open areas without deploying a cluster of fixed units - the Hikvision DS-2DF8C835MHS-DELW is built for that brief. Its 35x optical zoom and 300m IR range make it a serious tool for perimeter monitoring at industrial sites, transport depots, ports, and large commercial properties where distances are long and lighting is unpredictable. The 8MP 4K sensor means that zoomed footage retains enough resolution to be operationally useful, not just usable. The IK10 housing and IP66 rating address the reality of outdoor exposed mounting - whether that is a rooftop bracket, a high-pole installation, or a position along a fence line. Hi-PoE and 24VAC power options give installers flexibility when running infrastructure to remote mounting positions. This is a specification-grade camera for sites that have specific coverage requirements and installers who know exactly what they need.

What This Camera Actually Does

Who Buys This Model

• Security Integrators on Large Commercial Projects: Specifying a high-zoom PTZ for a site where one camera needs to cover the work of several fixed units - the 35x optical zoom and 300m IR range make this viable for open yard, perimeter fence, and approach road applications.
• Industrial Facility Managers: Covering large outdoor areas including loading docks, tank farms, and access roads where the camera will face real weather conditions - the IP66 and IK10 ratings confirm it is built for exposed outdoor mounting.
• Transport and Logistics Operators: Monitoring vehicle movements across large hardstand areas or entry lanes where the combination of 4K resolution and 35x zoom allows operators to zoom into specific vehicles or activity zones without losing image quality.
• Councils and Infrastructure Managers: Deploying cameras on poles or elevated mounts across parks, waterfronts, or public spaces where scheduled patrols and auto-tracking reduce the need for dedicated operator attention during low-activity periods.
• Control Room Operators Requiring Automated Monitoring: Sites with a monitoring room where staff cannot dedicate a single operator to each PTZ - intelligent tracking and scheduled patrol routines allow the camera to maintain coverage autonomously between operator-directed events.

Honest Assessment

The DS-2DF8C835MHS-DELW performs where long-range outdoor PTZ coverage is the core requirement. The 35x optical zoom combined with 4K resolution is a genuine advantage over lower-resolution PTZ models - zoomed footage at 8MP still carries enough detail for post-incident review. The 300m IR range is among the longer illumination distances available in the PTZ category, and the -40 to 70 degree operating range means the camera handles both harsh Australian summer heat and cold-climate installations without compromise. The IK10 rating adds meaningful protection on exposed or elevated mounts.

Where this camera is not the right tool: small indoor areas, tight retail spaces, or fixed single-angle monitoring tasks where a dome or turret camera is simpler and lower cost. This is also a heavier unit at approximately 5kg - wall brackets, pole mounts, and junction boxes all need to be specified accordingly. If the requirement is purely static wide-angle coverage, a multi-sensor panoramic camera may be a more cost-effective solution. The DS-2DF8C835MHS-DELW is available through Security Australia and suits integrators working to a specific brief rather than general-purpose installs.

Before You Buy

Quick Fit Check

• Good match if: You are covering a large open outdoor area - perimeter fence line, vehicle yard, or long access road - where the 35x optical zoom and 300m IR range allow a single camera to monitor distances that would otherwise require multiple fixed cameras.
• Good match if: The site already has 24VAC infrastructure, or you are specifying a Hi-PoE switch into the system design and need a PTZ that runs cleanly on either power type without a separate power supply unit.
• You may need a different model if: The requirement is wide-area static coverage without active PTZ operation - a multi-sensor panoramic camera covers 180 or 360 degrees simultaneously with no blind spots during movement, which a PTZ cannot match when it is pointed in one direction.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need long-range PTZ coverage with 4K resolution - the combination of 35x optical zoom, 300m IR, and 8MP output is positioned for large outdoor sites where both range and image detail are non-negotiable.
• You may need a different model if: The site requires simultaneous 360-degree awareness without any coverage gaps during pan movement - a multi-sensor panoramic or fisheye camera captures all directions at once and may be more appropriate for high-traffic intersections or open concourse areas.
• Pairs well with: A Hi-PoE capable NVR or PoE switch with sufficient per-port wattage, combined with a high-capacity storage NVR to handle 4K continuous recording across long retention periods.

Common Questions

1. Will a standard PoE switch power this camera?

   No. This camera requires Hi-PoE (also called High Power over Ethernet), which delivers significantly more wattage than standard IEEE 802.3bt (51 W) or 802.3at (30W) PoE. Standard PoE switches will not provide sufficient power for this unit. You need either a Hi-PoE capable switch or NVR port, or a 24VAC transformer located at or near the mounting point. Check the wattage specification of your switching infrastructure before ordering.

2. What is the pan and tilt range on this PTZ?

   The pan range is 360 degrees continuous (no mechanical stop), and the tilt range is confirmed to support standard PTZ positioning for overhead and near-horizontal mounting scenarios. The camera supports preset positions, patrol paths between presets, and pattern recording. The auto-tracking function operates within the full pan and tilt range, following subjects automatically without requiring operator input once triggered.

3. How does the 35x optical zoom affect image quality at maximum range?

   Optical zoom does not degrade image quality - it uses the physical lens to magnify the subject rather than cropping digitally. At 35x zoom, the focal length reaches 205.2mm and the horizontal field of view narrows to 2.0 degrees. Combined with the 8MP sensor, the camera retains full 4K resolution at any zoom position. The additional 16x digital zoom does interpolate, so image quality will soften beyond 35x optical - for identification-grade detail at long range, optical zoom is the relevant figure.

4. Does this camera work in Australian outback or remote site conditions?

   Yes. The operating temperature range of -40°C to 70°C covers the extremes of remote Australian environments, including high-heat mining and resource sites where ambient temperatures can push well above 50°C. The IP66 rating addresses dust ingress - relevant for arid or dry-season conditions where fine dust accumulation is a camera-killer for lesser-rated housings. The IK10 rating also addresses accidental or deliberate impact on remote sites where maintenance visits are infrequent.

5. Will the auto-tracking function create coverage gaps while following a subject?

   Yes - this is a fundamental PTZ limitation that applies to this camera and all PTZ designs. When the camera tracks a subject, it moves away from its resting overview position. Any activity occurring outside the camera's current field of view during tracking will not be recorded from that angle. For sites where simultaneous full-area coverage is critical, a PTZ should be deployed alongside fixed cameras covering key zones, rather than as a standalone coverage solution.

6. How much storage does 4K recording at 25fps require?

   Storage consumption at 4K depends on compression codec, scene complexity, and recording mode. H.265+ compression substantially reduces bitrate compared to H.264 by applying intelligent encoding to static background areas. In practice, continuous 4K H.265+ recording at moderate scene complexity will consume significantly more storage than 1080p - storage planning should account for the required retention period (typically 30 or 90 days for commercial sites) and use a high-capacity NVR. The team at Security Australia can assist with storage calculations based on your specific recording schedule and retention requirements.

7. Does this camera support human and vehicle classification for smart alerts?

   Yes. The DS-2DF8C835MHS-DELW supports AI-based human and vehicle classification, which filters motion events by target type before triggering an alert. This reduces false alarms caused by wind-blown debris, lighting changes, and small animals. When configured correctly through the camera's VCA settings, alerts can be set to trigger only on confirmed human or vehicle detections rather than all motion, which is relevant for large outdoor sites where generic motion detection would generate an unmanageable alert volume.

Downloads & Resources

No downloads available for this product.
