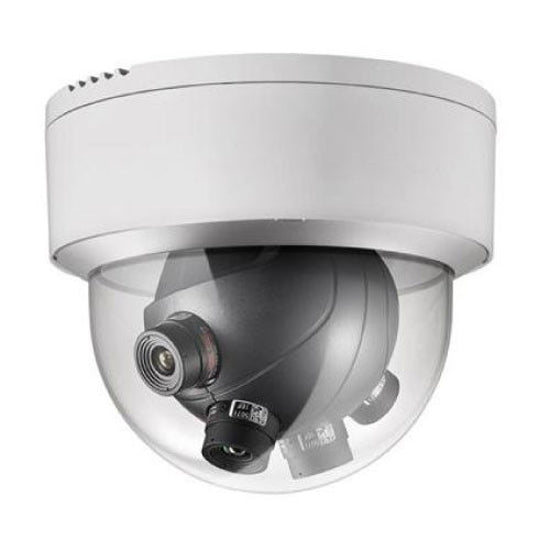

Hikvision DS-2CD6986F-(H) 8MP PanoVu Panoramic Dark Fighter CCTV Camera

Model: DS-2CD6986F-(H)

Who This Is For

For security consultants and integrators who need to eliminate blind spots across large open areas without deploying a grid of individual cameras, the Hikvision DS-2CD6986F-(H) is a purpose-built panoramic solution. Using 4 motorised varifocal lenses at 5mm each, this camera delivers an 8MP combined view across wide horizontal fields - making it suited to car parks, large retail floors, transport hubs, warehouse interiors, and building perimeters where a single camera position must carry significant coverage responsibility. The Dark Fighter sensor performs down to 0.002 Lux, which means usable footage in conditions where most standard cameras fall back to grainy monochrome. Built to IP66 and IK10, it handles outdoor installation and vandal-prone environments. With PoE+ (802.3at) support and deep learning-based human and vehicle detection onboard, this is a camera for professionals specifying systems where coverage area and image intelligence matter more than purchase price.

What This Camera Actually Does

Who Buys This Model

• Security Integrators on Commercial Projects: Specifying camera layouts for car parks, shopping centre concourses, or transport terminals where a single panoramic position replaces 3 or 4 standard cameras - reducing infrastructure cost while maintaining 8MP detail across the full field.
• Warehouse and Logistics Managers: Monitoring large internal floor areas, loading dock approaches, or yard perimeters where the 4-lens panoramic view provides full situational awareness from a single ceiling or wall mount - paired with human and vehicle detection for after-hours intrusion alerts.
• Councils and Infrastructure Operators: Covering public spaces, pedestrian plazas, or open-air facilities where wide horizontal coverage, -40°C to 60°C operating tolerance, and IK10 vandal resistance are all specification requirements.
• Strata and Property Managers on High-Value Sites: Installing in basement car parks or building entries with mixed lighting conditions where 120 dB WDR and Dark Fighter performance at 0.002 Lux together handle the extremes of early morning and evening lighting shifts without manual adjustment.

Honest Assessment

The DS-2CD6986F-(H) is genuinely strong at consolidating wide-area coverage into a single camera position. The 4-lens motorised configuration, 8MP combined output, and Dark Fighter performance at 0.002 Lux make it a capable choice for professional installations where eliminating blind spots and reducing infrastructure are both priorities. The IP66 and IK10 housing adds real durability for outdoor or publicly accessible mounting locations. H.265 compression and 5-stream support keep storage and bandwidth manageable across multi-camera NVR setups. Available through Security Australia, this camera is positioned at the commercial-professional tier - it is not a consumer-grade option. It will not suit buyers who need optical zoom or pan-tilt-zoom tracking of moving targets across long distances - a PTZ camera with motorised tracking serves that requirement better. The onboard IR is rated to 30m, so large outdoor perimeters beyond that range need supplementary lighting or a dedicated long-range IR camera alongside this unit.

Before You Buy

Quick Fit Check

• Good match if: You need to cover a wide open area - car park, warehouse floor, or public plaza - from a single camera position, and your NVR supports the camera's 8MP resolution and H.265 compression.
• Good match if: The installation environment has mixed or challenging lighting - outdoor entries, covered loading areas, or spaces with strong backlight - where 120 dB WDR and 0.002 Lux Dark Fighter performance are both needed simultaneously.
• You may need a different model if: Your use case requires active pan-tilt-zoom tracking of moving targets, long-range directional coverage beyond 30m IR, or identification-grade detail at long distances - a PTZ camera or long-range IR bullet camera from the Security Australia range would be more appropriate.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need maximum horizontal coverage from a single camera position with 8MP detail, Dark Fighter low-light performance, and onboard human and vehicle analytics - particularly where eliminating blind spots across a wide area is the primary design objective.
• You may need a different model if: Your use case requires actively tracking and following a moving target across a large outdoor space - a PTZ camera with optical zoom and auto-tracking will serve that requirement where the DS-2CD6986F-(H)'s fixed panoramic lenses cannot reorient to follow movement.
• Pairs well with: A PoE+ managed switch (802.3at) to simplify cabling, and a Hikvision NVR with H.265 and deep learning analytics support to make full use of the onboard human and vehicle detection event data.

Common Questions

1. Will this camera work with a standard PoE switch?

   No. The DS-2CD6986F-(H) requires IEEE 802.3at PoE+ - not the more common 802.3af standard PoE. Standard PoE switches deliver a maximum of 15.4W per port, which is insufficient for this camera. Confirm your switch or injector is rated for 802.3at (up to 30W per port) before purchasing. Alternatively, the camera can be powered by a 12 VDC supply if PoE+ infrastructure is not available.

2. How does the 4-lens panoramic configuration actually work?

   The camera houses 4 separate motorised varifocal lenses, each at 5mm, positioned to cover adjacent horizontal segments. These are combined by the camera's processor into a single 8MP panoramic output at 4096 x 1800 pixels. The lenses need to be aligned and adjusted during commissioning - the horizontal FOV per lens runs from 56.1° down to 2.0° depending on zoom position, and the stitching quality across the combined view depends on correct on-site alignment. This is not a single wide-angle lens - it is a multi-lens array requiring setup time at installation.

3. Does this camera have a built-in microphone and speaker for two-way audio?

   No. The DS-2CD6986F-(H) supports two-way audio via an external microphone and external speaker - neither is built into the camera body. If two-way audio is required at the install location, external audio hardware needs to be connected separately. The audio function is supported at the camera level but depends on the installer providing compatible external components.

4. Will this camera work for outdoor installation in Australian conditions?

   Yes. The IP66 rating prevents dust ingress and withstands high-pressure water jets, making it suitable for exposed outdoor mounting. The IK10 housing resists 20 joule impacts. The operating temperature range of -40°C to 60°C covers the full range of Australian climates including alpine environments and hot northern regions. No additional weatherproof enclosure is required for standard outdoor installation.

5. What does the deep learning analytics actually detect, and how does it reduce false alarms?

   The onboard deep learning classifies detected objects into human and vehicle categories. Analytics events - intrusion detection and line crossing - trigger only when a classified human or vehicle crosses the defined zone or boundary. Standard motion detection triggers on any pixel change, including shadows, wind-blown vegetation, and lighting shifts. By filtering events to confirmed human and vehicle targets, the camera significantly reduces nuisance alarm events reaching your NVR or monitoring platform. No external analytics server is required. The DS-2CD6986F-(H) is part of the Security Australia range for professional integrators specifying intelligent surveillance systems.

6. What NVR channel count does this camera consume, and what resolution does it require from the NVR?

   The DS-2CD6986F-(H) connects as a single camera channel on the NVR, regardless of the 4-lens internal configuration. The combined output is a single 8MP stream at 4096 x 1800 pixels. Your NVR must support 8MP channel recording and H.265 decoding to handle this stream efficiently. If the NVR is limited to 4MP or 5MP channels, it will either downscale the stream or reject the connection depending on the firmware. Verify your NVR's maximum per-channel resolution in the product specifications before pairing with this camera.
