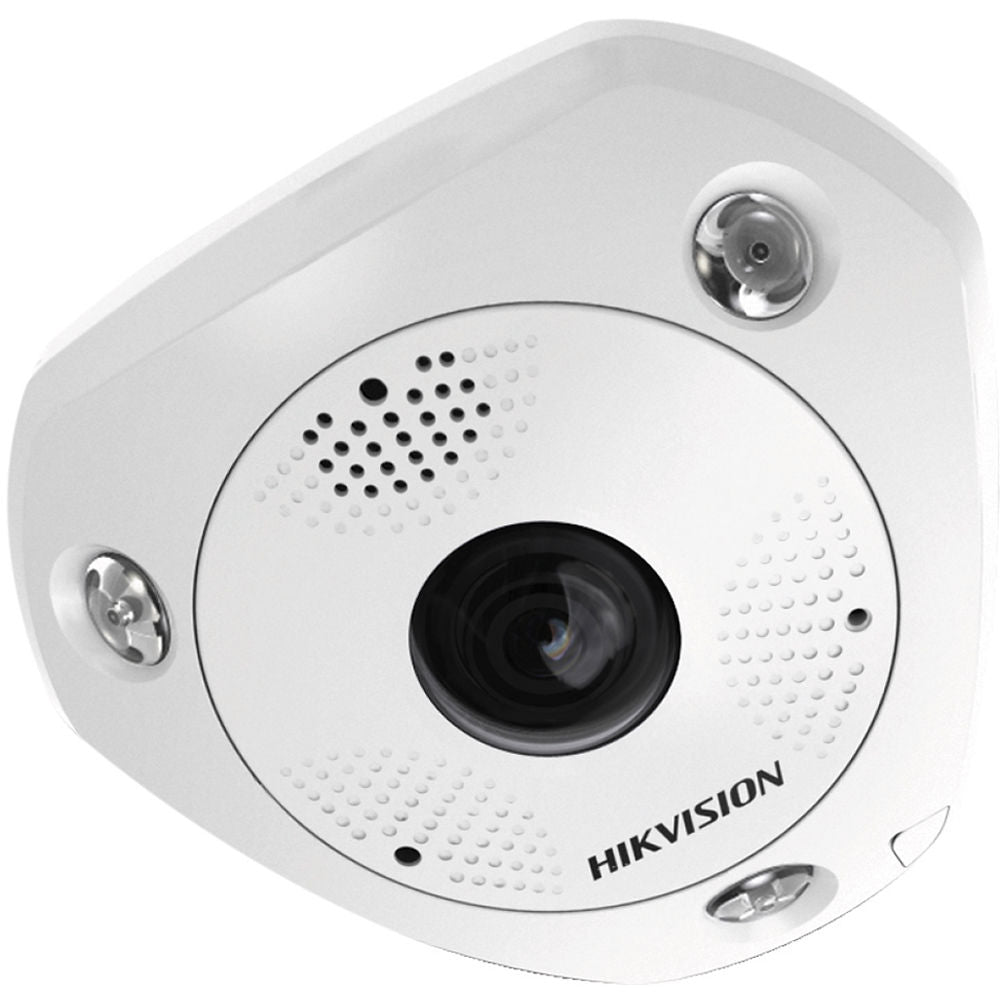

Hikvision DS-2CD63C5G0-IVS 12MP Outdoor Fisheye Camera, Immervision Lens, 15m IR, Built-in Mic, IP66, 1.29mm

Model: DS-2CD63C5G0-IVS

Who This Is For

For security integrators and facility managers who need full 360-degree outdoor coverage from a single camera position without leaving angular blind spots. The DS-2CD63C5G0-IVS is a 12MP outdoor fisheye camera built around an Immervision 1.29mm lens that captures the entire surrounding area in one shot - making it well suited to open courtyards, loading areas, car parks, foyers with high ceilings, and school grounds where multiple fixed cameras would otherwise be needed. At 4000 x 3000 resolution, there is enough pixel density across that 360-degree panorama to dewarped views remain usable at individual zones. The IP66 housing handles rain and dust for permanent outdoor installation, and the built-in microphone adds an audio layer to what is captured. Suited to sites running Hikvision NVR infrastructure where a single ceiling or ceiling-edge mount point is the only practical option.

What This Camera Actually Does

Who Buys This Model

• Security integrators on commercial fit-outs: Specifying a single camera position on a column or ceiling centre-point to cover an entire open floor area - replacing 3 or 4 fixed cameras with one dewarped panoramic view.
• School and childcare facility managers: Covering outdoor play areas or common courtyards where every corner must be visible from one mount point and audio context adds an extra layer of incident documentation.
• Car park and property managers: Installing on a central pole or undercover pillar where the 360-degree field eliminates the angular dead zones that standard fixed cameras leave between units.
• Retail loss-prevention teams: Mounting above open floor layouts where a fisheye captures till areas, entry points, and floor circulation simultaneously, with 12MP resolution maintaining usable dewarped detail.
• Facilities running Hikvision NVR infrastructure: Adding panoramic coverage to an existing Hikvision system using PoE 802.3af from the same switch - no additional power run required.

Honest Assessment

The DS-2CD63C5G0-IVS does what a 12MP fisheye should: it captures a true 360-degree panorama with enough resolution that dewarped regional views remain genuinely useful rather than pixelated. The Immervision lens, 120 dB WDR, and 0.03-lux low-light sensitivity are strong performers for the format. IP66 makes outdoor wall or pole mounting straightforward, and the built-in microphone adds audio without requiring a separate device. The PoE 802.3af standard means a single cable handles power and data in most installations.

Where this camera has limits: the 15-metre IR range is relatively short for large open outdoor areas, so sites needing recognition at 30 metres or beyond will need supplemental lighting or a different camera type. The fisheye format also means image quality at the perimeter of the dewarped view will always involve some compromise compared to a dedicated fixed lens covering the same zone. For long-corridor or perimeter fence line coverage, a bullet or varifocal turret camera available through Security Australia will serve better.

Before You Buy

Quick Fit Check

• Good match if: You need full 360-degree outdoor coverage from a single mount point - a central column, ceiling position, or pole - and your NVR supports fisheye dewarping for the Hikvision DS-2CD63C5G0-IVS.
• Good match if: Your site has strong ambient lighting or is within 15 metres of the camera mount point at night, and your installation runs PoE 802.3af from an existing Hikvision switch.
• You may need a different model if: Your priority is long-distance night detection beyond 15 metres, or you need to cover a linear approach, perimeter fence line, or narrow corridor - where a fixed varifocal bullet or turret camera type will outperform a fisheye format on every metric that matters for that scenario.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need true 360-degree outdoor panoramic coverage from a single cable and mount point, and your NVR supports fisheye dewarping - the 12MP resolution keeps dewarped regional views usable in a way that 4MP or 8MP fisheye cameras cannot match.
• You may need a different model if: Your site requires long-distance night detection beyond 15 metres, or your primary goal is monitoring a linear approach, corridor, or perimeter fence line - a varifocal bullet or fixed turret camera type will deliver meaningfully better performance for those scenarios.
• Pairs well with: A Hikvision PoE NVR with fisheye dewarping support, giving you both panoramic overview and the ability to navigate dewarped zones during live view and playback from a single camera channel.

Common Questions

1. Does this camera work on a standard PoE switch, or does it need PoE+?

   Standard PoE (IEEE 802.3af) is sufficient. The DS-2CD63C5G0-IVS supports both 12V DC and 802.3af PoE, which means any 802.3af-capable PoE switch or injector will power the camera over a single Cat5e or Cat6 cable. PoE+ (802.3at) is not required, which keeps it compatible with most existing Hikvision PoE NVRs and third-party managed switches without needing a higher-wattage port.

2. Will this camera record audio as well as video?

   Yes, audio recording is supported. The DS-2CD63C5G0-IVS has a built-in microphone that captures ambient audio alongside video. Note that there is no confirmed built-in speaker on this model, so two-way audio (listen and speak back) is not a confirmed capability. Audio recording via the microphone requires your NVR to have audio recording enabled on the relevant channel.

3. How does dewarping work with this fisheye camera - do I need special software?

   Dewarping converts the circular fisheye image into usable flat or PTZ-style views. This can be handled in-camera (the camera outputs a pre-dewarped stream), by a compatible Hikvision NVR that supports fisheye dewarping natively, or through compatible VMS software. Before installing, confirm that your specific Hikvision NVR model or VMS version supports the DS-2CD63C5G0-IVS for dewarping. If dewarping is only available in software and not on the NVR, you will need a PC-based VMS client to access regionalised views during live monitoring and playback.

4. What are the DORI distances for this fisheye - how far can I actually identify someone?

   DORI distances for fisheye cameras are format-specific and differ significantly from fixed-lens cameras. The 1.29mm focal length and 12MP sensor provide the pixel density, but the 360-degree panorama means pixel density is distributed across the entire scene rather than concentrated in a narrow field. In practice, identification-grade detail (typically requiring around 250 pixels per metre) will be available at close to mid-range distances from the camera - generally strongest within a few metres of the mounting point and degrading toward the outer edges of the dewarped view. For sites where identification at distances beyond 6-8 metres is the primary requirement, a dedicated fixed-lens camera covering that specific zone will outperform any fisheye format. The DS-2CD63C5G0-IVS is part of the Security Australia range and is best specified for overview and detection coverage rather than high-confidence identification at long range.

5. Is the DS-2CD63C5G0-IVS suitable for permanent outdoor installation in Australian conditions?

   Yes, with appropriate positioning. The IP66 rating protects against dust ingress and high-pressure water jets, making it suited for exposed outdoor locations including building exteriors, car park structures, and covered outdoor areas. IP66 does not provide IK-rated impact resistance, so in locations with deliberate tampering risk or high-traffic physical exposure, consider whether a vandal-rated housing is also required. Cable entry points should be sealed during installation to prevent water tracking along the cable into the housing.

6. How much storage will a 12MP fisheye camera use compared to a standard 4MP camera?

   Substantially more. A 12MP stream at full resolution generates roughly 3 to 4 times the data volume of a 4MP stream at equivalent frame rate and compression settings. H.265 compression significantly reduces this compared to H.264 - enabling H.265 on both the camera and NVR is strongly recommended for this model. Plan your NVR storage and switch bandwidth accordingly before deployment, particularly if this camera is one of several high-resolution units on the same system.

7. Does the 360-degree coverage really mean no blind spots?

   In theory, yes - the fisheye lens captures the full surrounding hemisphere. In practice, the mounting position creates the only structural blind spot: directly behind or above the camera housing itself. A ceiling-centre mount minimises this gap for floor-level coverage. A wall or pole mount will leave a small zone immediately behind the camera body. The 15-metre IR range also means the effective detection zone at night is limited to within that radius, so large open areas beyond 15 metres will not be covered in low-light conditions without supplemental lighting.

Downloads & Resources

No downloads available for this product.
