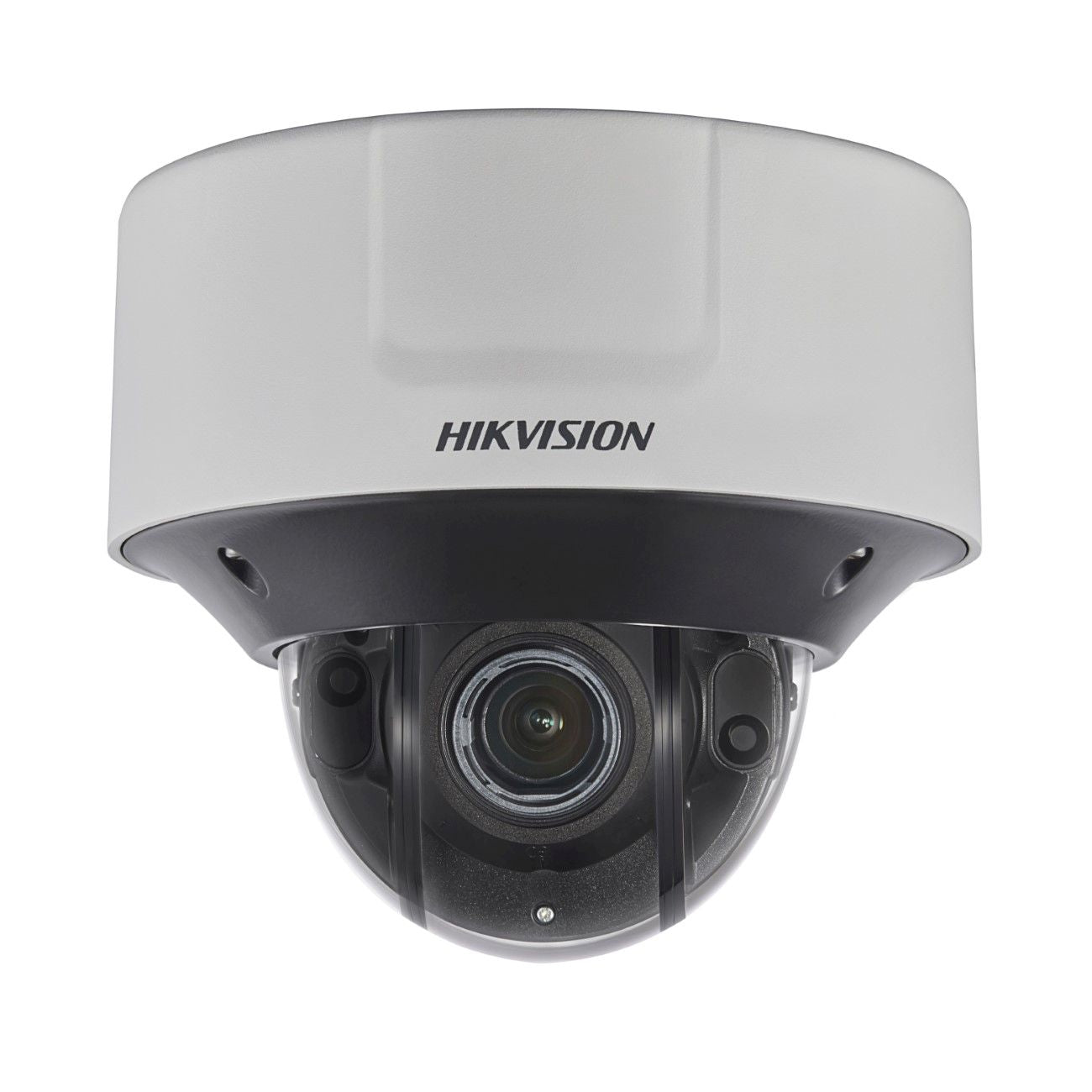

Hikvision iDS-2CD75C5G0-IZHS 12MP DeepinView VF Dome Network Camera
The Hikvision iDS-2CD75C5G0-IZHS is a high-performance 12MP DeepinView VF Dome Network Camera designed for outdoor surveillance applications. This camera offers a range of features for high-quality imaging and efficient operation in various environments.
Key Features
Code/SKU: iDS-2CD75C5G0-IZHS
Quick Specs:
| Image Sensor: | 1/1.7" Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.008 Lux @ (F1.2, AGC ON)0 Lux with IR | |
| Shutter time: | 1 s to 1/100,000 s | |
| Slow shutter: | Yes | |
| Lens: | 2.8 to 12 mm | |
| Lens Mount: | Integrated | |
| Auto Iris: | DC drive, P-iris | |
| Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° | |
| Day& Night: | IR Cut Filter | |
| Wide Dynamic Range: | Digital WDR | |
| Digital noise reduction: | 3D DNR | |
| Focus: | Auto, semi-auto, manual |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
| H.264 code profile: | Baseline Profile/Main Profile/High Profile | |
| Video bit rate: | 32Kbps~16Mbps | |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2/PCM/MP3 | |
| Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/ 8-320Kbps(MP3) | |
| Dual Stream: | Yes | |
| Triple Streams: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 4000 × 3000 | |
| Frame Rate: | 50Hz: 20fps(4000 × 3000), 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720)60Hz: 20fps(4000 × 3000), 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720) | |
| Sub Stream: | 50Hz: 25fps (704 × 576, 640 × 480)60Hz: 30fps (704 × 480, 640 × 480) | |
| Third Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) | |
| Image Enhancement: | BLC, HLC, Defog, EIS, 3D DNR, Lens Distortion Correction | |
| Image Settings: | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser | |
| Distortion Correction: | Support | |
| Target Cropping: | Yes | |
| BLC: | Support | |
| HLC: | Support | |
| Smart Defog: | Support | |
| EIS: | Support | |
| 3D DNR: | Support | |
| ROI: | 4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking | |
| Picture Overlay: | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format | |
| Day/Night Switch: | Auto/Schedule/Day/Night/Triggered by Alarm In | |
| Network | ||
|---|---|---|
| Network Storage: | Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR | |
| Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS | |
| General Function: | One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter | |
| System Compatibility: | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome | |
| Interface | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M/100M/1000M Ethernet port | |
| Audio: | 1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono | |
| Alarm: | 1 input, 1 output (max. 24 VDC/VAC, 1A max.) | |
| Alarm Input: | 1 | |
| Alarm Output: | 1 | |
| Video Output: | 1Vp-p composite output (75 Ω/BNC) (For adjustment only) | |
| On-board storage: | Built-in micro SD/SDHC/SDXC slot, up to 256 GB | |
| Reset Button: | Yes | |
| Audio | ||
|---|---|---|
| Environment Noise Filtering: | Support | |
| Audio Sampling Rate: | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz | |
| Smart Feature-set | ||
|---|---|---|
| Behavior Analysis: | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal | |
| Exception Detections: | Scene change detection, audio exception detection, defocus detection | |
| Recognition: | Face Detection | |
| Statistics: | Object Counting (Entrance and Exit object number is accounted and showed on screen in real time) | |
| General | ||
|---|---|---|
| IR Range: | Up to 30 m | |
| Operation Condition: | -IZS: -30 °C to 65 °C (-22 °F to 149 °F), humidity 95% or less (non-condensing)-IZHS: -40 °C to 65 °C (-40 °F to 149 °F), humidity 95% or less (non-condensing) | |
| Power Supply: | 12 VDC is recommended, 10 to 48 VDC, two-core terminal block, reverse polarity protection,PoE (802.3at, class 4) | |
| Power Consumption: | -IZS:With extra load: 12 VDC, 1.1 A, max. 12 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4Without extra load: 12 VDC, 0.95 A, max. 10 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4-IZHS:With extra load: 12 VDC, 1.4 A, max. 17 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4Without extra load: 12 VDC, 1.2 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4"with extra load" means that an extra device is connected to and powered by the camera. | |
| Impact Protection: | IK10 | |
| Weather Proof: | IP67 | |
| Dimensions: | Camera: Φ162 × 140.3 mm (Φ6.4″ × 5.5″)With package: 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″) | |
| Weight: | Camera: 1450 g (3.2 lb.)With package: 1950 g (4.3 lb.) | |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision iDS-2CD75C5G0-IZHS 12MP DeepinView VF Dome Network Camera
Hikvision iDS-2CD75C5G0-IZHS 12MP DeepinView VF Dome Network Camera
The Hikvision iDS-2CD75C5G0-IZHS is a cutting-edge outdoor dome camera designed to deliver exceptional 12MP high-resolution video surveillance. As part of Hikvision's advanced 7-Line range, this camera excels in capturing finely detailed images for comprehensive monitoring solutions. The integration of advanced infrared technology provides visibility of up to 50 meters at night, making this camera an ideal choice for round-the-clock surveillance needs in various outdoor environments.
Equipped with a versatile 2.8-12mm auto-focus lens, the DS-2CD75C5G0-IZHS allows for flexible field-of-view adjustments, covering vast areas while focusing on specific details as required. Its intelligent video compression supports the H.265+ algorithm, significantly reducing bandwidth and storage requirements while maintaining high video quality. Engineered to withstand harsh conditions, the camera is built with durable materials and is rated to perform reliably in all weather situations.
The DS-2CD75C5G0-IZHS features advanced smart capabilities that enhance its functionality in real-world surveillance applications. With seamless integration into existing Hikvision systems, configuration and management tasks are simplified, allowing for effective monitoring and prompt responsiveness to security incidents.
Features:
Functions:
Comprehensive Area Coverage:
This camera's advanced motorized lens provides broad monitoring capabilities and detailed focus adjustments, allowing for extensive surveillance across large areas effectively.
Effective Night Vision:
The integration of EXIR technology ensures that the camera maintains reliable imaging capabilities in complete darkness, facilitating continuous monitoring during nighttime.
Proactive Security Management:
Utilizing intelligent analytics, the camera can detect unusual activity and alert operators in real-time, enhancing situational awareness and security response strategy.
User-Friendly Configuration:
The intuitive design promotes quick installation and management, making it user-friendly for operators across different levels of expertise within security monitoring.
Reliable Network Integration:
Supports multiple protocols for seamless connection to existing surveillance systems, ensuring robust interoperability and performance enhancement through network resources.
Versatile Storage Options:
Built-in storage capability accommodates local recording of video footage, providing users with flexibility in managing and retaining recorded data efficiently.
Real-Time Monitoring Access:
Allows security personnel to access live feeds and recorded video from remote locations, increasing flexibility in managing security operations.
Durable Outdoor Performance:
Constructed to endure harsh environmental conditions, this camera remains operational and reliable in extreme weather, ensuring consistent performance over time.
Technical Specifications
| Model | iDS-2CD75C5G0-IZHS |
| Image Sensor | High-resolution sensor for 12MP video |
| Resolution | 12MP (4000 x 3000) |
| IR Distance | Up to 50m |
| Lens | 2.8-12mm auto-focus |
| Compression | H.265+ |
| Frame Rate | Up to 30fps at 12MP |
| Wide Dynamic Range (WDR) | 120dB |
| Power Supply | 12V DC / PoE |
| Protection Rating | IP67, IK10 |
