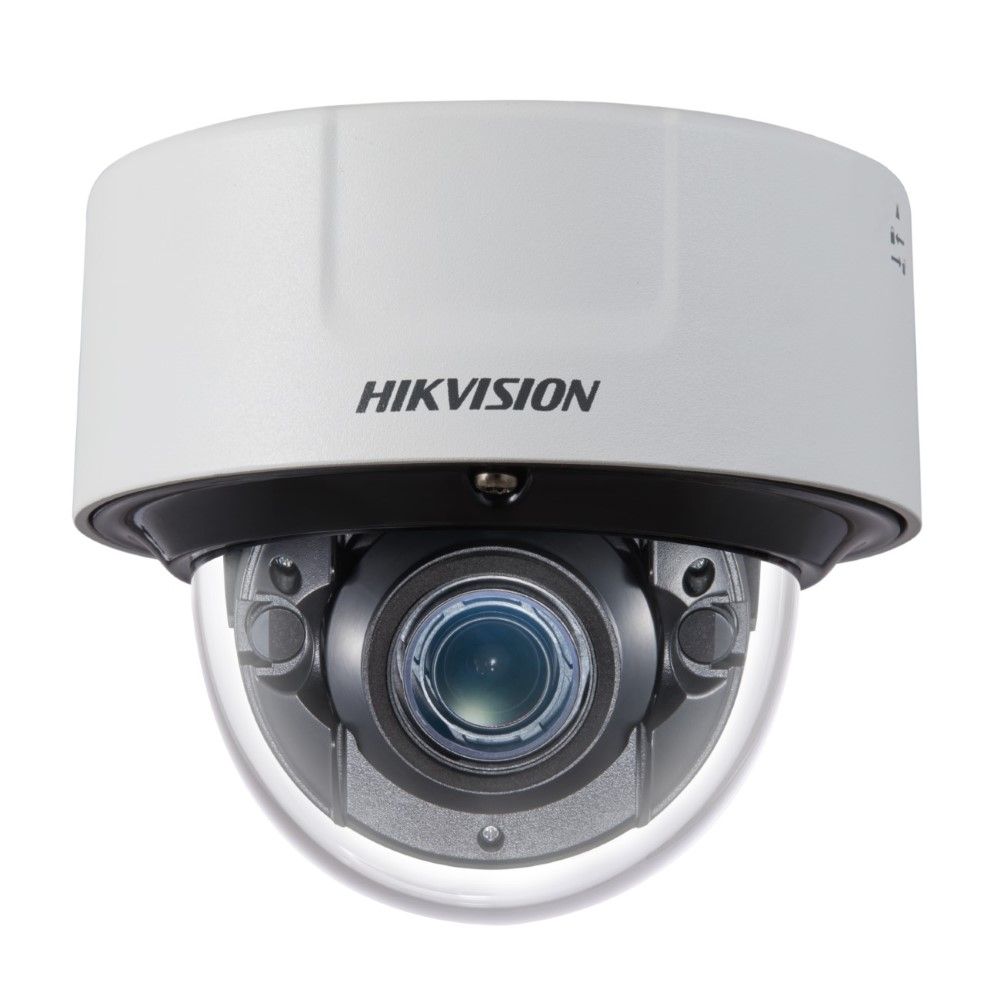

Hikvision DS-2CD5146G0-IZS 4MP DarkFighter Indoor Moto Varifocal Dome Network Camera

Model: DS-2CD5146G0-IZS

Who This Is For

When low-light performance inside a building is the priority, the Hikvision DS-2CD5146G0-IZS is the camera specifiers reach for. Designed for demanding indoor environments - corporate lobbies, casino floors, car park stairwells, aged care corridors, and retail stockrooms - this 4MP DarkFighter dome delivers usable colour footage at illumination levels as low as 0.002 lux. The 2.8-12mm motorised varifocal lens means installers can dial in the field of view from the NVR interface after the camera is physically positioned, which removes the need for repeated ladder trips during commissioning. The 140dB true WDR capability handles the difficult backlit scenarios common near entrance foyers and shopfront windows. At IK10, the housing withstands deliberate impact, making it appropriate for semi-public areas where tampering is a genuine risk. This is a ceiling-mount dome built for installations where image quality in mixed or poor light cannot be compromised.

What This Camera Actually Does

Who Buys This Model

• Retail loss prevention teams: The combination of 4MP resolution, 140dB WDR near shopfront windows, and on-camera object counting covers both security and operational reporting in a single camera.
• Casino and entertainment venue operators: DarkFighter low-light performance at 0.002 lux suits deliberately dim gaming floor environments where standard cameras produce unusable footage after hours.
• Commercial building managers and facilities contractors: The motorised varifocal lens reduces on-site commissioning time across large floor plate installations with many camera positions.
• Aged care and healthcare facility managers: IK10 housing and ceiling-flush dome profile suit corridors and common areas where a discreet, impact-resistant camera is required without drawing attention.
• Security integrators on enterprise fit-outs: PoE or 12VDC dual power input, microSD edge storage, and 5-stream support give integrators the installation flexibility to match a range of head-end NVR configurations.

Honest Assessment

The DS-2CD5146G0-IZS is a well-specified indoor dome for any installation where low-light colour imaging, backlit scene management, and remote lens adjustment need to be solved simultaneously. The 1/1.8 inch sensor with DarkFighter is genuinely larger and more capable in low light than sensors found in standard 4MP domes at lower price points. The motorised varifocal lens provides real commissioning time savings on larger projects. The IK10 rating is confirmed and meaningful for semi-public indoor spaces. Where this camera is not the right tool: it carries an indoor-only rating and is not suited to external mounting, exposed soffits, or any environment with moisture exposure. It also lacks audio hardware - there is no built-in microphone or speaker confirmed in the specification. Buyers requiring two-way audio should confirm compatibility with an external audio accessory or consider a different model. Available through Security Australia, this camera sits within the Hikvision DarkFighter indoor dome range.

Before You Buy

Quick Fit Check

• Good match if: You are covering an indoor area with poor or mixed lighting - such as a casino floor, a dim corridor, or a retail stockroom - and need colour detail at low lux levels backed by the DarkFighter 1/1.8 inch sensor.
• Good match if: Your installation involves multiple ceiling-mount positions that would benefit from remote lens adjustment - the motorised varifocal lens removes the need to physically re-access each dome once mounted.
• You may need a different model if: The installation location is outdoors, partially exposed to weather, or subject to humidity and condensation - in those cases an outdoor-rated dome or turret camera with a confirmed IP66 or IP67 rating is the appropriate product type.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation is indoors, requires colour imaging at very low lux levels, involves backlit scenes, and benefits from remote motorised lens adjustment - particularly on projects with multiple camera positions.
• You may need a different model if: The mounting location is outdoors or exposed to moisture - an outdoor-rated dome or turret camera with a confirmed IP66 or IP67 rating is the appropriate product type for those environments.
• Pairs well with: A Hikvision PoE NVR with remote lens control support, and a managed PoE switch where per-port power budgeting can be confirmed across all camera positions.

Common Questions

1. Will this camera produce usable footage in a very dark indoor environment without visible IR light?

   Yes, to a significant degree. The DarkFighter sensor reaches 0.002 lux in colour mode with AGC on, which means it captures usable colour footage in ambient light levels that would reduce most standard 4MP domes to a near-black image. The 30-metre Smart IR is also available as a fallback if illumination drops below the colour threshold, switching to monochrome with IR fill.

2. Does the motorised varifocal lens adjust remotely or does it require physical access to the dome?

   It adjusts remotely. The motorised varifocal mechanism on the DS-2CD5146G0-IZS is controlled via the camera's web interface or a connected Hikvision NVR, allowing zoom and focus to be set after the dome housing is physically secured to the ceiling. This eliminates the need to open the dome cover post-installation for lens adjustment.

3. Does this camera work with a standard PoE switch, or does it need PoE+?

   Standard PoE is sufficient. The DS-2CD5146G0-IZS supports 12VDC or standard IEEE 802.3af PoE, which is the common standard found on most PoE NVRs and managed PoE switches. PoE+ (802.3at) is not required, which simplifies switch selection and per-port power budgeting on multi-camera deployments.

4. What does the IK10 rating actually mean for this dome?

   IK10 is the highest classification under IEC 62262, confirming the dome housing withstands 20 joules of impact force. In practical terms, this is the level required for semi-public indoor spaces - stairwells, car park interiors, retail stockrooms, and corridors - where the camera may be within reach of an uncooperative subject. It does not confirm outdoor weather resistance; this camera has an indoor housing only.

5. Will this camera work for a scene where a bright window is directly behind the subject?

   Yes. The 140dB true WDR is specifically designed for high-contrast scenes where a bright background would otherwise silhouette the foreground subject. Retail checkpoints near shopfront glass, reception desks facing windows, and entrance foyers with direct external light are the practical cases this WDR level addresses. Standard dome cameras without true WDR will either blow out the window or underexpose the subject in the same scene.

6. Does the camera support edge recording if the NVR goes offline?

   Yes. The DS-2CD5146G0-IZS includes a microSD/SDHC/SDXC card slot supporting up to 256GB of local storage. If the NVR connection is lost, the camera can continue recording to the card. This is useful in stairwells, remote locations within a site, or any position where network continuity cannot be fully guaranteed. The card is not included and must be purchased separately. For further guidance on storage configuration, the team at Security Australia can assist.

7. Does this camera support two-way audio?

   No built-in two-way audio is confirmed for this model. The specification does not list a built-in microphone or speaker in the DS-2CD5146G0-IZS. Buyers who require two-way audio at the camera position should review Hikvision dome models that explicitly confirm both components, or consider an external audio accessory where the NVR and installation support it.
