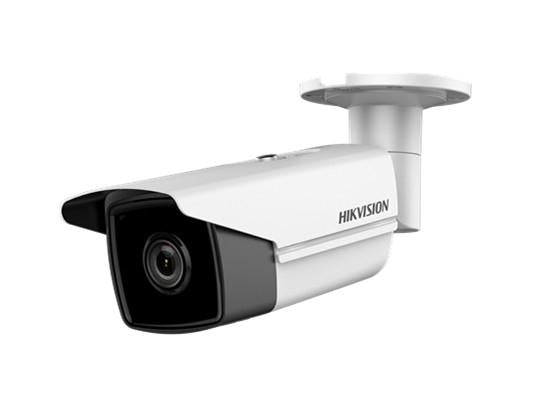

Hikvision DS-2CD4A65FIZ28 6MP Outdoor Bullet Camera

Model: SW-DS-2CD4A65FIZ28

Who This Is For

For security installers and commercial site managers who need a single outdoor bullet camera capable of covering long approaches, entry gates, or perimeter runs without committing to a fixed focal length. The Hikvision DS-2CD4A65FIZ28 uses a 2.8-12mm motorised zoom lens, so the field of view can be dialled in remotely after the camera is mounted - no ladder required to adjust the optics. At 6MP resolution (3072 x 2048), there is enough pixel density to crop into a scene and still pull usable detail from a distance. The 50m Smart IR and IP67 weatherproofing make it appropriate for exposed outdoor positions where conditions are unpredictable. The onboard behaviour analytics - line crossing, intrusion detection, unattended baggage, object removal - add a layer of event-driven alerting that goes beyond basic motion detection. This model suits sites where the monitoring requirement is more specific than a standard fixed bullet can support.

What This Camera Actually Does

Who Buys This Model

• Commercial Installers on Difficult Mounts: Installers working on high-wall or roofline positions where returning to adjust a fixed lens is impractical - the motorised zoom handles field of view correction from ground level after the bracket is secured.
• Industrial and Logistics Site Managers: Warehouse entry points, loading docks, and perimeter fencing where the 50m IR range and IP67 rating handle extended dark approaches and outdoor exposure without performance degradation.
• Retail Operations Requiring Footfall Data: Retail managers who want both visual evidence and object counting at entry points - the onboard counting function tallies entries and exits without requiring a separate analytics server.
• Sites Needing Event-Based Alerting: Security teams who have moved away from motion-only alerts - the onboard line crossing and intrusion rules reduce nuisance triggers from environmental movement like tree branches or passing vehicles outside the defined zone.

Honest Assessment

The DS-2CD4A65FIZ28 does the hard work of a commercial outdoor bullet well. The 6MP sensor combined with the motorised zoom is the genuine standout - you get both the detail to identify subjects at range and the flexibility to adjust coverage after the mount is fixed. The onboard analytics suite is broader than most cameras in this class, covering unattended baggage and object removal alongside the standard line crossing and intrusion rules, which adds real value for managed sites. The IP67 rating and -30°C to 60°C operating range cover most Australian outdoor conditions without additional housing. Where this camera does not suit: it carries no colour night vision capability, so in zero-light conditions the output is monochrome IR only. If full-colour low-light footage is the primary requirement, a TiOC or full-colour variant would be more appropriate. The camera is available through Security Australia alongside compatible PoE switches and NVR recorders if a full system build is planned.

Before You Buy

Quick Fit Check

• Good match if: You are mounting on a high wall or pole position where adjusting a fixed lens after install is not practical - the motorised zoom lets you dial in field of view remotely once the camera is secured.
• Good match if: The site requires onboard event-based alerting (line crossing, intrusion, unattended baggage) without relying on the NVR to process analytics - all rules run on the camera itself.
• You may need a different model if: Full-colour night vision is required at the location - this camera produces monochrome IR imagery in darkness. A full-colour or TiOC bullet would be more appropriate for that use case, and options are available on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a 6MP outdoor bullet with a motorised zoom that can be adjusted post-install, plus onboard behaviour analytics that run independently of the NVR - particularly for commercial or industrial sites with specific zone-based alerting requirements.
• You may need a different model if: Full-colour night footage is the priority - a full-colour or TiOC bullet handles low-light and zero-light scenes in colour rather than monochrome IR. If wide-area coverage with PTZ repositioning is required, a motorised PTZ camera would serve the site better.
• Pairs well with: A Hikvision PoE NVR with H.264+ decoding support to take full advantage of the camera's bandwidth efficiency, and a managed PoE switch that guarantees per-port power delivery at the 802.3af ceiling.

Common Questions

1. Does this camera work with a standard PoE switch?

   Yes. The DS-2CD4A65FIZ28 supports IEEE 802.3af PoE, which is standard across most managed and unmanaged PoE switches. Maximum power consumption is 12W, which sits within the 802.3af budget of 15.4W. However, confirm your switch guarantees the full per-port budget - some budget 802.3af switches throttle output under load, which can cause instability when the camera's IR activates and draw increases.

2. How does the motorised zoom actually work - does it move the camera position?

   No. The motorised zoom adjusts the focal length of the lens optically without physically moving the camera body or changing the aim direction. The zoom range is 2.8-12mm, providing a horizontal field of view from 94.5° (wide) down to 30.5° (telephoto). You control zoom and focus remotely via the camera's web interface, SADP tool, or connected NVR interface - there are no mechanical pan or tilt motors. Once set, the position is retained until you change it.

3. Will this camera record locally if the network goes down?

   Yes. The camera has a built-in microSD/SDXC slot supporting cards up to 128GB. The ANR (Automatic Network Replenishment) feature records to the card when the NVR connection is lost and automatically syncs the missed footage back to the NVR once the network is restored. This makes local storage a genuine backup rather than a manual fallback.

4. Does the 6MP resolution actually make a usable difference compared to a 4MP bullet?

   Yes, particularly when using the regional cropping feature. At 3072 x 2048, the camera captures approximately 50% more pixels than a 4MP sensor. The regional cropping function lets you define a sub-region of the full frame and stream it as a dedicated channel - for example, a tight crop on a doorway from a wider scene - without running a second camera. At 12mm zoom on the motorised lens, the narrower field concentrates that pixel density onto a smaller area, improving effective detail at range.

5. Does this camera support two-way audio?

   No. The audio interface on this camera is listed as a 3.5mm audio in/out port on the -S variant, requiring an external microphone and external speaker to be connected. There is no built-in microphone or built-in speaker in the camera body. Two-way audio would require external audio hardware connected to the audio I/O port, which is only present on the -S model variant.

6. How do I configure the line crossing and intrusion zone rules?

   Configuration is done through the camera's web interface (accessed via browser) or through Hikvision's iVMS-4200 client software. Within the Smart Event settings, you draw virtual lines or polygonal zones on the live image, then set the direction of crossing to trigger on, the sensitivity level, and the linked action (alarm output, email, NVR recording trigger). The rules are processed on the camera itself, so they function independently of whether the NVR has its own analytics licence. Security Australia stocks compatible NVR units that can display and log these camera-side events centrally.

7. Will this camera handle Australian summer temperatures on a north-facing wall?

   Yes, within the stated range. The DS-2CD4A65FIZ28 is rated for operating temperatures up to 60°C, which covers direct sun exposure in most Australian outdoor environments. For installations in extreme heat regions such as north-west Western Australia or Northern Territory where surface temperatures on metal-mounted hardware can exceed 60°C, consider the -H variant rated to the same upper limit but with an extended lower range of -40°C, or use a sun shield bracket to reduce radiant heat loading on the housing.

8. Does the motorised zoom maintain focus automatically when I adjust the zoom level?

   Yes. The DC drive auto iris and motorised focus work together during zoom adjustment - the camera can be set to autofocus after a zoom change so focus tracks the new focal length automatically. For critical installs (e.g. where subject distance is fixed), it is recommended to initiate a one-time autofocus after setting the final zoom position and then lock focus, preventing drift from vibration or temperature variation over time. This is configured within the camera's lens control settings.

Downloads & Resources

No downloads available for this product.
